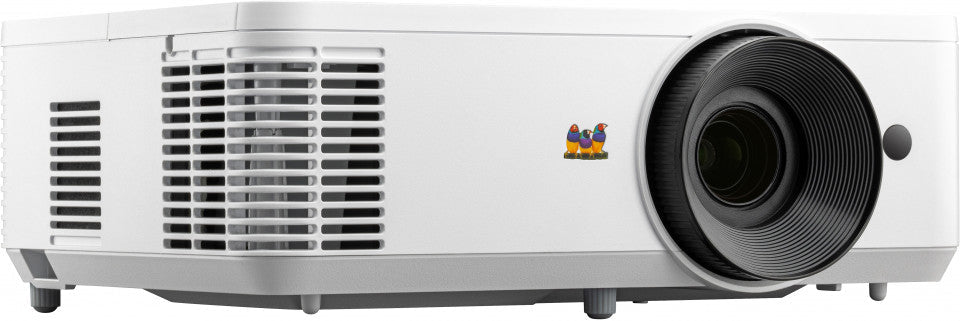

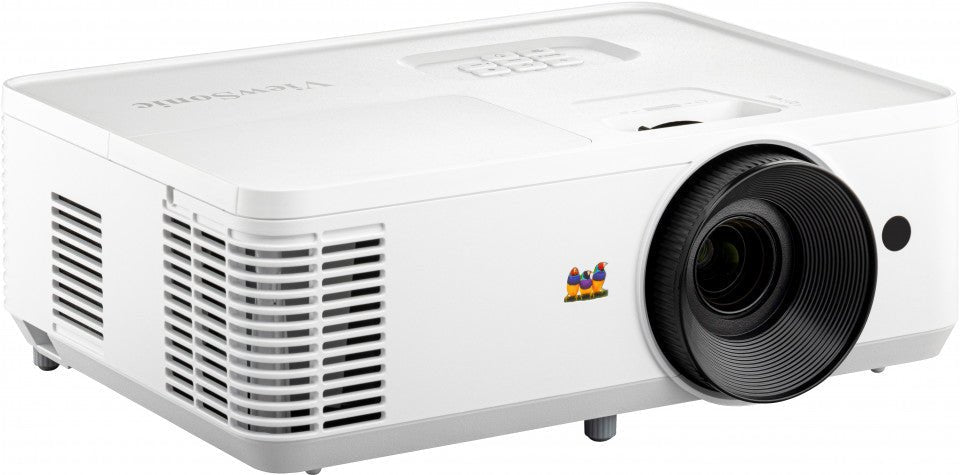

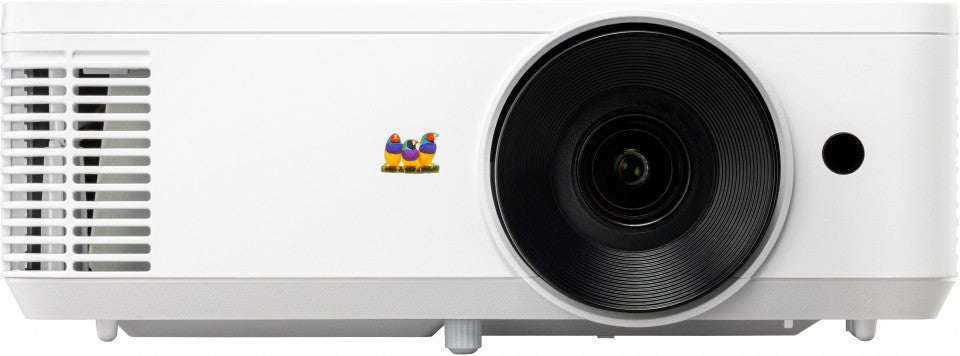

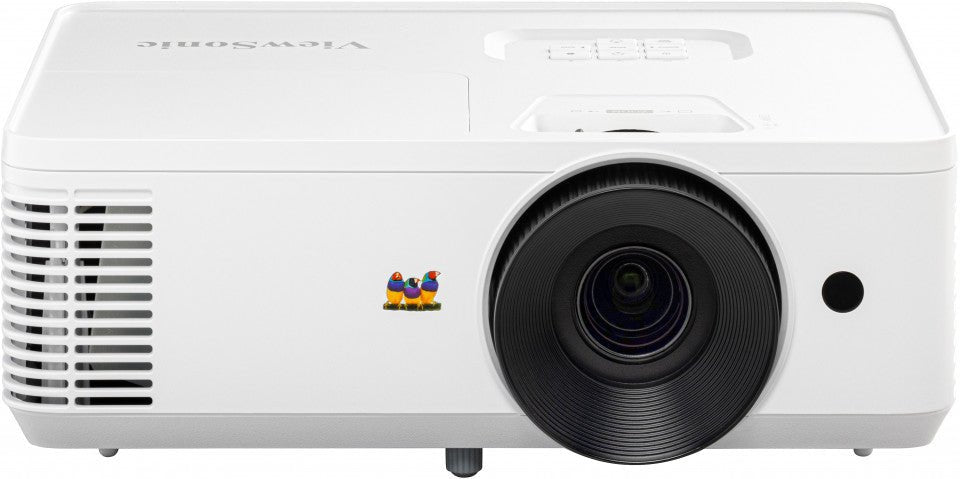

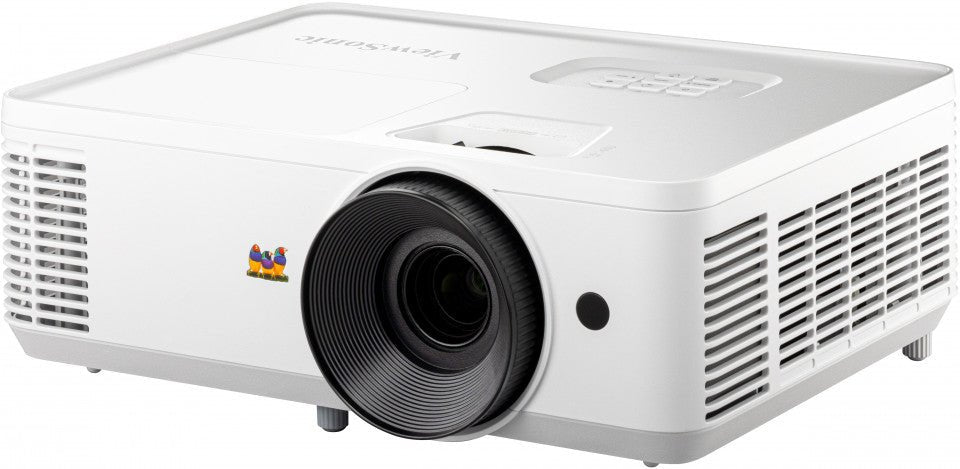

ViewSonic PX704HD 4,000 ANSI Lumens 1080p Full HD Home & Business Projector
PRODUCT DESCRIPTION
ViewSonic PX704HD 4,000 ANSI Lumens 1080p Home & Business Projector - 3 Years Local Warranty
Full HD Pictures That Hold Up in Bright Rooms
The ViewSonic PX704HD projects native 1920 x 1080 images at 4,000 ANSI lumens from a 0.65" DLP chip, so slides, spreadsheets and films stay readable without drawing the blinds. ViewSonic's SuperColor technology and a 22,000:1 contrast ratio (SuperEco mode) give 1.07 billion colours on screen.
Easy to Set Up

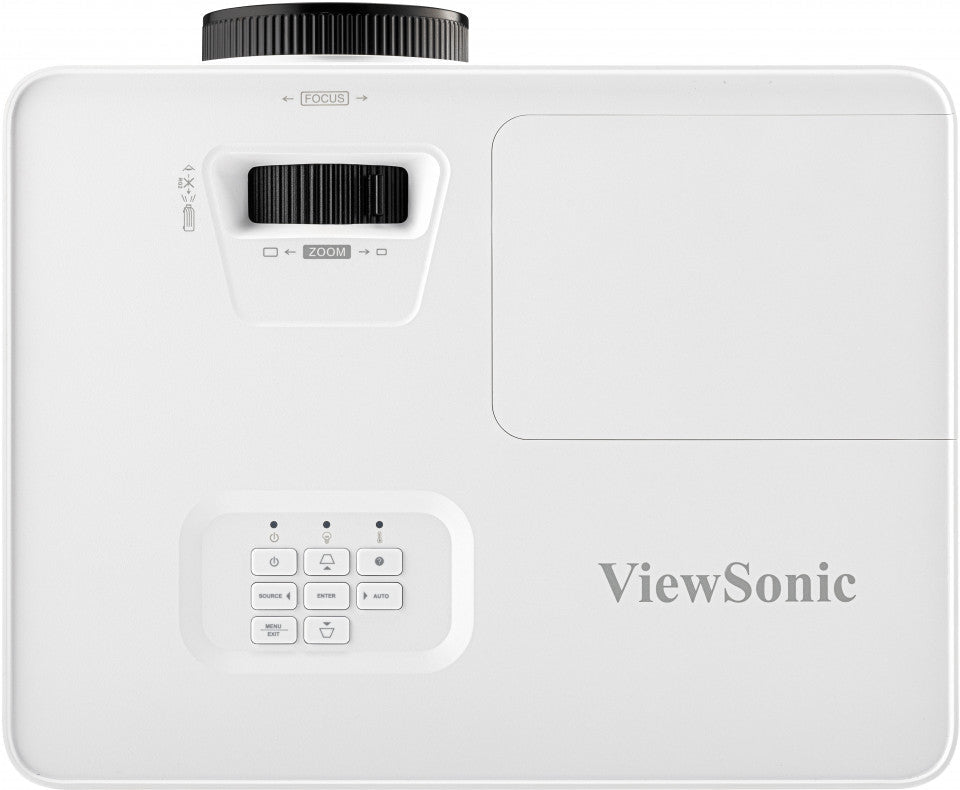

A 1.48–1.62 throw ratio with 1.1x optical zoom fills a 100" image from about 3.28 m, and auto vertical keystone (±40°) squares the picture automatically. Screen sizes run from 30" to 300".
Plug In Streaming Sticks
Two HDMI 1.4 inputs plus a 5 V / 1.5 A USB-A power port let a streaming dongle or wireless presentation receiver sit behind the projector without a separate power adapter. A 16 ms input lag also makes it suitable for casual gaming.
Low Running Cost
The 240 W lamp is rated up to 15,000 hours in SuperEco mode (4,000 hours Normal), and the replacement lamp is RLC-129.
Need projectors for several meeting rooms or classrooms? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
ViewSonic PX704HD Datasheet — Technical Specifications
General
| Product Name | ViewSonic PX704HD 4,000 ANSI Lumens 1080p Home & Business Projector |
| Model | PX704HD |
| Local Warranty (Singapore) | 3 years on-site limited warranty on parts and labour (pick-up and drop-off); lamp 1 year or 1,000 hours, whichever comes first |
Optical
| Projection System | 0.65" 1080p DLP |
| Native Resolution | 1920 x 1080 (Full HD) |
| Brightness | 4,000 ANSI lumens |
| Contrast Ratio | 22,000:1 (SuperEco mode) |
| Display Colour | 1.07 billion colours |
| Light Source | 240 W UHP lamp |
| Lamp Life | 4,000 hours (Normal); 15,000 hours (SuperEco) |
| Lens | F=2.5–2.67, f=21.8–24.0 mm |
| Throw Ratio | 1.48–1.62 |
| Optical Zoom | 1.1x |
| Digital Zoom | 0.8x–2.0x |
| Image Size | 30"–300" |
| Throw Distance | 1–10 m (100" at 3.28 m) |
| Projection Offset | 132% ±10% |
| Keystone | ±40° vertical, auto vertical keystone |
| Input Lag | 16 ms |
Compatibility
| Resolution Support | VGA (640 x 480) to WUXGA_RB (1920 x 1200) |
| HDTV Compatibility | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Horizontal Frequency | 15–102 kHz |
| Vertical Scan Rate | 23–120 Hz |

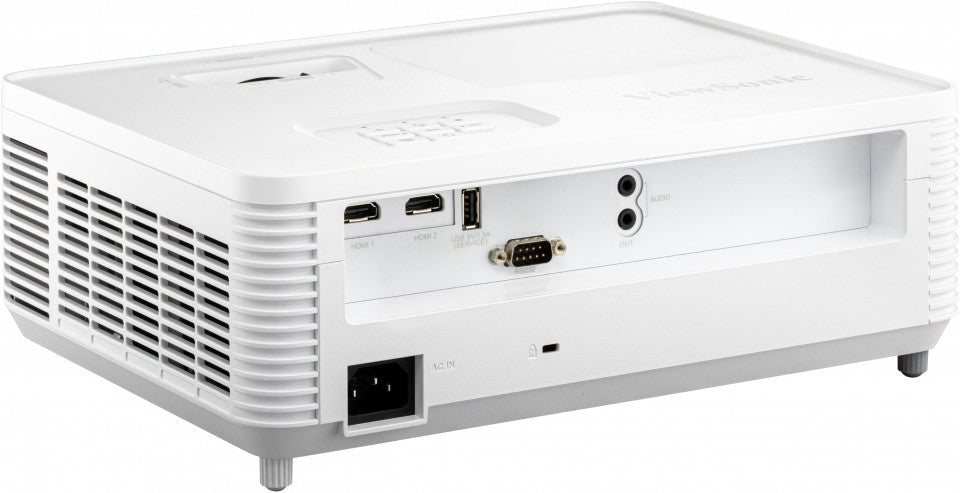

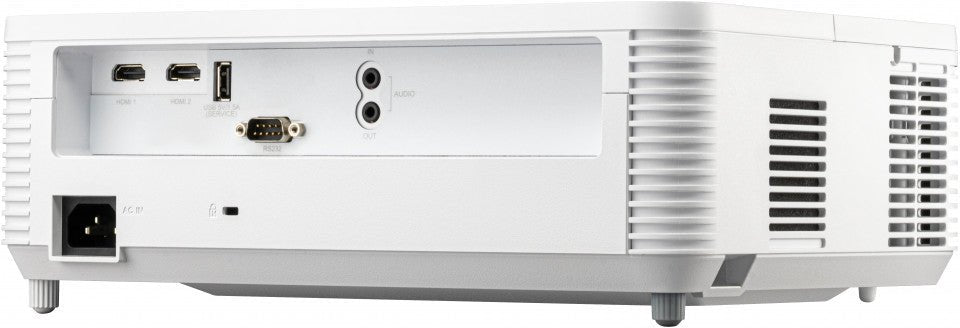

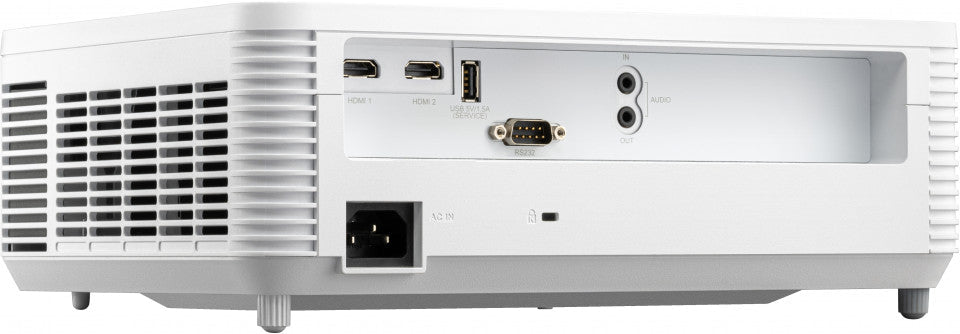

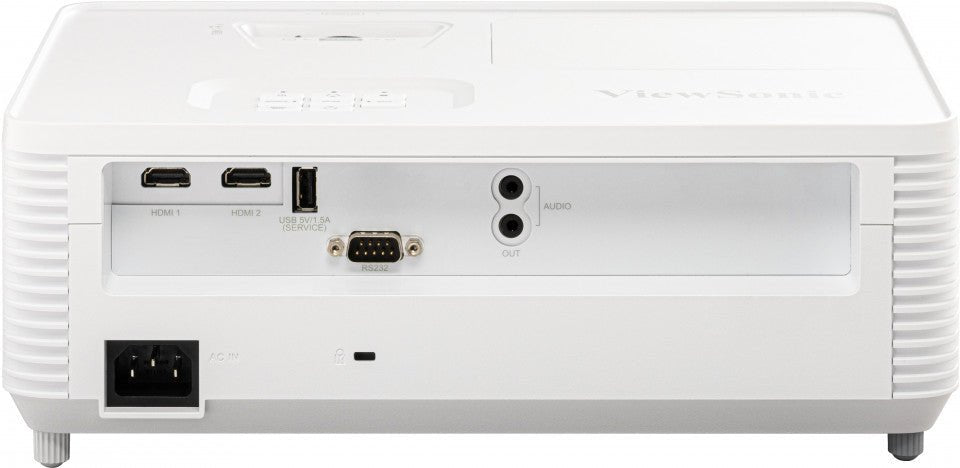

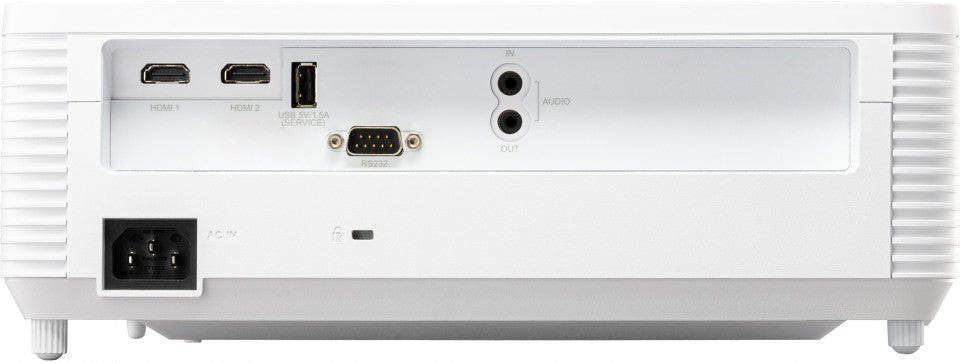

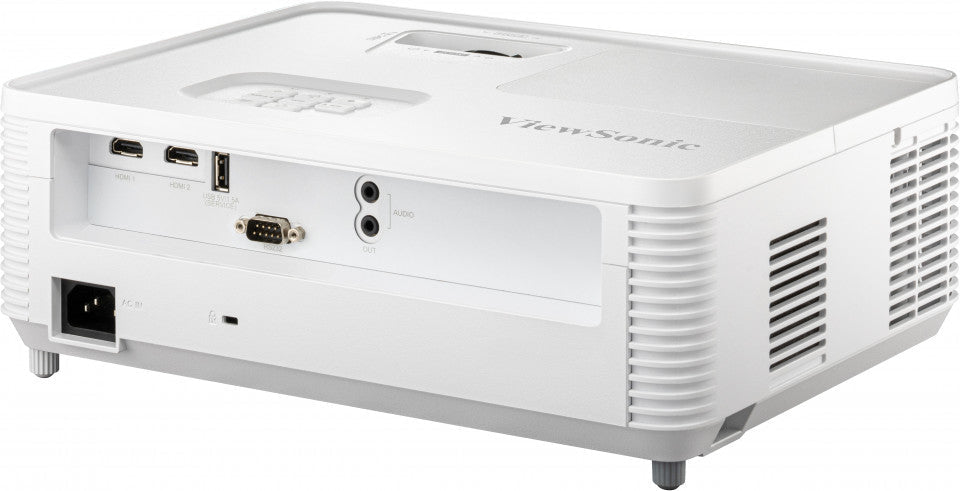

Connectivity
| HDMI | 2 x HDMI 1.4 (HDCP 1.4) |
| Audio In | 1 x 3.5 mm |
| Audio Out | 1 x 3.5 mm |
| USB Power | 1 x USB Type-A, 5 V / 1.5 A |
| USB Service | 1 x USB Type-A |
| Control | 1 x RS232 (DB9 male) |
| Speaker | 3 W |
Power & Environmental
| Power Supply | 100–240 V ±10%, 50/60 Hz |
| Power Consumption | 295 W (Normal); <0.5 W standby |
| Audible Noise | 34 dB (Normal); 25 dB (Eco) |
| Operating Temperature | 0–40 °C |
Physical
| Dimensions (W x D x H) | 309 x 234 x 115 mm (with adjustment foot) |
| Net Weight | 2.7 kg |
| Packing Dimensions | 400 x 337 x 168 mm |
| Gross Weight | 3.8 kg |
| OSD Languages | 23 |
Compatibility & Software Support
Sources
Connect laptops, PCs, media players and game consoles over HDMI. The powered USB-A port (5 V / 1.5 A) can run an HDMI streaming stick or a wireless display dongle such as the ViewSonic WPD-900.
Room Control
The RS232 port supports ViewSonic's RS-232 control protocol for integration with room control systems.
Typical Use

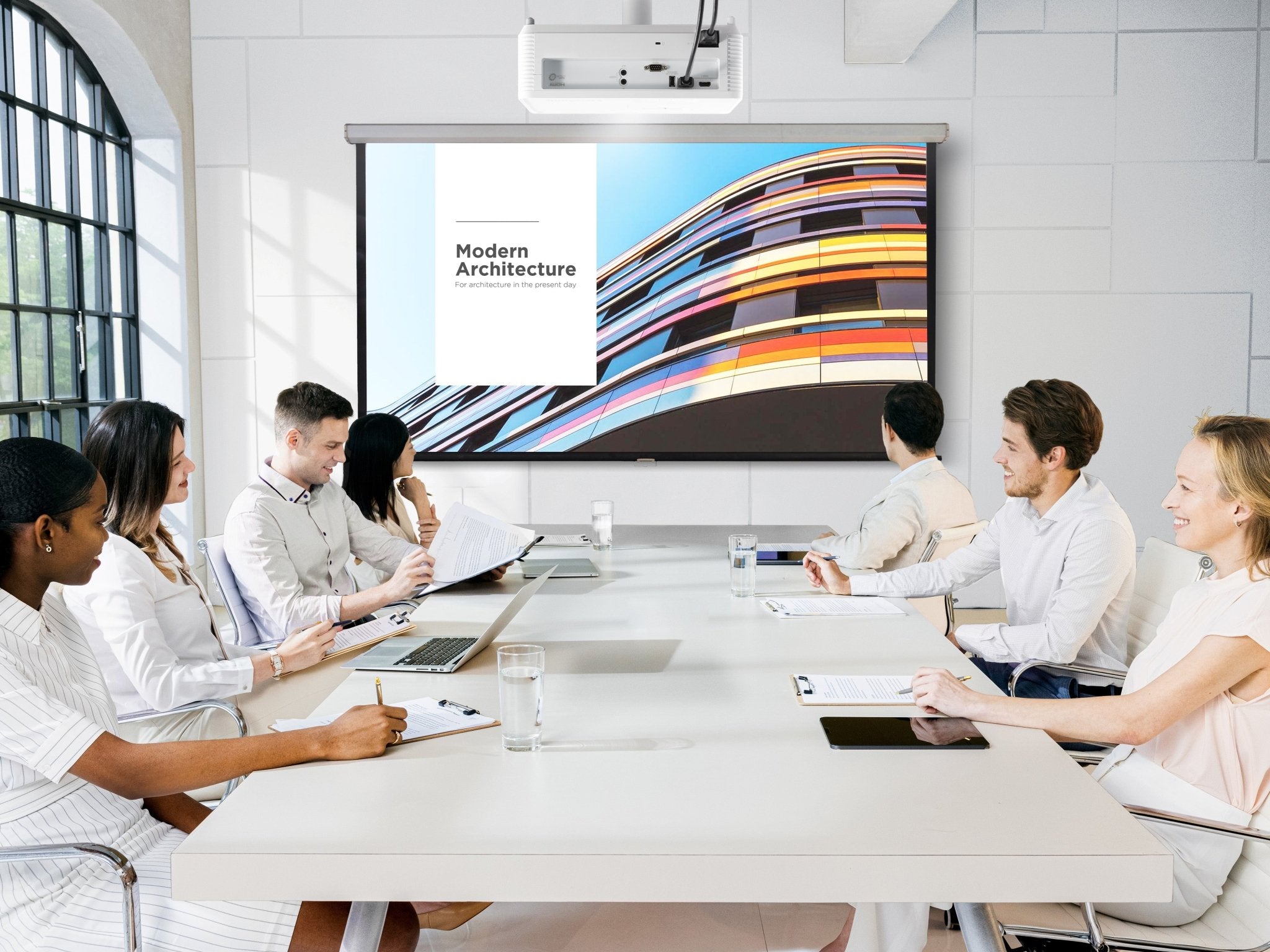

Meeting rooms, classrooms, training rooms and home entertainment where a Full HD picture is needed in a room with some ambient light.
Package Contents & ViewSonic Business Projector Ordering Information
In the Box
PX704HD projector, power cord, remote control, quick start guide.
Optional Accessories
| Replacement lamp | RLC-129 |
| Air filter | RSPL |
| Wall/ceiling mount | PJ-WMK-007 |
| Carry bag | PJ-CASE-008 |
ViewSonic Lamp Business Projectors
| Model | Key feature |
| SP3 | 4,800 lm SVGA |
| SP6 | 4,800 lm XGA |
| PA700X | 4,500 lm XGA |
| PA700W | 4,500 lm WXGA |
| PG707W | 4,000 lm WXGA |
| PS502X | 4,000 lm XGA, short throw |
| PS502W | 4,000 lm WXGA, short throw |
| PX704HD (this listing) | 4,000 lm 1080p Full HD |
Datasheet & Downloads
| ViewSonic datasheet | PX704HD Datasheet |
| User guide | PX704HD User Guide (PDF, English) |
| Quick start guide | PX704HD Quick Start Guide (PDF) |
| RS-232/LAN control | RS-232/LAN Control Protocol Specification V1.5 (PDF) |
| ViewSonic product page | PX704HD on viewsonic.com Singapore |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting PX704HD.
Frequently Asked Questions — ViewSonic PX704HD
How big an image can I get?
From 30" up to 300". A 100" image needs about 3.28 m between the lens and the screen.
Can I plug in a streaming stick?
Yes. Plug it into one of the two HDMI ports and power it from the USB-A 5 V / 1.5 A port.
Is it good for daytime meeting rooms?
At 4,000 ANSI lumens it is designed for rooms with some ambient light.
How long does the lamp last and which replacement do I need?
Up to 15,000 hours in SuperEco mode (4,000 hours Normal). The replacement lamp is RLC-129.
What warranty do I get?
3 years on-site limited warranty on parts and labour (pick-up and drop-off service on Singapore's main island); the lamp is covered for 1 year or 1,000 hours, whichever comes first. Supplied by SourceIT with a GST invoice.
