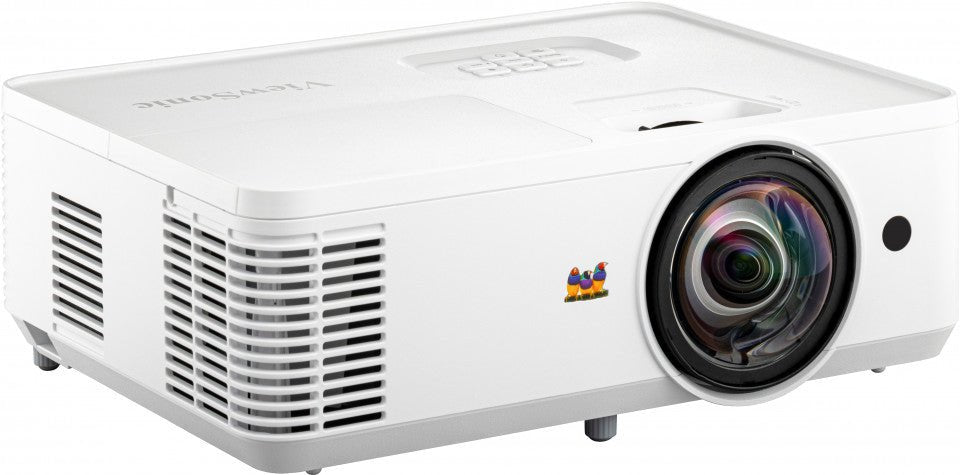

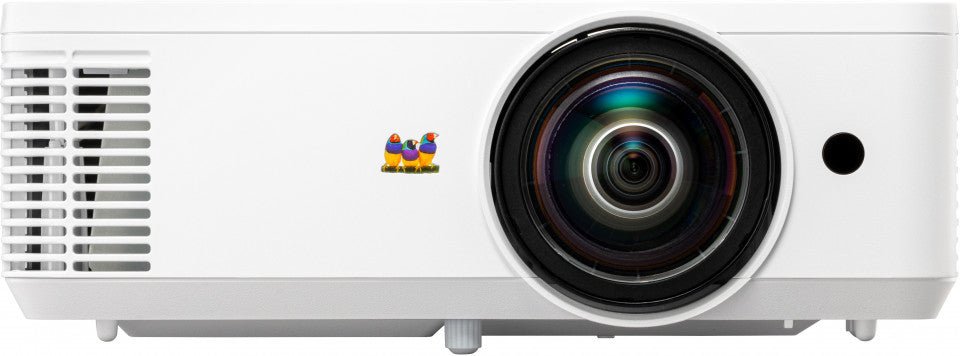

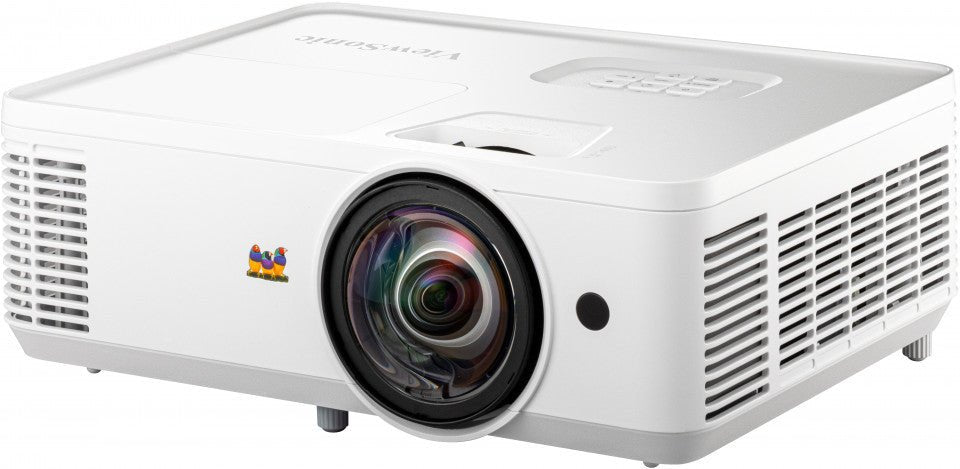

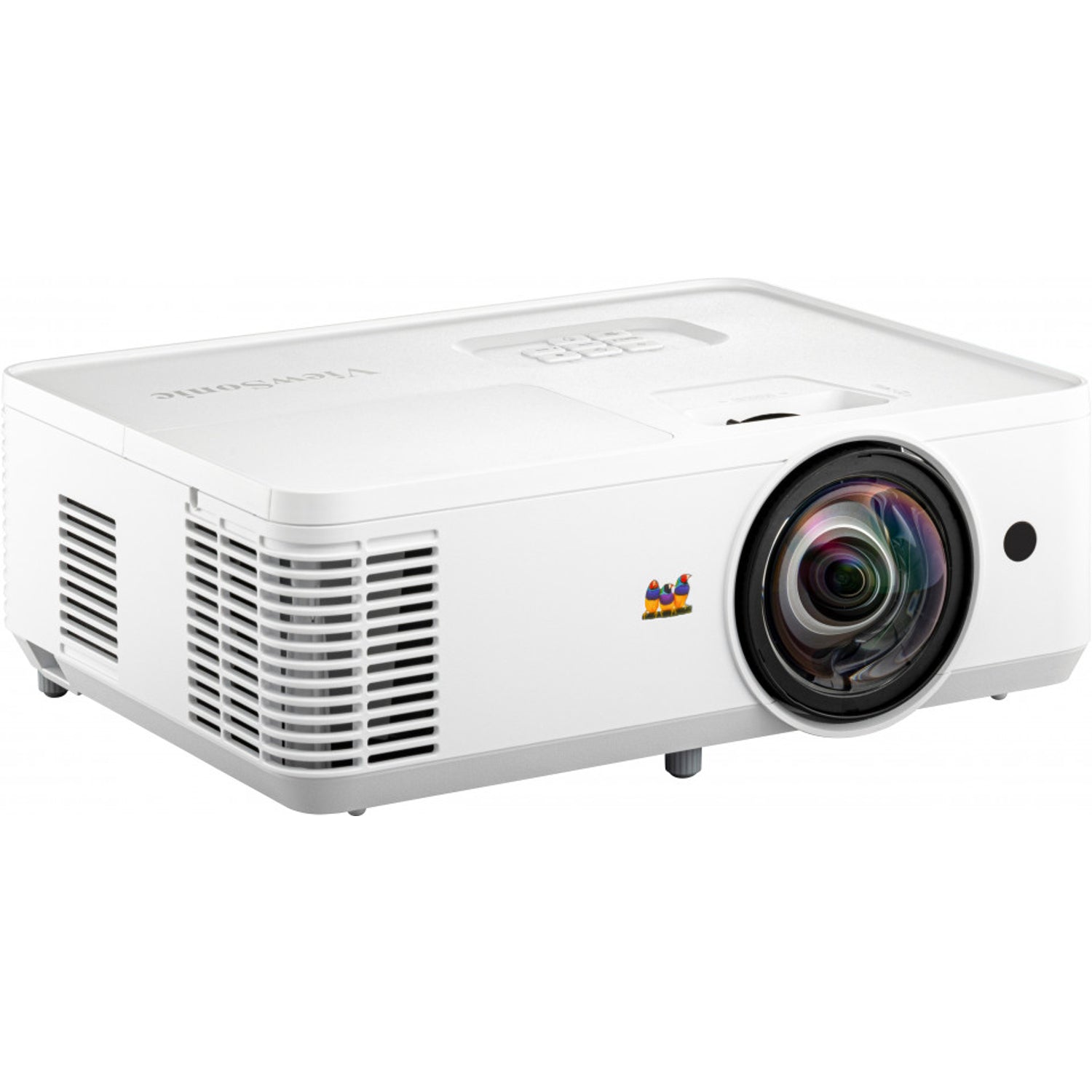

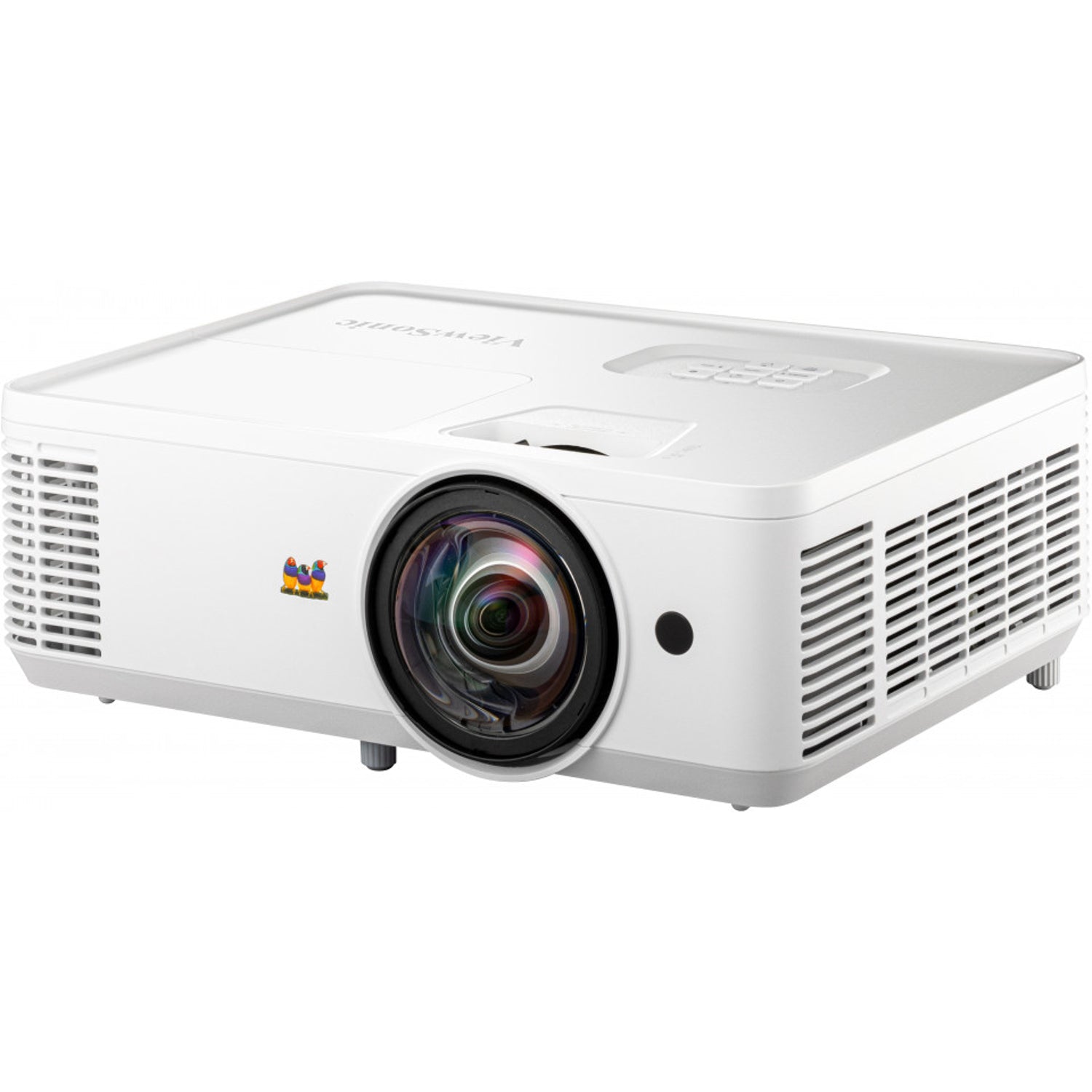

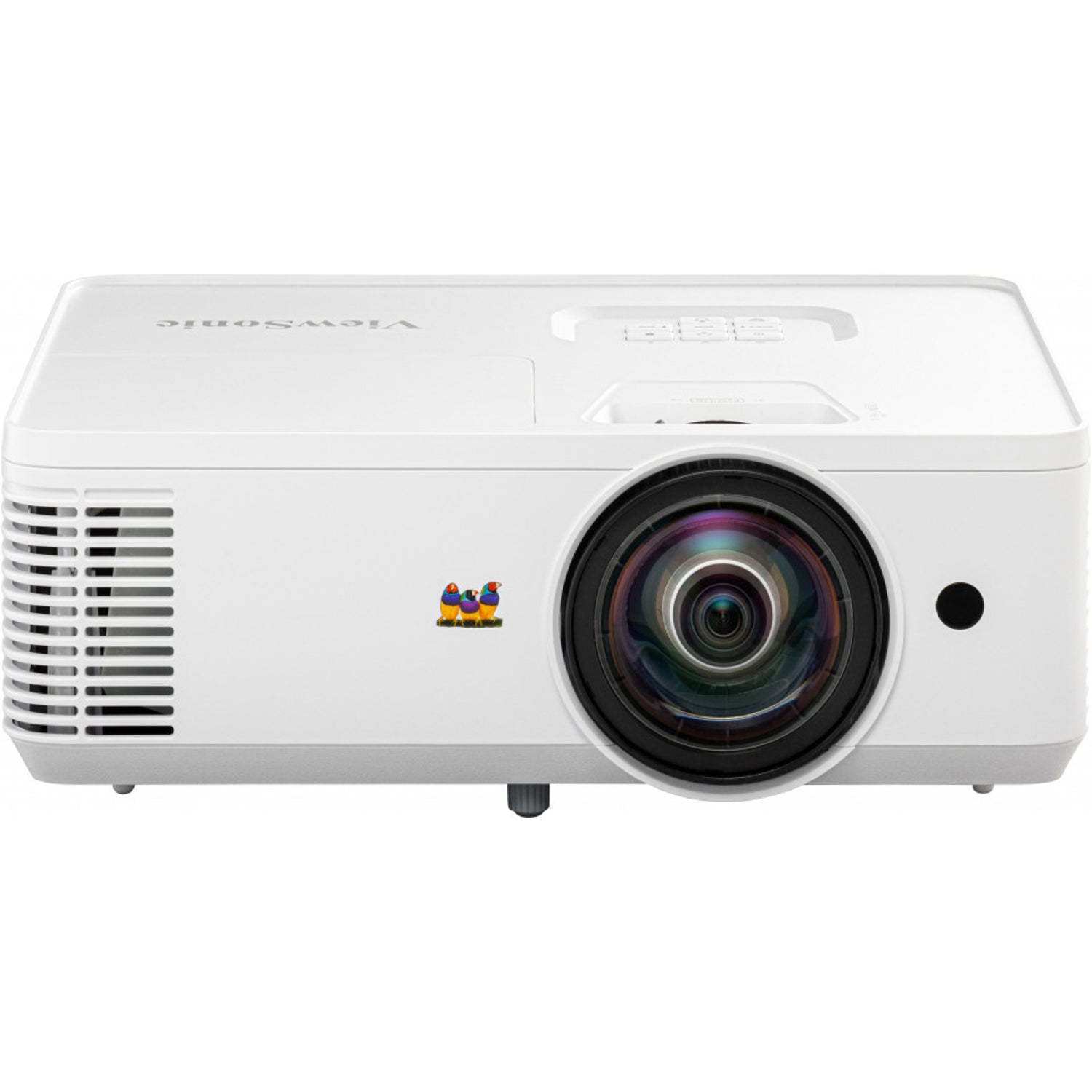

ViewSonic PS502W 4,000 ANSI Lumens WXGA Short Throw Projector
PRODUCT DESCRIPTION
ViewSonic PS502W 4,000 ANSI Lumens WXGA Short Throw Business & Education Projector - 3 Years Local Warranty
Big Picture from a Short Distance
With a 0.52 short throw ratio the ViewSonic PS502W fills an 87" image from about 0.97 m, so it can sit close to the wall in small classrooms and huddle rooms and presenters are less likely to cast shadows or look into the lamp.
Bright Enough for Lit Rooms
4,000 ANSI lumens, a 15,000:1 contrast ratio (SuperEco mode) and ViewSonic SuperColor technology keep WXGA content clear with the lights on.
Easy Connections
Two HDMI 1.4 inputs, VGA in/out and a 5 V / 1.5 A USB-A power port for wireless presentation dongles, with 16 W of built-in audio.
Low Running Cost
The 240 W lamp is rated up to 12,000 hours in SuperEco mode (4,000 hours Normal). The replacement lamp is RLC-128.
Need projectors for several meeting rooms or classrooms? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
ViewSonic PS502W Datasheet — Technical Specifications
General
| Product Name | ViewSonic PS502W 4,000 ANSI Lumens WXGA Short Throw Business & Education Projector |
| Model | PS502W |
| Local Warranty (Singapore) | 3 years on-site limited warranty on parts and labour (pick-up and drop-off); lamp 1 year or 1,000 hours, whichever comes first |
Optical
| Projection System | 0.65" WXGA |
| Native Resolution | 1280 x 800 (WXGA) |
| Brightness | 4,000 ANSI lumens |
| Contrast Ratio | 15,000:1 (SuperEco mode) |
| Display Colour | 1.07 billion colours |
| Light Source | 240 W UHP lamp |
| Lamp Life | 4,000 hours (Normal); 12,000 hours (SuperEco) |
| Lens | F=2.8, f=7.51 mm |
| Throw Ratio | 0.52 |
| Optical Zoom | Fixed |
| Digital Zoom | 0.8x–2.0x |
| Image Size | 60"–300" |
| Throw Distance | 0.67–3.36 m (87" at 0.97 m) |
| Projection Offset | 124.8% ±10% |
| Keystone | ±19° vertical, auto vertical keystone |
| Input Lag | 33.2 ms |
Compatibility
| Resolution Support | VGA (640 x 480) to Full HD (1920 x 1080) |
| HDTV Compatibility | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Horizontal Frequency | 15–102 kHz |
| Vertical Scan Rate | 23–120 Hz |

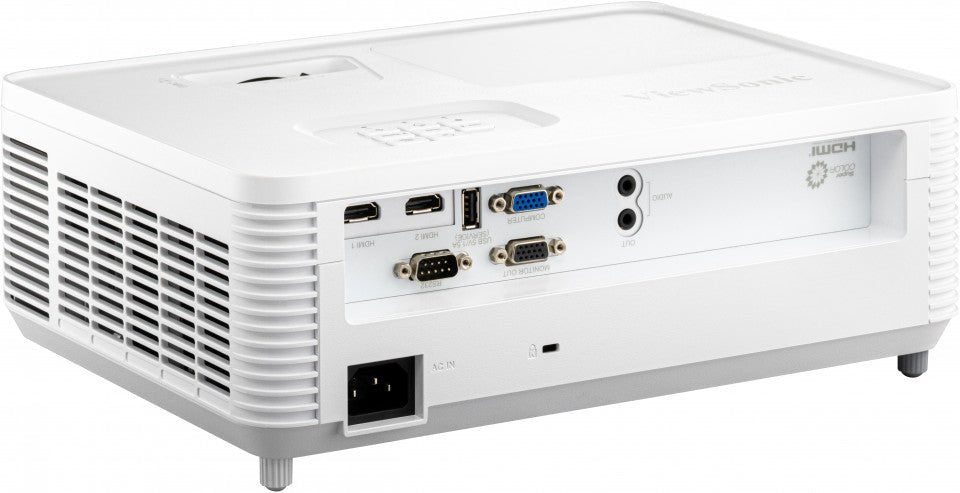

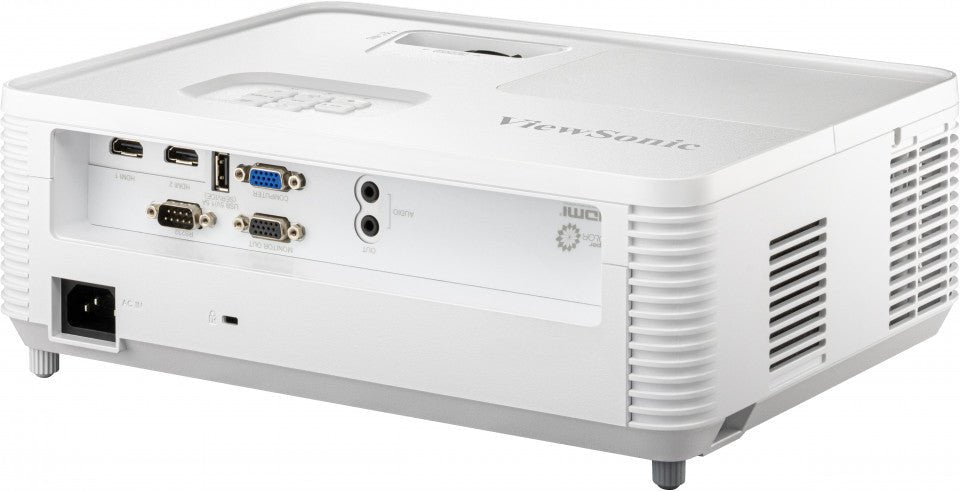

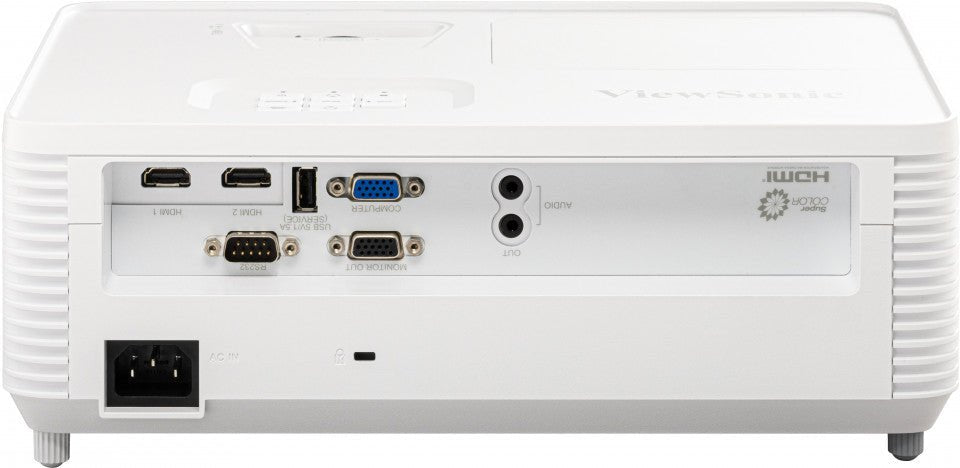

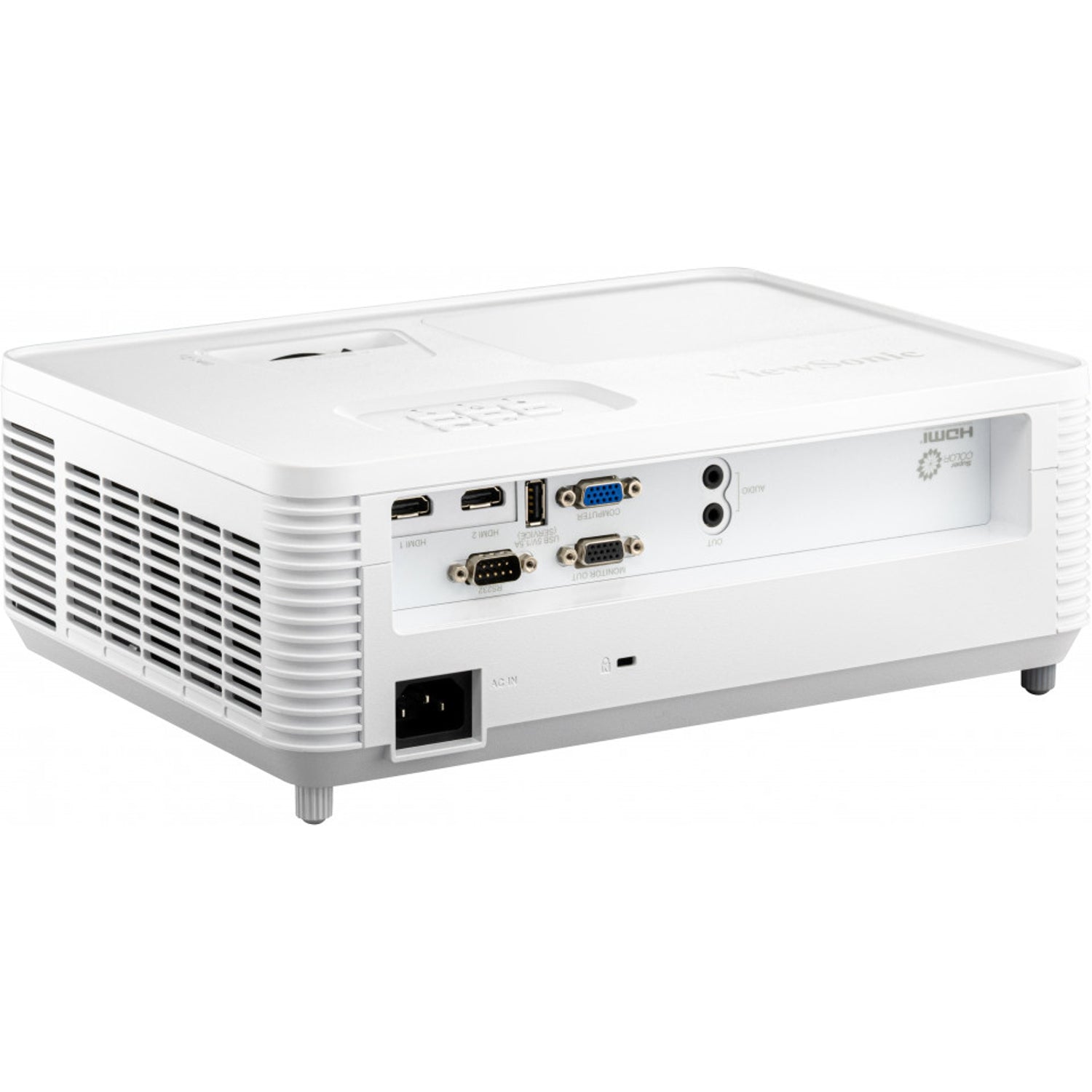

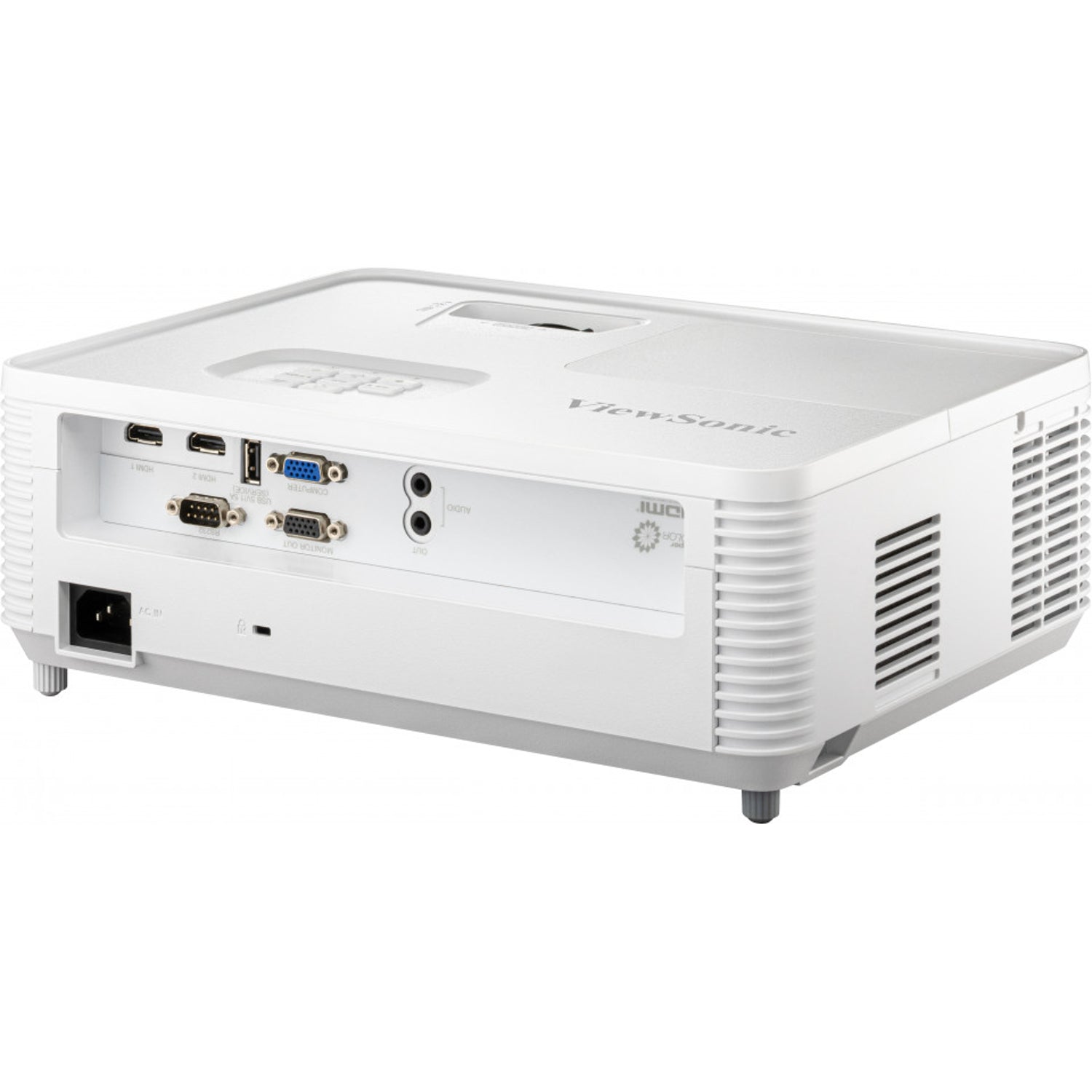

Connectivity
| HDMI | 2 x HDMI 1.4 (HDCP 1.4) |
| Computer In | 1 x VGA (shared with component) |
| Audio In | 1 x 3.5 mm |
| Monitor Out | 1 x VGA |
| Audio Out | 1 x 3.5 mm |
| USB Power | 1 x USB Type-A, 5 V / 1.5 A (shared with service port) |
| Control | 1 x RS232 (DB9 male) |
| Speaker | 16 W |
Power & Environmental
| Power Supply | 100–240 V ±10%, 50/60 Hz |
| Power Consumption | 295 W (Normal); <0.5 W standby |
| Audible Noise | 34 dB (Normal); 25 dB (Eco) |
| Operating Temperature | 0–40 °C |
Physical
| Dimensions (W x D x H) | 309 x 234 x 115 mm (with adjustment foot) |
| Net Weight | 2.87 kg |
| Packing Dimensions | 400 x 337 x 168 mm |
| Gross Weight | 4.08 kg |
| OSD Languages | 22 |
Compatibility & Software Support
Sources
Connect laptops, PCs, visualisers and media players over HDMI or VGA. The USB-A 5 V / 1.5 A port can power a wireless display dongle such as the ViewSonic WPD-900 or an HDMI streaming stick.
Room Control
RS232 (DB9) supports integration with room control systems.
Software Updates
Projector software can be updated by the user over a USB connection without visiting a service centre (see the video below).
Typical Use
Small classrooms, huddle rooms and meeting rooms where the projector must sit close to the screen, including table-top or short ceiling mounts.
Package Contents & ViewSonic Lamp Business Projectors Ordering Information
In the Box
PS502W projector, power cord, VGA cable, remote control, lens cover, quick start guide.
Optional Accessories
| Replacement lamp | RLC-128 |
| Air filter | RSPL |
| Wall/ceiling mount | PJ-WMK-305, PJ-WMK-007 |
| Carry bag | PJ-CASE-008 |
| HDBaseT receiver | HB10B |
ViewSonic Lamp Business Projectors
| Model | Key feature |
| SP3 | 4,800 lm SVGA |
| SP6 | 4,800 lm XGA |
| PA700X | 4,500 lm XGA |
| PA700W | 4,500 lm WXGA |
| PG707W | 4,000 lm WXGA, LAN control |
| PS502X | 4,000 lm XGA, short throw |
| PS502W (this listing) | 4,000 lm WXGA, short throw |
| PX704HD | 4,000 lm 1080p Full HD |
Datasheet & Downloads
| ViewSonic datasheet | PS502W Datasheet |
| User guide | PA700 / PS502 Series User Guide (PDF, English) |
| Quick start guide | PS502W Quick Start Guide (PDF) |
| ViewSonic product page | PS502W on viewsonic.com Singapore |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting PS502W.
Frequently Asked Questions — ViewSonic PS502W
How close to the screen does it go?
The 0.52 throw ratio gives an 87" image from about 0.97 m. Image sizes run from 60" to 300".
Is it WXGA native?
Yes, native 1280 x 800 (WXGA). It accepts signals up to Full HD 1920 x 1080.
Which replacement lamp do I need?
RLC-128. The lamp is rated up to 12,000 hours in SuperEco mode (4,000 hours Normal).
Can I use a wireless presentation dongle?
Yes. Plug it into HDMI and power it from the USB-A 5 V / 1.5 A port.
What warranty do I get?
3 years on-site limited warranty on parts and labour (pick-up and drop-off service on Singapore's main island); the lamp is covered for 1 year or 1,000 hours, whichever comes first. Supplied by SourceIT with a GST invoice.
