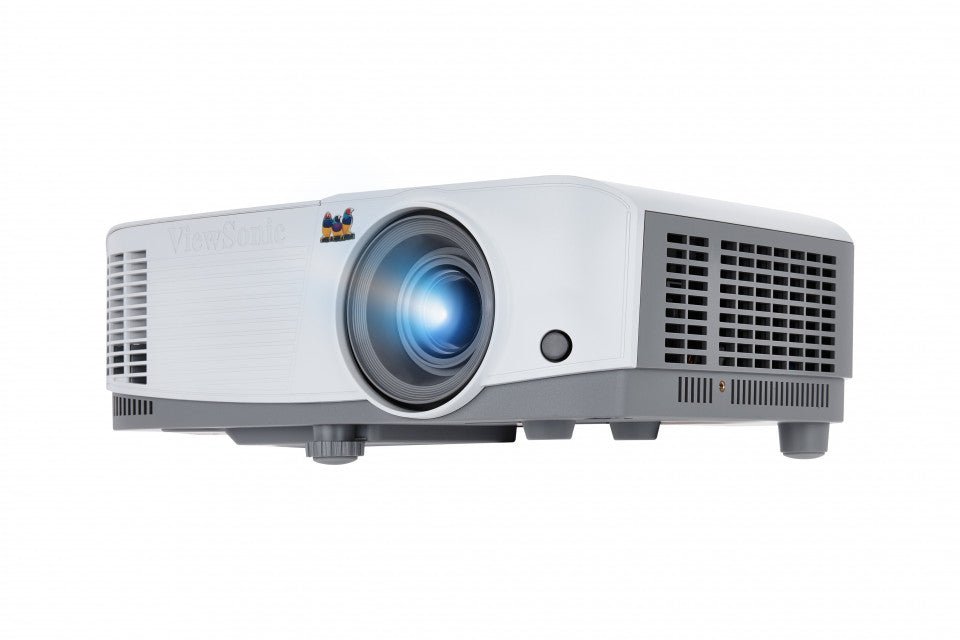

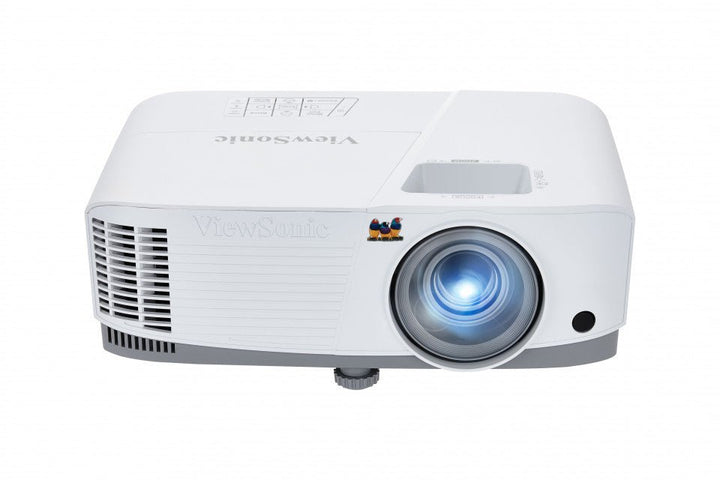

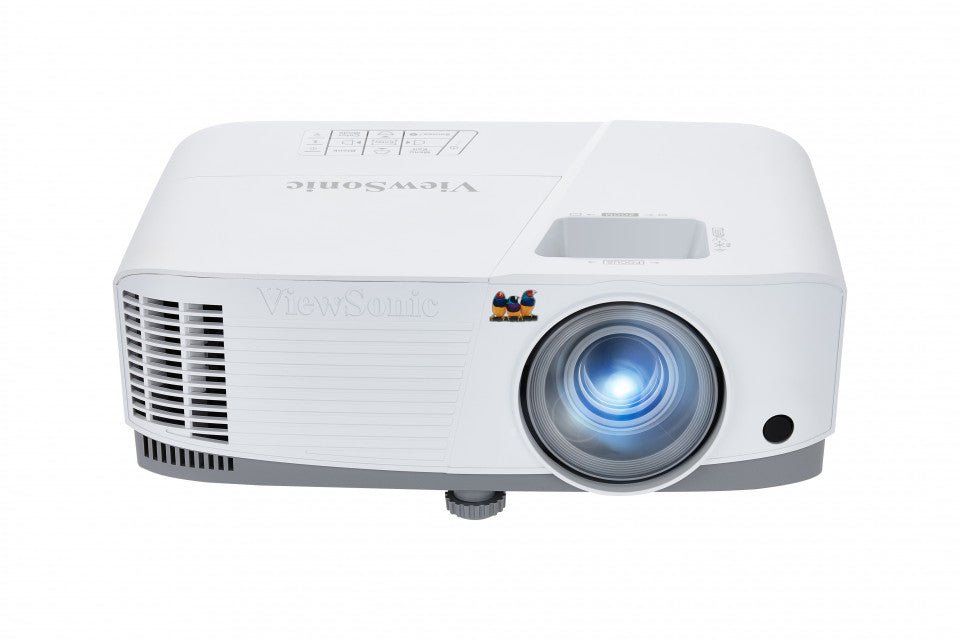

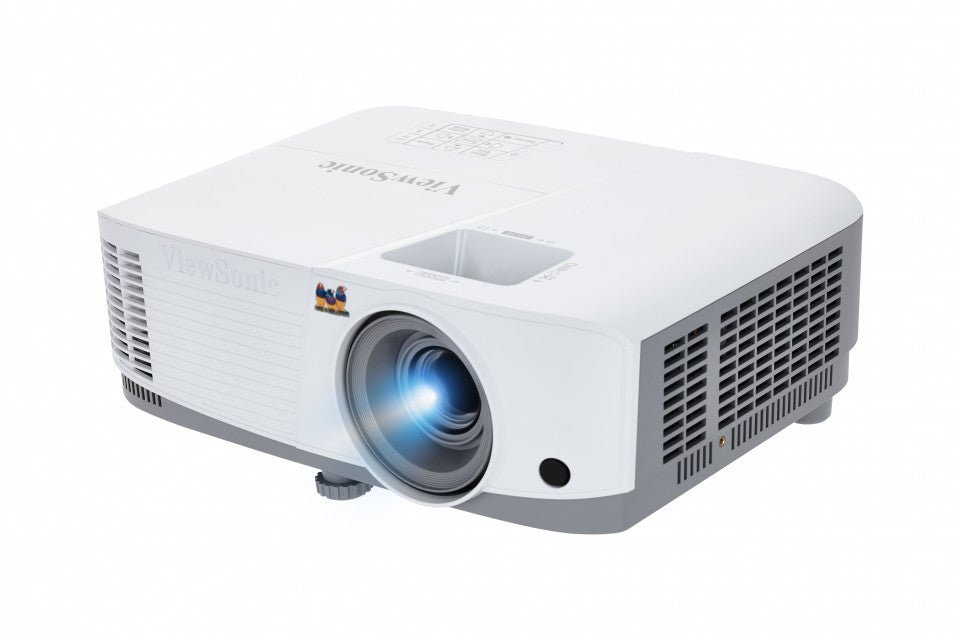

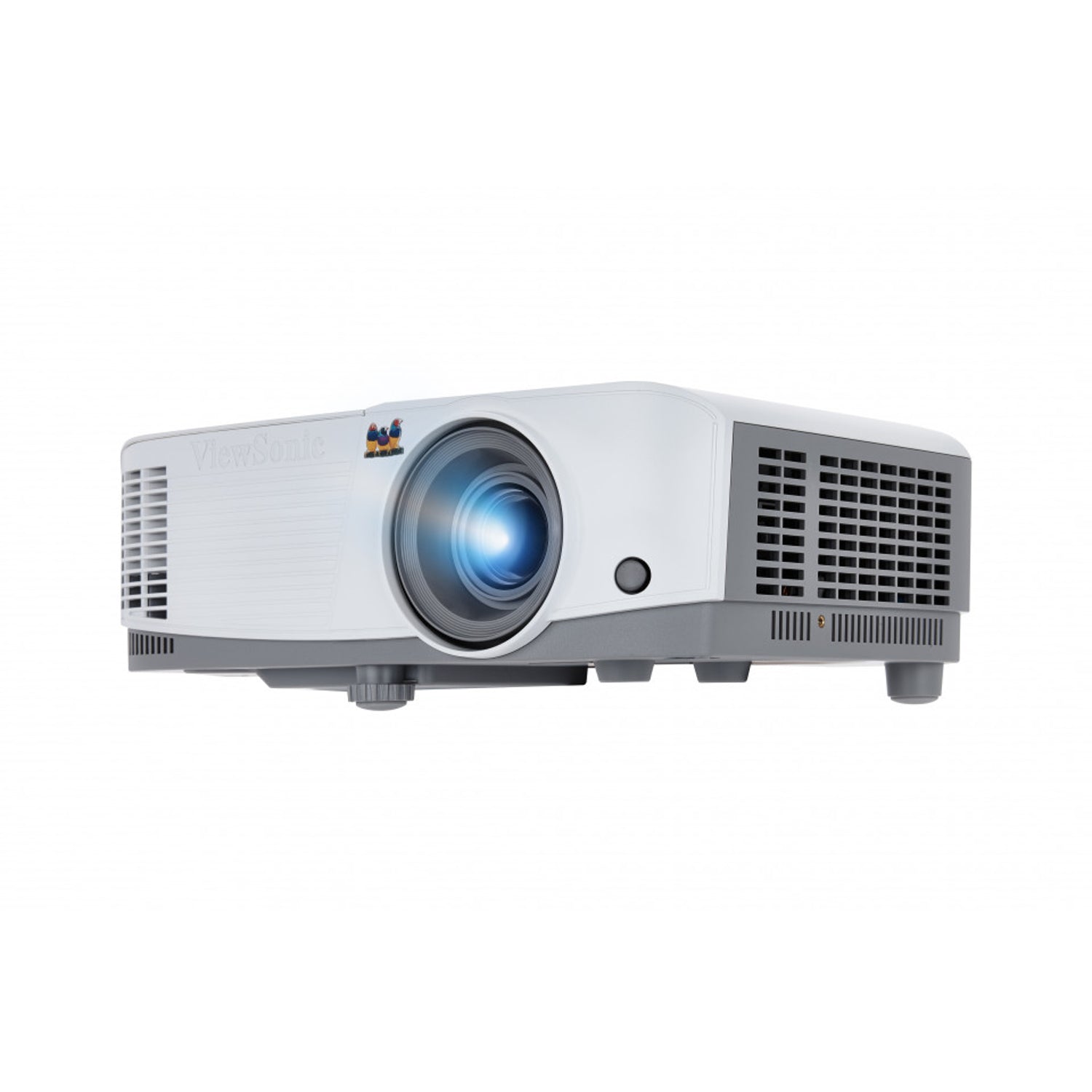

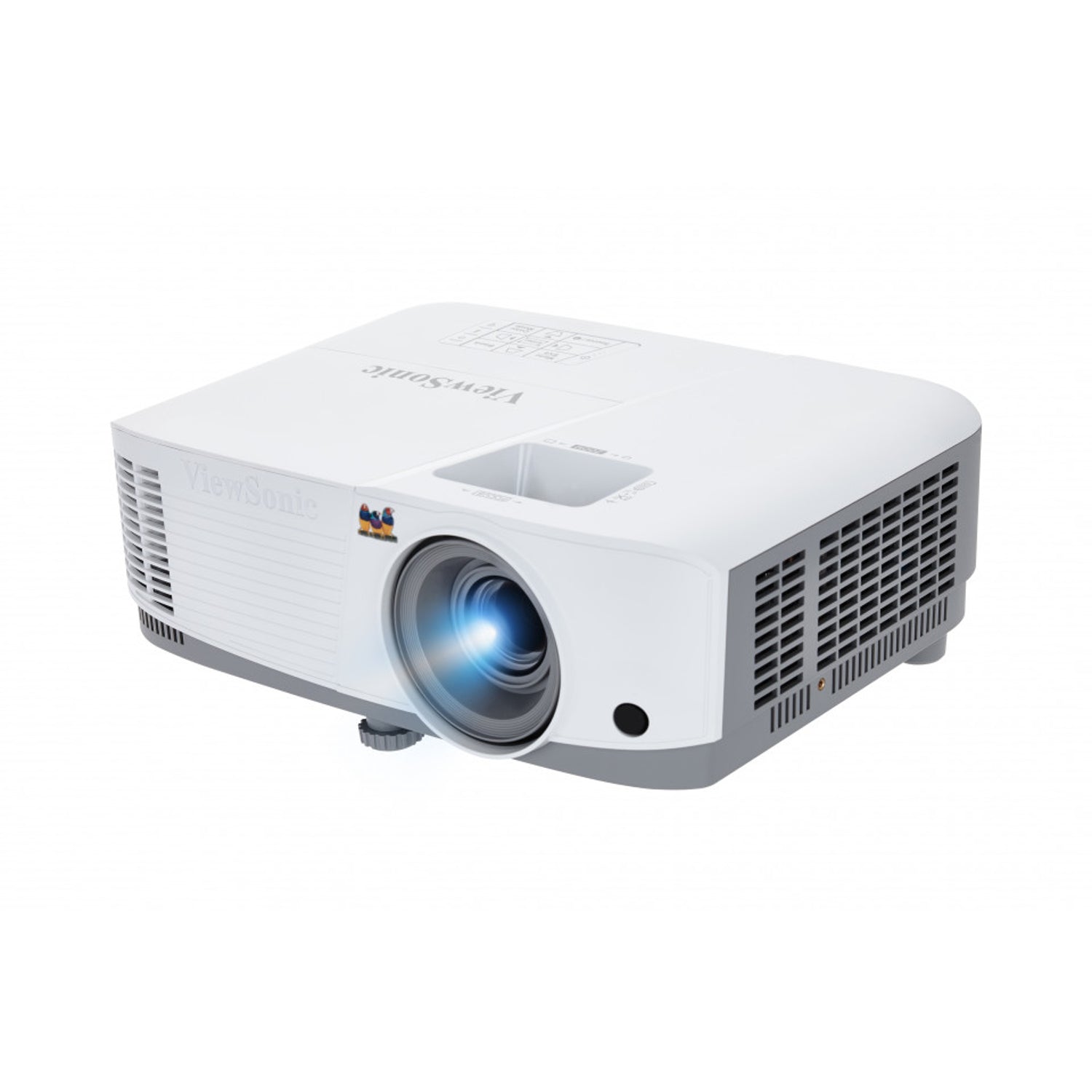

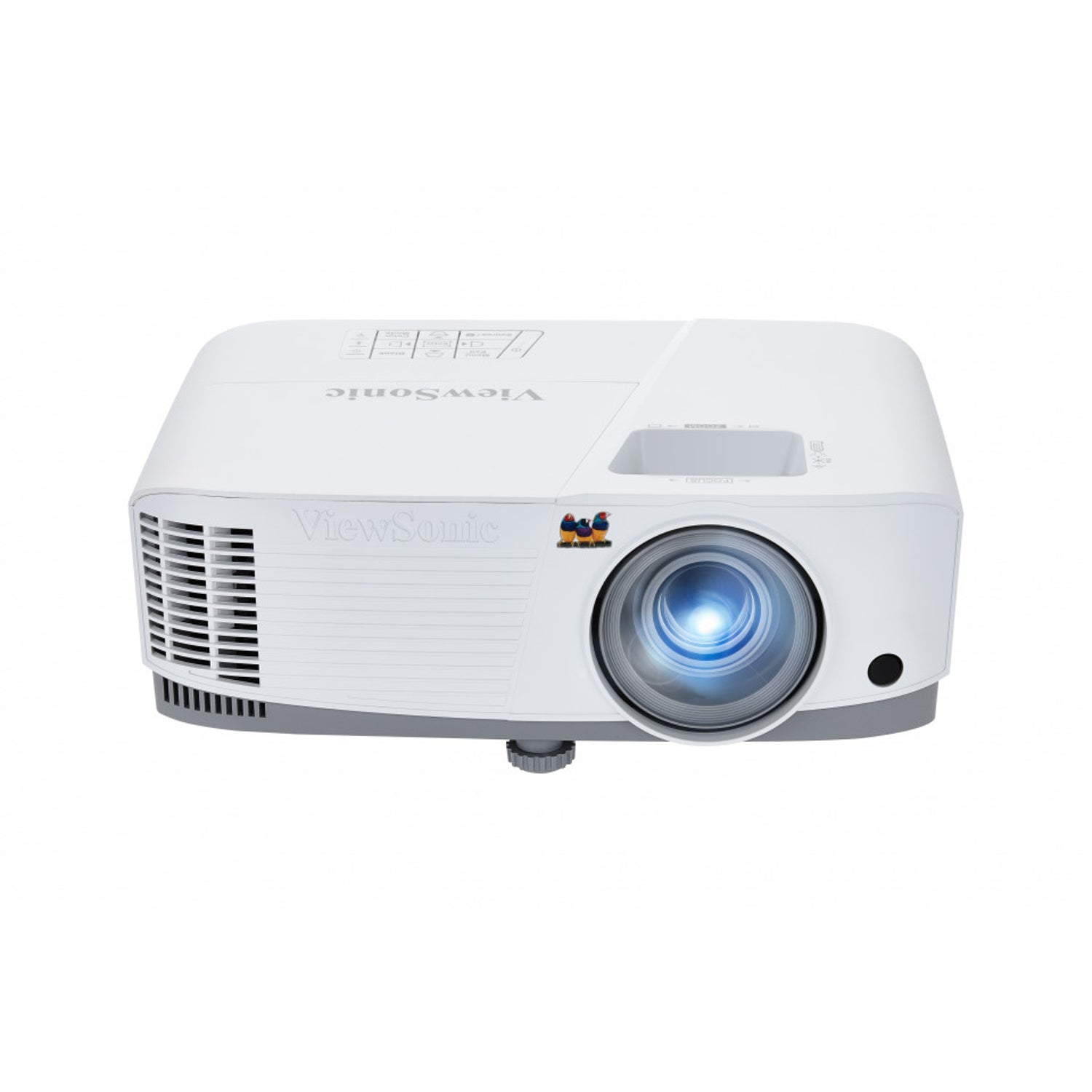

ViewSonic PG707W 4,000 ANSI Lumens WXGA Business & Education Projector
PRODUCT DESCRIPTION
ViewSonic PG707W 4,000 ANSI Lumens WXGA Business/Education Projector - 3 Years Local Warranty
Bright Images for Meeting Rooms and Classrooms
The ViewSonic PG707W projects native 1280 x 800 (WXGA) images at 4,000 ANSI lumens with a 22,000:1 contrast ratio (SuperEco mode), so slides stay readable in rooms with the lights on. ViewSonic SuperColor technology delivers 1.07 billion colours.
Drop-in Replacement for Older Projectors
A 1.21–1.57 throw ratio with 1.3x optical zoom matches most existing ceiling-mount positions, fitting a 100" image from about 2.61 m. Horizontal and vertical keystone (±40°) plus 4-corner adjustment square up the picture.
Centralised Control
An RJ45 LAN control port and RS232 let IT teams manage the projector from Crestron, AMX, PJLink, ATEN or Extron systems, or ViewSonic vController.
Low Running Cost
The 203 W lamp is rated up to 20,000 hours in SuperEco mode (6,000 hours Normal). Two HDMI 1.4 inputs, VGA, composite and a 5 V / 1.5 A USB-A power port for dongles cover old and new sources, with a 10 W speaker built in.
Need projectors for several meeting rooms or classrooms? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
ViewSonic PG707W Datasheet — Technical Specifications
General
| Product Name | ViewSonic PG707W 4,000 ANSI Lumens WXGA Business/Education Projector |
| Model | PG707W |
| Local Warranty (Singapore) | 3 years on-site limited warranty on parts and labour (pick-up and drop-off); lamp 1 year or 1,000 hours, whichever comes first |
Optical
| Projection System | 0.65" WXGA |
| Native Resolution | 1280 x 800 (WXGA) |
| Brightness | 4,000 ANSI lumens |
| Contrast Ratio | 22,000:1 (SuperEco mode) |
| Display Colour | 1.07 billion colours |
| Light Source | 203 W lamp |
| Lamp Life | 6,000 hours (Normal); 20,000 hours (SuperEco) |
| Lens | F=2.59–2.87, f=16.88–21.88 mm |
| Throw Ratio | 1.21–1.57 |
| Optical Zoom | 1.3x |
| Digital Zoom | 0.8x–2.0x |
| Image Size | 30"–300" |
| Throw Distance | 0.78–10.14 m (100" at 2.61 m) |
| Projection Offset | 120% ±5% |
| Keystone | H ±40°, V ±40°; 4-corner adjustment |
| Input Lag | 16 ms |
Compatibility
| Resolution Support | VGA (640 x 480) to Full HD (1920 x 1080) |
| HDTV Compatibility | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Video Compatibility | NTSC, PAL, SECAM |
| Horizontal Frequency | 15–102 kHz |
| Vertical Scan Rate | 23–120 Hz |

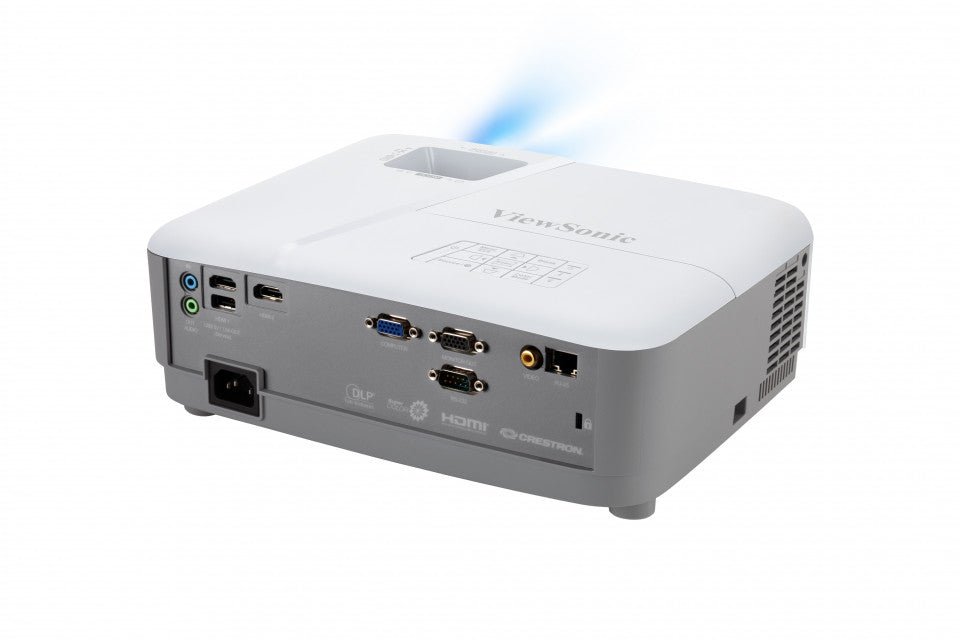

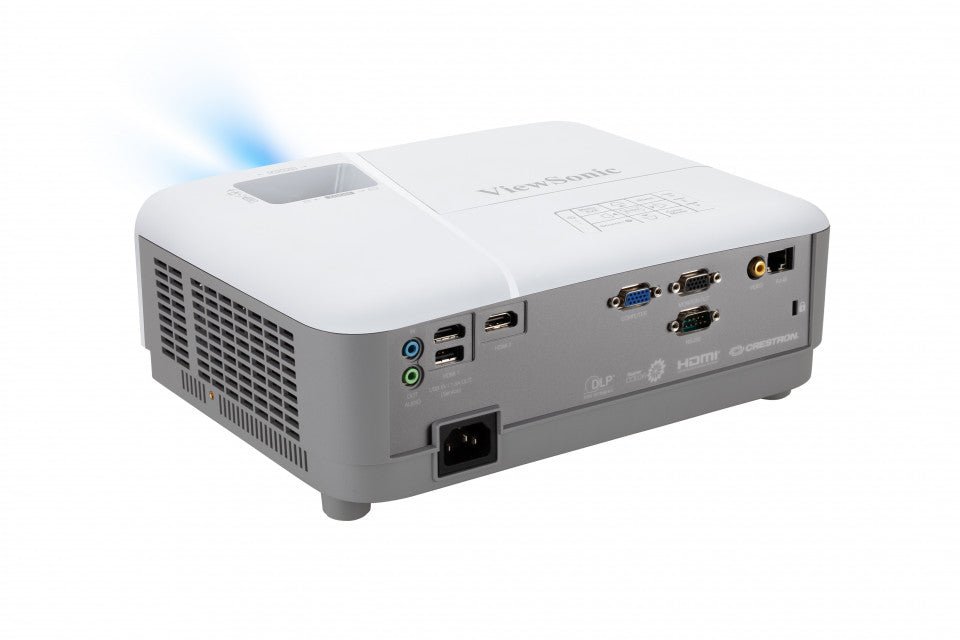

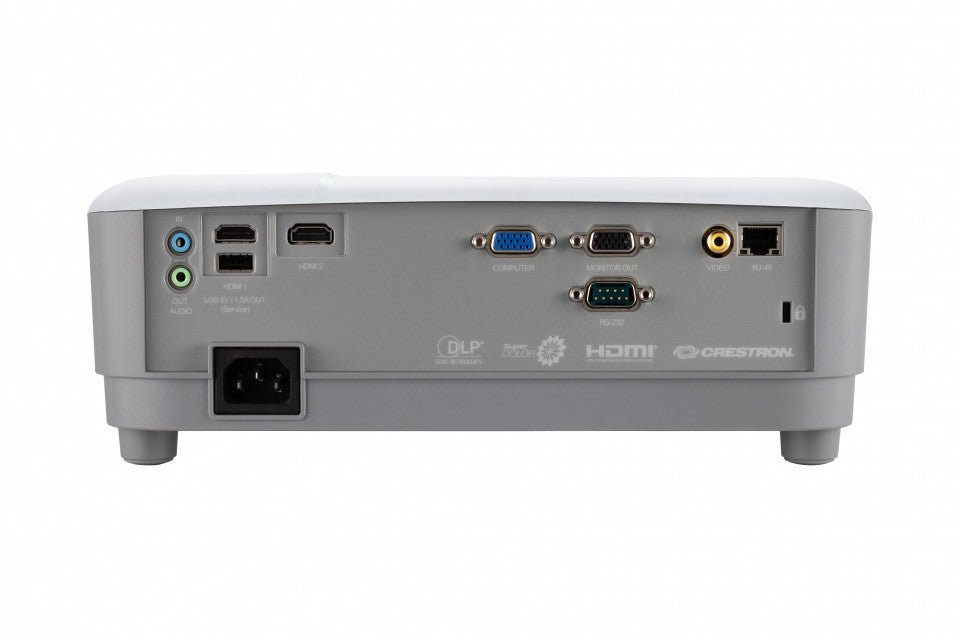

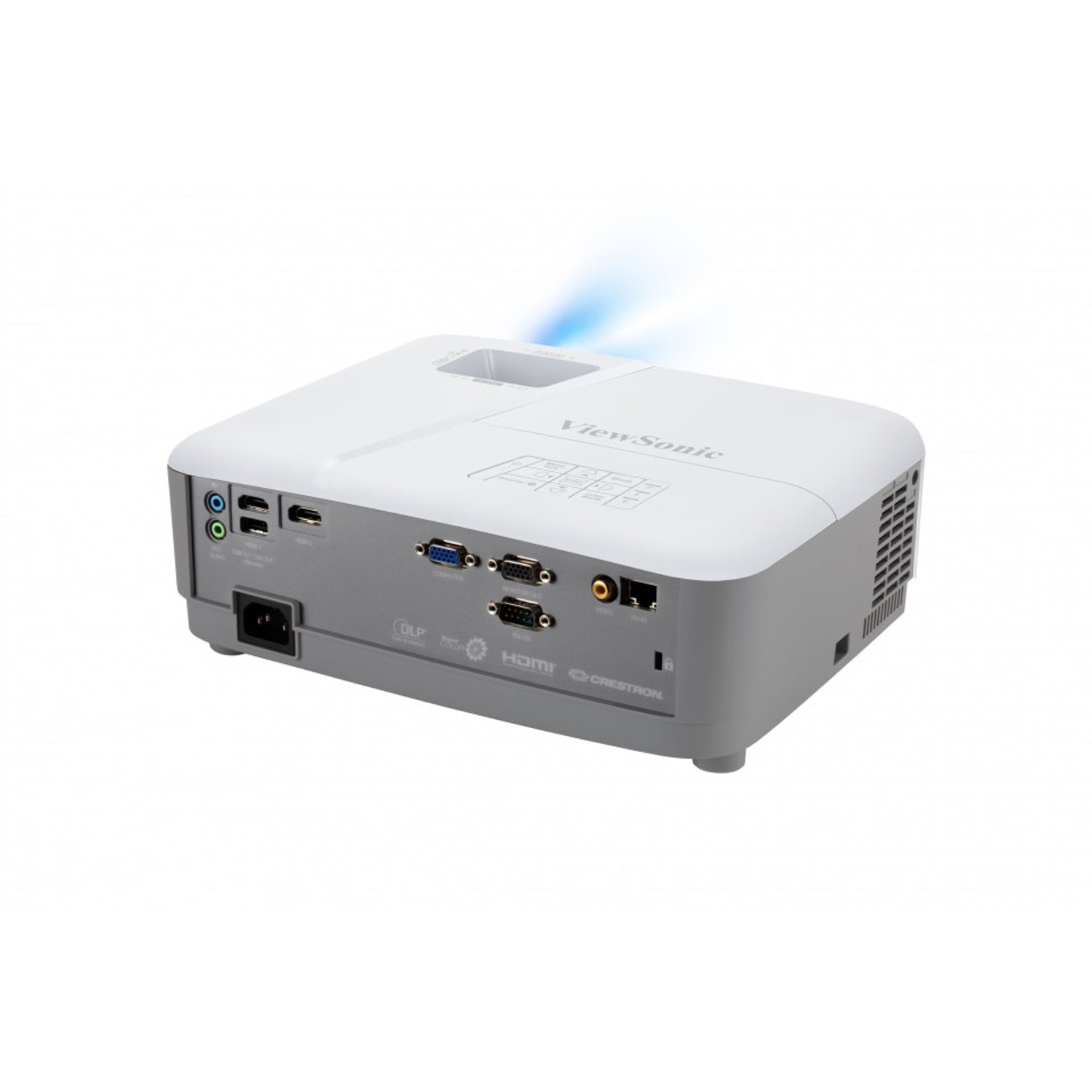

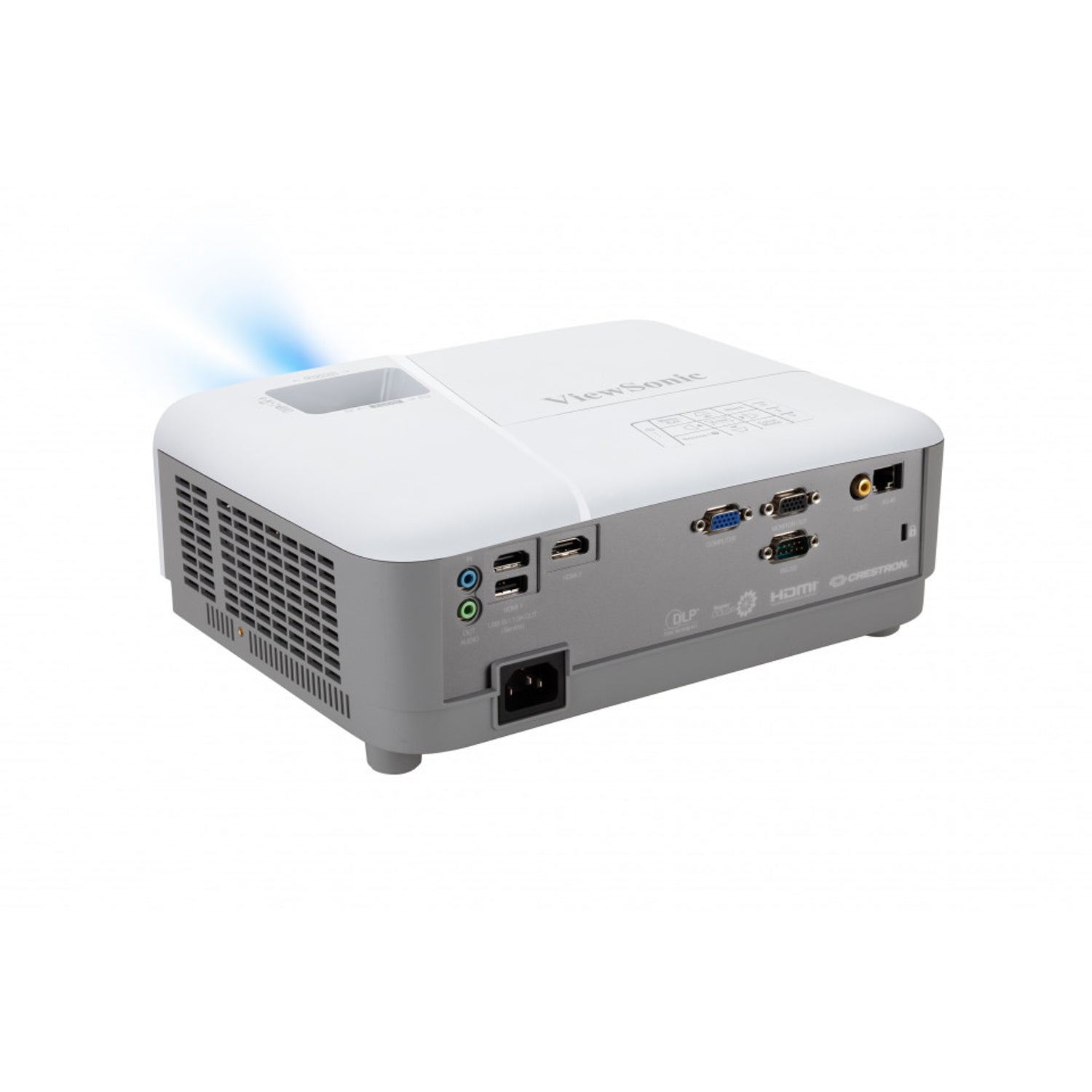

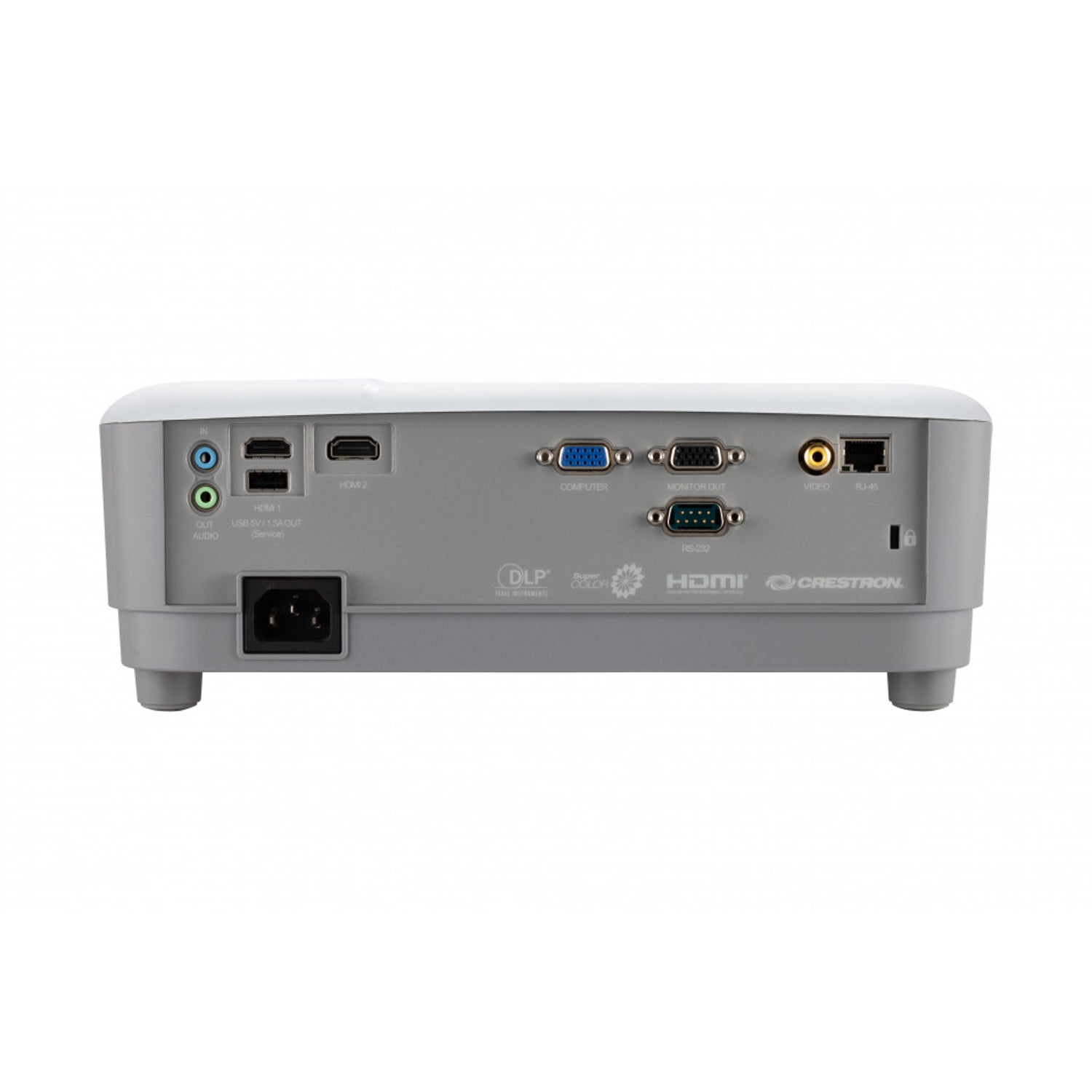

Connectivity
| HDMI | 2 x HDMI 1.4 (HDCP 1.4) |
| Computer In | 1 x VGA (shared with component) |
| Composite In | 1 |
| Audio In | 1 x 3.5 mm |
| Monitor Out | 1 x VGA |
| Audio Out | 1 x 3.5 mm |
| USB Power | 1 x USB Type-A, 5 V / 1.5 A |
| Control | 1 x RS232 (DB9); 1 x RJ45 (LAN control) |
| Speaker | 10 W |
Power & Environmental
| Power Supply | 100–240 V ±10%, 50/60 Hz |
| Power Consumption | 280 W (Normal); <0.5 W standby |
| Audible Noise | 32 dB (Normal); 28 dB (Eco) |
| Operating Temperature | 0–40 °C |
Physical
| Dimensions (W x D x H) | 294 x 218 x 110 mm (with adjustment foot) |
| Net Weight | 2.33 kg |
| OSD Languages | 23 |
Compatibility & Software Support
Sources
Connect laptops, PCs, document cameras and media players over HDMI or VGA; composite video covers legacy AV equipment. The USB-A 5 V / 1.5 A port can power an HDMI streaming stick or a wireless display dongle such as the ViewSonic WPD-900.
Room Control
RJ45 LAN control and RS232 are compatible with Crestron, AMX, PJLink, ATEN and Extron control systems and with ViewSonic vController for centralised management.
Software Updates
Projector firmware can be updated by the user without a trip to a service centre (see the video below).
Typical Use

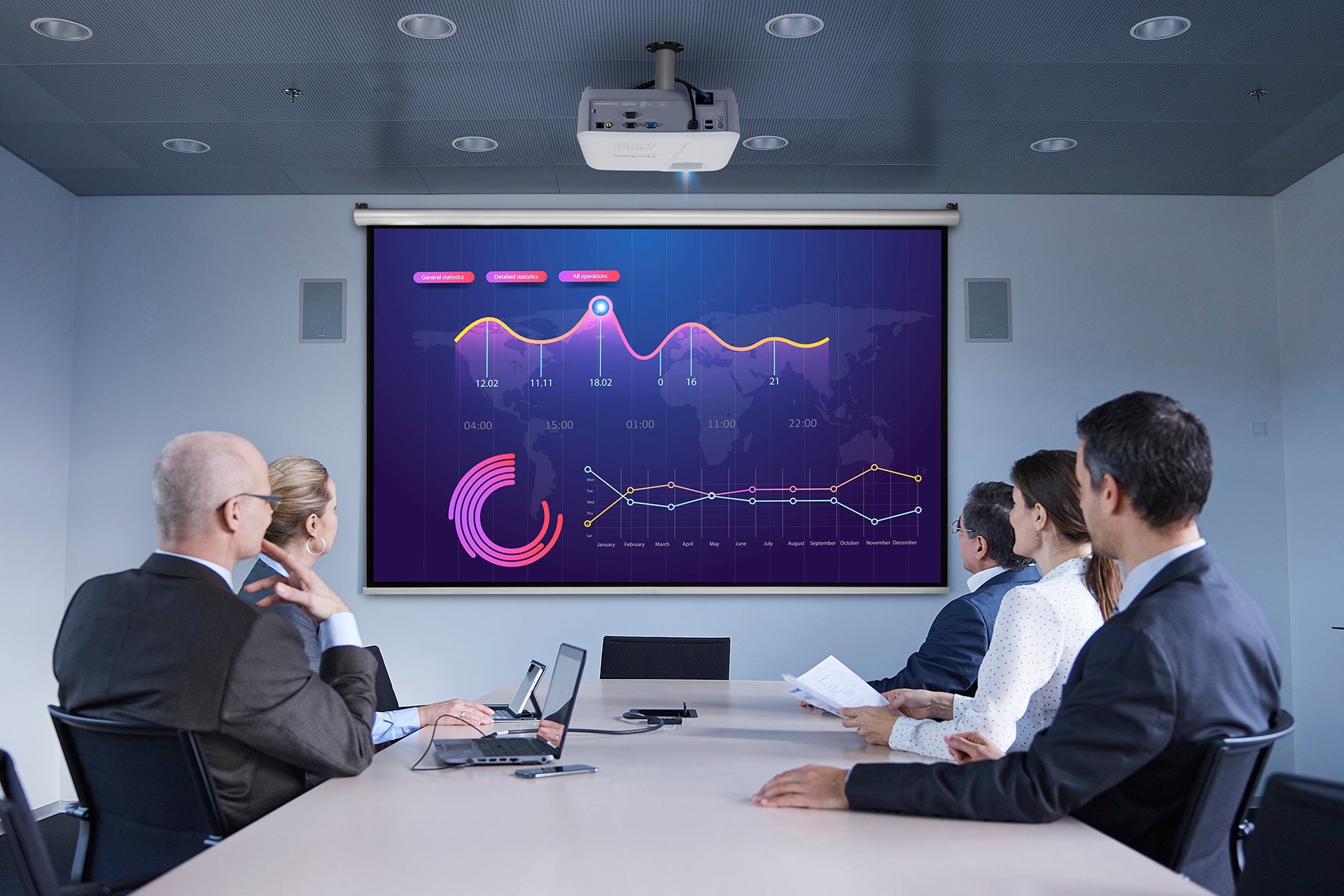

Classrooms, meeting rooms and training rooms replacing an older XGA/WXGA projector at the same mounting position.
Package Contents & ViewSonic Lamp Business Projectors Ordering Information
In the Box
PG707W projector, power cord, VGA cable, remote control (with laser pointer), quick start guide.
Optional Accessories
| HDBaseT receiver | HB10B |
| Wireless presentation dongle | WPD-900 |
ViewSonic Lamp Business Projectors
| Model | Key feature |
| SP3 | 4,800 lm SVGA |
| SP6 | 4,800 lm XGA |
| PA700X | 4,500 lm XGA |
| PA700W | 4,500 lm WXGA |
| PG707W (this listing) | 4,000 lm WXGA, LAN control |
| PS502X | 4,000 lm XGA, short throw |
| PS502W | 4,000 lm WXGA, short throw |
| PX704HD | 4,000 lm 1080p Full HD |
Datasheet & Downloads
| ViewSonic datasheet | PG707W Datasheet |
| User guide | PG707X / PG707W User Guide (PDF, English) |
| Lamp replacement guide | PG707X / PG707W Lamp Swapping Guide (PDF, English) |
| Quick start guide | PG707W Quick Start Guide (PDF) |
| 2D drawing | PG707W 2D Drawing (PDF) |
| ViewSonic product page | PG707W on viewsonic.com Singapore |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting PG707W.
Frequently Asked Questions — ViewSonic PG707W
Can it replace my old ceiling-mounted projector?
In most rooms, yes. The 1.21–1.57 throw ratio and 1.3x zoom match typical mounting distances; a 100" image needs about 2.61 m.
Can IT manage it over the network?
Yes. It has an RJ45 LAN control port and RS232, compatible with Crestron, AMX, PJLink, ATEN, Extron and ViewSonic vController.
How long does the lamp last?
Up to 20,000 hours in SuperEco mode (6,000 hours Normal).
Does it have a speaker?
Yes, a built-in 10 W speaker, plus a 3.5 mm audio out for external speakers.
What warranty do I get?
3 years on-site limited warranty on parts and labour (pick-up and drop-off service on Singapore's main island); the lamp is covered for 1 year or 1,000 hours, whichever comes first. Supplied by SourceIT with a GST invoice.
