ViewSonic PA700W 4,500 ANSI Lumens WXGA Business & Education Projector
PRODUCT DESCRIPTION
ViewSonic PA700W 4,500 ANSI Lumens WXGA Business & Education Projector - 3 Years Local Warranty
Bright Enough for Lit Rooms
The PA700W delivers 4,500 ANSI lumens at native 1280 x 800 (WXGA), so slides stay readable in classrooms and meeting rooms without closing the blinds. SuperColor technology gives 1.07 billion colours and 12,500:1 contrast (SuperEco).
Big Images, Low Cost per Inch
Project from 30" to 300"; a 100" image needs about 3.33 m with the 1.1x optical zoom, and auto vertical keystone (±40°) squares the picture.
Connect Everything
Two HDMI 1.4 inputs, a VGA computer input with monitor out, and a 5 V / 1.5 A USB-A port that powers a wireless presentation dongle.
Low Running Cost
The 240 W lamp is rated 4,000 hours Normal and up to 12,000 hours in SuperEco mode; the replacement lamp is RLC-128. Firmware updates run over USB from a laptop.
Need projectors for several meeting rooms or classrooms? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
ViewSonic PA700W Datasheet — Technical Specifications
General
| Product Name | ViewSonic PA700W 4,500 ANSI Lumens WXGA Business & Education Projector |
| Model | PA700W |
| Local Warranty (Singapore) | 3 years on-site limited warranty on parts and labour (pick-up and drop-off service on Singapore's main island); lamp 1 year or 1,000 hours, whichever comes first |
Optical
| Projection System | 0.65" WXGA DLP |
| Native Resolution | 1280 x 800 (WXGA) |
| Brightness | 4,500 ANSI lumens |
| Contrast Ratio | 12,500:1 (SuperEco mode) |
| Display Colour | 1.07 billion colours |
| Light Source | 240 W UHP lamp |
| Lamp Life | 4,000 hours (Normal); 12,000 hours (SuperEco) |
| Lens | F=2.41–2.53, f=21.85–24 mm |
| Throw Ratio | 1.544–1.72 |
| Optical Zoom | 1.1x |
| Digital Zoom | 0.8x–2.0x |
| Image Size | 30"–300" |
| Throw Distance | 1.00–11.11 m (100" at 3.33 m) |
| Projection Offset | 124.8% ±10% |
| Keystone | ±40° vertical, auto vertical keystone |
| Input Lag | 33.2 ms |
Compatibility
| Resolution Support | VGA (640 x 480) to Full HD (1920 x 1080) |
| HDTV Compatibility | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Horizontal Frequency | 15–102 kHz |
| Vertical Scan Rate | 23–120 Hz |

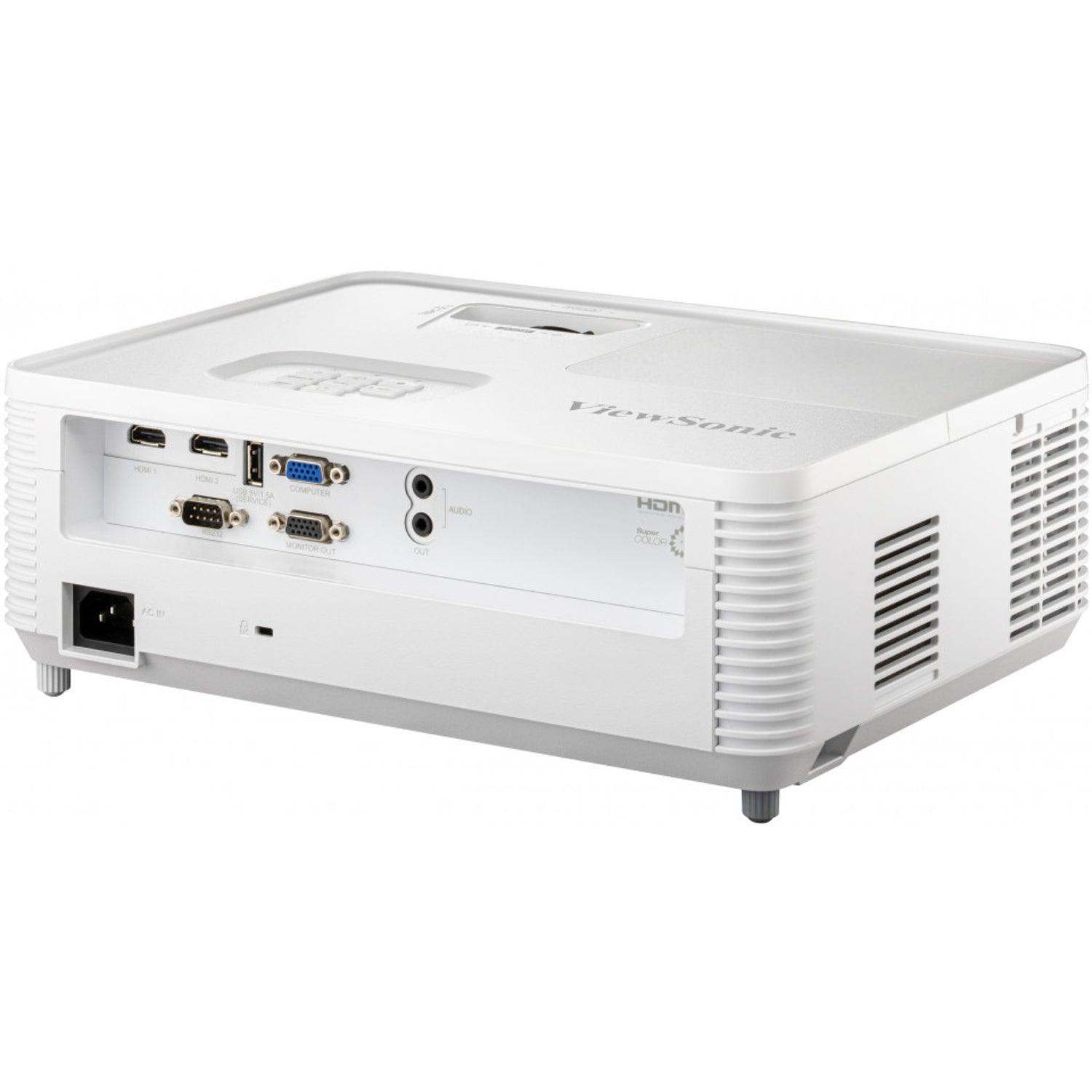

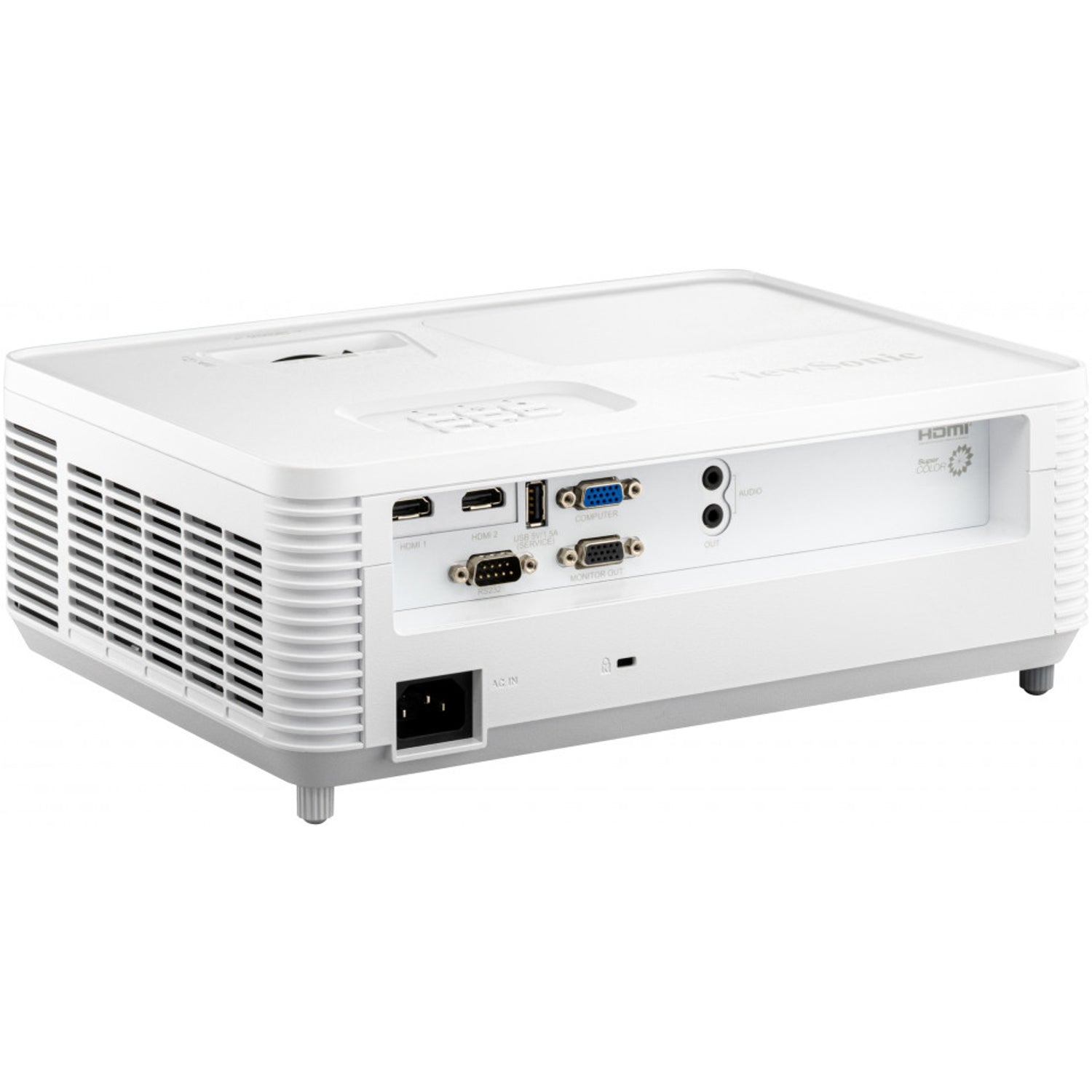

Connectivity
| HDMI | 2 x HDMI 1.4 (HDCP 1.4) |
| Computer In | 1 x VGA (shared with component) |
| Monitor Out | 1 x VGA |
| Audio In | 1 x 3.5 mm |
| Audio Out | 1 x 3.5 mm |
| USB Power | 1 x USB Type-A, 5 V / 1.5 A |
| USB Service | 1 x USB Type-A |
| Control | 1 x RS232 (DB9 male) |
| Speaker | 3 W |
Power & Environmental
| Power Supply | 100–240 V ±10%, 50/60 Hz |
| Power Consumption | 295 W (Normal); <0.5 W standby |
| Audible Noise | 34 dB (Normal); 25 dB (Eco) |
| Operating Temperature | 0–40 °C |
Physical
| Dimensions (W x D x H) | 309 x 234 x 115 mm (with adjustment foot) |
| Net Weight | 2.7 kg |
| Packing Dimensions | 400 x 337 x 168 mm |
| Gross Weight | 3.8 kg |
| OSD Languages | 22 |
Compatibility & Software Support
Sources
Connect laptops and PCs over HDMI or VGA, plus document cameras and media players. VGA monitor out mirrors the image to a second display.
Wireless Presentation
The powered USB-A port (5 V / 1.5 A) runs an HDMI wireless dongle such as the ViewSonic WPD-900 without a separate adapter.
Room Control
The RS232 port supports ViewSonic's RS-232 control protocol for room control systems.
Typical Use
Classrooms, training rooms and meeting rooms with ambient light.
Package Contents & ViewSonic Lamp Business Projectors Ordering Information
In the Box
PA700W projector, power cord, VGA cable, remote control, quick start guide.
Optional Accessories
| Replacement lamp | RLC-128 |
| Air filter | RSPL |
| Wall/ceiling mount | PJ-WMK-007 |
| Carry bag | PJ-CASE-008 |
ViewSonic Lamp Business Projectors
| Model | Key feature |
| SP3 | 4,800 lm SVGA |
| SP6 | 4,800 lm XGA |
| PA700X | 4,500 lm XGA |
| PA700W (this listing) | 4,500 lm WXGA |
| PG707W | 4,000 lm WXGA |
| PS502X | 4,000 lm XGA, short throw |
| PS502W | 4,000 lm WXGA, short throw |
| PX704HD | 4,000 lm 1080p Full HD |
Datasheet & Downloads
| ViewSonic datasheet | PA700W Datasheet |
| User guide | PA700 / PS502 Series User Guide (PDF, English) |
| Quick start guide | PA700W Quick Start Guide (PDF) |
| RS-232/LAN control | RS-232/LAN Control Protocol Specification V1.5 (PDF) |
| ViewSonic product page | PA700W on viewsonic.com Singapore |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting PA700W.
Frequently Asked Questions — ViewSonic PA700W
How big an image can I get?
From 30" up to 300". A 100" image needs about 3.33 m between the lens and the screen.
Does it still have VGA?
Yes. There is a VGA computer input (shared with component) and a VGA monitor output, alongside two HDMI inputs.
How long does the lamp last and which replacement do I need?
Up to 12,000 hours in SuperEco mode (4,000 hours Normal). The replacement lamp is RLC-128.
PA700W or PA700X?
The PA700W is WXGA (1280 x 800, widescreen) and the PA700X is XGA (1024 x 768, 4:3). Choose WXGA for widescreen laptops and 16:10 screens, XGA for 4:3 screens and legacy content.
What warranty do I get?
3 years on-site limited warranty on parts and labour (pick-up and drop-off service on Singapore's main island); the lamp is covered for 1 year or 1,000 hours, whichever comes first. Supplied by SourceIT with a GST invoice.
