TP-Link VIGI VJB-300 Network Camera Junction Box, Aluminium Alloy
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
TP-Link VIGI Network Camera Junction Box (VIGI VJB-300) - Local Warranty

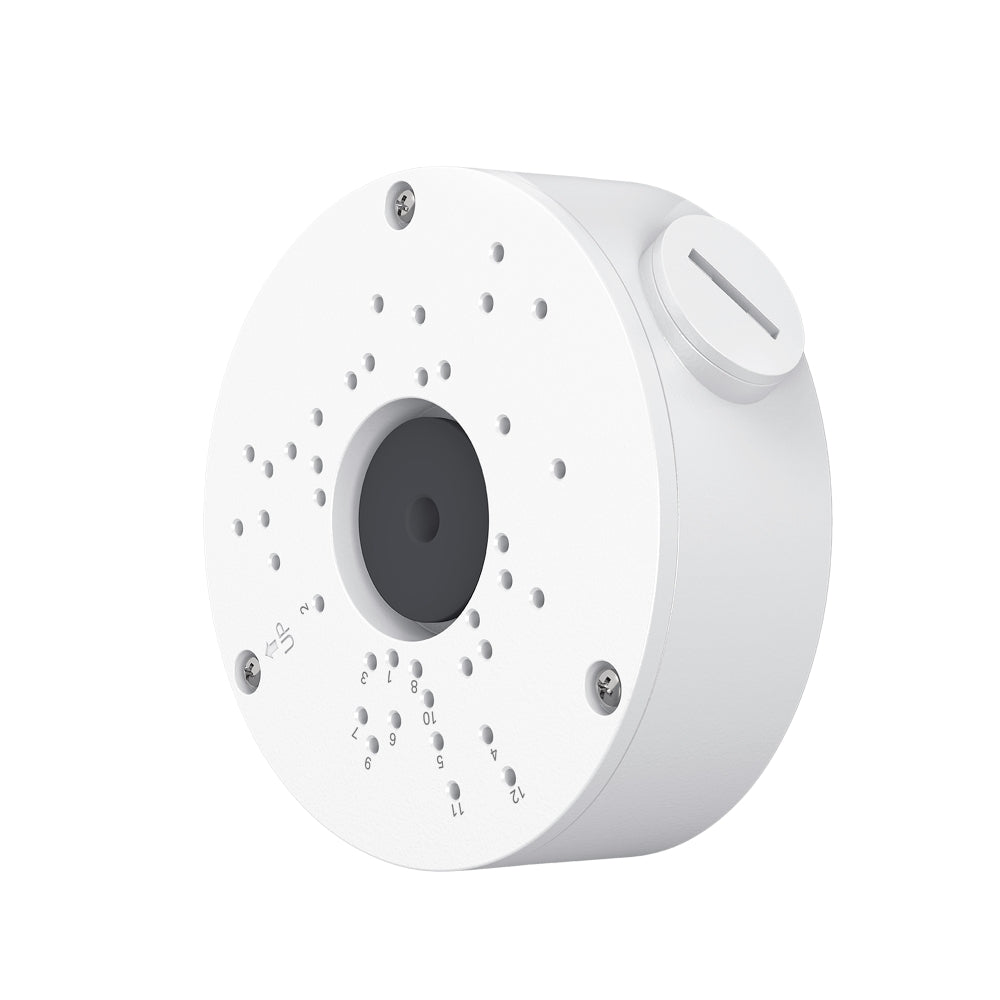

The VJB-300 is TP-Link's aluminium alloy junction box for VIGI cameras, finished in VIGI white to match the camera bodies. It hides the cable tail and connectors behind the camera at the mounting point, weighs 364 g and measures 125 mm diameter by 130.47 by 45.7 mm. TP-Link supplies mounting and waterproofing accessories in the box and publishes a compatibility list that does not cover every VIGI camera.
Aluminium Alloy, Not Plastic
TP-Link publishes the material as aluminium alloy, with a VIGI white appearance so the box reads as part of the camera rather than an addition to it. Net weight is 364 g. Product dimensions are published as 125 mm diameter by 130.47 by 45.7 mm, a shallow round footprint intended to sit directly under the camera base. Note that earlier third-party copy for this part has described it as a plastic housing, which does not match what TP-Link publishes.
Tidy, Concealed Cabling
The purpose of the box is to take the camera's cable tail, the RJ45 connector and any DC barrel joint out of view and out of the weather, so the finished installation shows a camera on a clean base rather than a loop of cable and a taped joint. Waterproofing accessories are supplied for the cable entry. This matters on a facade or a soffit where the install will be looked at as much as looked through.
Check the Compatibility List First
TP-Link markets the VJB-300 as compatible with most VIGI cameras across the bullet, PT, turret and dome families, but is explicit that it is not compatible with all of them and publishes a separate compatible-devices list. Do not assume a fit from the camera family alone. Send us the exact camera model you are mounting and we will check it against TP-Link's published list before quoting, because a junction box that does not mate is a wasted site visit.
Mounting and Load
Mounting accessories are included. TP-Link publishes one load caveat that installers should read: the wall needs to support at least three times the combined weight of the camera and the mount. With the box itself at 364 g, the governing figure is your camera's weight, so check the substrate on lightweight partitions, cladding and hollow soffits. TP-Link does not publish a bolt pattern, a cable gland count or a list of permitted mounting surfaces for this part.
Ideal For
Singapore installers finishing VIGI camera work to a visible standard: shophouse frontages, condominium lobbies and corridors, office receptions, retail units, and any wall or ceiling mount where the cable joint would otherwise be exposed or taped. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
VIGI VJB-300 Datasheet — Technical Specifications
General
| Model | VIGI VJB-300 |
| Official Product Name | VIGI Network Camera Junction Box |
| Brand | TP-Link VIGI |
| Hardware Versions Published | V1 |
| Warranty | Local Warranty (Singapore) — term to be confirmed with SourceIT |
Physical
| Material | Aluminum Alloy |
| Appearance | VIGI White |
| Product Dimensions (L x W x H) | 125 mm diameter x 130.47 x 45.7 mm |
| Weight | 364 g |
Compatibility
| Stated Compatibility | Compatible with most VIGI cameras, across the bullet, PT, turret and dome families. TP-Link states the VJB-300 is not compatible with all VIGI cameras and publishes a separate compatible-devices list |
Package
| Package Content | Junction box, mounting accessories, waterproof accessories |
Published Footnotes
TP-Link publishes the following caveats for this model: "It is recommended to use with VIGI Camera to prevent compatibility issues, overload, and other problems. VJB-300 is not compatible with all VIGI Cameras, see Compatible Devices with VJB-300"; and "The wall needs to support at least three times the combined weight of the camera and the mount."
TP-Link's published replacement-warranty schedule does not set a term for this accessory, so none is claimed here.
TP-Link publishes no IP or ingress protection rating, no operating temperature, no operating or storage humidity, no storage temperature, no certification list, no cable entry or gland count and no list of permitted mounting surfaces for the VJB-300. None of those is quoted here. In particular, no weatherproofing rating is published for this part, so it should not be specified on the basis of an IP figure; waterproof accessories are supplied in the box, but TP-Link does not attach a rating to them.
Compatibility & Software Support
| VIGI Cameras | Most models across the bullet, PT, turret and dome families — but not all. Confirm your exact model against TP-Link's published compatible-devices list |
| Non-VIGI Cameras | Not supported. TP-Link recommends use with a VIGI camera to avoid compatibility and overload problems |
| Pole Mounting | Not published for this part. TP-Link lists the VMB-350 pole mounting bracket separately in the same VIGI accessory range |
| Software or Firmware | None — this is a passive mechanical accessory with no electronics, no firmware and no management interface |
| Licensing | No licence of any kind |
TP-Link also publishes a VJB-240 junction box in the same accessory range with its own compatibility list. The two are not interchangeable; ask us which one your camera takes.
Package Contents & Ordering Information
What's in the Box
| Package Contents | Junction box, mounting accessories, waterproof accessories |
No camera is included, and TP-Link does not publish a package weight or carton dimensions for this part.
Ordering Information
| Model | VIGI VJB-300 |
| SKU | VJB-300 |
| Material | Aluminum alloy, VIGI white |
| Weight | 364 g |
| Alternative in Range | VIGI VJB-240 junction box, with its own separate compatibility list |
| Warranty | Local Warranty (Singapore) — term to be confirmed with SourceIT |
| Dependency | Camera model must appear on TP-Link's published compatible-devices list for the VJB-300 |
The warranty term on this accessory is confirmed with SourceIT at the time of order. Please ask us before ordering if the term matters to your project.
Datasheet & Downloads
Frequently Asked Questions — VIGI VJB-300
Will it fit my VIGI camera?
Most VIGI bullet, PT, turret and dome cameras are covered, but TP-Link states plainly that the VJB-300 does not fit every VIGI camera and publishes a separate compatible-devices list. Send us your exact model number and we will check it before you order.
Is it weatherproof?
Waterproof accessories are supplied in the box, but TP-Link publishes no IP or ingress protection rating for the VJB-300 and no operating temperature range. We will not quote a rating TP-Link does not publish, so if the install is fully exposed, ask us and we will raise it with TP-Link.
What is it made of?
Aluminium alloy, in VIGI white, weighing 364 g. Some older third-party listings for this part describe a plastic housing; that is not what TP-Link publishes.
What do I need to check on the wall?
TP-Link's published requirement is that the wall support at least three times the combined weight of the camera and the mount. The box is only 364 g, so your camera's weight drives the figure. Check the substrate on partitions, cladding and hollow soffits.
What is the warranty term on this accessory?
The warranty term on this accessory is confirmed with us at the time of order, and every order carries a GST invoice. If the term matters to your project, ask us before ordering and we will confirm it in writing.
