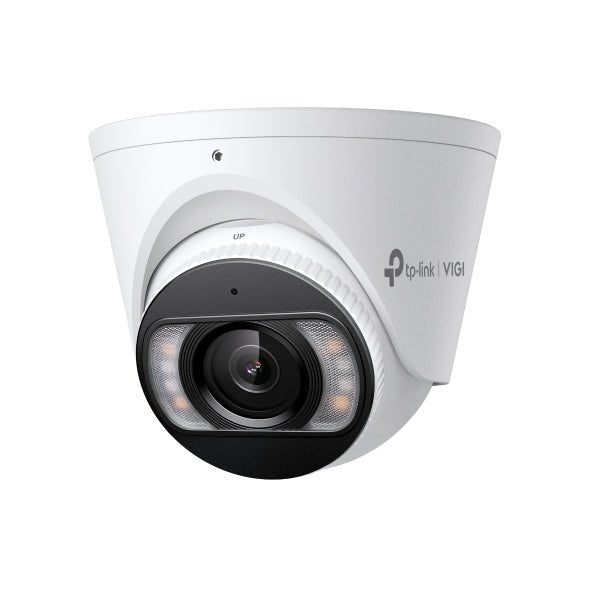

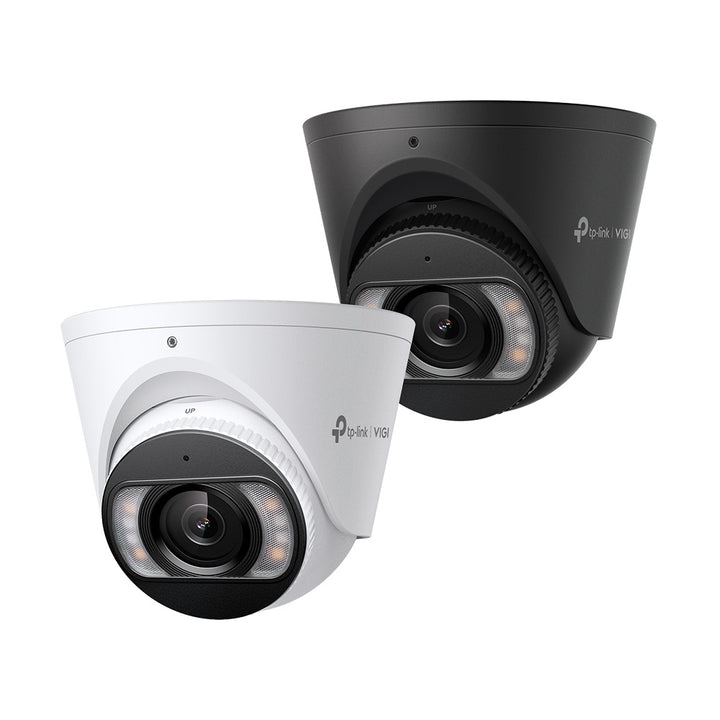

TP-Link InSight S485 8MP Full-Color Turret Network Camera, 2.8mm Lens
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
TP-Link VIGI 8MP Full-Color Turret Network Camera (InSight S485 2.8mm) - 5 Years Local Warranty
The TP-Link VIGI InSight S485 is an 8MP (3840 x 2160) full-colour turret camera with a 2.8 mm F1.6 fixed lens, four IR and four white LEDs, 120 dB WDR, two-way audio and people & vehicle analytics. It is housed in metal with an IP67 rating, stores to microSD or a VIGI NVR, and runs from PoE (802.3af/at) or 12V DC.
4K Ultra HD, Full Colour
A 1/2.7" progressive scan CMOS sensor records up to 3840 x 2160 with a minimum illumination of 0.005 Lux. Four white LEDs and four 850 nm IR LEDs each reach 30 m, with auto, scheduled, always-on or always-off illuminator control.
People & Vehicle Analytics
Footage can be searched and filtered for people or vehicles of interest based on many different attributes, and motion detection is enhanced with human and vehicle classification for more accurate alerts.
Smart Detection & Active Defence
Intrusion, line-crossing, region entering/exiting, loitering, object abandoned/removal, abnormal sound and scene change detection are supported. Alarm linkage covers memory card recording, push messages, an audible warning and white light flashing, and the built-in microphone and speaker allow two-way audio.
IP67 Metal Housing & H.265+
The metal body is rated IP67 and operates from -30 °C to 60 °C. H.265+ reduces bandwidth and storage, with a main-stream bit rate of 256 Kbps to 6 Mbps.
Ideal For
Building entrances, car parks, retail floors, warehouses and perimeters that need 4K colour footage, attribute search and two-way audio, recording to a VIGI NVR, VIGI VMS or a local microSD card. Supplied by SourceIT with local Singapore warranty and GST invoice.
InSight S485 2.8mm Datasheet — Technical Specifications
General
| Model | InSight S485 2.8mm |
| Official Product Name | VIGI 8MP Full-Color Turret Network Camera |
| Brand | TP-Link |
| Warranty | 5 Years Local Warranty (Singapore) |
Camera
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/White light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
Lens
| Type | Fixed Focal Lens |
| Focal Length | 2.8 mm |
| Aperture | F1.6 |
| FOV | Horizontal FOV: 111.4°, Vertical FOV: 58.8°, Diagonal FOV: 134° |
| Lens Mount | M12*P 0.5 |
| DORI Distance | Detect: 85 m (278 ft), Observe: 35 m (116 ft), Recognize: 17 m (56 ft), Identify: 8 m (28 ft) |
| Angle Adjustment (Manual) | Pan: 0° to 360°, Tilt: 0° to 85°, Rotation: 0° to 360° |
Illuminator
| IR LED | Quantity: 4, Range: 30m, Wavelength: 850nm |
| White LED | Quantity: 4, Range: 30m |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
Video
| Max. Resolution | 3840 x 2160 |
| Main Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps. Resolution: 3840x2160, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720. Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If 120dB is turned on, the frame rate can only support up to 20fps. |
| Sub-Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps. Resolution: 704x576, 640x480, 352x288, 320x240. Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If 120dB is turned on, the frame rate can only support up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264; Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile* |
| H.265+ | Main Stream Supported* |
| Video Bit Rate | Main Stream: 256 Kbps to 6 Mbps; Sub-Stream: 64 Kbps to 512 Kbps |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | 120 dB |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
Audio
| Audio Communication | Two-Way Audio |
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
Network
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile S) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS |
| Web Browser | Google Chrome 57 and above, Firefox 52 and above, Safari 11 and above, Microsoft Edge 91 and above |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
Alarm and Event Management
| Smart Event | Intrusion Detection, Line-Crossing Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Loitering Detection, People Detection, Vehicle Detection, Abnormal Sound Detection, Scene Change Detection |
| Basic Event | Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts), Video Tampering Detection, Exception (Illegal Login) |
| Alarm Linkage | Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing |
| Output Notification | Message Push |
| People & Vehicle Analytics | Search and filter to people or vehicle of interest based on many different attributes. |
Interfaces
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | N/A |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB** |
| Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
| Built-in Speaker | Yes |
Physical & Environment
| Operating Temperature | -30-60 °C |
| Storage Temperature | -40-60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Material | Metal |
| Net Weight | 0.48 Kg |
| Power Supply | 12V DC ± 5%, Max. 11.5 W, 5.5 mm Coaxial Power Plug; PoE: 802.3af/at, class 0, Max. 12.5 W |
| Protection | IP67 |
| Product Dimensions (L x W x H) | 111 x 111 x 83.7 mm (4.4 x 4.4 x 3.3 in) |
| Certifications | CE, NTRA, VCCI, KC, BSMI, FCC, IC |
* Calculations based on laboratory testing using a 3MP VIGI camera, and actual performance may vary according to activity recorded, resolution and other variables.
** SD card is not included in the package.
TP-Link does not publish a gross weight for the InSight S485.
Compatibility & Software Support
| Management | VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS |
| Cloud | Yes |
| NVR / VMS integration | ONVIF (Profile S) |
| Web Browser | Google Chrome 57+, Firefox 52+, Safari 11+, Microsoft Edge 91+ |
| Local Storage | MicroSD card up to 512 GB (card not included) |
Package Contents & Ordering Information

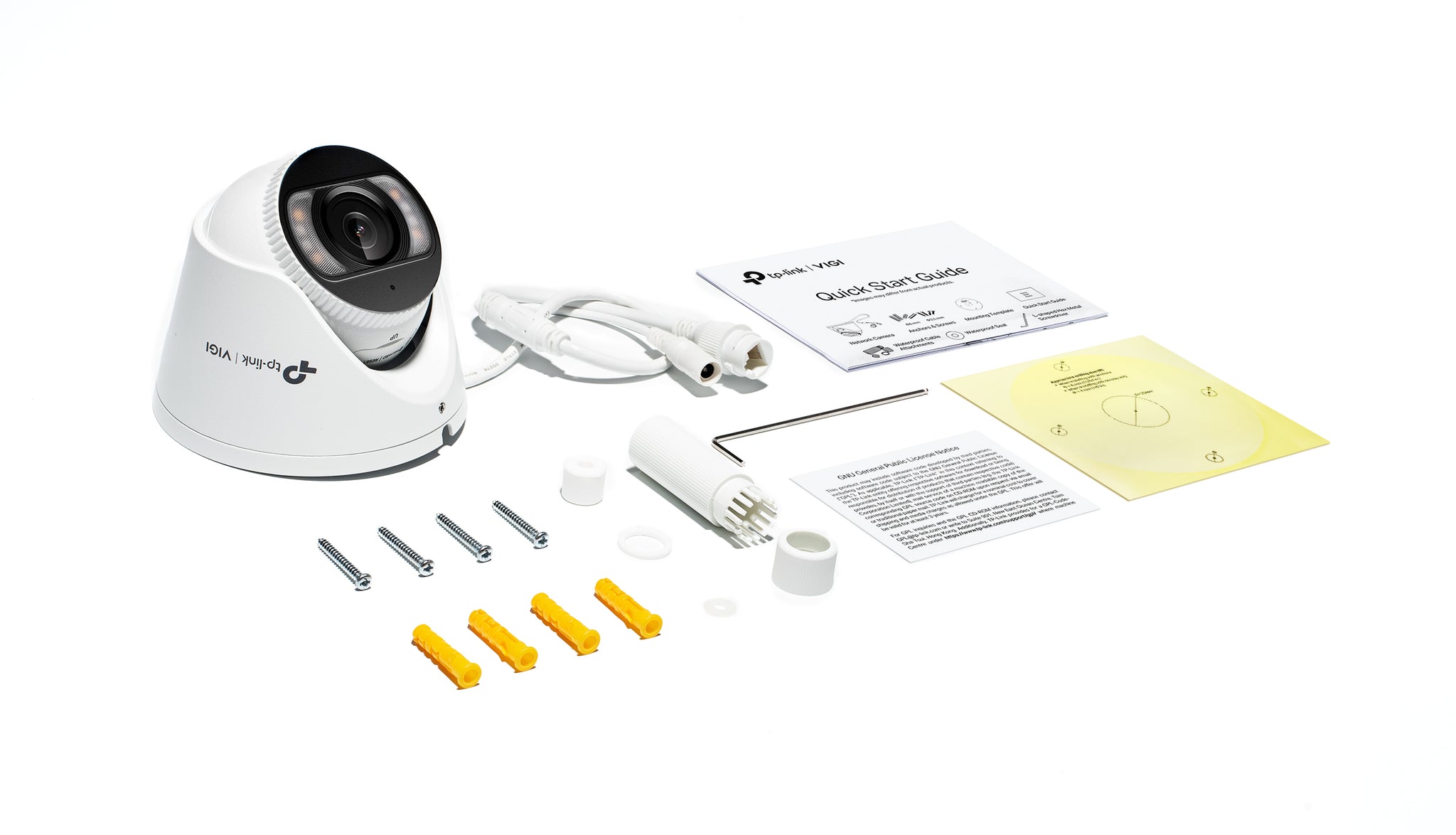

Package Contents
| Item 1 | VIGI Network Camera |
| Item 2 | Quick Start Guide |
| Item 3 | Waterproof Cable Attachments |
| Item 4 | Mounting Accessories |
Ordering Information
| Model | InSight S485 2.8mm |
| Other focal lengths | InSight S485 4mm |
| SKU | InSight S485(2.8mm) |
| Warranty | 5 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — InSight S485 2.8mm
Which focal length should I choose?
This version uses the 2.8 mm lens (Horizontal FOV: 111.4°; identify distance 8 m (28 ft)). The 2.8 mm version covers a wider scene; the 4 mm version gives more detail at distance.
Can the InSight S485 be used outdoors?
Yes. TP-Link rates it IP67 with a metal housing and an operating temperature of -30 °C to 60 °C.
Which software can manage it?
The VIGI App, VIGI Security Manager, the web UI, VIGI VMS and VIGI Cloud VMS, and it supports ONVIF Profile S for third-party recorders.
What warranty does SourceIT provide?
SourceIT supplies the InSight S485 2.8mm with 5 years local warranty in Singapore, together with a GST invoice.
Can SourceIT quote this for an office or a project?
Yes. SourceIT prepares quotations for offices, retail sites and multi-camera projects, including VIGI cameras, NVRs, PoE switches and hard drives. Send the quantities and site details to sales@sourceit.com.sg for a formal quote with GST invoice.
