TP-Link TL-WPA4220 KIT 300Mbps AV600 Wi-Fi Powerline Extender Starter Kit

TP-Link 300Mbps AV600 Wi-Fi Powerline Extender Starter Kit (TL-WPA4220 KIT) - 3 Years Local Warranty

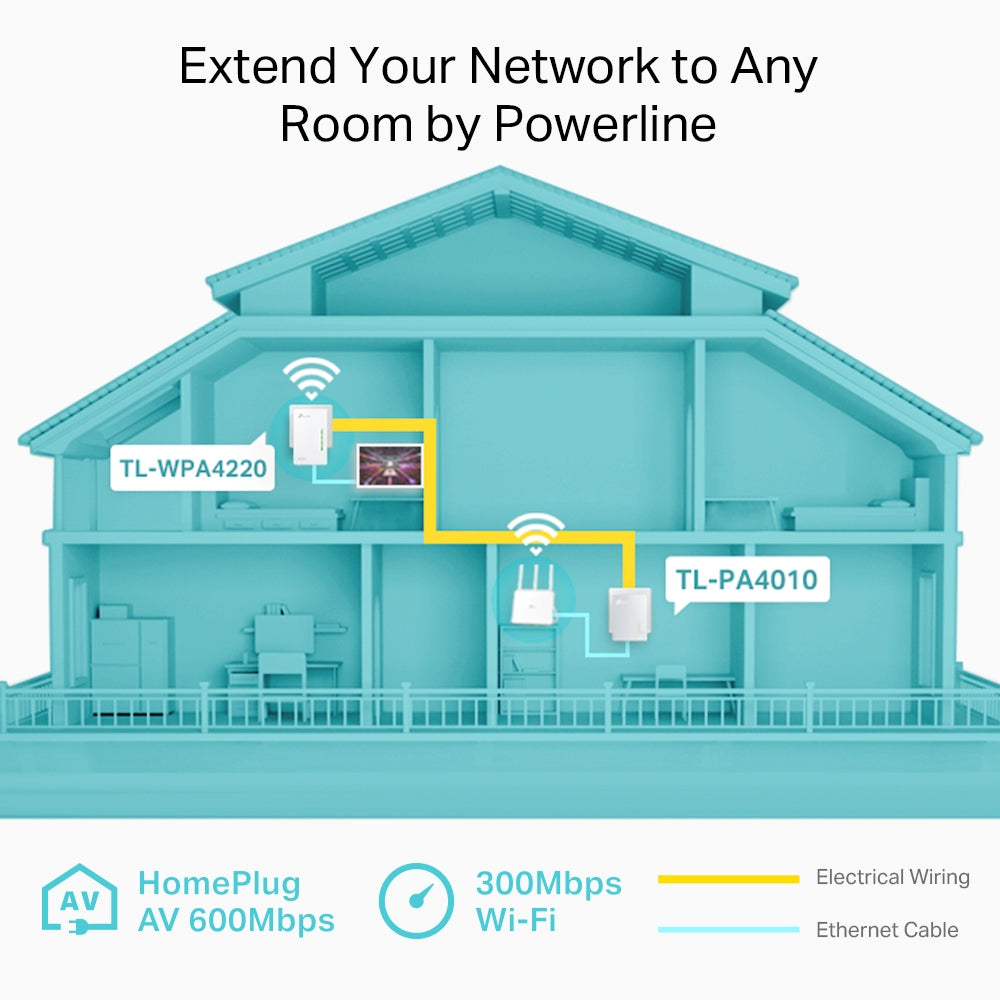

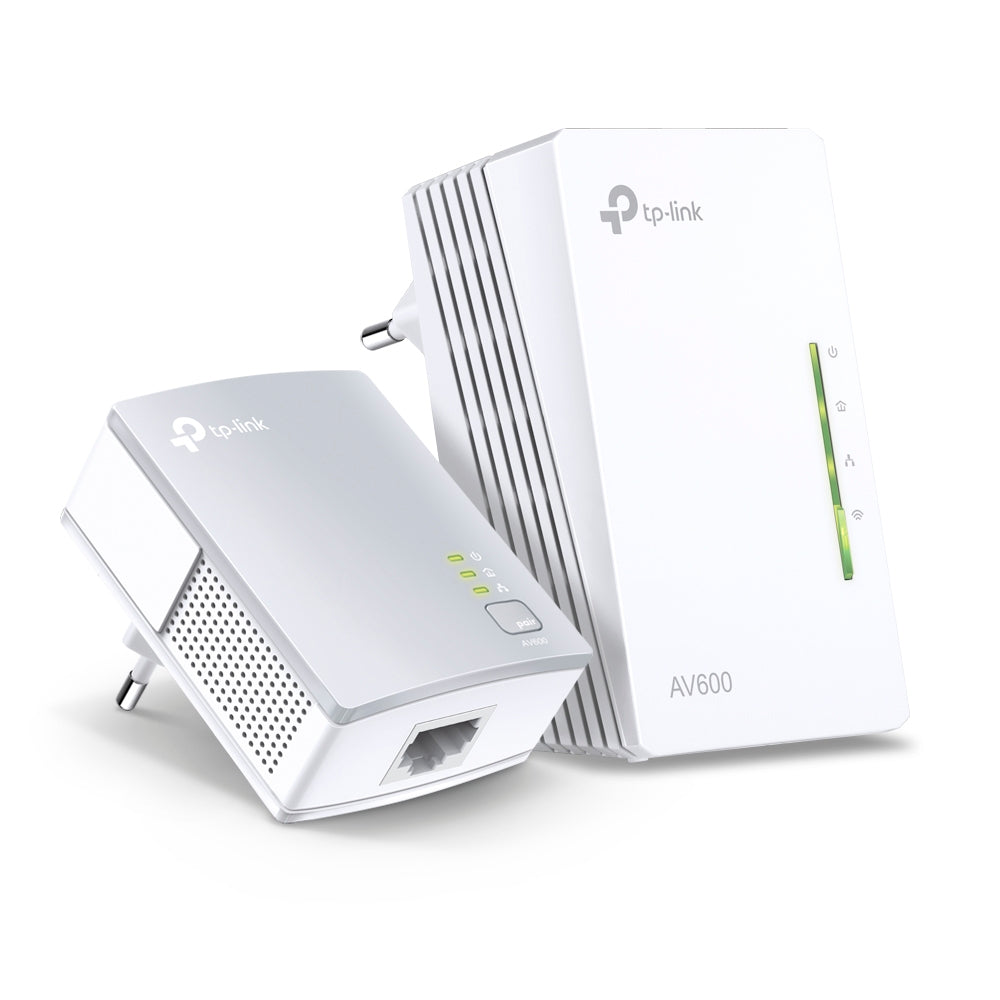

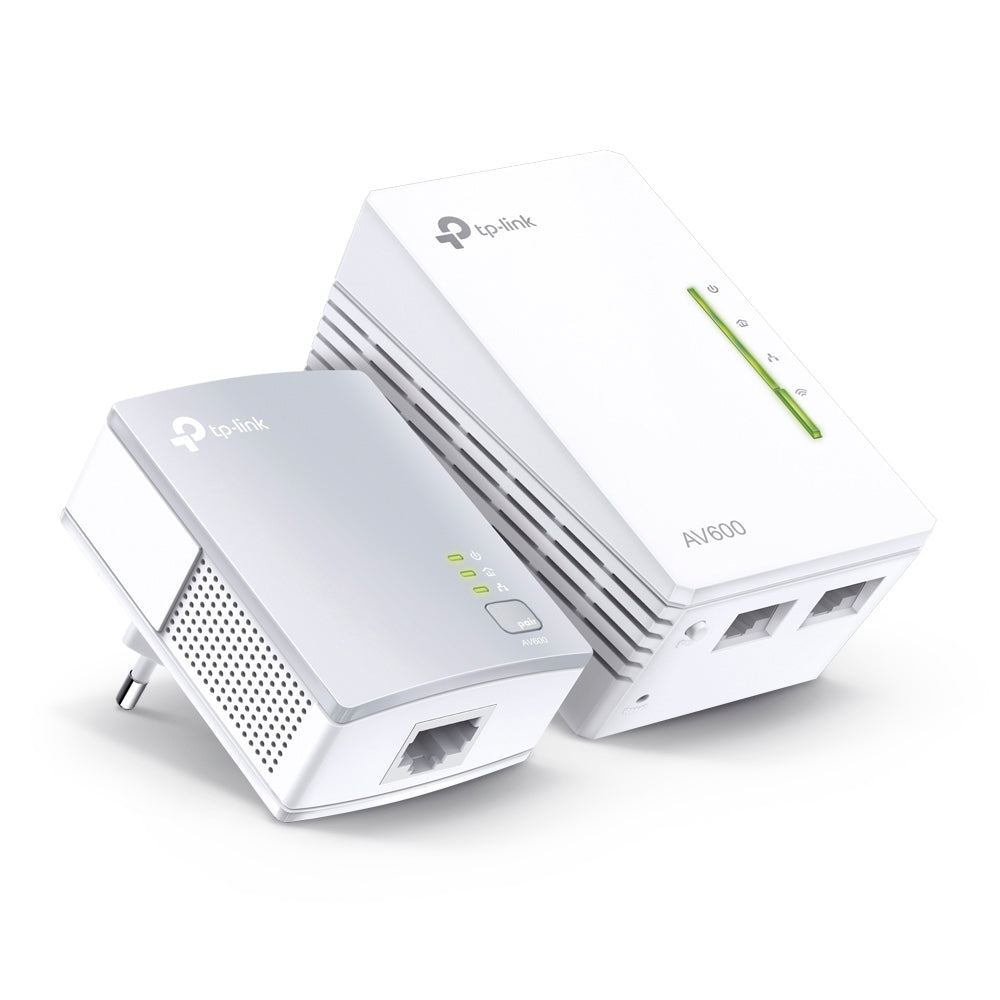

The TL-WPA4220 KIT is TP-Link's long-running entry-level powerline Wi-Fi pair: a plain TL-PA4010 adapter for the router end and a TL-WPA4220 extender with two Fast Ethernet ports and 300 Mbps 2.4 GHz wireless for the far end. It is the cheapest way to put both a wired port and a Wi-Fi signal into a room the router does not reach.

HomePlug AV Powerline Over Existing Wiring

The published standards for this kit are HomePlug AV, IEEE802.3, IEEE802.3u and IEEE802.11b/g/n, with a rated range of 300 metres over the electrical circuit. Note that TP-Link publishes no powerline throughput row anywhere in this model's specification table — the "AV600" designation appears in the product name and package line only. We do not print a powerline speed figure TP-Link does not publish for this model.

300 Mbps 2.4 GHz Wi-Fi With One-Touch Cloning

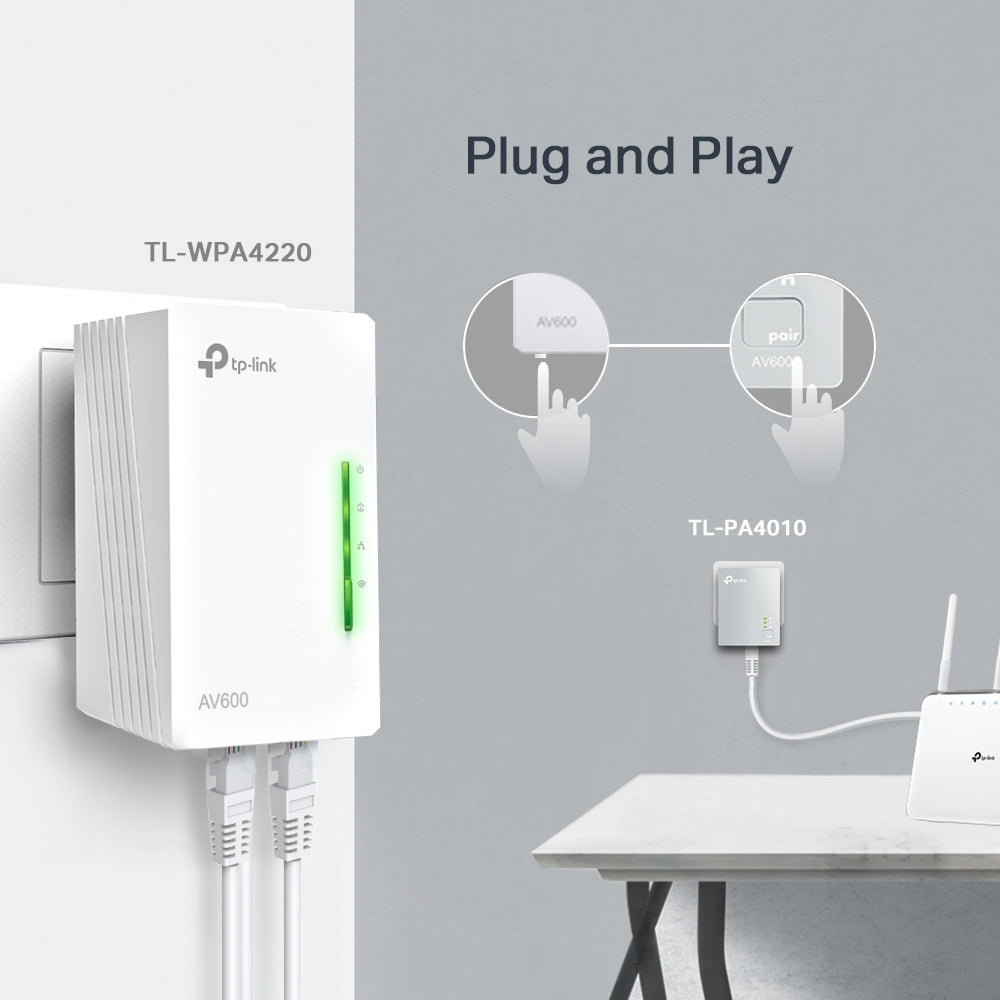

Wireless is single-band: 11n up to 300 Mbps, 11g up to 54 Mbps and 11b up to 11 Mbps, all dynamic. The Wi-Fi/Wi-Fi Clone button copies the router's network name and password onto the extender in one press, so devices roam onto it without being reconfigured. Security is published as 64/128-bit WEP, WPA/WPA2 and WPA-PSK/WPA2-PSK, with powerline traffic separately encrypted at 128-bit AES.

Two Fast Ethernet Ports on the Extender

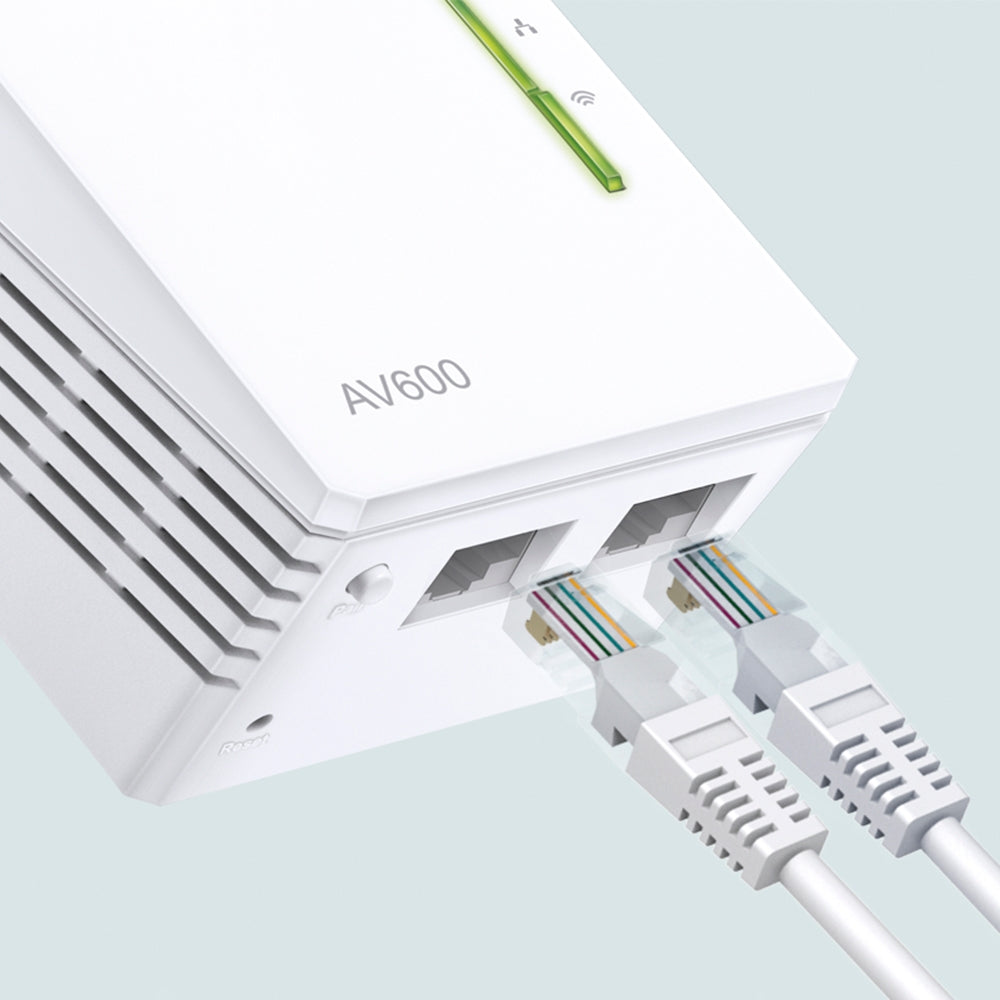

The TL-WPA4220 carries two 10/100 Mbps Ethernet ports — Fast Ethernet, not Gigabit. That suits a smart TV, a set-top box, a printer or a console; for Gigabit wired speed choose the TL-WPA7517 KIT or the TL-WPA8631P KIT. Power draw for the kit is published at a maximum of 7.608 W, typical 7.216 W and 4.610 W standby, measured at 220 V/50 Hz.

Published Radio Figures You Rarely See at This Price

Unusually for an entry-level product, TP-Link publishes full reception-sensitivity figures for this model, from -68 dBm at 270M down to -90 dBm at 1M, and transmission power limits of CE <20 dBm at 2.4 GHz. The operating window is 0°C~40°C with storage from -40°C to 70°C, and humidity 10%~90% non-condensing in operation.

Ideal For

Singapore homes and small offices on a tight budget that need one more covered room, renters who cannot run cable, and anyone extending Wi-Fi to a back bedroom or store room where a plain repeater would halve the throughput. Supplied by SourceIT with local Singapore warranty, GST invoice and volume pricing on request.

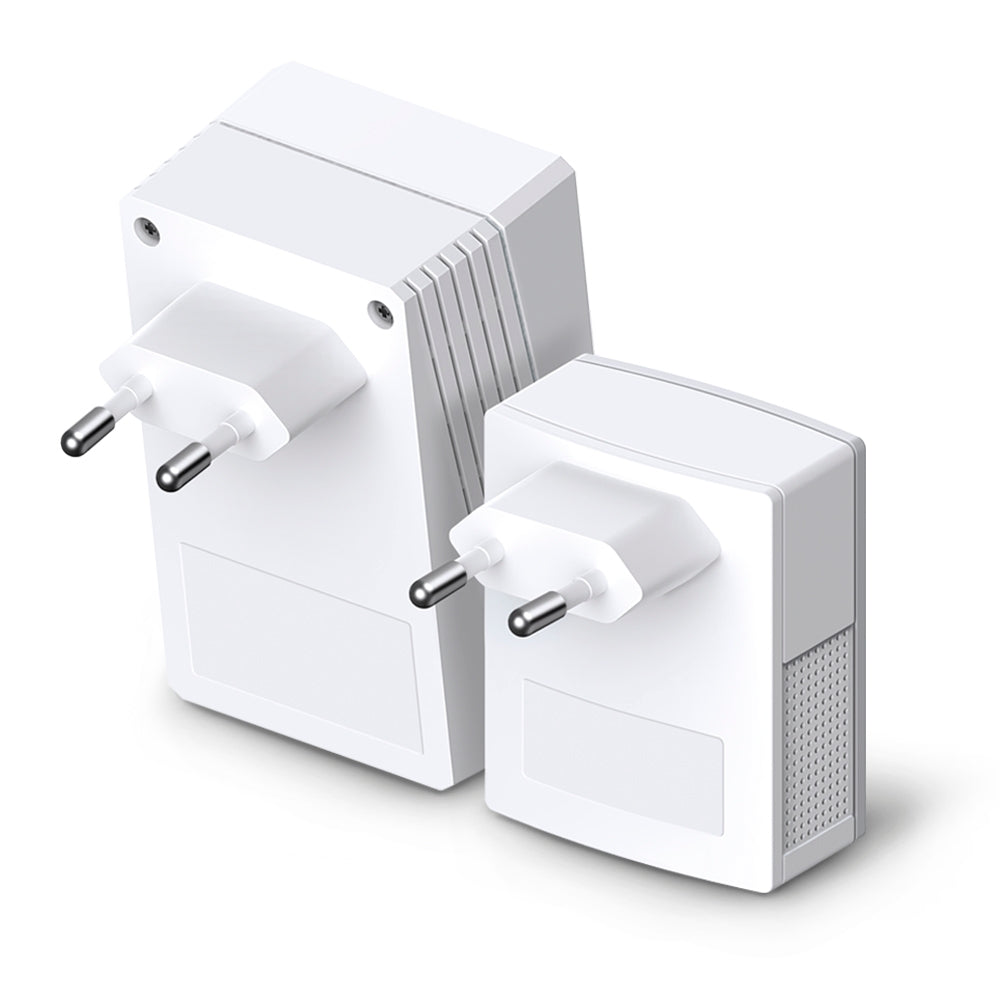

Note: TP-Link's product-page gallery for this kit shows EU-plug renders; the Singapore SKU is the UK-plug variant. The Plug Type row is published as a global list (EU, UK, US, AR). TP-Link publishes no powerline throughput row, no compatibility row, no mesh row, no net weight and no Transmission Speeds row for this model, and its certification row reads CE, RoHS while the Transmission Power row cites an FCC limit — all reproduced as published, none filled in from another model. The product-page images are named hardware revision 4.0 while the kit's download page tops out at V3; ask us to confirm the revision in stock if it matters.
