TP-Link TL-PA9020P KIT AV2000 2-Port Gigabit Passthrough Powerline Starter Kit

TP-Link AV2000 2-Port Gigabit Passthrough Powerline Starter Kit (TL-PA9020P KIT) - 3 Years Local Warranty

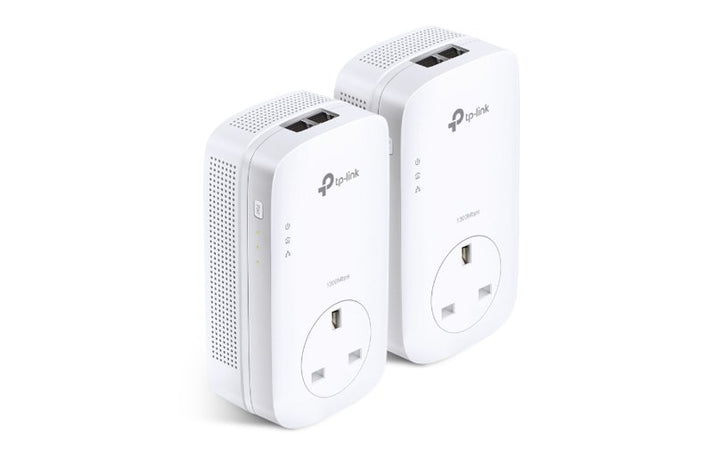

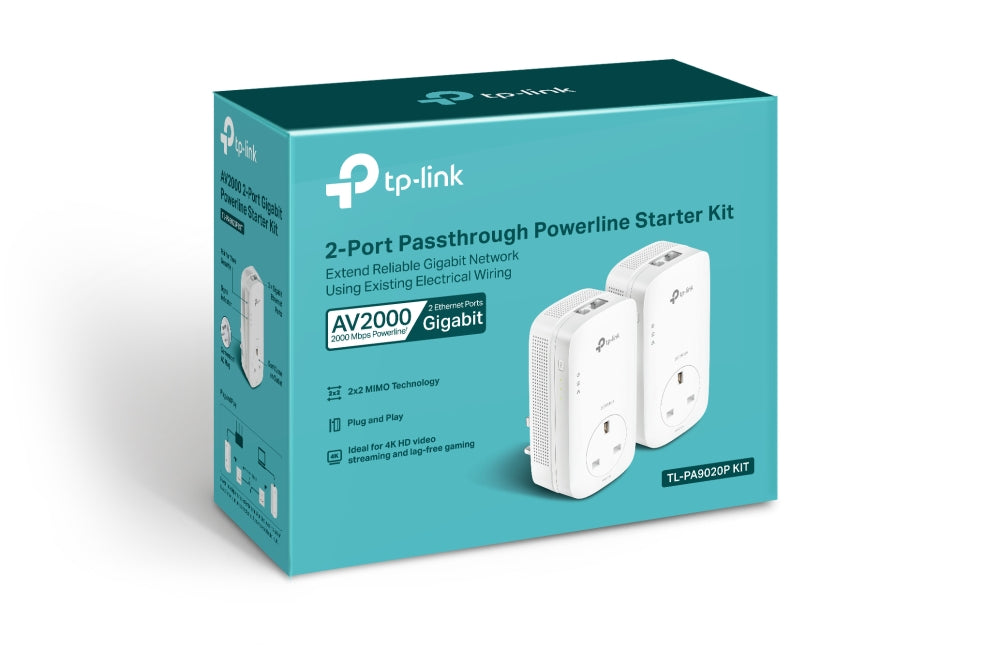

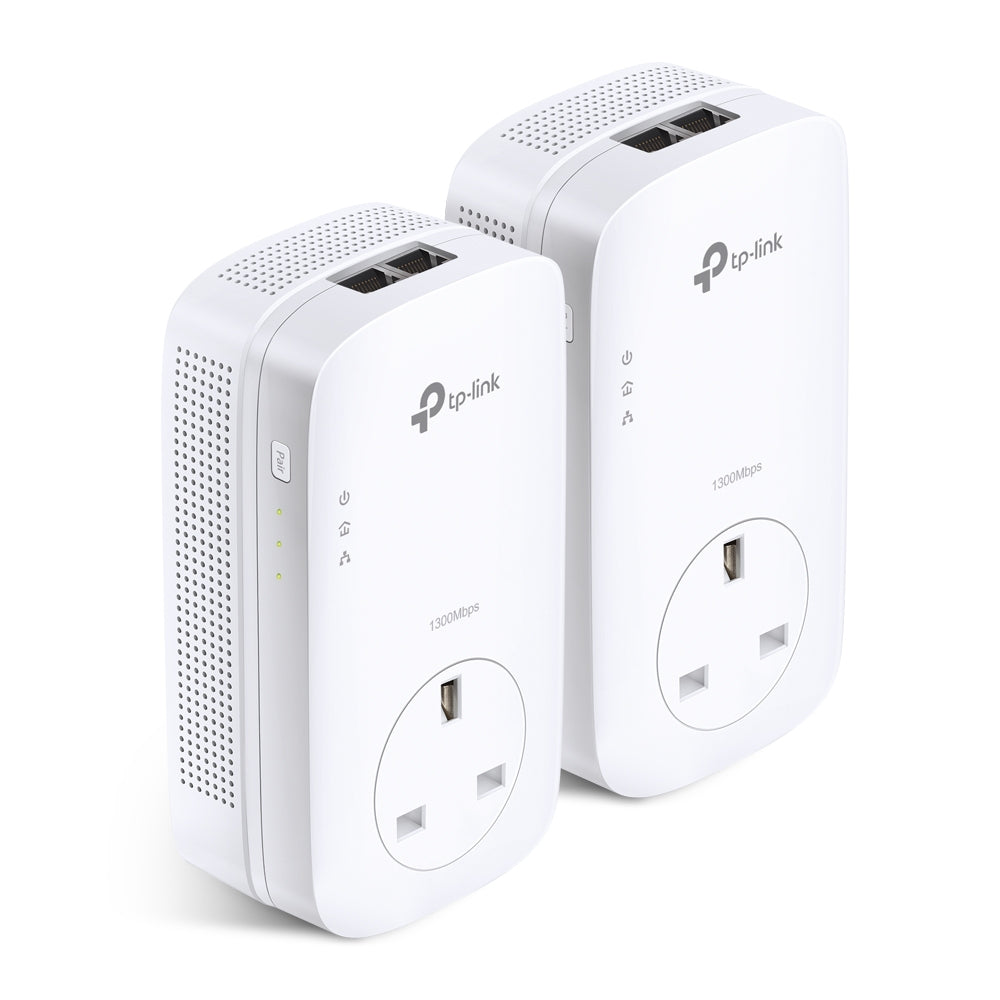

The TL-PA9020P KIT is TP-Link's fastest powerline pair, carrying network traffic over the electrical wiring already in your flat or office. Two adapters ship in the box, each with two Gigabit Ethernet ports and a 13 A passthrough socket, so a back room or a riser cupboard gets a wired link without new cabling and without giving up the wall outlet.

Up to 2000 Mbps Over the Wiring You Already Have

TP-Link publishes a transmission speed of up to 2000 Mbps on the powerline side and 10/100/1000 Mbps on the Ethernet side, built on the HomePlug AV2 standard with IEEE 1901 support. That headline figure is the physical channel rate defined by HomePlug AV2, not a guaranteed throughput — TP-Link's own footnote states actual transfer rates vary with distance, traffic, electrical noise, building construction and the quality of the electrical installation. In a typical Singapore flat or shophouse on one consumer unit, it is the practical route to a wired link where running Cat 6 is not an option.

Two Gigabit Ports on Each Adapter

Each TL-PA9020P carries two Gigabit Ethernet ports plus the power socket, so one adapter can serve a desktop and a console, a smart TV and a set-top box, or an access point and a NAS, without a separate switch. The Ethernet rate row is published as 10/100/1000 Mbps, and the kit also supports ToS-based QoS with up to four traffic levels and eight VLAN priority levels — useful where voice or video should not be starved by a large file transfer on the same pair.

A 13 A Passthrough Socket So You Keep the Outlet

The integrated socket is rated by TP-Link at 13 A, so the wall point the adapter occupies stays usable for an appliance, a desk power strip or a charger. This is the specific figure TP-Link publishes for the TL-PA9020P and it is not published for the smaller passthrough models in the range, so do not assume the same rating elsewhere. Maximum power draw of the adapter itself is 5.8 W at 230 V/50 Hz, falling to 0.5 W on standby.

128-bit AES, Pair-Button Setup and Broad Backward Compatibility

Powerline traffic is encrypted with 128-bit AES, and pairing is done with the Pair button rather than a configuration screen — plug both adapters in, press Pair on each, and the link forms. TP-Link states the kit is compatible with all AV2000, AV1200, AV1000, AV600, AV500 and AV200 powerline adapters, so it can be added to an existing HomePlug estate. The same footnote warns it may not work with routers or gateways running altered, open-source, non-standard or outdated firmware.

Ideal For

Singapore homes and small offices where Wi-Fi does not reach a bedroom, store room or rear unit, landed properties with thick walls, and any site where structured cabling is impractical. Supplied by SourceIT with local Singapore warranty, GST invoice and volume pricing on request.

Note: TP-Link's Singapore page publishes CE and RoHS certification only for this model, and publishes no net weight. Those rows are omitted here rather than filled from another model. The Plug Type row is published as a global list (EU, UK, US, FR); the Singapore SKU is the UK-plug variant shown in the product images.
