TP-Link Omada 8-Port 10/100/1000Mbps Desktop Switch
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION

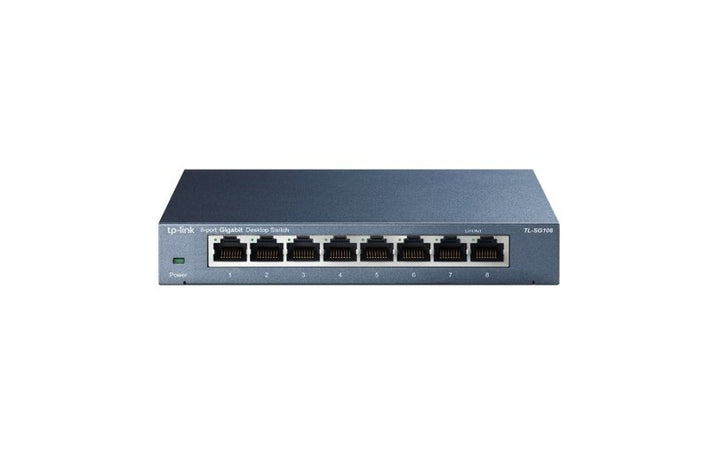

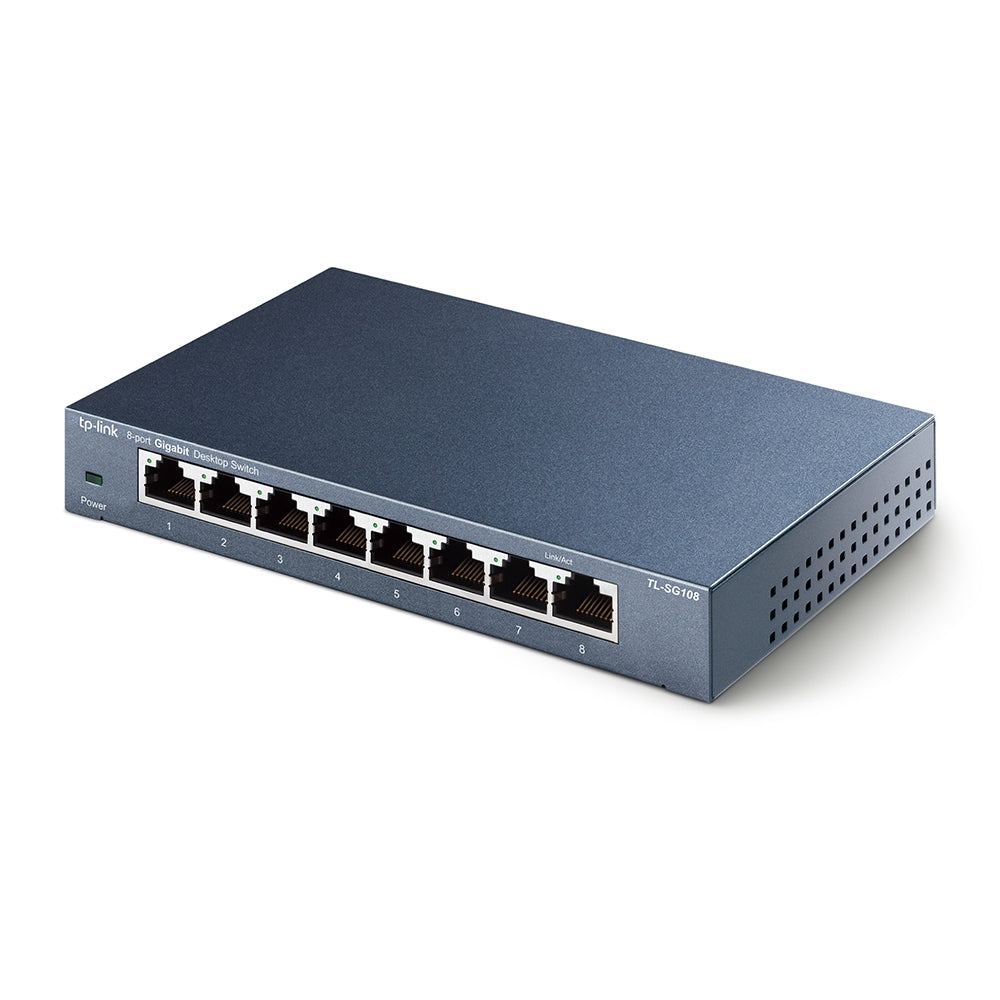

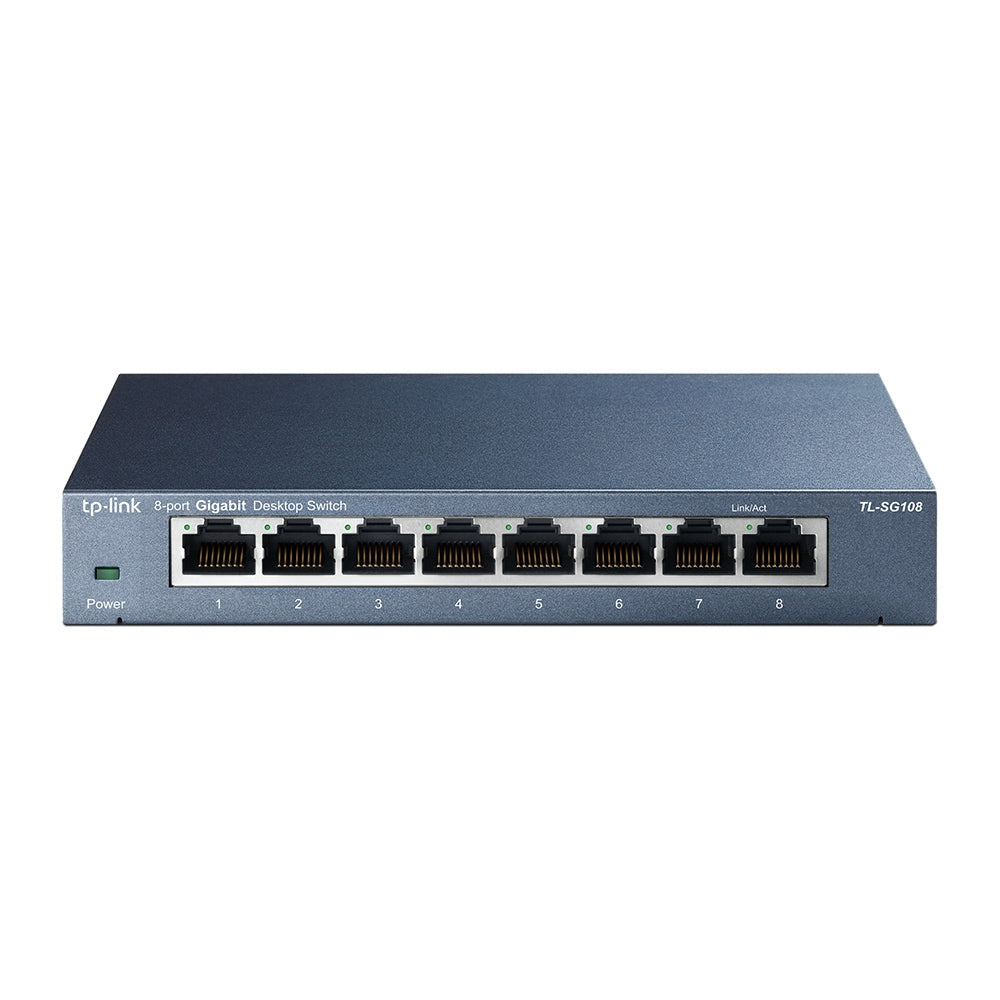

TP-Link 8-Port 10/100/1000Mbps Desktop Switch (TL-SG108) - 5 Years Local Warranty
The TL-SG108 is an eight-port Gigabit desktop switch in a 158 mm steel case, drawing 3.3 W and running completely silent. IGMP Snooping, 802.1p/DSCP QoS and a 1.5 Mb packet buffer put it a class above the cheapest eight-port switches, and Green Technology cuts power by up to 82 per cent on idle and short links.
Eight Gigabit Ports in a Steel Case
Eight 10/100/1000 Mbps ports with Auto-Negotiation and Auto-MDI/MDIX, in a 158 x 101 x 25 mm metal housing 25 mm tall. Each RJ45 socket carries its own Link/Act indicator, so a failed link is visible at a glance without a separate LED strip. The steel case matters in the places an eight-port switch usually lives — on a shelf, under a desk, inside AV furniture — where a plastic body takes knocks.
IGMP Snooping and QoS Without Configuration
IGMP Snooping keeps multicast video on the ports that asked for it rather than flooding all eight, which keeps IPTV, signage and AV-over-IP streams from swamping the segment. 802.1p/DSCP QoS prioritises marked voice and video traffic, and 802.3x flow control with a 1.5 Mb packet buffer absorbs bursts. All of it is hardware behaviour: there is no interface, no login and nothing to set.
Green Technology, 3.3 W Maximum
TP-Link rates the Green Technology implementation at up to 82 per cent power saving, and the whole switch at a 3.3 W maximum draw with 11.3 BTU/h of heat, from an external 9 V DC / 0.6 A adapter. There is no fan, so the unit is silent — which is what makes it usable in a meeting room, a consulting room or a recording space rather than only in a cabinet.
11.9 Mpps Forwarding With 16 KB Jumbo Frames
The 11.9 Mpps packet forwarding rate sustains line rate across eight Gigabit ports at minimum frame size, and jumbo frames up to 16 KB help NAS, imaging and backup traffic move efficiently. A 4K MAC address table covers a small office segment including access points carrying wireless clients. Store-and-forward switching validates each frame before it is forwarded.
Ideal For
Singapore offices, clinics, studios and meeting rooms that need eight quiet Gigabit ports on a desk or shelf, with multicast and QoS handling built in and nothing to configure. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
TL-SG108 Datasheet — Technical Specifications
General
| Model | TL-SG108 |
| Official Product Name | 8-Port 10/100/1000Mbps Desktop Switch |
| Brand | TP-Link Omada |
| Warranty | 5 Years Local Warranty (Singapore) |
Specifications
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p |
| Interface | 8 × 10/100/1000 Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX |
| LED | System Power; Link/Act indicators per port built into each RJ45 port |
| Packet Forwarding Rate | 11.9 Mpps |
| MAC Address Table | 4K |
| Packet Buffer Memory | 1.5 Mb |
| Jumbo Frame | 16 KB |
| Advanced Features | Green Technology, saving power up to 82%; 802.3x Flow Control; 802.1p/DSCP QoS; IGMP Snooping |
| Transmission Method | Store and Forward |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter (Output: 9 V DC / 0.6 A) |
| Dimensions (W x D x H) | 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm) |
| Max Power Consumption | 3.3 W |
| Max Heat Dissipation | 11.3 BTU/h |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature | -40 °C to 70 °C (-40 °F to 158 °F) |
| Operating Humidity | 10% to 90%, non-condensing |
| Storage Humidity | 5% to 90%, non-condensing |
| Certification | CE, FCC, RoHS |
Reproduced exactly as TP-Link publishes it. No switching capacity, physical security lock, EAN or carton pack size figure is published for this model, so those rows are omitted rather than calculated or carried across from a sibling.
Compatibility & Software Support
The TL-SG108 is an unmanaged switch with no PoE. There is no web interface, command line or controller adoption.
| Omada SDN Controller | Not supported — this model cannot be adopted into an Omada Software, Hardware or Cloud-Based Controller |
| Omada App / Cloud Access | Not supported |
| Web Management | None — unmanaged, plug and play |
| Power over Ethernet | Not supported — this model does not supply PoE on any port, and it is not PoE powered |
| Multicast Handling | IGMP Snooping supported in hardware, with no configuration |
| If You Need VLANs or PoE | Choose the TL-SG108E for Easy Smart web management, or the TL-SG108PE for Easy Smart with PoE+ — ask SourceIT for the equivalent |
Package Contents & Ordering Information
In the Box
| Package Contents | 8-Port 10/100/1000 Mbps Desktop Switch, Power Adapter, Installation Guide |
Ordering Information
| Model | TL-SG108 |
| Recommended Retail Price (incl. GST) | S$36.00 |
Datasheet & Downloads
Frequently Asked Questions — TL-SG108
How does it differ from the TL-SG1008D?
Both are eight-port Gigabit desktop switches. The TL-SG108 is the 158 mm steel-cased model and publishes IGMP Snooping, 802.1p/DSCP QoS and a 1.5 Mb buffer; the TL-SG1008D is a 180 mm unit with a simpler published feature set. Ask us if the application involves multicast video.
How does it differ from the TL-SG108E?
The TL-SG108 is fully unmanaged. The TL-SG108E is the Easy Smart version with a web interface for VLANs, port mirroring and link aggregation. Choose the E if you need VLANs.
Does it supply PoE?
No. It does not supply PoE and is not itself PoE powered. For PoE, look at the TL-SG1008P, TL-SG1008MP or TL-SG108PE.
Can it be rack mounted?
No rackmount kit is supplied and TP-Link publishes no mounting row for this model; it is specified as a desktop switch.
What warranty does SourceIT provide?
Five years local Singapore warranty, in line with TP-Link's replacement warranty policy for unmanaged Gigabit switches. Every unit sold by SourceIT comes with a GST invoice.
