TP-Link Omada BE11000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point, 2.5G PoE+ with Power Adapter Included
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION

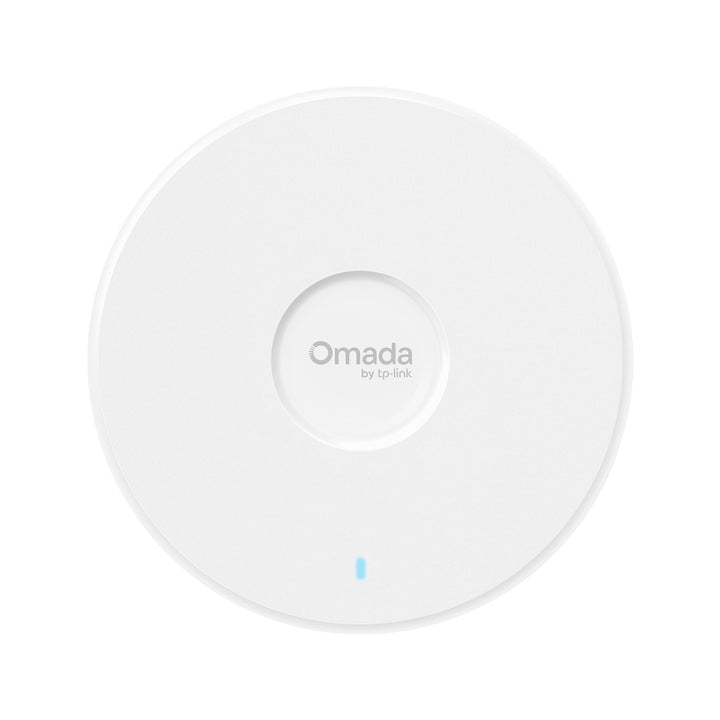

TP-Link Omada BE11000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point, 2.5G PoE+ with Power Adapter Included (EAP770) - 5 Years Local Warranty
The EAP770 is Omada's BE11000 tri-band Wi-Fi 7 ceiling access point with a 2.5G PoE+ uplink. It adds a 6 GHz radio, Multi-Link Operation and 320 MHz channels to a standard 802.3at switch port, and TP-Link lists a power adapter in the box, so the same unit can be installed on PoE+ or run from a local DC supply where no PoE port is available.
Tri-Band Wi-Fi 7: 5765 Mbps on 6 GHz, 4324 Mbps on 5 GHz, 688 Mbps on 2.4 GHz
Three simultaneous radios give the EAP770 its BE11000 rating. The 6 GHz band is the headline addition: it is clean spectrum that legacy clients cannot occupy and the only band on which TP-Link enables 320 MHz channels. The 5 GHz radio carries the bulk of today's Wi-Fi 6 and Wi-Fi 7 laptops and phones, while 2.4 GHz continues to serve printers, sensors and older devices. Omada rates the unit for 380+ concurrent clients across about 140 m² (1500 ft²).
MLO for Lower Latency Under Load
Multi-Link Operation lets a Wi-Fi 7 client hold links on more than one band at the same time and move traffic away from whichever has become congested. For video calls, voice and interactive applications that means fewer latency spikes and less jitter when the floor is busy, rather than a client sitting on one crowded channel waiting for a band-steer decision.
4096-QAM for Higher Capacity
Wi-Fi 7 raises modulation to 4K-QAM, packing 12 bits into each symbol instead of Wi-Fi 6's 10. Clients close to a ceiling AP with a strong signal move more data in the same airtime, which frees the channel for everyone else. It works alongside MU-MIMO, OFDMA, BSS Colouring, band steering, load balancing and airtime fairness, all listed in TP-Link's specification.
2.5G PoE+ Port, 25.4 W Maximum Draw
A single 2.5G Ethernet port carries both data and 802.3at PoE+ power, so the AP's wired uplink is not capped at Gigabit and a standard PoE+ switch can power it. Maximum consumption is 25.4 W on PoE or 21.8 W on 12V/2.5A DC. Ceiling, wall and junction-box mounting kits are included.
Secure Guest Networks: 24 SSIDs, SMS Login, WPA3 and Rogue AP Detection
Up to 24 SSIDs (8 per band) let one AP separate staff, guest, IoT and voice networks, each mapped to its own VLAN. Captive portal and SMS login handle guest onboarding, WPA3-Personal/Enterprise protects the wireless edge, the MAC filter holds up to 4,000 entries, and rogue AP detection flags unauthorised transmitters. Under Omada SDN the EAP770 is managed alongside Omada gateways and switches from Omada Central (cloud), a hardware controller or the software controller.
Ideal For
Singapore offices, schools, clinics, retail and hospitality sites moving to tri-band Wi-Fi 7 on 2.5G PoE+ switching, and IT teams or MSPs standardising on Omada so access points, switches and gateways are managed from one controller. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
EAP770 Datasheet — Technical Specifications
General
| Model | EAP770 |
| Official Product Name | BE11000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point |
| Brand | TP-Link Omada |
| Warranty | 5 Years Local Warranty (Singapore) |
Hardware Features
| Interface | 1× 2.5G Ethernet Port |
| Button | Reset |
| Power Supply | 802.3at PoE or 12V/2.5A DC |
| Max. Power Consumption | 25.4 W (PoE) / 21.8 W (DC) |
| Dimensions (W × D × H) | 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm) |
| Weight | 730 g (datasheet) |
| Antenna | 2.4 GHz: 2× 4.0 dBi; 5 GHz: 2× 5.0 dBi; 6 GHz: 2× 5.0 dBi |
| Bluetooth | 1× 4.0 dBi, Bluetooth 5.2 |

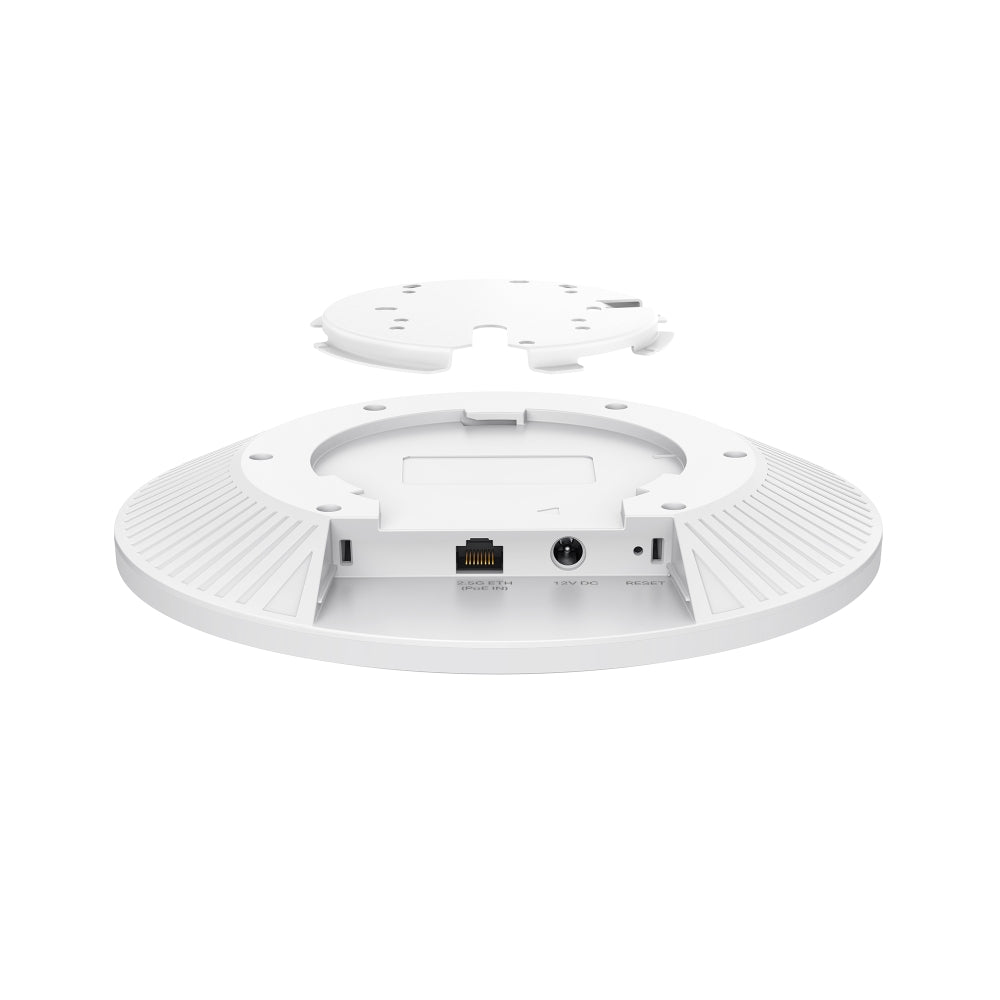

| Mounting | Ceiling / Wall / Junction Box Mounting (Kits Included) |
Wireless Features
| Coverage | 1500 ft² (140 m²) |
| Concurrent Clients | 380+ |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 6 GHz, 5 GHz and 2.4 GHz |
| Signal Rate | 688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz) + 5765 Mbps (6 GHz) |
| Wireless Functions | MLO, 4K-QAM, MU-MIMO, 320 MHz Bandwidth, Mesh, Seamless Roaming, BSS Coloring, OFDMA, Load Balance, Band Steering, Beamforming, Airtime Fairness, Multiple SSIDs: 24 (8 per band), Wireless Schedule, Reboot Schedule, QoS (WMM), Rate Limit, Static/Dynamic IP, RADIUS Accounting, MAC Authentication |
| Wireless Security | Captive Portal Authentication, Access Control, MAC Filter (4,000 max), Wireless Client Isolation, VLAN, Rogue AP Detection, WPA/WPA2/WPA3-Personal and Enterprise |
| Transmission Power | <25 dBm (2.4 GHz) / <25 dBm (5 GHz) / <23 dBm (6 GHz) |
TP-Link's EAP770 datasheet lists the 5 GHz rate as 4324 Mbps for the US version and 2882 Mbps for the EU version; the Singapore product page lists 4324 Mbps. The 320 MHz bandwidth is available on the 6 GHz band only and may be unavailable in some regions due to regulatory restrictions.
Management Features
| Omada App | Yes |
| Centralized Management | Omada Cloud-Based Controller, Hardware Controller, Software Controller |
| Cloud Access | Yes (requires Omada controller) |
| Other | Email Alerts, LED On/Off Control, Management MAC Access Control, SNMP v1/v2c/v3, Local/Remote Syslog, Web-based Management |
Environment & Certification
| Operating Temperature | 0°C–40°C (32°F–104°F) |
| Storage Temperature | -40°C–70°C (-40°F–158°F) |
| Operating Humidity | 10%–90% non-condensing |
| Storage Humidity | 5%–90% non-condensing |
| Certification | CE, FCC, IC |
Compatibility & Software Support
The EAP770 is part of the Omada ecosystem: gateways, switches and access points are managed together from one controller, under one set of policies, with one view of the network. Omada Mesh, Seamless Roaming, Captive Portal and Cloud Access require the device to be adopted into an Omada controller.
| Omada SDN Controller | Supported — Omada Cloud-Based Controller, Hardware Controller or Software Controller |
| Omada App | Supported — remote management from iOS and Android |
| Omada Cloud Access | Supported — requires an Omada controller |
| Standalone Mode | Supported — web-based management |
| Client Requirements | Wi-Fi 7 features (MLO, 320 MHz, 6 GHz, 4K-QAM, Multi-RUs, OFDMA, MU-MIMO) require clients that also support them |
Package Contents & Ordering Information
What’s in the Box
| Package Contents | Omada Ceiling Mount Access Point EAP770, Installation Guide, Power Adapter, Ceiling/Wall/Junction Box Mounting Kits |
Ordering Information
| Model | EAP770 |
| Recommended Retail Price (incl. GST) | S$379.00 |
Datasheet & Downloads
Frequently Asked Questions — EAP770
Does the EAP770 need an Omada Controller?
No. It can be managed standalone through its web interface. Adopting it into Omada Central, a hardware controller or the software controller unlocks central configuration, monitoring, firmware management, Mesh, Seamless Roaming, Captive Portal and cloud/app access.
How does it differ from the EAP772?
Both are BE11000 tri-band Wi-Fi 7 ceiling APs with a 2.5G 802.3at PoE+ port in a 220 × 220 × 32.5 mm chassis. TP-Link lists a power adapter in the EAP770 box and ceiling, wall and junction-box mounting kits.
What warranty does SourceIT provide?
Five years local Singapore warranty. Every EAP770 sold by SourceIT comes with a GST invoice.
Is stock held locally?
SourceIT holds fast-moving Omada lines in Singapore. Anything not in local stock is brought in on indent — ask us for the current lead time before committing to a project date.
Is this model available for project orders?
Yes. TP-Link supplies this model for project deployments; contact SourceIT with your bill of materials for pricing and lead time.
