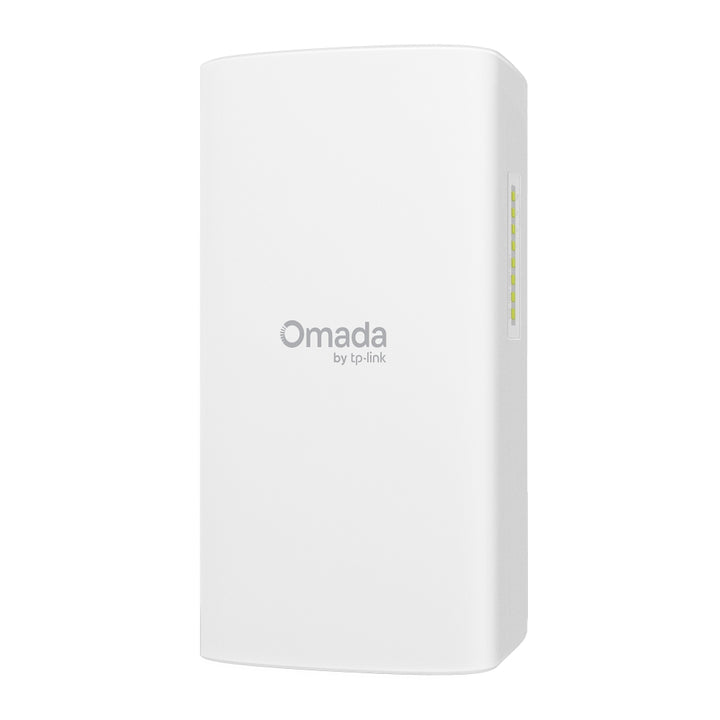

TP-Link Omada 5 GHz 867 Mbps Long-Range Indoor/Outdoor Wireless Flex Bridge with 2 PoE Out Ports
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
TP-Link Omada 5 GHz 867 Mbps Long-Range Indoor/Outdoor Wireless Flex Bridge with 2 PoE Out Ports (Flex Bridge 5) - 5 Years Local Warranty
The Flex Bridge 5 is Omada's flexible 5 GHz bridge endpoint: pair two for a point-to-point link, group several for point-to-multipoint, or connect up to 32 back to a Sector Bridge 5 hub. Its three Gigabit ports — two with PoE out — let it power IP cameras at the remote end, which makes it a natural fit for surveillance backhaul.
Point-to-Point or Multipoint with Flex and Sector Bridges
TP-Link states the Flex Bridge supports bridging between Flex Bridges, optimised for 8 nodes, and up to 32 with a Sector Bridge hub. The published PtMP figure is 8 maximum among Flex Bridges; the 32-node capacity is achievable only when used with Sector Bridge 5.
5 km at 867 Mbps
Internal 2 × 17 dBi directional 5 GHz antennas (40° horizontal, 18° vertical beamwidth) carry the link up to 5,000 m (3.1 mi) at a signal rate of up to 867 Mbps with 2×2 MU-MIMO — enough to extend a network across buildings and to remote locations.
Powering Surveillance with 2 × PoE Out Ports
Three Gigabit Ethernet ports, two of which support PoE out, let the bridge power IP cameras directly at the far end. TP-Link rates maximum consumption at 12 W on DC and 26.06 W on PoE with PoE out in use.
Role and DIP Switches for Simple Pairing
Role Switch and Pairing Code Switch DIP switches set each unit's role and pair bridges rapidly, and the Omada App provides guided antenna alignment for optimal performance.
Flexible Power, IP66 Housing
Power options are 12V DC, 802.3at/af PoE or Passive PoE with a 54V passive PoE adapter included (for dry indoor use only). The IP66 enclosure carries lightning/ESD protection (±8 kV air, ±4 kV contact, ±6 kV common mode), is rated -40 °C to 70 °C and weighs 0.59 kg, with pole and wall mounting kits included.
Standalone or Omada SDN Managed
Monitor remotely with standalone management or adopt into Omada Central, an Omada Hardware or Software Controller for central monitoring, firmware updates, alerts and zero-touch provisioning.
Ideal For
CCTV backhaul for car parks, estates, construction sites and perimeters; linking outbuildings, guardhouses and gates; and remote endpoints for a Sector Bridge 5 hub at Singapore sites where trenching cable is impractical. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
Flex Bridge 5 Datasheet — Technical Specifications
General
| Model | Flex Bridge 5 |
| Official Product Name | Omada 5 GHz 867 Mbps Long-Range Connectivity for Indoors/Outdoors Wireless Flex Bridge |
| Brand | TP-Link Omada |
| Warranty | 5 Years Local Warranty (Singapore) |
Hardware
| Interface | 3× Gigabit Ethernet Ports (2 Support PoE Out) |
| Button | Reset |
| DIP Switch | Role Switch; Pairing Code Switch |
| Power Supply | 12V DC; 802.3at/af PoE; 24V Passive PoE (54V Passive PoE Adapter Included - For Dry Indoor Use Only) |
| Max. Power Consumption | DC: 12W; PoE: 26.06W with PoE out |
| Dimensions (W x D x H) | 8.4 × 2 × 4.7 in (214.2 × 50.8 × 119.8 mm) |
| Antenna | 2.4 GHz: 1 × 1 dBi (peak gain), internal omnidirectional antennas; 5 GHz: 2 × 17 dBi (peak gain), internal directional antennas; Beamwidth: Horizontal 40°, Vertical 18° |
| Weatherproof Enclosure | IP66 |
| Mounting | Pole and wall mounting (Kits included) |
| Lightning Protection | Air discharge: ±8kV; Contact discharge: ±4kV; Common mode 10/700: ±6kV |
| Weight | 0.59 kg (1.3 lbs) |
Wireless
| PtP | Yes |
| PtMP | 8 Maximum (up to 32 with a Sector Bridge 5 hub) |
| Transmission Distance | 5,000 m (3.1 mi) |
| Wireless Standards | IEEE 802.11 a/n/ac |
| Frequency | 5 GHz |
| Signal Rate | 5 GHz: Up to 867 Mbps |
| Wireless Functions | MU-MIMO: 5G 2x2 MU-MIMO DL; Multiple SSIDs: 1; Wireless Statistics; Reboot Schedule; RADIUS Accounting; Static IP/Dynamic IP; Rate Limit; Enable/Disable Wireless Radio; Enable/Disable SSID Broadcast |
| Wireless Security | VLAN; Rogue AP Detection; Wireless Encryption |
| Transmission Power | CE: <23dBm (5 GHz, band 1/2, EIRP); <30dBm (5 GHz band 3, EIRP). FCC: <23.5dBm (5 GHz band 1); <25dBm (5 GHz band 4) |
Management
| Omada App | Yes |
| Restore & Backup | Yes |
| Firmware update via Web | Yes |
| NTP | Yes |
| Centralized Management | Omada Central (Cloud-Based), Omada Hardware Controller, Omada Software Controller |
| Cloud Access | Yes. Requires the use of an Omada Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| SNMP | Yes |
| SSH | Yes |
| Web-based Management | Yes |
| Zero-Touch Provisioning | Yes |
Environment & Certification
| Operating Temperature | -40 °C–70 °C (-40 °F–158 °F) |
| Storage Temperature | -40 °C–70 °C (-40 °F–158 °F) |
| Operating Humidity | 10%–90% non-condensing |
| Storage Humidity | 5%–90% non-condensing |
| Certification | CE, FCC, RoHS |
TP-Link's page describes the power options both as "802.3at/af, Passive PoE (54V passive PoE adapter included), and 12V DC" (feature section) and as "24V Passive PoE (54V Passive PoE Adapter Included …)" (Power Supply row); both are reproduced as published. The 32-node capacity is achievable only with Sector Bridge 5 and, like coverage, is based on TP-Link laboratory testing.
Compatibility & Software Support
The Flex Bridge 5 pairs with other Flex Bridge 5 units (point-to-point, or point-to-multipoint optimised for 8 nodes) or connects as an endpoint to a Sector Bridge 5 hub (up to 32). It can run standalone or be adopted into Omada SDN alongside Omada gateways, switches and APs; TP-Link notes cloud access requires an Omada controller.
| Omada SDN Controller | Supported — Omada Central (Cloud-Based), Omada Hardware Controller, Omada Software Controller |
| Omada App | Supported (including app-guided antenna alignment) |
| Cloud Access | Supported (requires an Omada controller) |
| Zero-Touch Provisioning | Supported |
| Standalone Mode | Supported — web-based management |
Package Contents & Ordering Information
What’s in the Box
| Package Contents | Flex Bridge 5, Installation Guide, Mounting Kit, Passive PoE Adapter, Power Cord |
Ordering Information
| Model | Flex Bridge 5 |
| Recommended Retail Price (incl. GST) | S$249.00 |
Datasheet & Downloads
Frequently Asked Questions — Flex Bridge 5
Is the Flex Bridge 5 sold as a pair?
No — it is a single bridge unit. A point-to-point link needs two Flex Bridge 5 units (or one Flex Bridge with a Sector Bridge 5 hub); multipoint links need one unit per site.
Does the Flex Bridge 5 need an Omada Controller?
No. It runs standalone with DIP-switch pairing. Adopting it into Omada Central or an Omada Hardware/Software Controller adds central monitoring, alerts, firmware management and cloud access.
What warranty does SourceIT provide?
Five years local Singapore warranty. Every Flex Bridge 5 sold by SourceIT comes with a GST invoice.
Is stock held locally?
SourceIT holds fast-moving Omada lines in Singapore. Anything not in local stock is brought in on indent — ask us for the current lead time before committing to a project date.
Is this model available for project orders?
Yes. TP-Link supplies this model for project deployments; contact SourceIT with your bill of materials for pricing and lead time.
