TP-Link Omada Pharos 2.4 GHz 300 Mbps 9 dBi Outdoor CPE 27 dBm

TP-Link Pharos 2.4GHz 300Mbps 9dBi Outdoor CPE (CPE210) - 5 Years Local Warranty

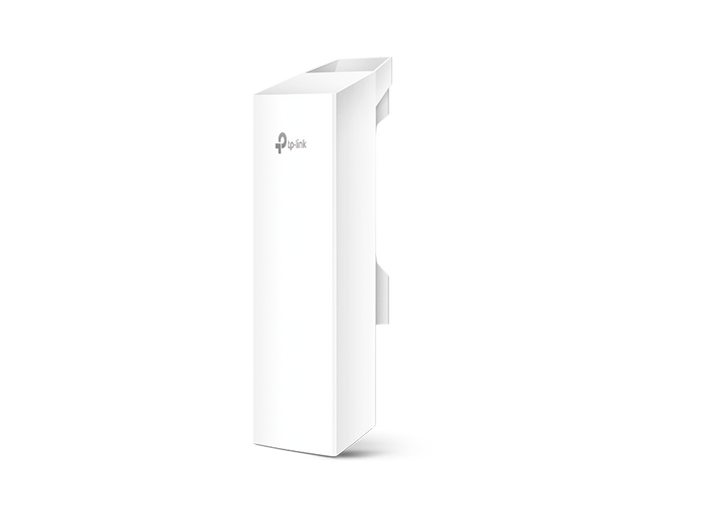

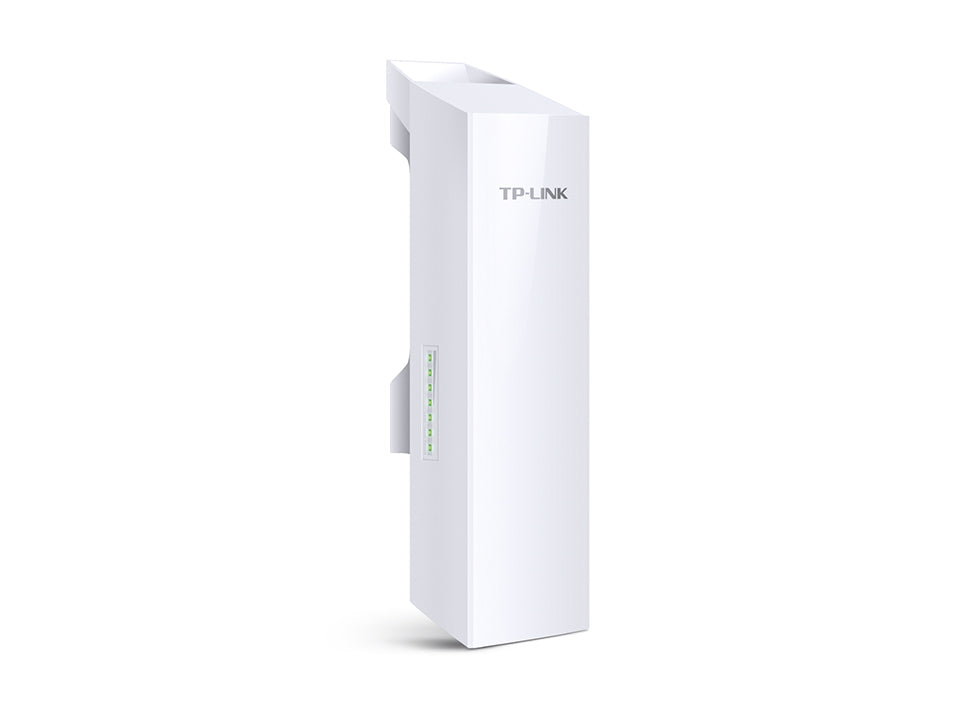

The CPE210 is the entry point to TP-Link's Pharos outdoor range: a 9 dBi dual-polarized directional MIMO antenna on 2.4 GHz, rated to 300 Mbps with transmit power adjustable to 27 dBm / 500 mW, and system-level optimizations TP-Link credits with more than 5 km of wireless transmission. It carries the same two-port PoE passthrough design and rugged ASA enclosure as the rest of the family.

9 dBi With a Wide 65° Beam for Shorter Hops

The built-in 9 dBi 2x2 dual-polarized directional antenna gives a 65° horizontal and 35° vertical pattern - the widest beam in the Pharos CPE line. That makes it quick to aim, tolerant of a pole that shifts slightly in the wind, and well suited to covering a spread of nearby buildings from a single base station. It is not the unit for a 20 km hop; it is the unit for a link across a yard, a campus or an estate where alignment time matters more than maximum reach.

2.4 GHz at 500 mW, Adjustable in 1 dBm Steps

Operating across 2.4-2.483 GHz with transmit power adjustable from 0 to 27 dBm / 500 mW, the CPE210 works the band that penetrates foliage and partial obstruction better than 5 GHz. Adjustability matters on a short link: dialling power down reduces self-interference and keeps neighbouring links clean, while the full budget is there when the path needs it. Deployment must respect the local regulatory limit for the band.

300 Mbps With Narrow-Channel Options

Wireless speeds reach 300 Mbps at 40 MHz, 144.4 Mbps at 20 MHz, 72.2 Mbps at 10 MHz and 36.1 Mbps at 5 MHz. The narrow channels are the practical tool for 2.4 GHz, which is the busiest band in any built-up area: halving the channel width raises the signal-to-noise margin and often produces a faster real-world link than a wide channel fighting for air. With MAXtream enabled the radio switches from 802.11b/g/n contention to TP-Link's proprietary TDMA scheduling, giving each station its own slot.

Two Ports, PoE Passthrough and a Grounding Terminal

LAN0 takes passive PoE in and LAN1 passes it through to a second device, so a camera on the same mast runs from the same injector and cable. A dedicated grounding terminal is fitted - essential for a rooftop radio in Singapore. Maximum power consumption is 10.5 W, and the supplied 24 V 1 A injector supports runs up to 60 m with a remote reset button so a stuck unit can be power-cycled from ground level.

ASA Enclosure, IPX5, 15 kV ESD and 6 kV Lightning Protection

The casing is outdoor ASA stabilized plastic - chosen for UV stability over years of exposure - with IPX5 waterproof certification, 15 kV ESD protection and 6 kV lightning protection. Operating range is -30 to 70 °C, storage -40 to 70 °C, humidity to 90% non-condensing. At 224 x 79 x 60 mm it is the same compact body as the CPE510, so mounting hardware and installation practice carry across.

Ideal For

Singapore campuses, worksites, warehouses and estates linking nearby buildings, CCTV and access-control backhaul from a gatehouse or car park, and small multipoint deployments where a wide beam beats maximum gain. TP-Link lists the CPE210 as End of Sale, so availability is limited - ask SourceIT about current stock and the current generation. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
