TP-Link Omada Gigabit WDM Media Converter 20 km, 1550 nm TX / 1310 nm RX

TP-Link Gigabit WDM Media Converter (TL-FC311A-20) - 5 Years Local Warranty

The TL-FC311A-20 takes a Gigabit copper port to single-mode fibre over one strand, up to 20 km. It is the "A" half of a WDM pair: it transmits at 1550 nm and receives at 1310 nm, so the far end must be a converter with the mirror-image wavelengths, such as the TL-FC311B-20 that TP-Link names as its counterpart.

Full Gigabit Over a Single Fibre Strand

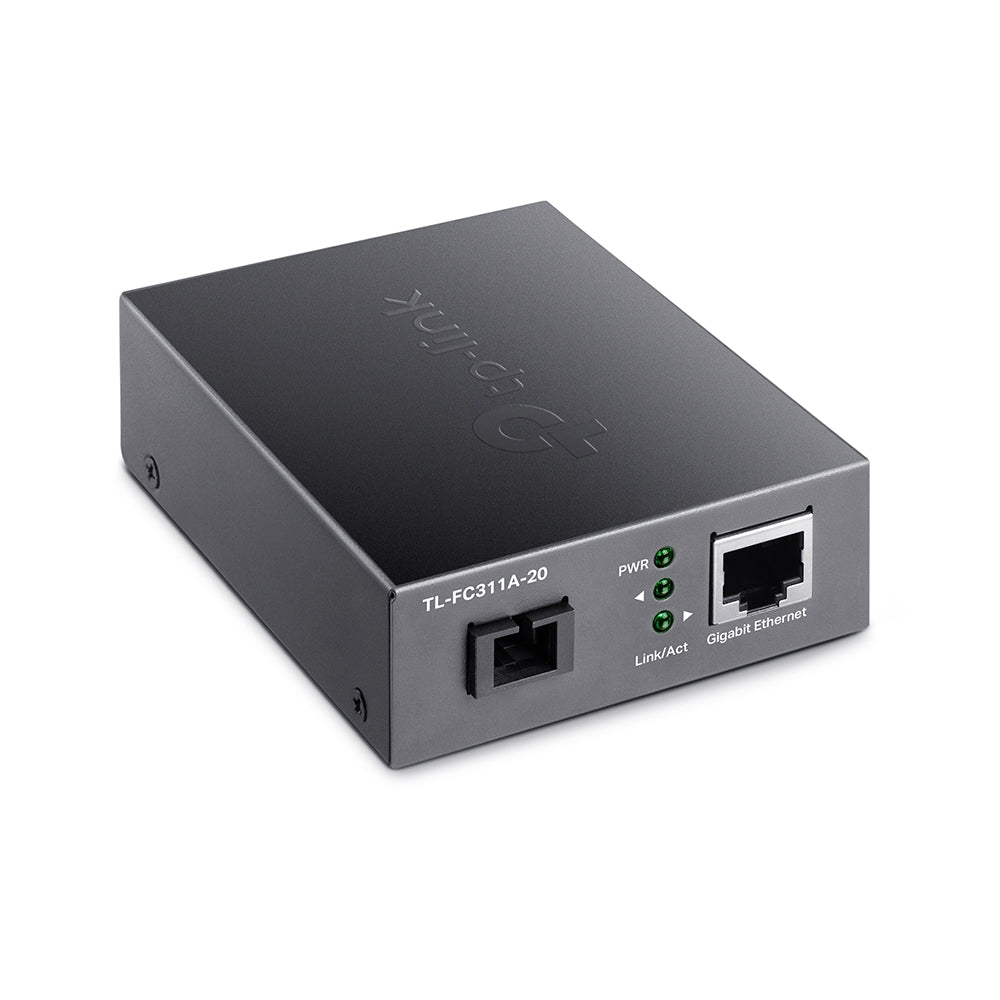

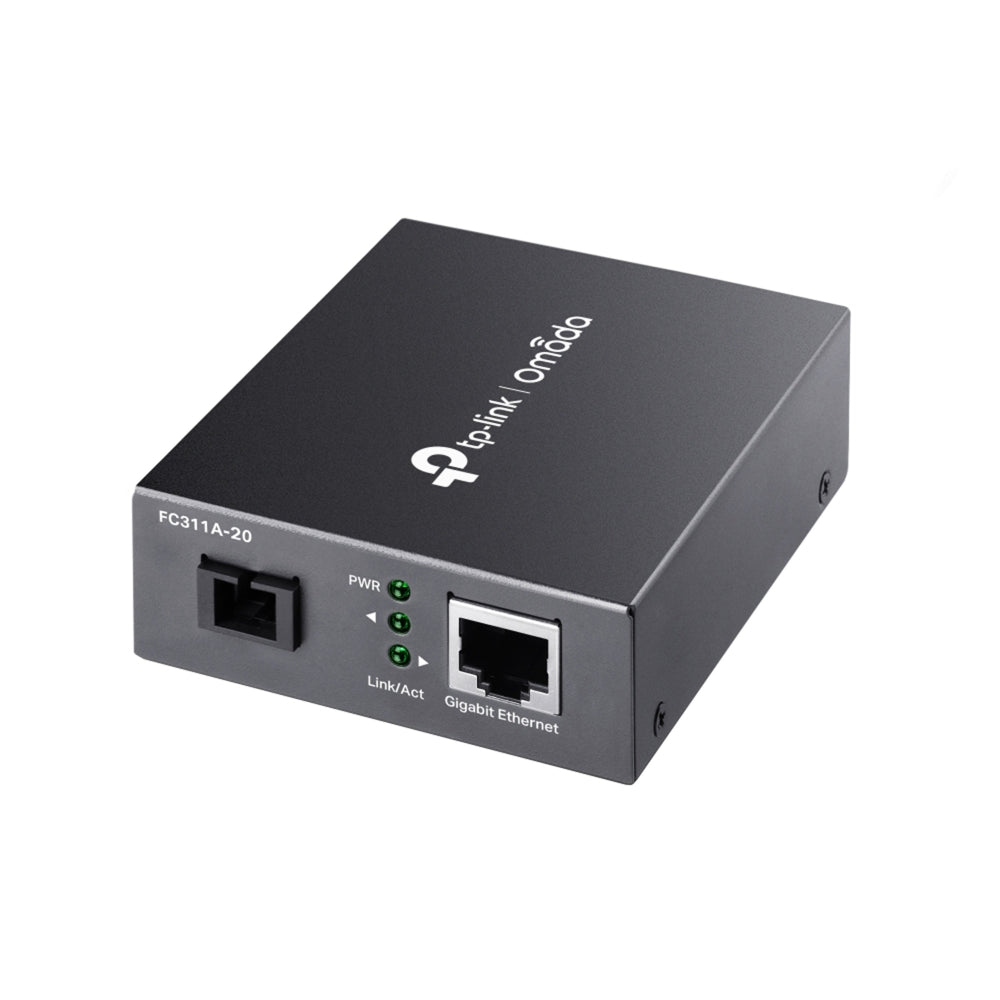

The TL-FC311A-20 pairs one Gigabit SC fibre port with one 10/100/1000 Mbps Auto MDI/MDIX RJ45 port. Because it uses Wavelength Division Multiplexing, both directions share a single 9/125 µm single-mode strand instead of the usual pair. On leased dark fibre, where cost scales with strand count, or in a full riser where no more fibre can be pulled, that halves what the link consumes while still delivering a full Gigabit port at each end.

Twenty Kilometres of Reach for Campus and Inter-Building Links

TP-Link publishes a reach of up to 20 km for this model. That comfortably covers a link between two industrial estates, a headquarters and a remote warehouse, or a campus spread across several addresses — distances where copper is not an option at any speed and where the alternative is usually a leased carrier circuit with a monthly bill attached. Pair it against the 1310 nm TX / 1550 nm RX unit and the whole link is two small boxes and one strand of glass.

Know Which Half You Are Ordering

WDM converters are directional. This is the A unit: 1550 nm transmit, 1310 nm receive. The unit at the other end must do the opposite, and TP-Link names the TL-FC311B-20 as a product that cooperates with it. Ordering two A units, or an A unit against a 2 km B unit, produces a link that never comes up. If you are extending an existing run rather than building a new one, send us the model already installed and we will confirm the correct partner before you order.

Small, Silent and Undemanding to Install

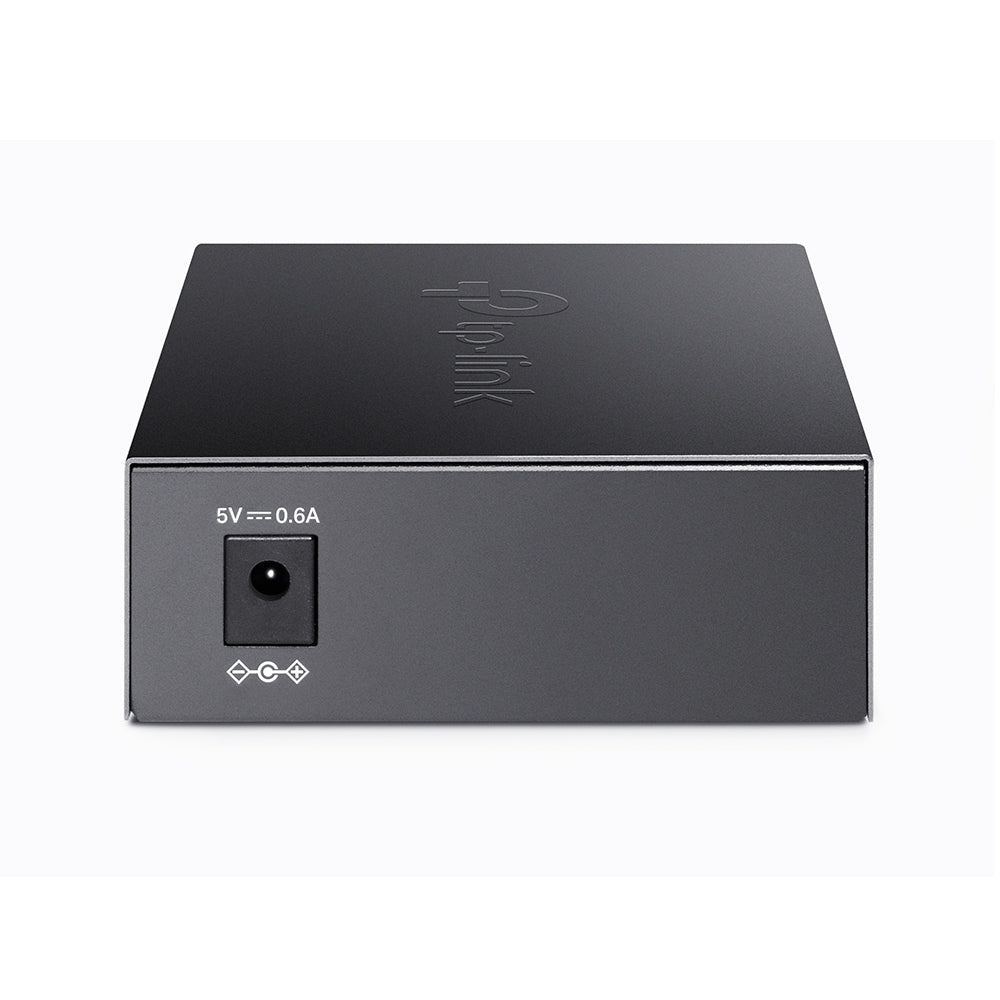

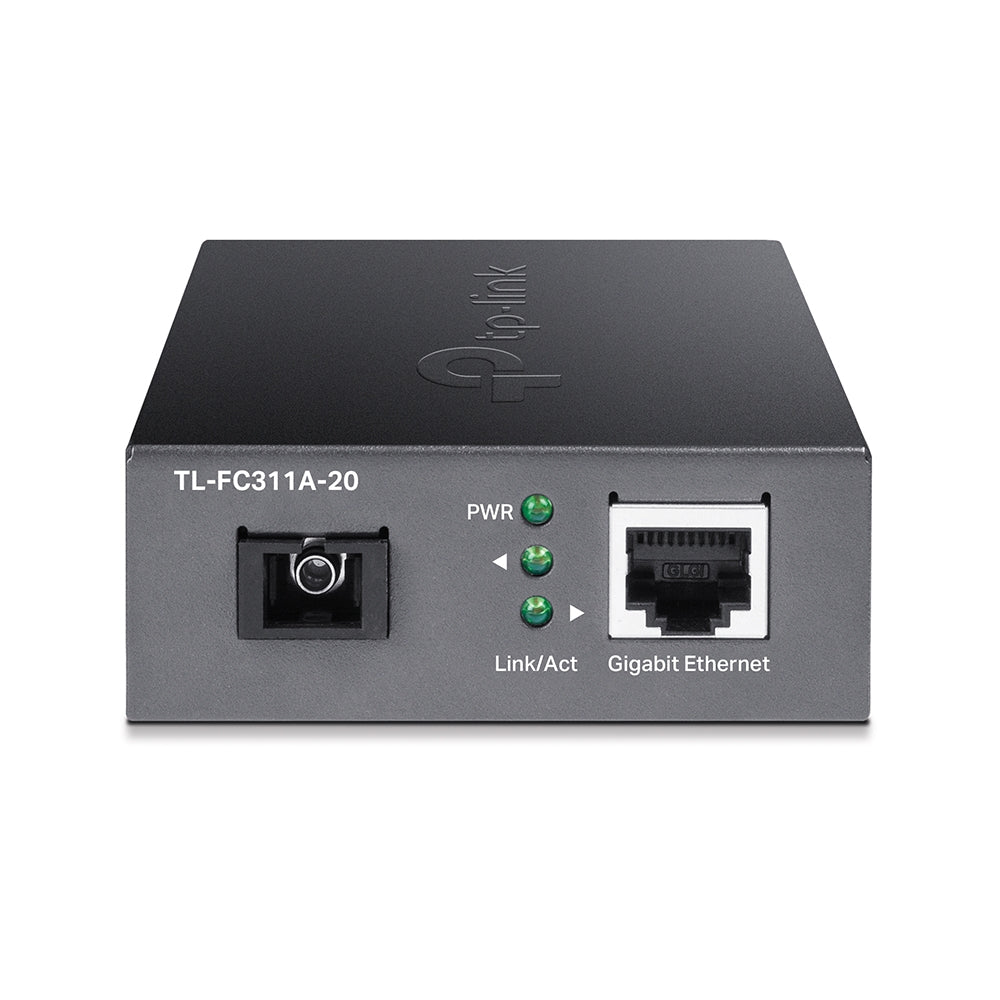

The converter measures 95 x 73 x 27 mm and runs from a 5 V/0.6 A external adapter, with PWR and Link/Act LEDs on the front. There is no configuration, no IP address and no firmware to maintain — it is a transparent Layer 1 bridge between the fibre and the copper. Its 0-50 °C operating range is wider than the 0-40 °C typical of TP-Link's desktop switches, which matters in an unconditioned riser or plant room.

Ideal For

Singapore businesses building Gigabit links between buildings over single-mode fibre, integrators terminating long fibre runs into standard switch ports, and IT teams who need to conserve strands on leased or in-house dark fibre. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
