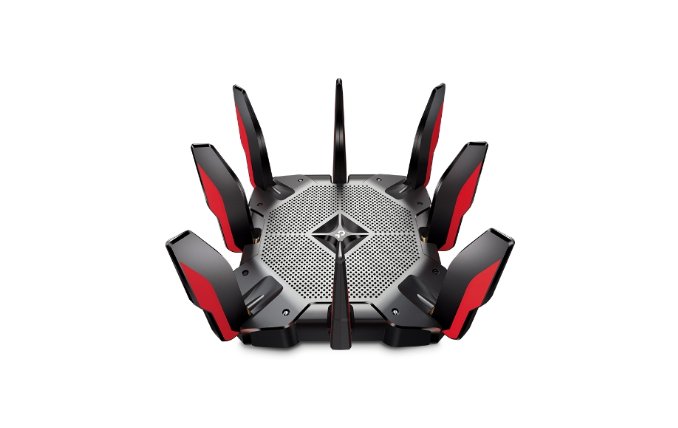

TP-Link Archer AX11000 Next-Gen Tri-Band Gaming Router
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
TP-Link AX11000 Next-Gen Tri-Band Gaming Router (Archer AX11000) - 3 Years Local Warranty
The Archer AX11000 is TP-Link's twelve-stream gaming flagship: two 5 GHz bands at 4804 Mbps each plus 1148 Mbps on 2.4 GHz, a 1.8 GHz 64-bit quad-core processor, eight detachable antennas, a 2.5 Gbps WAN port and eight Gigabit LAN ports. It is the only router in this range with a Game Center dashboard and eight wired ports.
Twelve Streams Across Two Full-Rate 5 GHz Bands
Both 5 GHz radios run at 4804 Mbps with HE160, and 2.4 GHz adds 1148 Mbps — double the 574 Mbps most Archer models publish on that band. Twelve streams, 4×4 MU-MIMO and OFDMA mean the router can hold a very large number of clients without the round-robin delays that show up as stutter. TP-Link rates coverage at four-to-six-bedroom houses, the widest figure in this family.
Eight Gigabit LAN Ports and a 2.5 Gbps WAN Port
Wired capacity is the AX11000's other distinguishing feature: eight Gigabit LAN ports, with static link aggregation available across two of them, plus a dedicated 2.5 Gbps WAN port for a multi-gig fibre service. For a gaming room or a study with a desktop, a console, a capture box, a NAS and a switch, that removes the usual need for a second switch. TP-Link notes 2.5 Gbps internet speed requires a compatible ISP plan.
Game Center: Accelerator, Statistics and Protector
Game Center is specific to this model in the current Archer line-up. Game Accelerator detects and optimises gaming streams to hold latency down; Game Statistics reports real-time latency, system utilisation and game duration on a dashboard; and Game Protector applies HomeCare antivirus protection to accounts and systems. Quality of Service runs as Game Accelerator QoS, QoS by device and HomeCare QoS by application.
USB-C and USB-A 3.0 Ports
The AX11000 carries one USB-C 3.0 and one USB-A 3.0 port — the only router in this range with a USB-C port. Both read NTFS, exFAT, HFS+ and FAT32 volumes and publish them as an FTP server, media server or Samba share, with Apple Time Machine support. Eight detachable antennas mean they can be replaced or repositioned, unlike the fixed arrays on the rest of the Archer range.
HomeCare Security, WPA3 and OneMesh
Security is HomeCare rather than HomeShield: a malicious site checker, port intrusion prevention, infected device isolation, and notification and logging, on top of the SPI firewall, access control, IP and MAC binding and an application layer gateway. WPA3 is published for this model, with the caveat below. OpenVPN and PPTP run as servers; OpenVPN, PPTP and L2TP as clients. The router is OneMesh-supported. TP-Link notes that WPA3 and the VPN client both require a later firmware upgrade.
Ideal For
Singapore gaming setups and large homes needing many wired ports, two full-speed 5 GHz bands and multi-gig WAN in one chassis. Supplied by SourceIT with local Singapore warranty and GST invoice.
Archer AX11000 Datasheet — Technical Specifications
General
| Model | Archer AX11000 |
| Official Product Name | AX11000 Next-Gen Tri-Band Gaming Router |
| Brand | TP-Link |
| Warranty | 3 Years Local Warranty (Singapore) |
Wireless
| Standards and Protocols | Wi-Fi 6; IEEE 802.11ax/ac/n/a 5 GHz; IEEE 802.11ax/n/b/g 2.4 GHz |
| Wi-Fi Speeds | AX11000 — 5 GHz: 4804 Mbps (802.11ax, HE160); 5 GHz: 4804 Mbps (802.11ax, HE160); 2.4 GHz: 1148 Mbps (802.11ax) |
| Wi-Fi Range | 4-6 Bedroom Houses — 8× Detachable High-Performance Antennas, Beamforming, High-Power FEM, 4T4R |
| Wi-Fi Capacity | Very High — Tri-Band, 4×4 MU-MIMO, OFDMA, Airtime Fairness, DFS, 12 Streams |
| Working Modes | Router Mode, Access Point Mode |
Hardware
| Processor | 1.8 GHz 64-Bit Quad-Core CPU |
| Ethernet Ports | 1× 2.5 Gbps WAN Port, 8× Gigabit LAN Ports, Static Link Aggregation (LAG) available with 2× LAN ports |
| USB Support | 1× USB-C 3.0 Port, 1× USB-A 3.0 Port — NTFS, exFAT, HFS+, FAT32; Apple Time Machine, FTP Server, Media Server, Samba Server |
| Buttons | Wi-Fi On/Off Button, Power On/Off Button, LED On/Off Button, WPS Button, Reset Button |
| Power | 12 V DC, 5 A |
| Dimensions (W × D × H) | 11.3 × 11.3 × 7.2 in (288 × 288 × 184 mm) |
Gaming and Quality of Service
| Game Center | Game Accelerator (detects and optimises gaming streams to keep latency low), Game Statistics (real-time latency, system utilisation and game duration), Game Protector (HomeCare antivirus protection for accounts and system) |
| Quality of Service | Game Accelerator QoS, QoS by Device, HomeCare QoS (QoS by Application) |
Security
| Network Security | SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway, HomeCare Antivirus (Malicious Site Checker, Port Intrusion Prevention, Infected Device Isolation, Notification and Log) |
| Guest Network | 1× 5 GHz Guest Network, 1× 2.4 GHz Guest Network |
| VPN Server | OpenVPN, PPTP |
| VPN Client | OpenVPN, PPTP, L2TP |
| Wi-Fi Encryption | WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x) |
Software
| Protocols | IPv4, IPv6 |
| Service Kits | HomeCare |
| Mesh | OneMesh Supported |
| Parental Controls | HomeCare Parental Controls — Custom Profiles, Content Filtering, App Block, URL Filtering, Time Limit, Time Schedule (Bedtime), Log Insight |
| WAN Types | Dynamic IP, Static IP, PPPoE, PPTP, L2TP |
| Cloud Service | Auto Firmware Upgrade, OTA Firmware Upgrade, TP-Link ID, DDNS |
| NAT Forwarding | Port Forwarding, Port Triggering, DMZ, UPnP |
| IPTV | IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN |
| DHCP | Address Reservation, DHCP Client List, Server |
| DDNS | TP-Link, NO-IP, DynDNS |
| Management | Tether App, Webpage |
Environment and Certification
| Certifications | FCC, CE, RoHS |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity | 10% to 90% non-condensing |
| Storage Humidity | 5% to 90% non-condensing |
TP-Link publishes no net weight and no coverage area in square feet for the Archer AX11000; neither has been filled in from another source. TP-Link also notes this router may not support every mandatory feature ratified in Draft 3.0 of the IEEE 802.11ax specification, and that WPA3 and the VPN client each require a later firmware upgrade.
Compatibility & Software Support
| Management App | TP-Link Tether (iOS and Android) |
| Web Management | Supported via browser; TP-Link publishes a web emulator on the download page |
| TP-Link Cloud | TP-Link ID, auto and OTA firmware upgrade, DDNS |
| Mesh Ecosystem | OneMesh — pairs with TP-Link OneMesh extenders for one seamless network |
| Client Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or another JavaScript-enabled browser |
| Internet Requirements | Cable or DSL modem if required by your plan, plus a subscription with an internet service provider. 2.5 Gbps internet speed requires a compatible ISP plan. |
| USB Storage Formats | NTFS, exFAT, HFS+, FAT32 |
Use of 802.11ax, MU-MIMO and full HE160 rates requires clients that support the corresponding features.
Package Contents & Ordering Information
Package Contents
| In the Box | Wi-Fi Router Archer AX11000, Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide |
Ordering Information
| Model | Archer AX11000 |
| SKU | Archer AX11000 |
| Warranty | 3 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — Archer AX11000
How many wired ports does it have?
Nine in total: one 2.5 Gbps WAN port and eight Gigabit LAN ports, with static link aggregation available across two of the LAN ports.
Are the antennas removable?
Yes. TP-Link publishes eight detachable high-performance antennas on this model, unlike the fixed arrays on most of the Archer range.
Is WPA3 available out of the box?
TP-Link lists WPA3 for this model but notes it requires a later firmware upgrade, as does the VPN client. Update the firmware after setup.
What warranty does SourceIT provide?
Three years local Singapore warranty, under TP-Link's published replacement warranty terms, with a GST invoice.
Can SourceIT quote this for an office or a project?
Yes. Send us the quantity and we will quote with local warranty, delivery and support.
