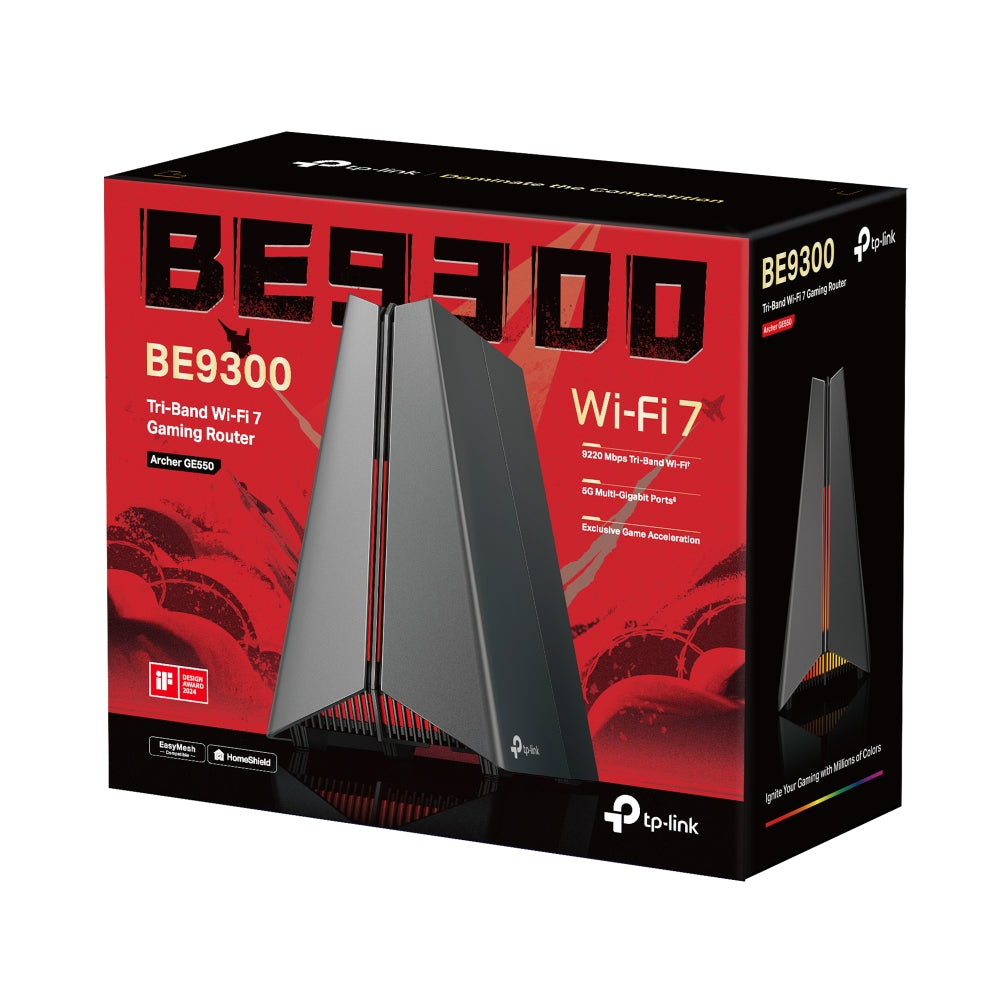

TP-Link Archer GE550 BE9300 Tri-Band Wi-Fi 7 Gaming Router
PRODUCT DESCRIPTION
TP-Link BE9300 Tri-Band Wi-Fi 7 Gaming Router (Archer GE550) - 3 Years Local Warranty
The Archer GE550 is TP-Link's tri-band Wi-Fi 7 gaming router: 5764 Mbps on 6 GHz and 2882 Mbps on 5 GHz under 802.11be, plus 574 Mbps on 2.4 GHz under 802.11ax, with a 5 Gbps WAN port, a 5 Gbps LAN port, three 2.5 Gbps LAN ports, 320 MHz channels on 6 GHz and a Game Center built into the firmware.
Tri-Band Wi-Fi 7 with 320 MHz on 6 GHz
The BE9300 rating comes from three bands: 6 GHz at 5764 Mbps, 5 GHz at 2882 Mbps and 2.4 GHz at 574 Mbps. TP-Link lists 320 MHz channels and 4K-QAM, and describes Multi-Link Operation using the 6 GHz and 5 GHz bands together for gaming. The 320 MHz width is only available on 6 GHz and may be restricted by local regulation, and all of these features need Wi-Fi 7 clients.

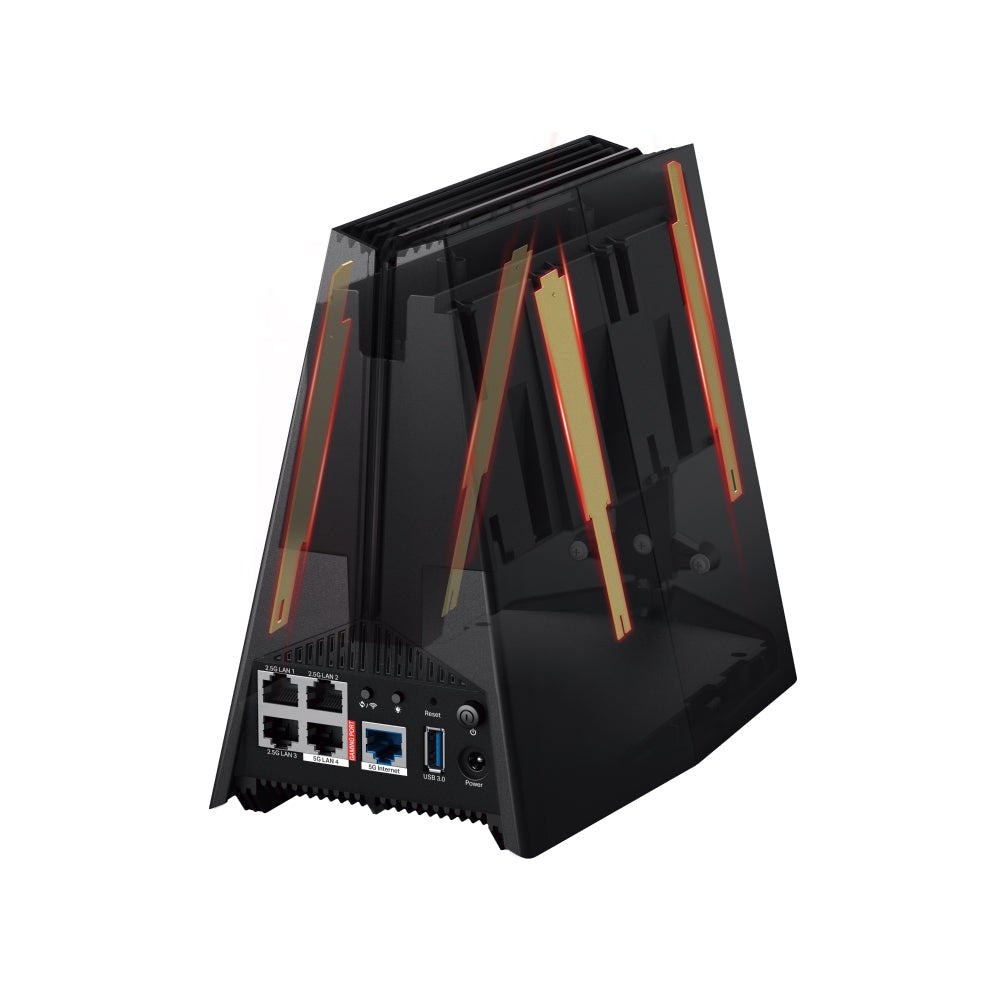

Five Multi-Gig Ethernet Ports
Wired connections are a 5 Gbps WAN port, a 5 Gbps LAN port and three 2.5 Gbps LAN ports — no Gigabit-only ports at all. That leaves room for a multi-gig fibre plan on the WAN side and a gaming PC, console or NAS at 2.5 Gbps or 5 Gbps on the LAN side. 5 Gbps internet speeds need a compatible service plan and equipment.
Game Center: Acceleration, Game Panel and Statistics
The firmware includes Game Acceleration (game applications prioritised through QoS, game devices through a Gaming Port, and game servers through TP-Link's GPN), a Game Panel showing network status, router performance, RGB settings and accelerated games, comprehensive gaming traffic reports, and a dedicated 5 GHz gaming band.

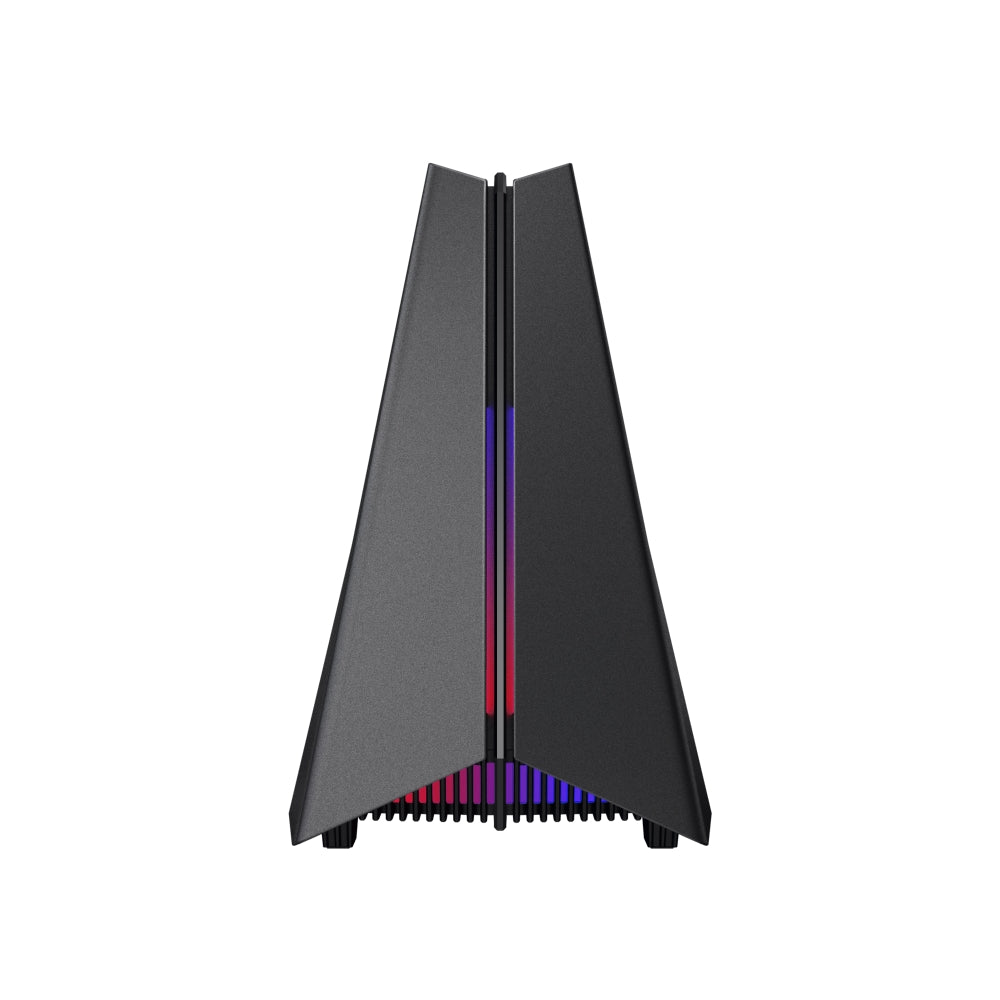

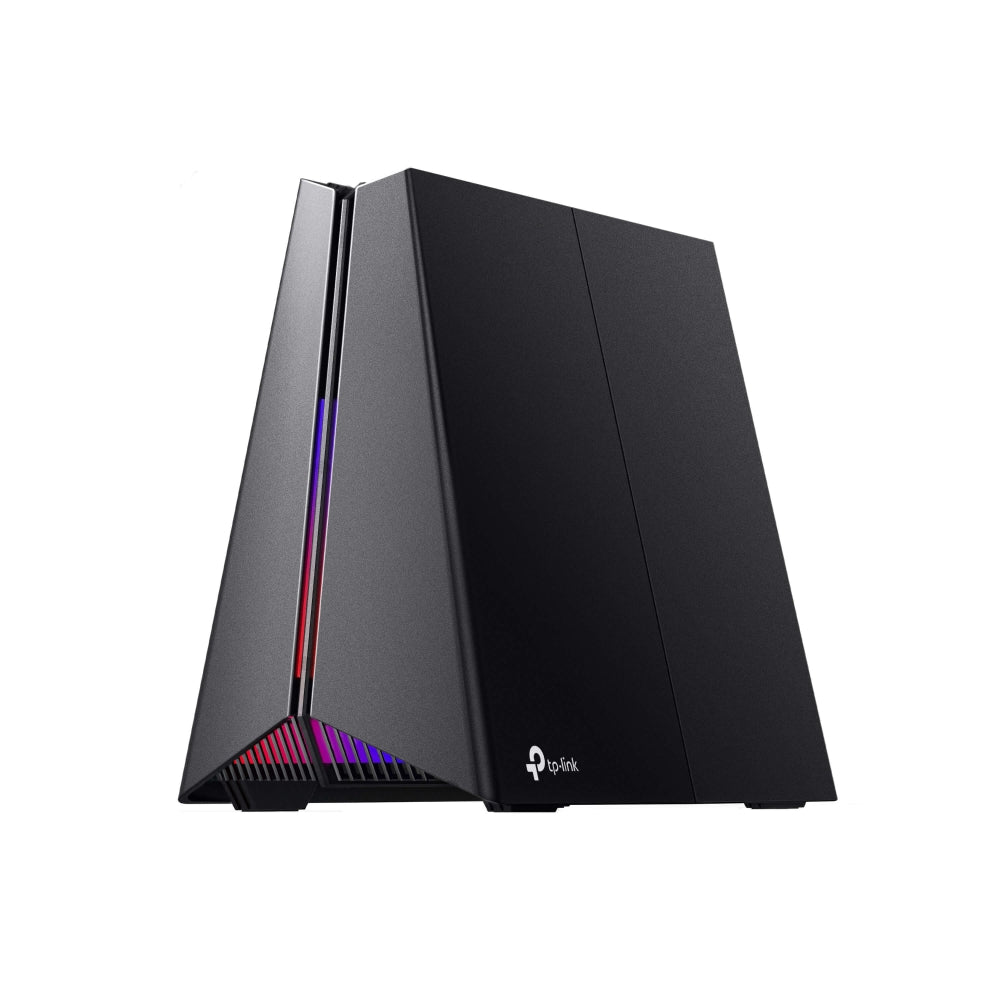

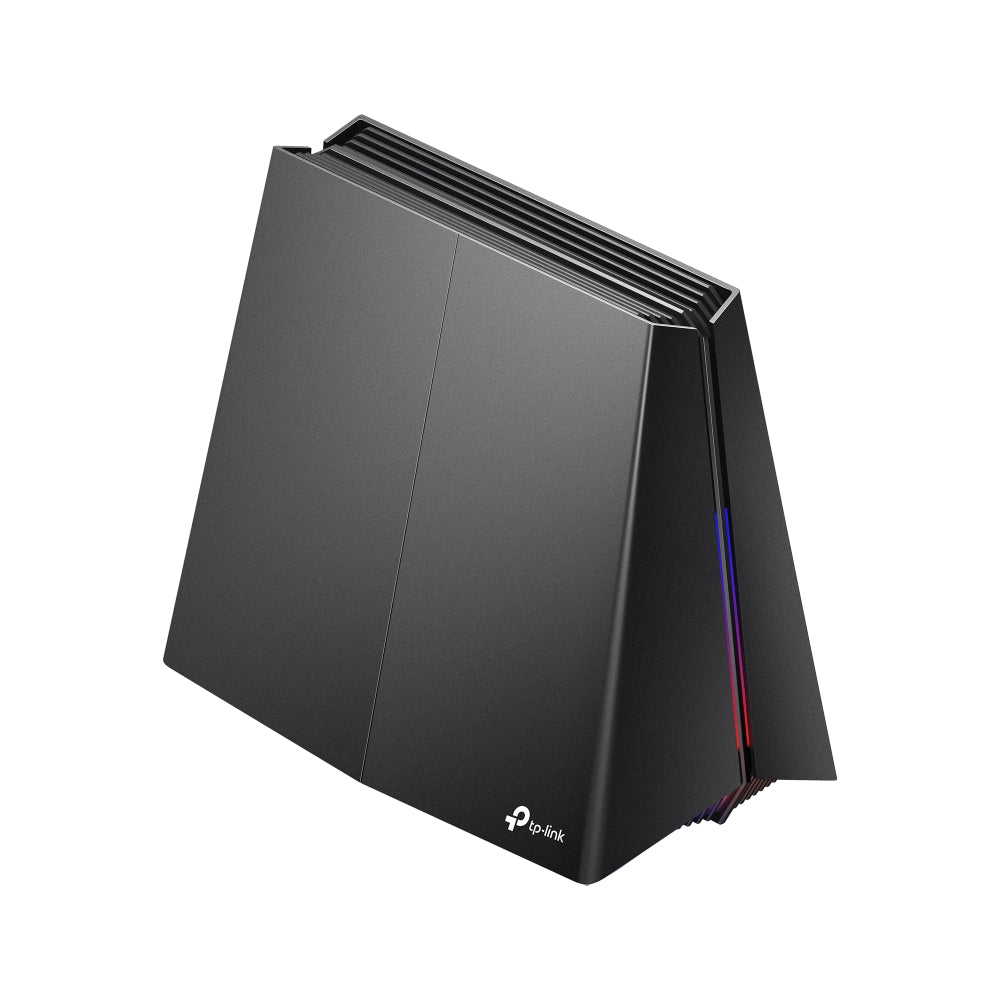

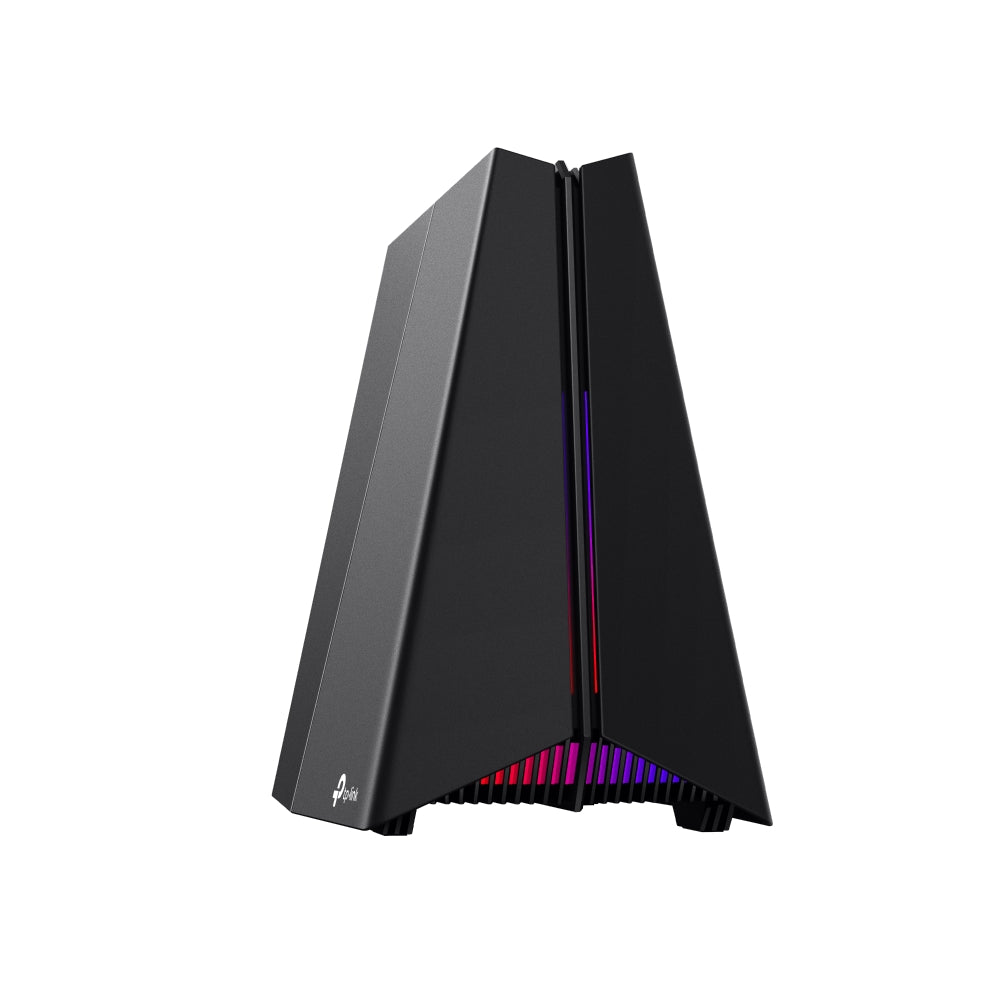

Launch-Pad Design with RGB Lighting
TP-Link describes a launch-pad style chassis with multicolour lighting modes and four optimally positioned antennas, driven by a quad-core CPU. The lighting is set from the Game Panel.
HomeShield, WireGuard and EasyMesh
HomeShield adds real-time IoT protection, malicious site blocking, intrusion prevention, DDoS prevention and a home network scanner, with advanced features on a paid subscription. OpenVPN, PPTP, L2TP and WireGuard are supported as both VPN server and client, and the GE550 is EasyMesh-compatible for extending coverage with other EasyMesh routers and extenders.
Ideal For
Gamers and multi-gig households in Singapore who want tri-band Wi-Fi 7 with 6 GHz, 5 Gbps and 2.5 Gbps wired ports throughout, and router-level game acceleration. Supplied by SourceIT with local Singapore warranty and GST invoice.
Archer GE550 Datasheet — Technical Specifications
General
| Model | Archer GE550 |
| Official Product Name | BE9300 Tri-Band Wi-Fi 7 Gaming Router |
| Brand | TP-Link |
| Warranty | 3 Years Local Warranty (Singapore) |
Wireless
| Wi-Fi Speeds | BE9300 — 6 GHz: 5764 Mbps (802.11be); 5 GHz: 2882 Mbps (802.11be); 2.4 GHz: 574 Mbps (802.11ax) |
| Working Modes | Router Mode, Access Point Mode |
| Advanced Features | 320 MHz Channel, 4K-QAM, EasyMesh-Compatible, Works with Alexa and Google Assistant, IoT Network |
| Antennas (as described) | 4x Optimally Positioned Antennas |
Hardware
| Ethernet Ports | 1x 5 Gbps WAN, 1x 5 Gbps LAN, 3x 2.5 Gbps LAN |
| USB Support | 1x USB 3.0 — NTFS, exFAT, HFS+, FAT32; FTP Server, Media Server, Samba Server |
| Processor (as described) | Quad-Core CPU |
Security
| Network Security | SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway, HomeShield Security (Real-Time IoT Protection, Malicious Site Blocker, Intrusion Prevention System, DDoS Attack Prevention, Home Network Scanner) |
| Guest Network | 1x 6 GHz Guest Network, 1x 5 GHz Guest Network, 1x 2.4 GHz Guest Network |
| VPN Server | OpenVPN, PPTP, L2TP, WireGuard |
| VPN Client | OpenVPN, PPTP, L2TP, WireGuard |
| Wi-Fi Encryption | WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x) |
Software
| Protocol | IPv4, IPv6 |
| Game Center | Game Acceleration (Accelerate Game Applications with QoS, Accelerate Game Devices with Gaming Port, Game Servers Acceleration by GPN); Game Panel (Network Status, Router Performance, RGB Settings, Accelerated Games and Gears); Game Statistics (Comprehensive Gaming Traffic Reports); Dedicated Gaming Band (5 GHz Gaming Band) |
| Service Kit | HomeShield (basic features included; advanced features require a paid subscription) |
| Parental Controls | HomeShield Parental Controls — Custom Profiles, Professional Content Filter Library, Family Time, Bedtime, Off Time, Time Rewards, Family Online Time Ranking, Pause the Internet, Weekly and Monthly Reports |
| WAN Type | Dynamic IP, Static IP, PPPoE, PPTP, L2TP |
| Cloud Service | Auto Firmware Upgrade, TP-Link ID, DDNS |
| NAT Forwarding | Port Forwarding, Port Triggering, DMZ, UPnP |
| IPTV | IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN |
| DHCP | Address Reservation, DHCP Client List, Server |
| DDNS | TP-Link, NO-IP, DynDNS |
| Management | Tether App, Webpage |
Other
| Network Services Enabled by Default | Web Server (HTTP/HTTPS, TCP 80/443); DNS (TCP & UDP 53); DHCP Server (UDP 67); App management (TCP 20001, TCP 30002, UDP 20002) |
TP-Link's Singapore page for the Archer GE550 publishes no Wi-Fi range or capacity rating, power rating, button list, dimensions, weight, certifications, operating environment or system requirements, and no package-contents list. Those gaps are stated rather than filled in from another model. The antenna count and CPU come from TP-Link's product overview rather than the specification table.
Compatibility & Software Support
| Management App | TP-Link Tether (iOS and Android) |
| Web Management | Supported via browser |
| TP-Link Cloud | TP-Link ID, auto firmware upgrade, DDNS |
| Mesh Ecosystem | EasyMesh-compatible — networks with other EasyMesh routers and range extenders, including other vendors' |
| Voice Assistants | Works with Alexa and Google Assistant |
| Wi-Fi 7 Client Requirement | Wi-Fi 7 features require client devices that also support them; older Wi-Fi clients connect at their own standard |
| USB Storage Formats | NTFS, exFAT, HFS+, FAT32 |
TP-Link notes that EasyMesh connections between vendors can fail because of firmware differences, and that EasyMesh compatibility is still being developed on some models and will follow in software updates. 5 Gbps internet speeds require a compatible service plan and equipment.
Package Contents & Ordering Information
Package Contents
| In the Box | TP-Link publishes no package-contents list on the Archer GE550's Singapore page. Ask us and we will confirm the current carton contents before you order. |
Ordering Information
| Model | Archer GE550 |
| SKU | Archer GE550 |
| Warranty | 3 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — Archer GE550
Is the 2.4 GHz band Wi-Fi 7?
No. TP-Link rates the 2.4 GHz band at 574 Mbps under 802.11ax (Wi-Fi 6); the 5 GHz and 6 GHz bands are 802.11be (Wi-Fi 7).
Does it have any Gigabit-only ports?
No. The five Ethernet ports are one 5 Gbps WAN, one 5 Gbps LAN and three 2.5 Gbps LAN.
What does the Game Center include?
Game Acceleration via QoS, a Gaming Port and GPN, a Game Panel with network status and RGB settings, gaming traffic statistics and a dedicated 5 GHz gaming band.
What warranty does SourceIT provide?
Three years local Singapore warranty, under TP-Link's published replacement warranty terms, with a GST invoice.
Can SourceIT quote this for an office or a project?
Yes. Send us the quantity and we will quote with local warranty, delivery and support.
