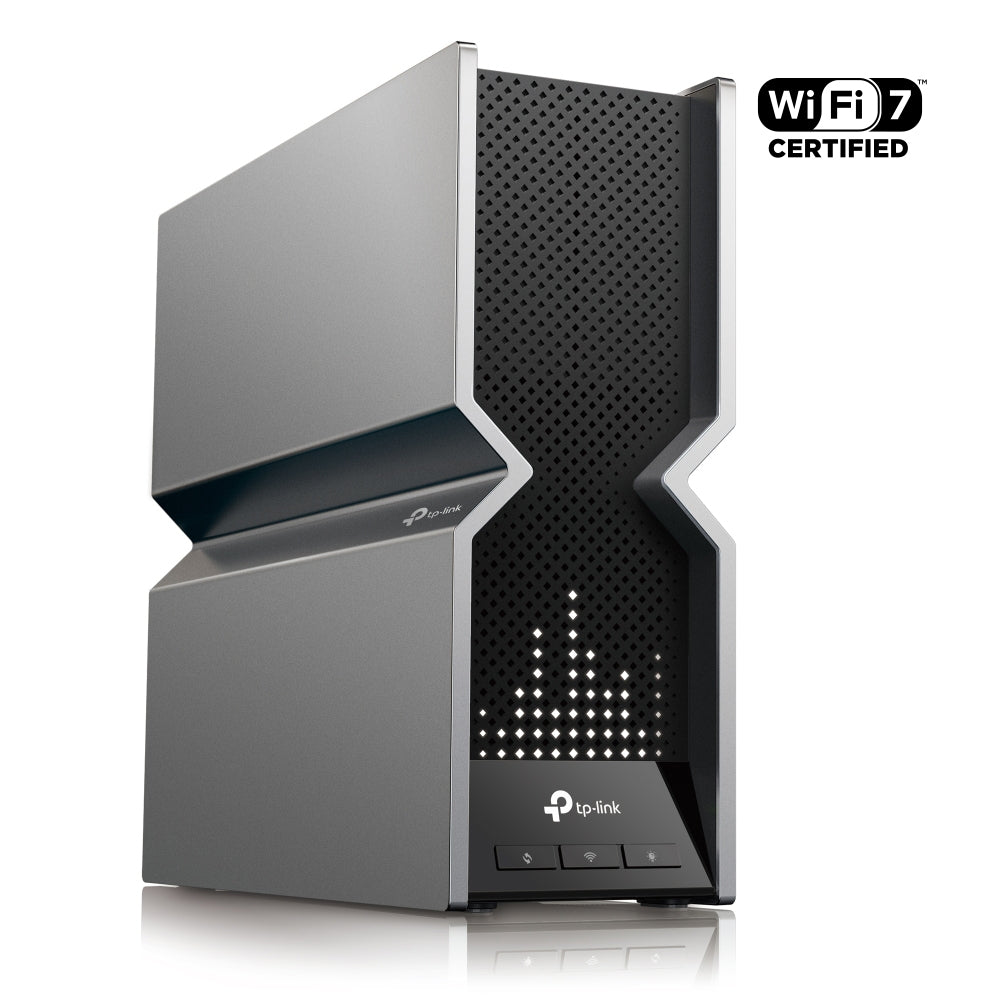

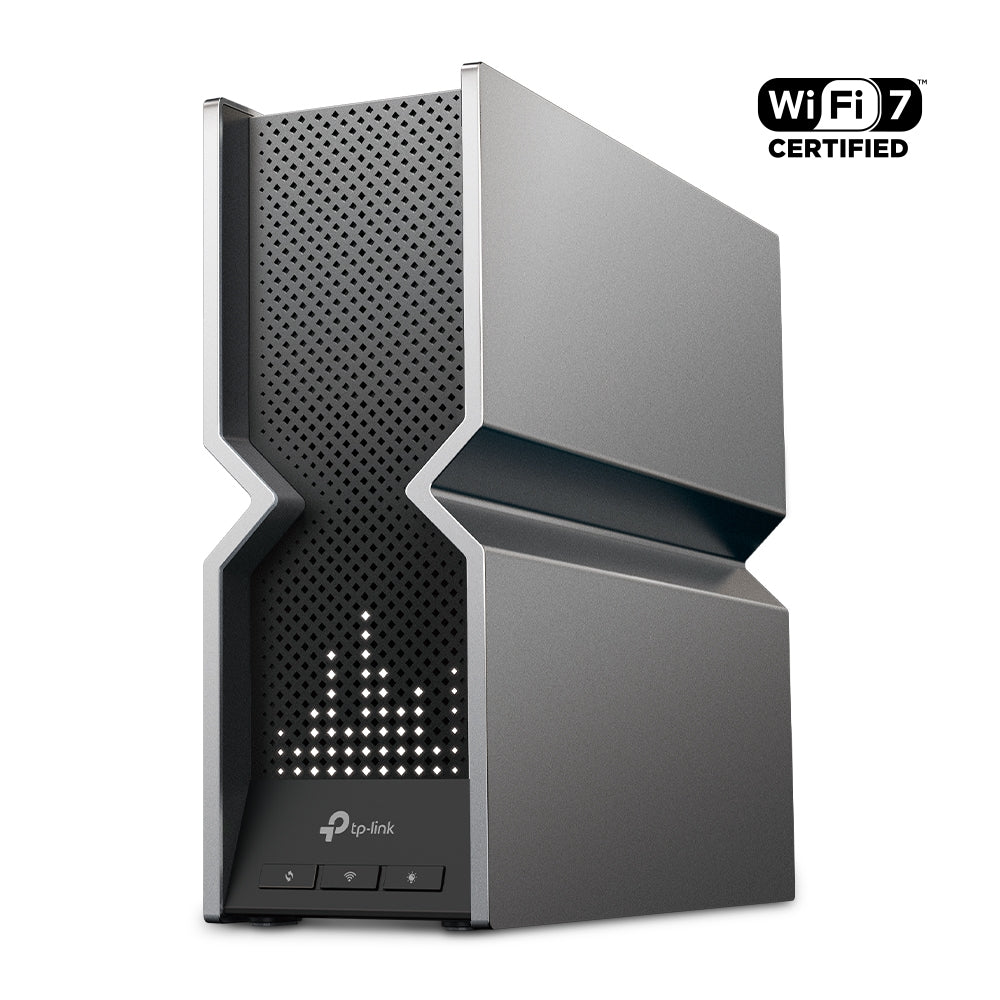

TP-Link Archer BE800 BE19000 Tri-Band Wi-Fi 7 Router
PRODUCT DESCRIPTION
TP-Link BE19000 Tri-Band Wi-Fi 7 Router (Archer BE800) - 3 Years Local Warranty
The Archer BE800 is TP-Link's flagship tri-band Wi-Fi 7 router: 11520 Mbps on 6 GHz, 5760 Mbps on 5 GHz and 1376 Mbps on 2.4 GHz, with 320 MHz channels, Multi-Link Operation, two 10 Gbps ports (one an SFP+/RJ45 combo), four 2.5 Gbps LAN ports and a front LED screen.
BE19000 Tri-Band Wi-Fi 7
All three bands run 802.11be, and TP-Link rates the BE800 for four-bedroom houses and up to 100 devices, using eight optimally positioned antennas, Beamforming and high-power FEMs with 4x4 MU-MIMO, OFDMA and 12 streams. The 320 MHz channel width is only available on 6 GHz and may be unavailable in some regions due to regulation.
Multi-Link Operation for Wi-Fi 7 Clients
MLO lets a compatible Wi-Fi 7 client use the 5 GHz and 6 GHz bands simultaneously. TP-Link's figure of up to 17.3 Gbps applies only to Wi-Fi 7 clients that support MLO and the 6 GHz band, connected to both bands at once; its lower-latency claim is based on laboratory tests against Wi-Fi 6/6E routers.
True 10G: SFP+ and Copper

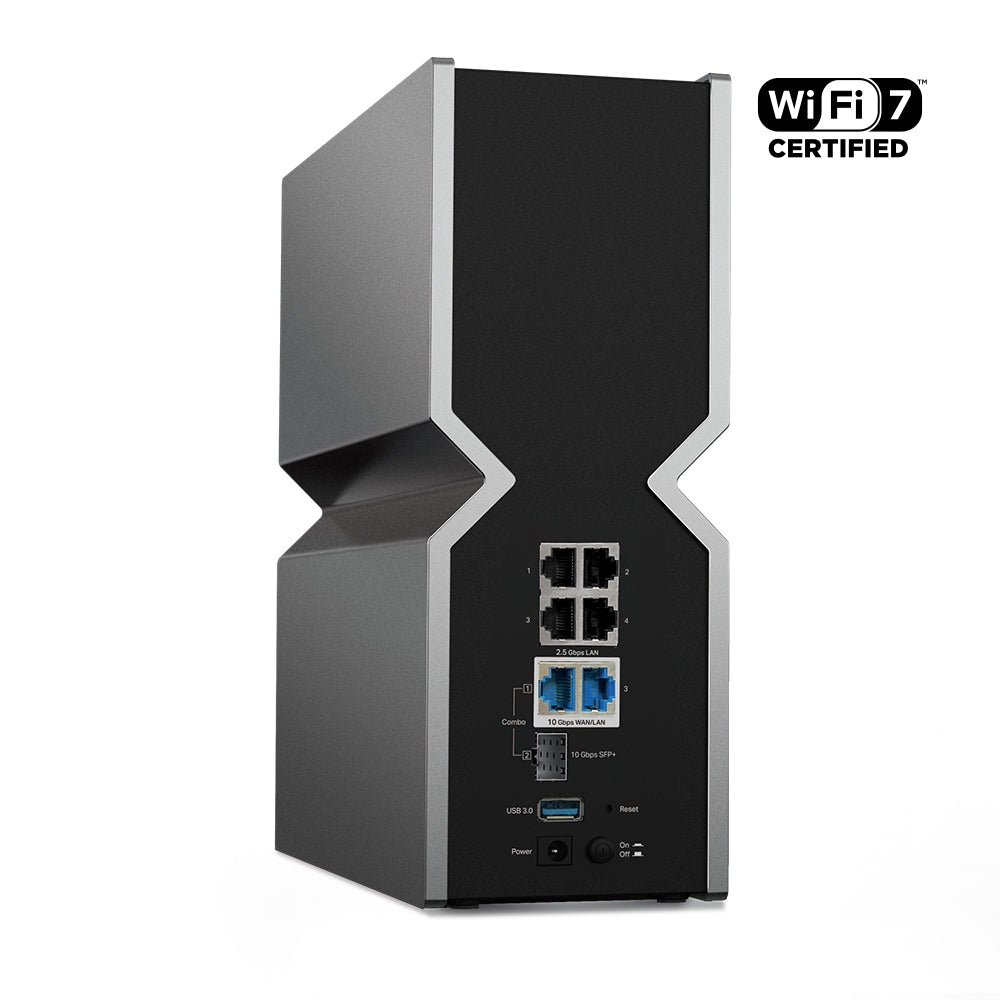

One 10 Gbps RJ45 WAN/LAN port and one 10 Gbps SFP+/RJ45 combo WAN/LAN port support both fibre modules and copper, alongside four 2.5 Gbps LAN ports and a USB 3.0 port. The two 10 Gbps ports cannot both be configured as WAN at the same time, and 10 Gbps internet speeds require a compatible service plan and equipment.
LED Screen

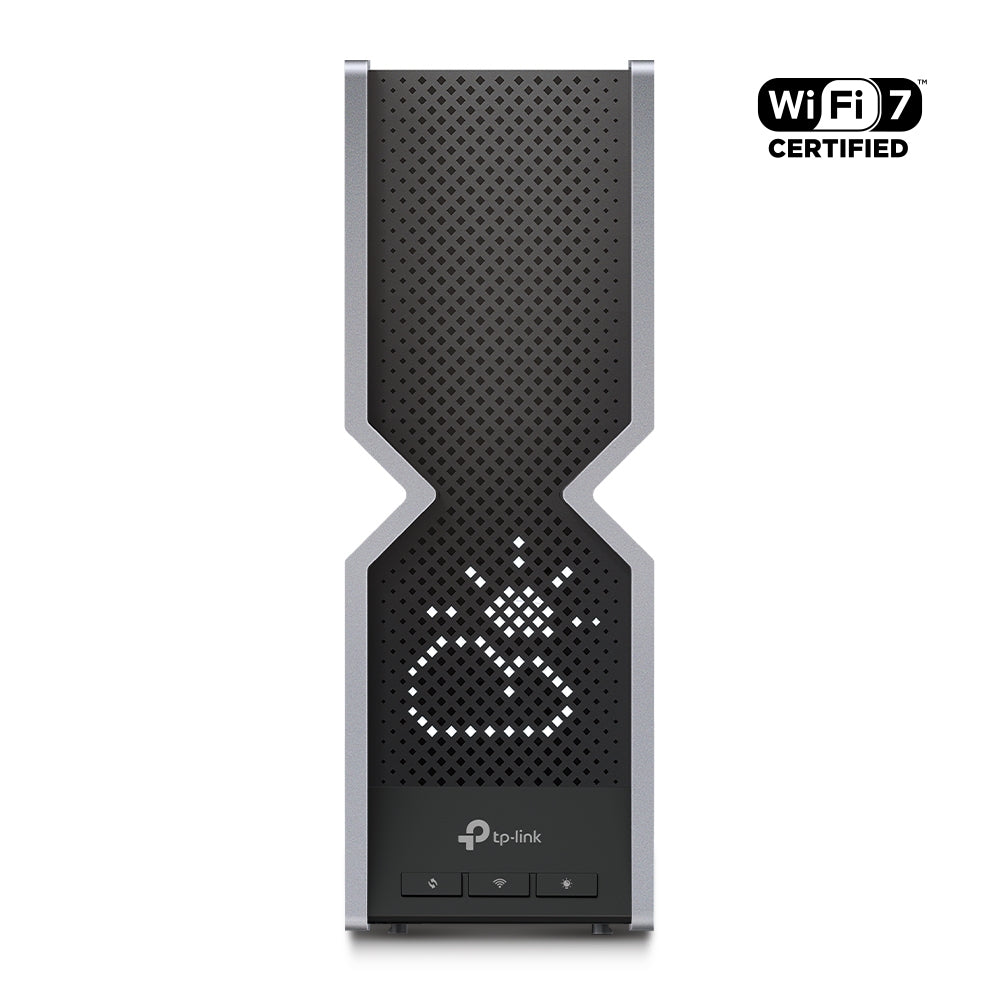

A front LED screen can display the weather, time, text and emojis, with TP-Link citing 3000+ customisable graphics, alongside WPS, LED and Wi-Fi buttons.
HomeShield, WireGuard and EasyMesh
HomeShield adds real-time IoT protection, malicious site blocking, intrusion prevention, DDoS prevention and a network scanner, with a free Basic Plan and a paid Pro Plan. OpenVPN, PPTP, L2TP and WireGuard work as server and client, and EasyMesh compatibility allows whole-home mesh with other EasyMesh routers and extenders.
Ideal For
Large Singapore homes and home offices on 10G-capable fibre, and power users who need SFP+, 2.5G LAN throughout and the full tri-band Wi-Fi 7 feature set. Supplied by SourceIT with local Singapore warranty and GST invoice.
Archer BE800 Datasheet — Technical Specifications
General
| Model | Archer BE800 |
| Official Product Name | BE19000 Tri-Band Wi-Fi 7 Router |
| Brand | TP-Link |
| Warranty | 3 Years Local Warranty (Singapore) |
Wireless
| Wi-Fi Speeds | BE19000 — 6 GHz: 11520 Mbps (802.11be); 5 GHz: 5760 Mbps (802.11be); 2.4 GHz: 1376 Mbps (802.11be) |
| Wi-Fi Range | 4 Bedroom Houses — 8x Optimally Positioned Antennas, Beamforming, High-Power FEM |
| Wi-Fi Capacity | High, up to 100 Devices — Tri-Band, 4x4 MU-MIMO, OFDMA, Airtime Fairness, DFS, 12 Streams |
| Working Modes | Router Mode, Access Point Mode |
| Advanced Features | Multi-Link Operation (MLO), 320 MHz Channel, 4K-QAM, Multi-RUs, EasyMesh-Compatible, Works with Alexa and Google Assistant, IoT Network |
Hardware
| Ethernet Ports | 1x 10 Gbps WAN/LAN, 1x 10 Gbps SFP+/RJ45 Combo WAN/LAN, 4x 2.5 Gbps LAN |
| USB Support | 1x USB 3.0 — NTFS, exFAT, HFS+, FAT32; FTP Server, Media Server, Samba Server |
| Power | 15 V DC 5 A |
| Buttons | WPS, LED, Wi-Fi |
| LED Screen | Yes |
Security
| Network Security | SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway, HomeShield Security (Real-Time IoT Protection, Malicious Site Blocker, Intrusion Prevention System, DDoS Attack Prevention, Home Network Scanner) |
| Guest Network | 1x 6 GHz Guest Network, 1x 5 GHz Guest Network, 1x 2.4 GHz Guest Network |
| VPN Server | OpenVPN, PPTP, L2TP, WireGuard |
| VPN Client | OpenVPN, PPTP, L2TP, WireGuard |
| Wi-Fi Encryption | WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x) |
Software
| Protocol | IPv4, IPv6 |
| Service Kit | HomeShield (free Basic Plan; fees apply for the Pro Plan) |
| Mesh | Compatible with EasyMesh |
| Parental Controls | HomeShield Parental Controls — Custom Profiles, Professional Content Filter Library, Family Time, Bedtime, Off Time, Time Rewards, Family Online Time Ranking, Pause the Internet, Weekly and Monthly Reports |
| WAN Type | Dynamic IP, Static IP, PPPoE, PPTP, L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | Auto Firmware Upgrade, TP-Link ID, DDNS |
| NAT Forwarding | Port Forwarding, Port Triggering, DMZ, UPnP |
| IPTV | IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN |
| DHCP | Address Reservation, DHCP Client List, Server |
| DDNS | TP-Link, NO-IP, DynDNS |
| Management | Tether App, Webpage |
Physical
| Dimensions (W x D x H) | 302 x 262.5 x 96 mm (11.9 x 10.3 x 3.8 in) |
Environment and Certification
| Certifications | CE, FCC |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity | 10% to 90% non-condensing |
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+ or other JavaScript-enabled browser; cable or DSL modem (if needed); internet service provider subscription |
| Network Services Enabled by Default | Web Server (HTTP/HTTPS, TCP 80/443); DNS (TCP & UDP 53); DHCP Server (UDP 67); App management (TCP 20001, TCP 30001, UDP 20002) |
TP-Link's Singapore page for the Archer BE800 publishes no net weight and no processor specification; those are not filled in from another model. Device counts and throughput are TP-Link laboratory figures and will vary with the service plan, clients and environment.
Compatibility & Software Support
| Management App | TP-Link Tether (iOS and Android) |
| Web Management | Supported via browser |
| TP-Link Cloud | TP-Link ID, auto firmware upgrade, DDNS |
| Mesh Ecosystem | EasyMesh-compatible — networks with other EasyMesh routers and range extenders, including other vendors' |
| Voice Assistants | Works with Alexa and Google Assistant |
| Wi-Fi 7 Client Requirement | Wi-Fi 7 features require client devices that also support them; older Wi-Fi clients connect at their own standard |
| USB Storage Formats | NTFS, exFAT, HFS+, FAT32 |
| Smart Roaming | Designed for client devices that support 802.11k/v |
TP-Link notes that EasyMesh connections between vendors can fail because of firmware differences, and that EasyMesh compatibility is still being developed on some models and will follow in software updates. The two 10 Gbps ports cannot be configured as WAN ports at the same time.
Package Contents & Ordering Information
Package Contents
| In the Box | Wi-Fi 7 Router Archer BE800, Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide |
Ordering Information
| Model | Archer BE800 |
| SKU | Archer BE800 |
| Warranty | 3 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — Archer BE800
Can I connect a fibre module directly?
Yes. One of the two 10 Gbps ports is an SFP+/RJ45 combo port, so it accepts an SFP+ module or a copper cable.
Can both 10 Gbps ports be used as WAN?
Not at the same time. TP-Link states the two 10 Gbps ports cannot be concurrently configured as WAN ports.
What does the LED screen show?
Weather, time, text and emojis, with TP-Link citing more than 3000 customisable graphics.
What warranty does SourceIT provide?
Three years local Singapore warranty, under TP-Link's published replacement warranty terms, with a GST invoice.
Can SourceIT quote this for an office or a project?
Yes. Send us the quantity and we will quote with local warranty, delivery and support.
