TP-Link Archer BE600 BE9700 Tri-Band Wi-Fi 7 Router
PRODUCT DESCRIPTION
TP-Link BE9700 Tri-Band Wi-Fi 7 Router (Archer BE600) - 3 Years Local Warranty

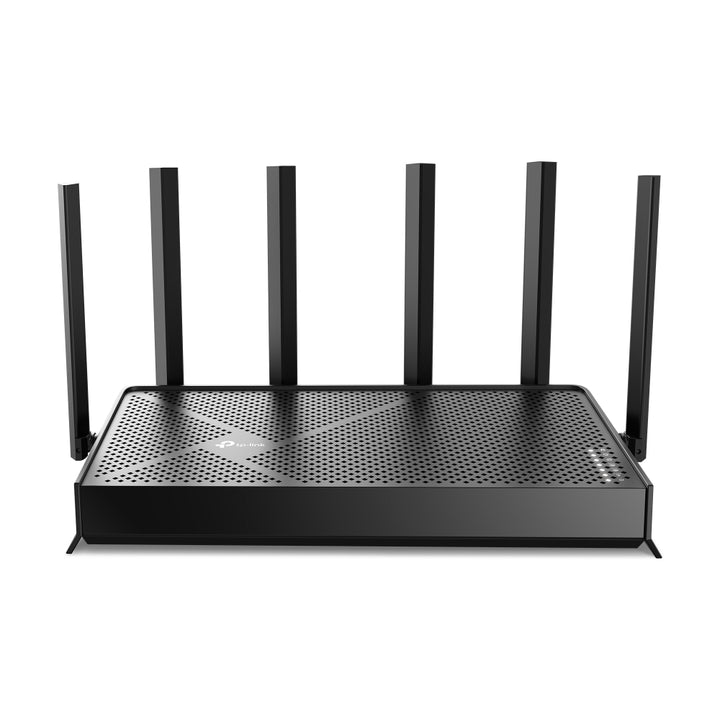

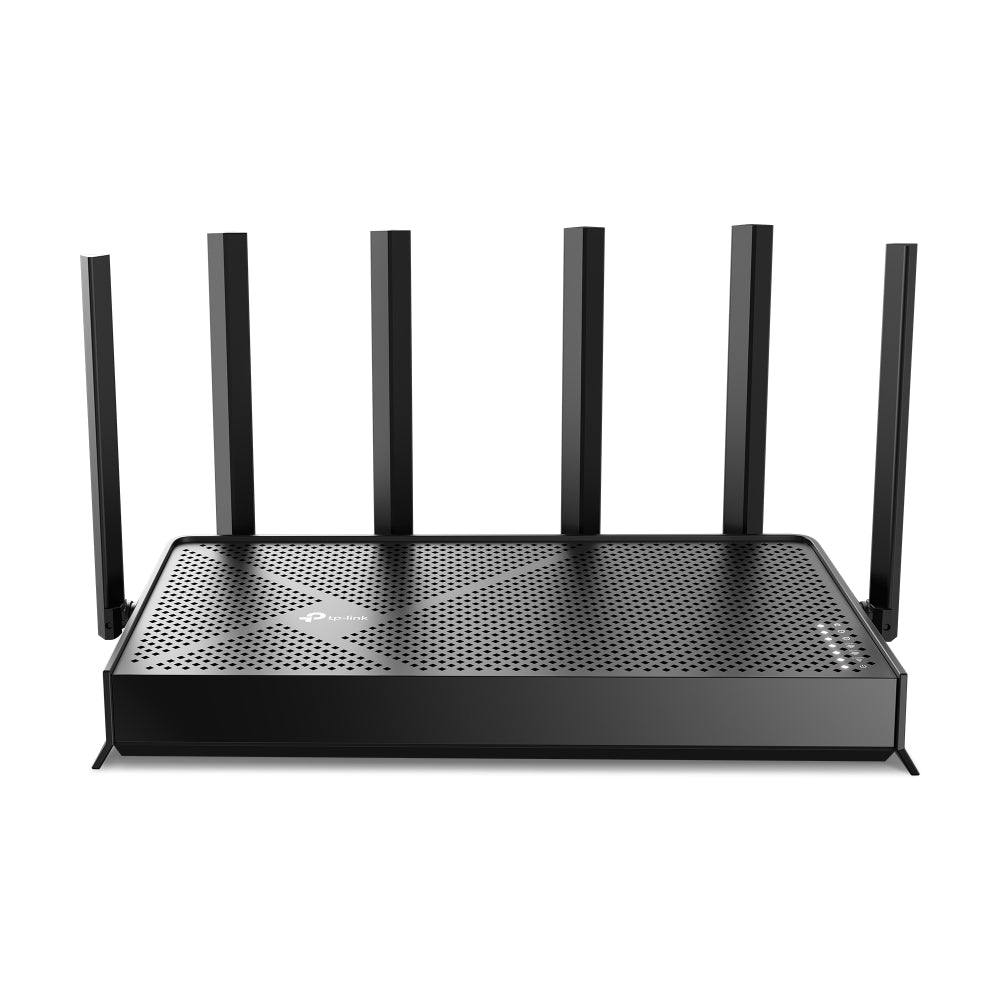

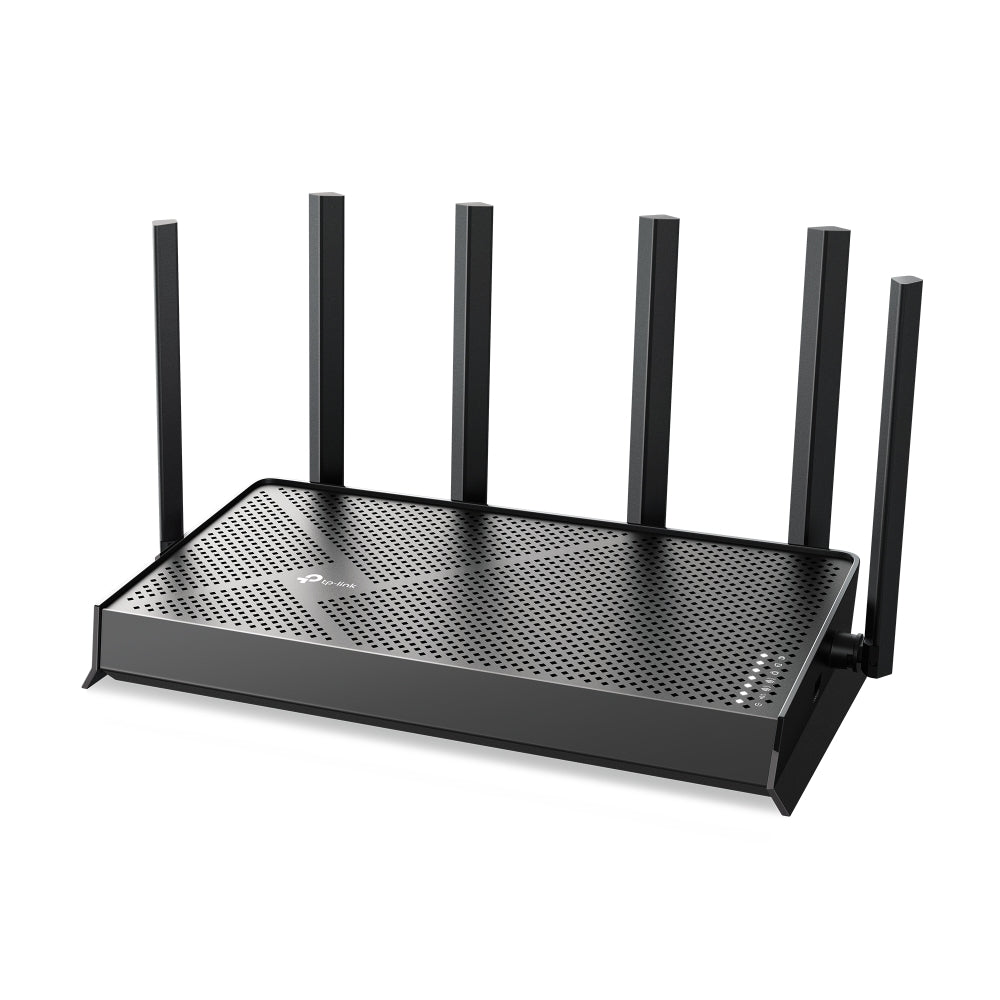

The Archer BE600 is a tri-band Wi-Fi 7 router rated BE9700: 5765 Mbps on 6 GHz, 2882 Mbps on 5 GHz and 1032 Mbps on 2.4 GHz, all 802.11be, with Multi-Link Operation, a 10 Gbps WAN/LAN port, a 2.5 Gbps WAN/LAN port, three 2.5 Gbps LAN ports and six external antennas.
Tri-Band Wi-Fi 7 Including 6 GHz

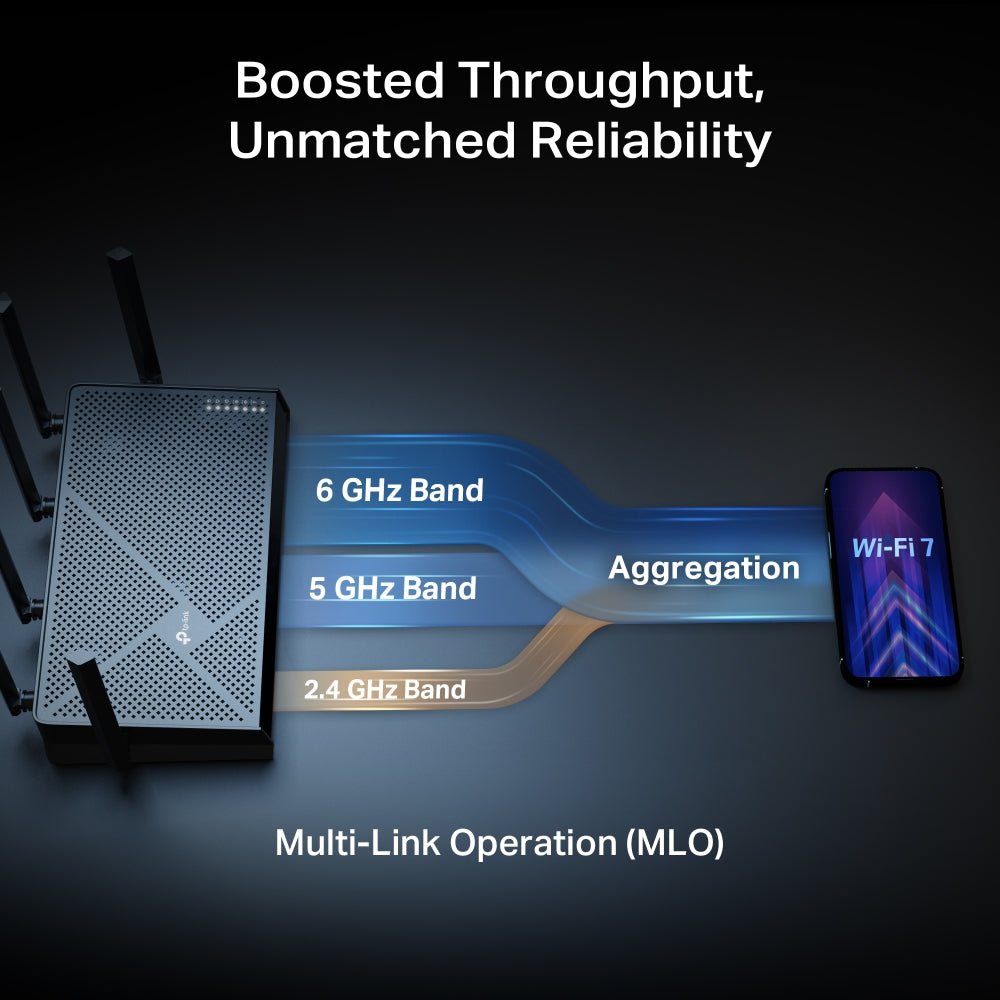

Adding the 6 GHz band gives Wi-Fi 7 clients a cleaner, wider channel than 5 GHz alone. TP-Link rates the BE600 for three-bedroom houses with High capacity, using tri-band operation, MU-MIMO, OFDMA, Airtime Fairness, DFS and seven streams, and lists MLO, 4K-QAM and Multi-RUs among its Wi-Fi 7 features.
10G and 2.5G on Every Port

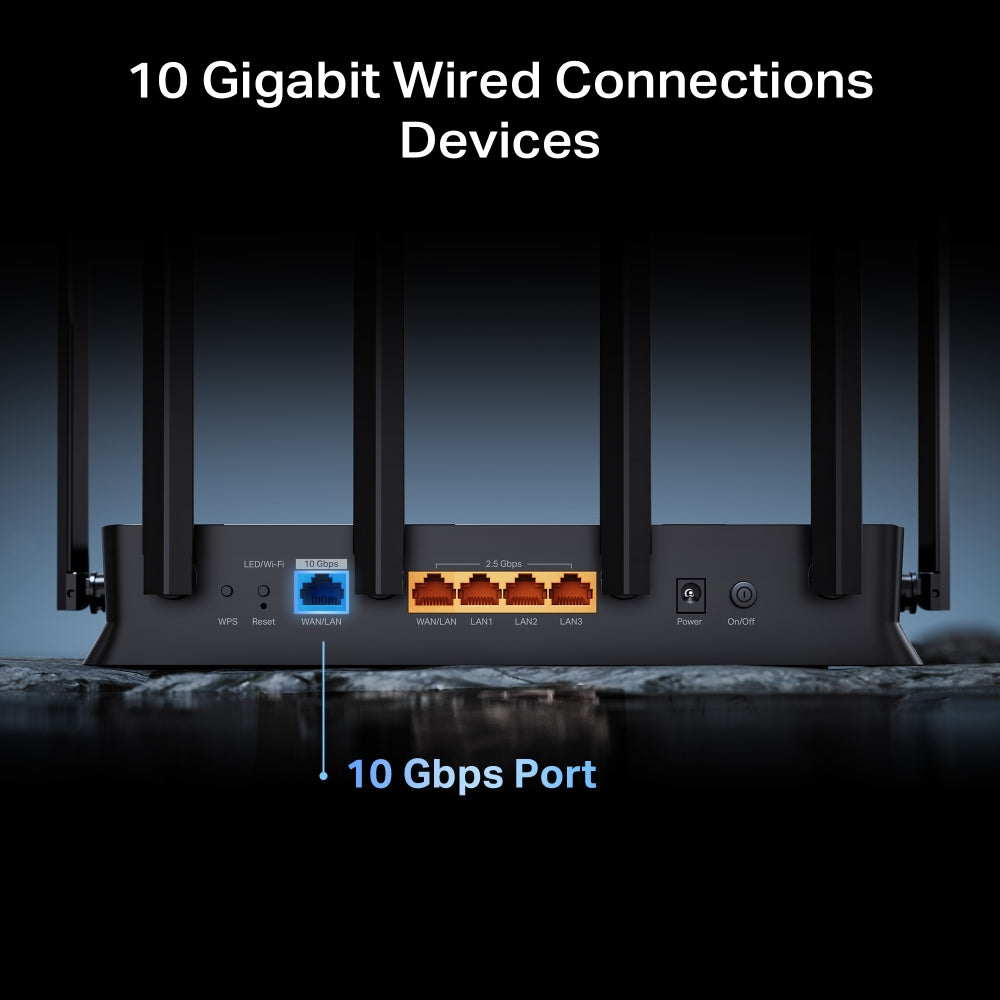

Wired networking is one 10 Gbps WAN/LAN port, one 2.5 Gbps WAN/LAN port and three 2.5 Gbps LAN ports, so no port is limited to Gigabit. The 10 Gbps port suits a 10G fibre plan or a 10G NAS; 10 Gbps internet speeds need a compatible service plan and equipment.

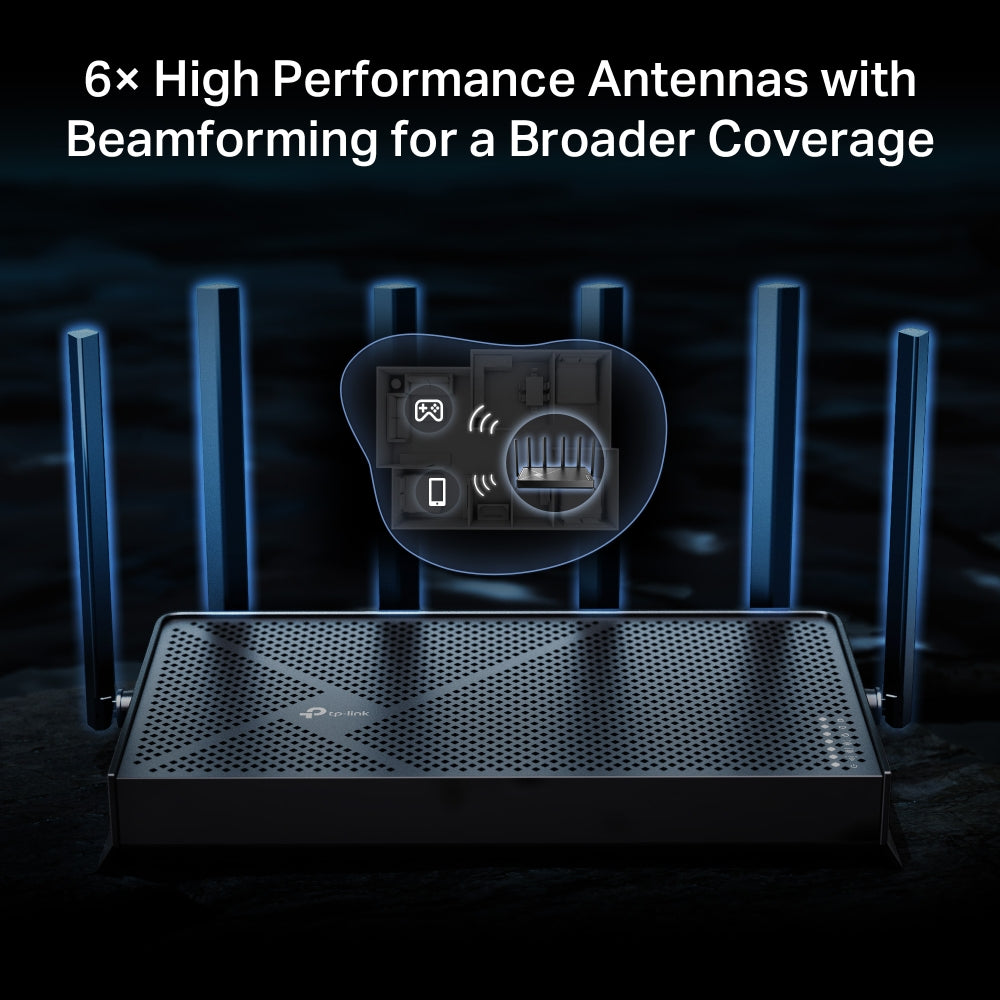

Six External Antennas with Beamforming
Six high-performance external antennas and Beamforming concentrate signal towards connected devices. TP-Link also lists an IoT Network option and works-with-Alexa and Google Assistant support.
HomeShield, WireGuard and EasyMesh
HomeShield provides real-time IoT protection, malicious site blocking, intrusion prevention, DDoS prevention and a network scanner, with advanced features on a paid subscription. OpenVPN, PPTP, L2TP and WireGuard run as VPN server and client, and EasyMesh compatibility allows another EasyMesh router or extender to extend coverage. A USB 3.0 port handles FTP, media and Samba sharing.
Ideal For
Singapore homes with a 10G or multi-gig fibre plan that want tri-band Wi-Fi 7 with 6 GHz and 2.5G-or-faster wired ports throughout. Supplied by SourceIT with local Singapore warranty and GST invoice.
Archer BE600 Datasheet — Technical Specifications
General
| Model | Archer BE600 |
| Official Product Name | BE9700 Tri-Band Wi-Fi 7 Router |
| Brand | TP-Link |
| Warranty | 3 Years Local Warranty (Singapore) |
Wireless
| Wi-Fi Speeds | BE9700 — 6 GHz: 5765 Mbps (802.11be); 5 GHz: 2882 Mbps (802.11be); 2.4 GHz: 1032 Mbps (802.11be) |
| Wi-Fi Range | 3 Bedroom Houses — 6x External Antennas, Beamforming |
| Wi-Fi Capacity | High — Tri-Band, MU-MIMO, OFDMA, Airtime Fairness, DFS, 7 Streams |
| Advanced Features | Multi-Link Operation (MLO), 4K-QAM, Multi-RUs, EasyMesh-Compatible, Works with Alexa and Google Assistant, IoT Network |
| Wireless Mode | Router Mode, Access Point Mode |
Hardware

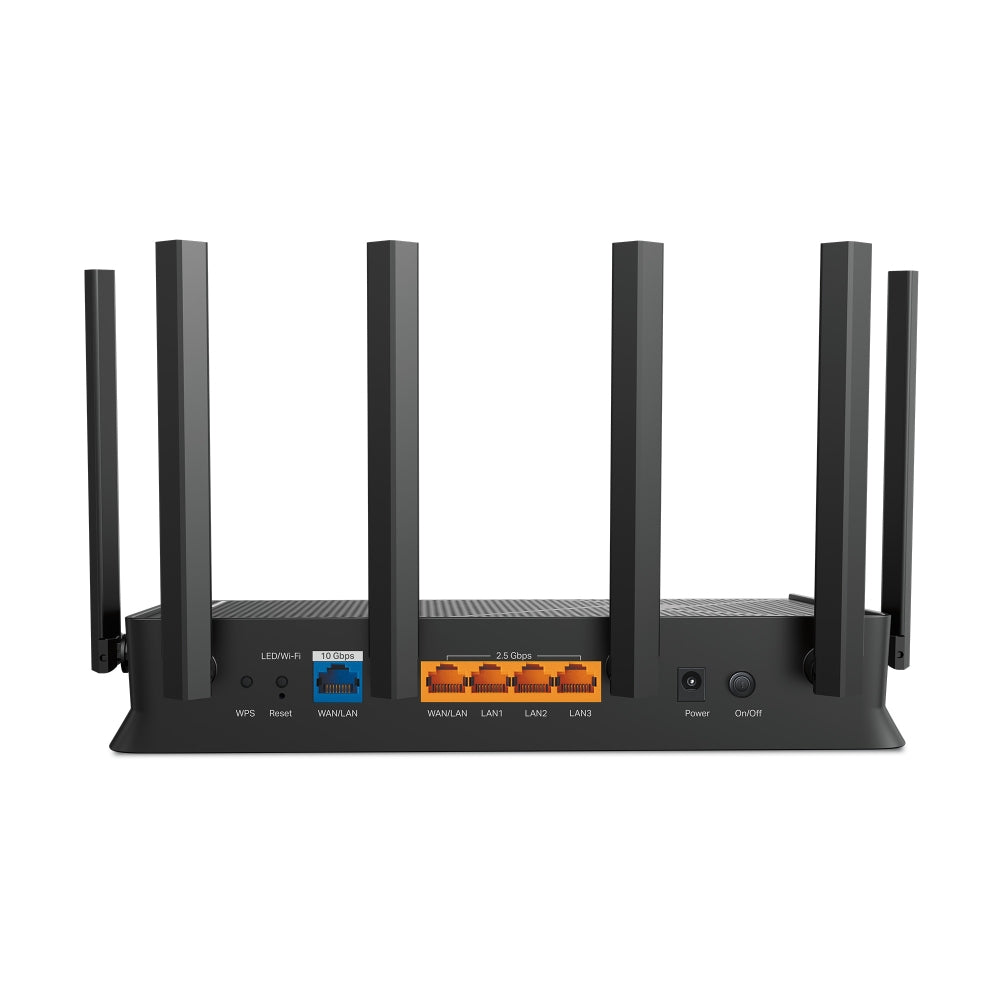

| Ethernet Ports | 1x 10 Gbps WAN/LAN, 1x 2.5 Gbps WAN/LAN, 3x 2.5 Gbps LAN |
| USB Support | 1x USB 3.0 — NTFS, exFAT, HFS+, FAT32; FTP Server, Media Server, Samba Server |
| Power | 12 V DC 3.3 A |
| Buttons | Power Button, Wi-Fi/LED Button, WPS Button, Reset Button |
Security
| Network Security | SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway, HomeShield Security (Real-Time IoT Protection, Malicious Site Blocker, Intrusion Prevention System, DDoS Attack Prevention, Home Network Scanner) |
| Guest Network | 1x 6 GHz Guest Network, 1x 5 GHz Guest Network, 1x 2.4 GHz Guest Network |
| VPN Server | OpenVPN, PPTP, L2TP, WireGuard |
| VPN Client | OpenVPN, PPTP, L2TP, WireGuard |
| Wi-Fi Encryption | WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x) |
Software
| Protocol | IPv4, IPv6 |
| Service Kit | HomeShield (basic features included; advanced features require a paid subscription) |
| Mesh | Compatible with EasyMesh |
| Parental Controls | HomeShield Parental Controls — Custom Profiles, Professional Content Filter Library, Family Time, Bedtime, Off Time, Time Rewards, Family Online Time Ranking, Pause the Internet, Weekly and Monthly Reports |
| WAN Type | Dynamic IP, Static IP, PPPoE, PPTP, L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | Auto Firmware Upgrade, TP-Link ID, DDNS |
| NAT Forwarding | Port Forwarding, Port Triggering, DMZ, UPnP |
| IPTV | IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN |
| DHCP | Address Reservation, DHCP Client List, Server |
| DDNS | TP-Link, NO-IP, DynDNS |
| Management | Tether App, Webpage |
Environment and Certification
| Certifications | CE, FCC |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity | 10% to 90% non-condensing |
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+ or other JavaScript-enabled browser; cable or DSL modem (if needed); internet service provider subscription |
| Network Services Enabled by Default | Web Server (HTTP/HTTPS, TCP 80/443); DNS (TCP & UDP 53); DHCP Server (UDP 67); App management (TCP 20001, TCP 30001, UDP 20002) |
TP-Link's Singapore page for the Archer BE600 publishes no dimensions, no weight, no processor specification and no package-contents list; those gaps are stated rather than filled in from another model.
Compatibility & Software Support
| Management App | TP-Link Tether (iOS and Android) |
| Web Management | Supported via browser |
| TP-Link Cloud | TP-Link ID, auto firmware upgrade, DDNS |
| Mesh Ecosystem | EasyMesh-compatible — networks with other EasyMesh routers and range extenders, including other vendors' |
| Voice Assistants | Works with Alexa and Google Assistant |
| Wi-Fi 7 Client Requirement | Wi-Fi 7 features require client devices that also support them; older Wi-Fi clients connect at their own standard |
| USB Storage Formats | NTFS, exFAT, HFS+, FAT32 |
TP-Link notes that EasyMesh connections between vendors can fail because of firmware differences, and that EasyMesh compatibility is still being developed on some models and will follow in software updates. 10 Gbps internet speeds require a compatible service plan and equipment.
Package Contents & Ordering Information
Package Contents
| In the Box | TP-Link publishes no package-contents list on the Archer BE600's Singapore page. Ask us and we will confirm the current carton contents before you order. |
Ordering Information
| Model | Archer BE600 |
| SKU | Archer BE600 |
| Warranty | 3 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — Archer BE600
Does the BE600 support 320 MHz channels?
TP-Link's Singapore specification table for the BE600 does not list a 320 MHz channel; the listed Wi-Fi 7 features are MLO, 4K-QAM and Multi-RUs.
Which ports can be used for the internet connection?
The 10 Gbps port and one of the 2.5 Gbps ports are both WAN/LAN ports; the remaining three are 2.5 Gbps LAN.
Does it work with other mesh devices?
It is EasyMesh-compatible, so it can network with other EasyMesh routers and extenders, though TP-Link notes cross-vendor firmware differences can cause failed connections.
What warranty does SourceIT provide?
Three years local Singapore warranty, under TP-Link's published replacement warranty terms, with a GST invoice.
Can SourceIT quote this for an office or a project?
Yes. Send us the quantity and we will quote with local warranty, delivery and support.
