TP-Link Archer BE550 Pro BE9700 Tri-Band Wi-Fi 7 Router
PRODUCT DESCRIPTION
TP-Link BE9700 Tri-Band Wi-Fi 7 Router (Archer BE550 Pro) - 3 Years Local Warranty

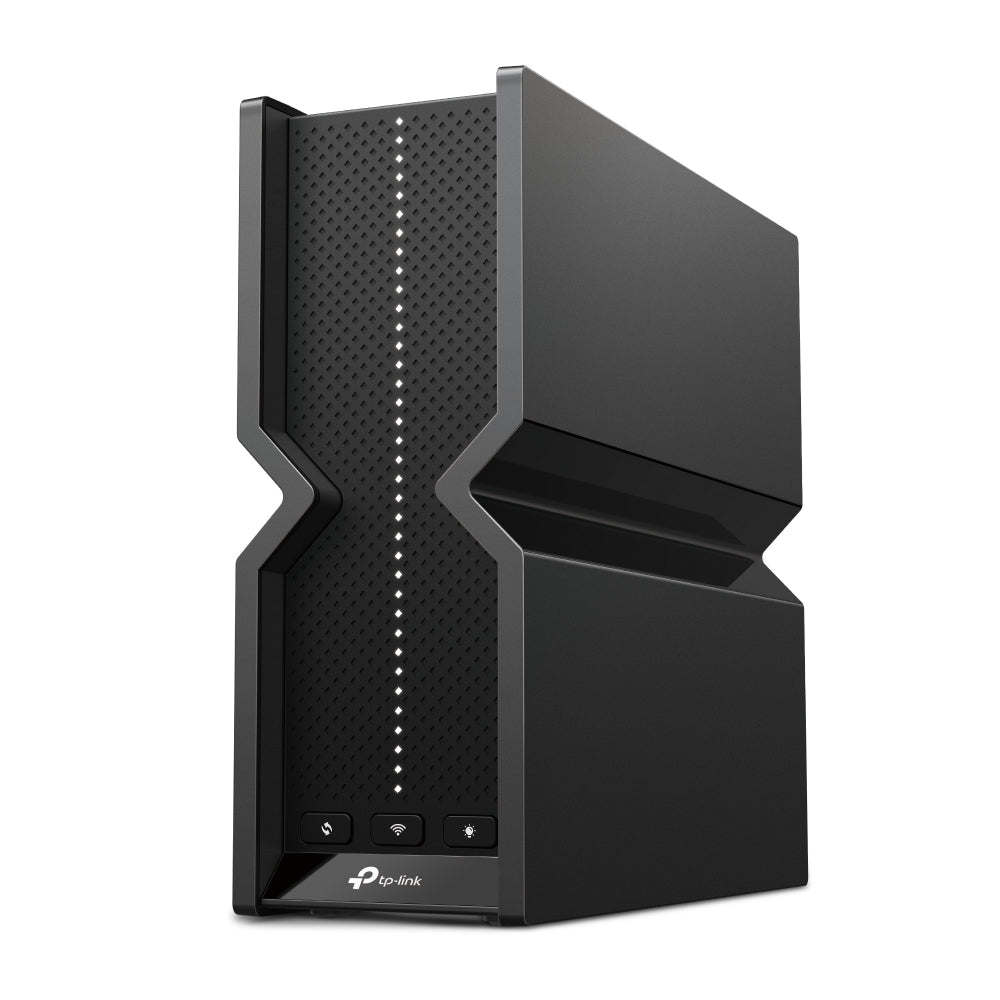

The Archer BE550 Pro is a BE9700 tri-band Wi-Fi 7 router with 320 MHz channels on 6 GHz, Multi-Link Operation across all three bands, a 10 Gbps WAN port and four 2.5 Gbps LAN ports, in an upright chassis with six optimally positioned internal antennas.
BE9700 Tri-Band Wi-Fi 7 with 320 MHz
TP-Link rates the BE550 Pro at up to 9.7 Gbps combined across the 2.4 GHz, 5 GHz and 6 GHz bands, reachable only by Wi-Fi 7 clients that support MLO and 6 GHz. The 320 MHz channel width is available only on 6 GHz and may be restricted in some regions. Coverage is rated for four-bedroom houses, using six optimally positioned antennas, Beamforming and high-power FEMs.
Multi-Link Operation
MLO transmits data to Wi-Fi 7 clients over multiple bands at once. TP-Link's 4x lower latency figure comes from laboratory tests comparing MLO across 5 GHz and 6 GHz against a Wi-Fi 6/6E router on a single band.
10 Gbps WAN and Four 2.5 Gbps LAN
A 10 Gbps WAN port accepts a 10G fibre handoff, and four 2.5 Gbps LAN ports serve multi-gig PCs, NAS units and switches. A USB 3.0 port provides FTP, media and Samba sharing. 10 Gbps internet speeds require a compatible service plan and equipment.
HomeShield, WireGuard and EasyMesh
HomeShield includes a free Basic Plan (Pro Plan chargeable) covering IoT protection, malicious site blocking, intrusion prevention, DDoS prevention and a network scanner. OpenVPN, PPTP, L2TP and WireGuard run as VPN server and client, and EasyMesh compatibility allows whole-home mesh with other EasyMesh devices.
Ideal For
Larger Singapore homes on 10G fibre that want 320 MHz tri-band Wi-Fi 7 and four multi-gig LAN ports in a compact upright unit. Supplied by SourceIT with local Singapore warranty and GST invoice.
Archer BE550 Pro Datasheet — Technical Specifications
General
| Model | Archer BE550 Pro |
| Official Product Name | BE9700 Tri-Band Wi-Fi 7 Router |
| Brand | TP-Link |
| Warranty | 3 Years Local Warranty (Singapore) |
Wireless
| Wi-Fi Speeds | BE9700 (tri-band: 6 GHz, 5 GHz, 2.4 GHz) |
| Wi-Fi Range | 4 Bedroom Houses — 6x Optimally Positioned Antennas, Beamforming, High-Power FEM |
| Wi-Fi Capacity | High — Tri-Band, OFDMA, Airtime Fairness, DFS |
| Working Modes | Router Mode, Access Point Mode |
| Advanced Features | Multi-Link Operation (MLO), 320 MHz Channel, 4K-QAM, Multi-RUs, EasyMesh-Compatible, Works with Alexa and Google Assistant, IoT Network |
Hardware

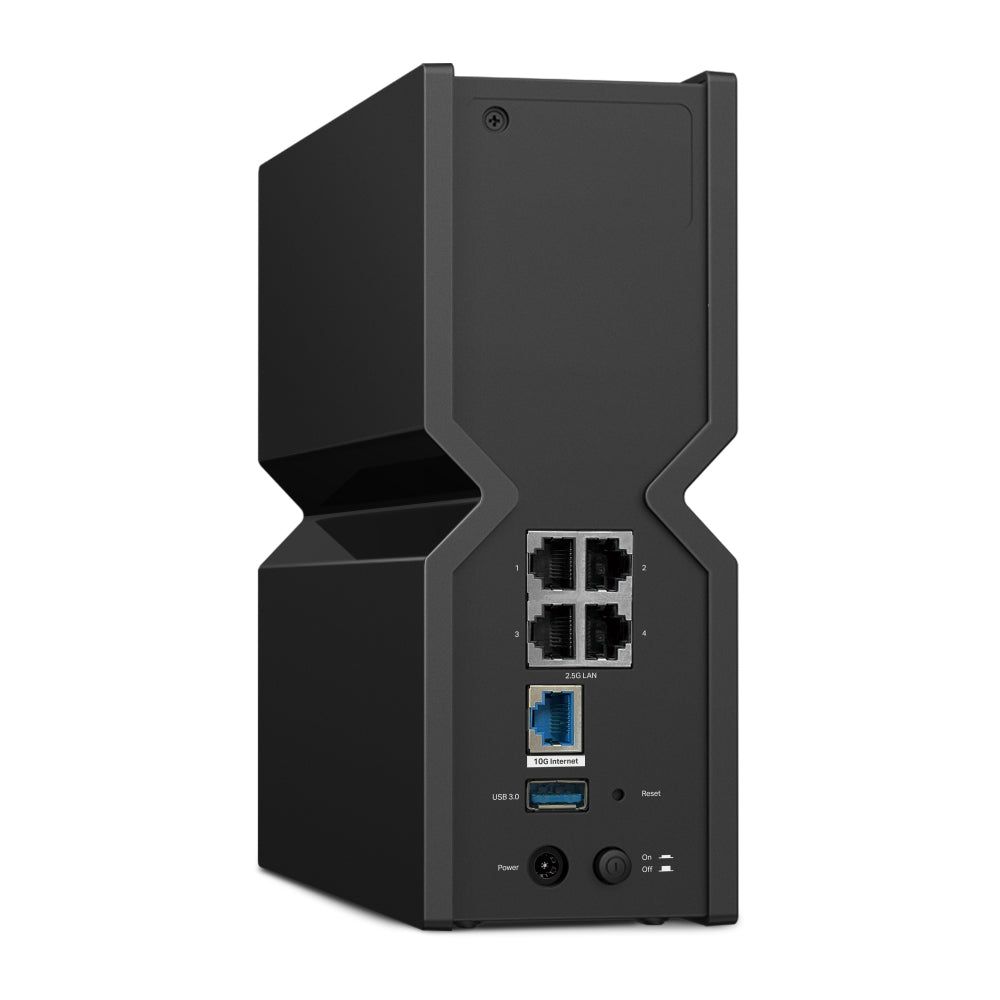

| Ethernet Ports | 1x 10 Gbps WAN, 4x 2.5 Gbps LAN |
| USB Support | 1x USB 3.0 — NTFS, exFAT, HFS+, FAT32; FTP Server, Media Server, Samba Server |
| Power | 12 V DC 3.3 A |
| Buttons | Power On/Off Button, Wi-Fi On/Off Button, LED Button, WPS Button, Reset Button |
Security
| Network Security | SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway, HomeShield Security (Real-Time IoT Protection, Malicious Site Blocker, Intrusion Prevention System, DDoS Attack Prevention, Home Network Scanner) |
| Guest Network | 1x 6 GHz Guest Network, 1x 5 GHz Guest Network, 1x 2.4 GHz Guest Network |
| VPN Server | OpenVPN, PPTP, L2TP, WireGuard |
| VPN Client | OpenVPN, PPTP, L2TP, WireGuard |
| Wi-Fi Encryption | WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x) |
Software
| Protocol | IPv4, IPv6 |
| Service Kit | HomeShield (free Basic Plan; fees apply for the Pro Plan) |
| Mesh | Compatible with EasyMesh |
| Parental Controls | HomeShield Parental Controls — Custom Profiles, Professional Content Filter Library, Family Time, Bedtime, Off Time, Time Rewards, Family Online Time Ranking, Pause the Internet, Weekly and Monthly Reports |
| WAN Type | Dynamic IP, Static IP, PPPoE, PPTP, L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | Auto Firmware Upgrade, TP-Link ID, DDNS |
| NAT Forwarding | Port Forwarding, Port Triggering, DMZ, UPnP |
| IPTV | IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN |
| DHCP | Address Reservation, DHCP Client List, Server |
| DDNS | TP-Link, NO-IP, DynDNS |
| Management | Tether App, Webpage |
Physical
| Dimensions (W x D x H) | 76 x 231.7 x 203 mm (3.0 x 9.1 x 8.0 in) |
Environment and Certification
| Certifications | CE, FCC, RoHS |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity | 10% to 90% non-condensing |
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+ or other JavaScript-enabled browser; cable or DSL modem (if needed); internet service provider subscription |
| Network Services Enabled by Default | Web Server (HTTP/HTTPS, TCP 80/443); DNS (TCP & UDP 53); DHCP Server (UDP 67); App management (TCP 20001, TCP 30001, UDP 20002) |
TP-Link's Singapore specification table for the Archer BE550 Pro gives the BE9700 class but no per-band speed figures, and publishes no weight and no processor specification; none of these are filled in from another model. TP-Link notes pictures are for reference only as the antennas may be optimised.
Compatibility & Software Support
| Management App | TP-Link Tether (iOS and Android) |
| Web Management | Supported via browser |
| TP-Link Cloud | TP-Link ID, auto firmware upgrade, DDNS |
| Mesh Ecosystem | EasyMesh-compatible — networks with other EasyMesh routers and range extenders, including other vendors' |
| Voice Assistants | Works with Alexa and Google Assistant |
| Wi-Fi 7 Client Requirement | Wi-Fi 7 features require client devices that also support them; older Wi-Fi clients connect at their own standard |
| USB Storage Formats | NTFS, exFAT, HFS+, FAT32 |
TP-Link notes that EasyMesh connections between vendors can fail because of firmware differences, and that EasyMesh compatibility is still being developed on some models and will follow in software updates. 10 Gbps internet speeds require a compatible service plan and equipment.
Package Contents & Ordering Information
Package Contents
| In the Box | Wi-Fi 7 Router Archer BE550 Pro, Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide |
Ordering Information
| Model | Archer BE550 Pro |
| SKU | Archer BE550 Pro |
| Warranty | 3 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — Archer BE550 Pro
What are the per-band speeds?
TP-Link's Singapore page states the BE9700 class and up to 9.7 Gbps combined for MLO-capable Wi-Fi 7 clients using all three bands, but does not publish per-band figures in its specification table.
Can the 10 Gbps port be used for LAN?
TP-Link lists it as a 10 Gbps WAN port, with the four 2.5 Gbps ports as LAN.
Does it support 320 MHz channels?
Yes, on the 6 GHz band only, subject to regional regulation and Wi-Fi 7 client support.
What warranty does SourceIT provide?
Three years local Singapore warranty, under TP-Link's published replacement warranty terms, with a GST invoice.
Can SourceIT quote this for an office or a project?
Yes. Send us the quantity and we will quote with local warranty, delivery and support.
