TP-Link Archer BE400 BE6500 Dual-Band Wi-Fi 7 Router
PRODUCT DESCRIPTION
TP-Link BE6500 Dual-Band Wi-Fi 7 Router (Archer BE400) - 3 Years Local Warranty

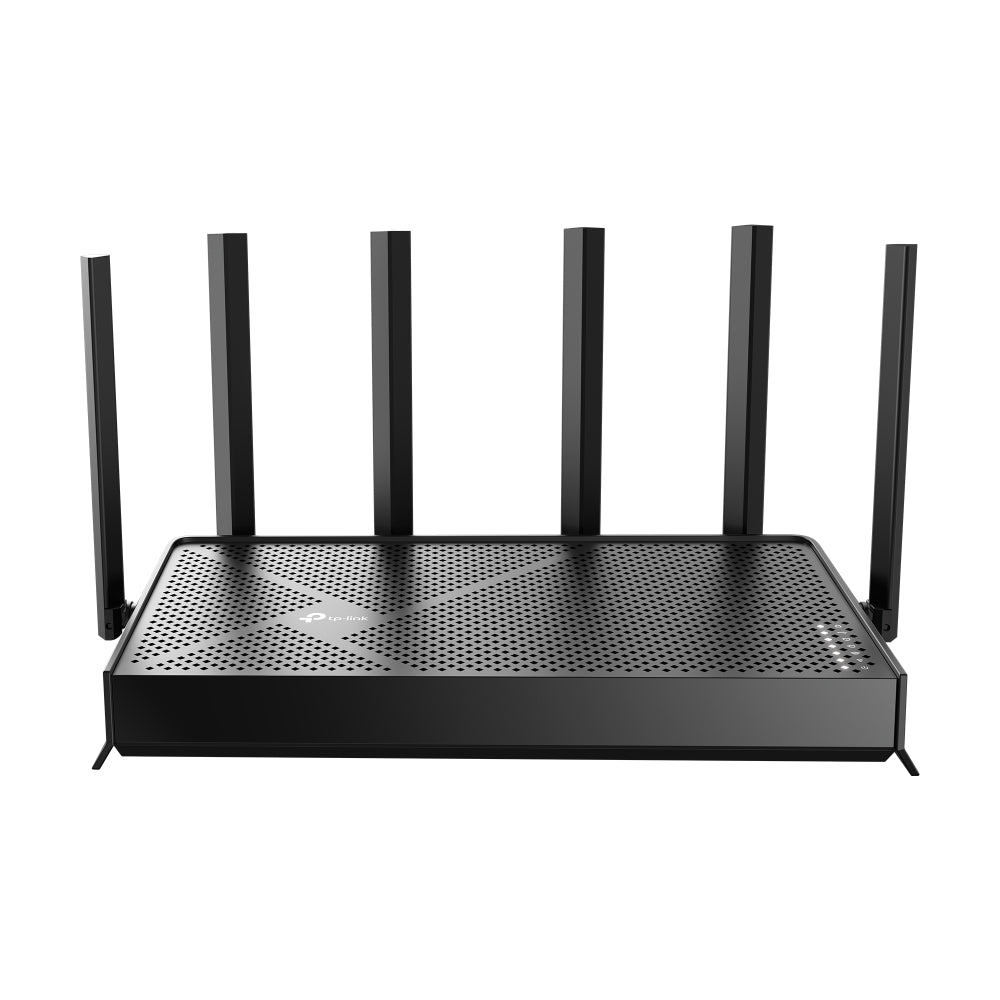

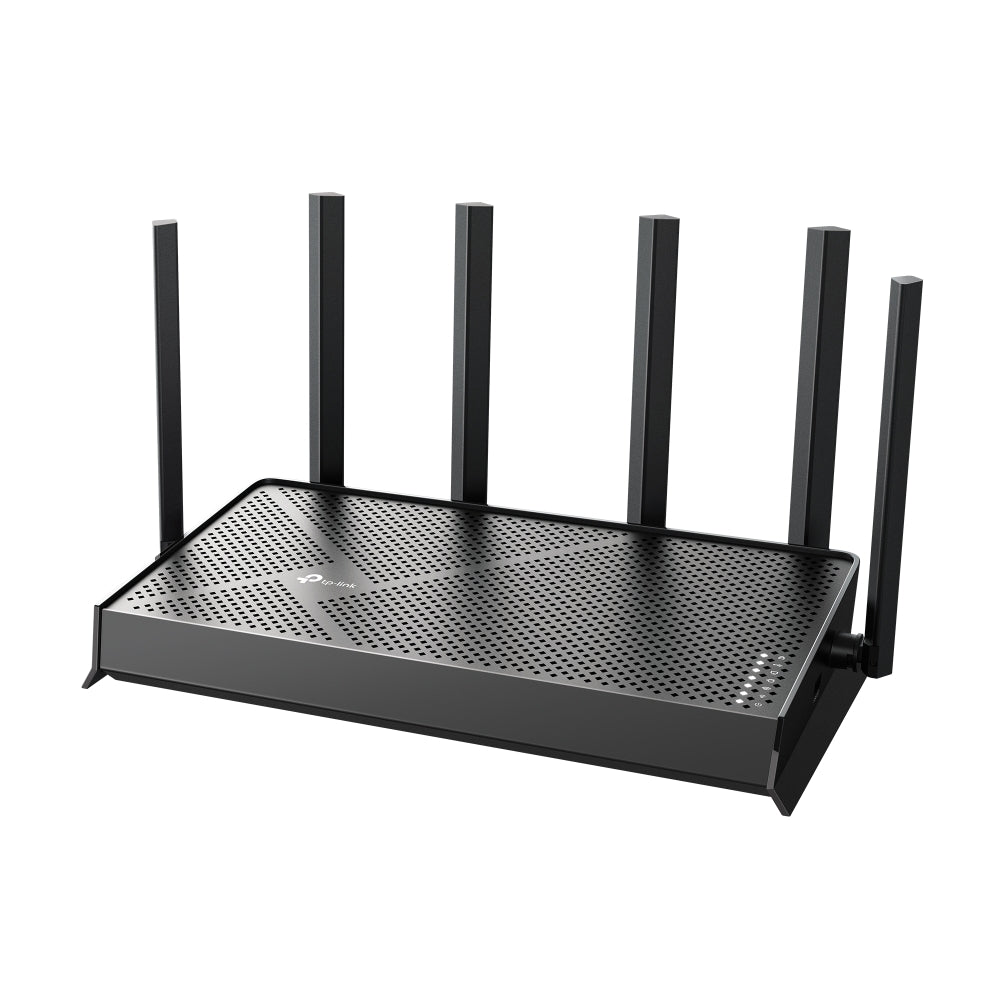

The Archer BE400 is a BE6500 dual-band Wi-Fi 7 router: 5764 Mbps on 5 GHz and 688 Mbps on 2.4 GHz, with Multi-Link Operation, 4K-QAM, six external antennas and two 2.5 Gbps ports.
6.5 Gbps Dual-Band Wi-Fi 7
Most of the BE400's capacity sits on 5 GHz at 5764 Mbps, with 688 Mbps on 2.4 GHz. TP-Link rates it for three-bedroom houses with High capacity from dual-band operation, MU-MIMO, OFDMA, Airtime Fairness, DFS and four streams, and lists MLO, 4K-QAM and Multi-RUs.
Multi-Link Operation
MLO lets Wi-Fi 7 clients transmit over the 5 GHz and 2.4 GHz bands at once to increase throughput and reduce latency. TP-Link bases its lower-latency claim on laboratory tests against Wi-Fi 6/6E routers without MLO, and the feature needs Wi-Fi 7 clients.

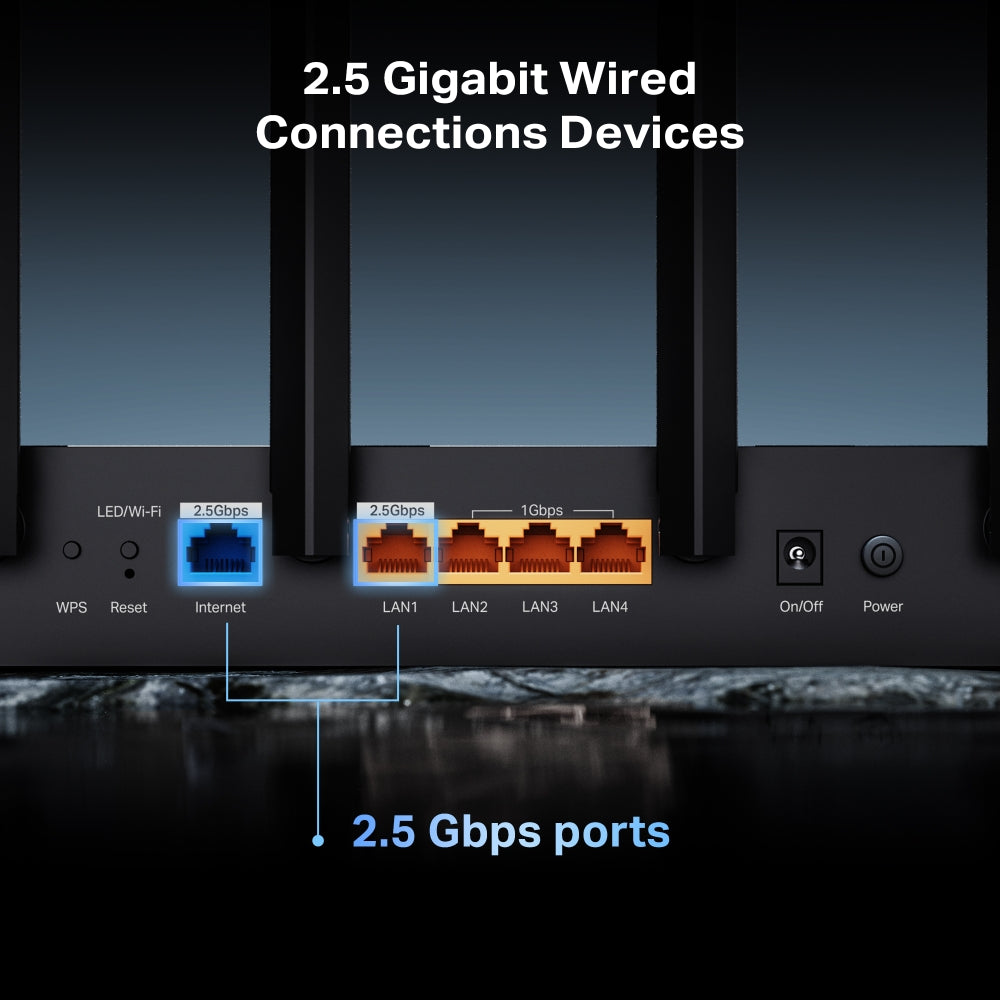

Dual 2.5 Gbps Ports
A 2.5 Gbps WAN port and a 2.5 Gbps LAN port break through the 1 Gbps limit on both sides, with three further 1 Gbps LAN ports and a USB 3.0 port for FTP, media and Samba sharing. 2.5 Gbps internet speeds need a compatible service plan and equipment.
Six Antennas, HomeShield and EasyMesh
Six external antennas with Beamforming direct signal towards clients. HomeShield covers IoT protection, malicious site blocking, intrusion prevention, DDoS prevention and a network scanner (advanced features by paid subscription), OpenVPN, PPTP, L2TP and WireGuard run as server and client, and EasyMesh compatibility allows mesh expansion.
Ideal For
Singapore homes moving to Wi-Fi 7 on a Gigabit or 2.5G fibre plan that want a strong 5 GHz band and 2.5G ports at a mid-range price. Supplied by SourceIT with local Singapore warranty and GST invoice.
Archer BE400 Datasheet — Technical Specifications
General
| Model | Archer BE400 |
| Official Product Name | BE6500 Dual-Band Wi-Fi 7 Router |
| Brand | TP-Link |
| Warranty | 3 Years Local Warranty (Singapore) |
Wireless
| Wi-Fi Speeds | BE6500 — 5 GHz: 5764 Mbps; 2.4 GHz: 688 Mbps |
| Wi-Fi Range | 3 Bedroom Houses — 6x External Antennas, Beamforming |
| Wi-Fi Capacity | High — Dual-Band, MU-MIMO, OFDMA, Airtime Fairness, DFS, 4 Streams |
| Advanced Features | Multi-Link Operation (MLO), 4K-QAM, Multi-RUs, EasyMesh-Compatible, Works with Alexa and Google Assistant, IoT Network |
| Wireless Mode | Router Mode, Access Point Mode |
Hardware

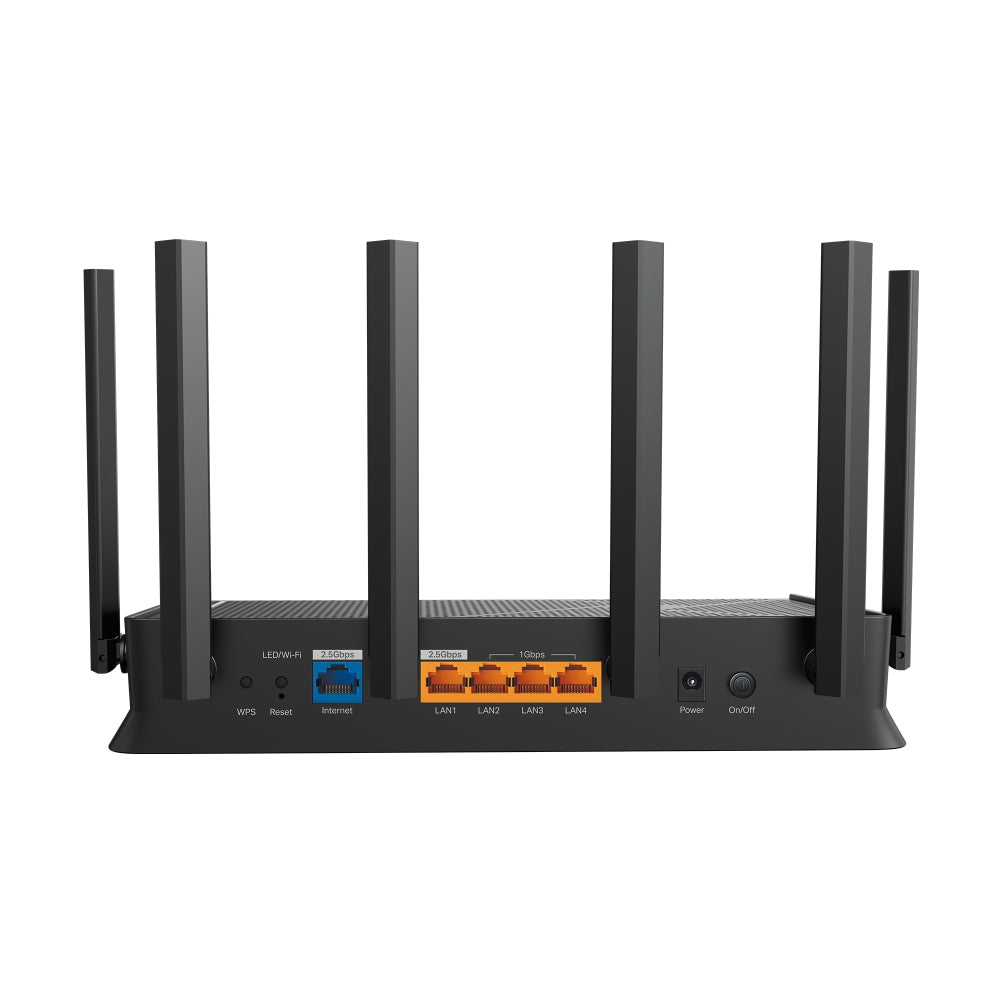

| Ethernet Ports | 1x 2.5 Gbps WAN, 1x 2.5 Gbps LAN, 3x 1 Gbps LAN |
| USB Support | 1x USB 3.0 — NTFS, exFAT, HFS+, FAT32; FTP Server, Media Server, Samba Server |
| Power | 12 V DC 2.5 A |
| Buttons | Power Button, Wi-Fi/LED Button, WPS Button, Reset Button |
| Dimensions (W x D x H) | 176 x 59 x 200 mm |
Security
| Network Security | SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway, HomeShield Security (Real-Time IoT Protection, Malicious Site Blocker, Intrusion Prevention System, DDoS Attack Prevention, Home Network Scanner) |
| Guest Network | 1x 5 GHz Guest Network, 1x 2.4 GHz Guest Network |
| VPN Server | OpenVPN, PPTP, L2TP, WireGuard |
| VPN Client | OpenVPN, PPTP, L2TP, WireGuard |
| Wi-Fi Encryption | WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x) |
Software
| Protocol | IPv4, IPv6 |
| Service Kit | HomeShield (basic features included; advanced features require a paid subscription) |
| Mesh | Compatible with EasyMesh |
| Parental Controls | HomeShield Parental Controls — Custom Profiles, Professional Content Filter Library, Family Time, Bedtime, Off Time, Time Rewards, Family Online Time Ranking, Pause the Internet, Weekly and Monthly Reports |
| WAN Type | Dynamic IP, Static IP, PPPoE, PPTP, L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | Auto Firmware Upgrade, TP-Link ID, DDNS |
| NAT Forwarding | Port Forwarding, Port Triggering, DMZ, UPnP |
| IPTV | IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN |
| DHCP | Address Reservation, DHCP Client List, Server |
| DDNS | TP-Link, NO-IP, DynDNS |
| Management | Tether App, Webpage |
Environment and Certification
| Certifications | CE, FCC |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity | 10% to 90% non-condensing |
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+ or other JavaScript-enabled browser; cable or DSL modem (if needed); internet service provider subscription |
TP-Link's Singapore page for the Archer BE400 publishes no weight, no processor specification and no package-contents list; those gaps are stated rather than filled in from another model.
Compatibility & Software Support
| Management App | TP-Link Tether (iOS and Android) |
| Web Management | Supported via browser |
| TP-Link Cloud | TP-Link ID, auto firmware upgrade, DDNS |

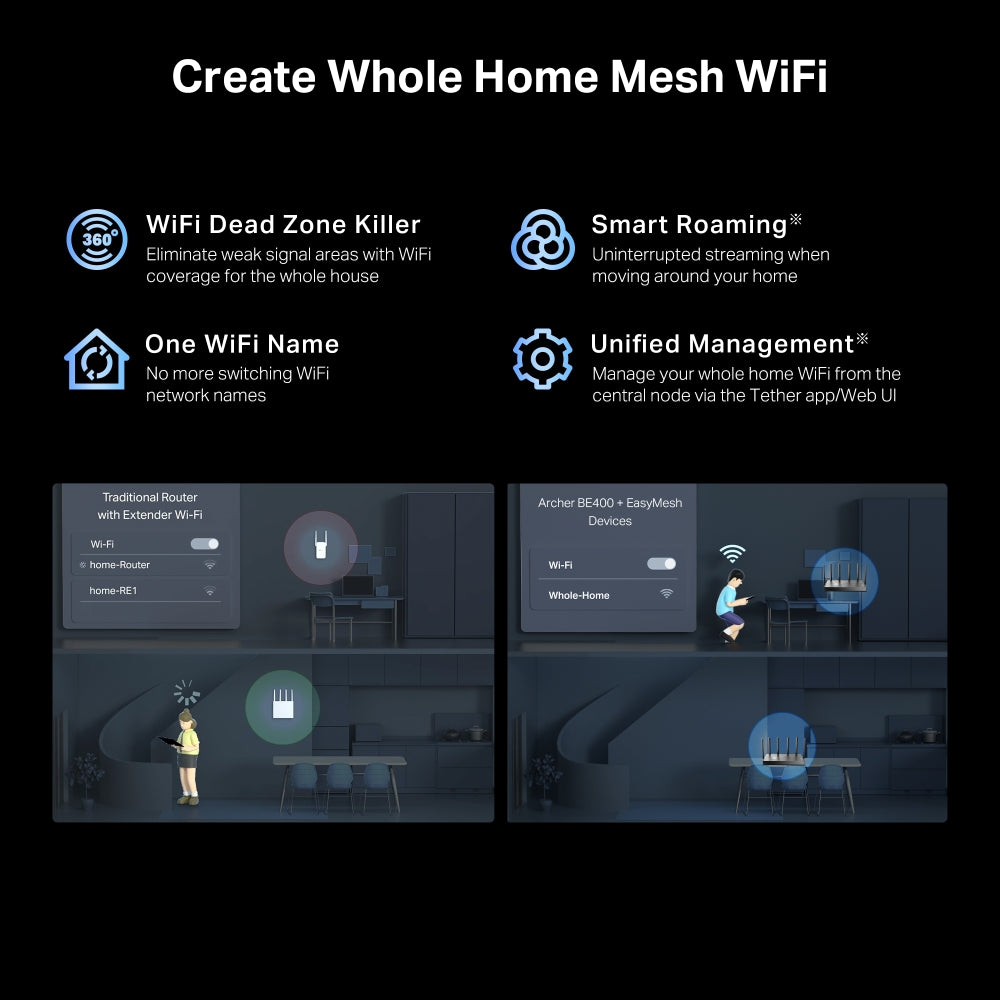

| Mesh Ecosystem | EasyMesh-compatible — networks with other EasyMesh routers and range extenders, including other vendors' |
| Voice Assistants | Works with Alexa and Google Assistant |
| Wi-Fi 7 Client Requirement | Wi-Fi 7 features require client devices that also support them; older Wi-Fi clients connect at their own standard |
| USB Storage Formats | NTFS, exFAT, HFS+, FAT32 |
TP-Link notes that EasyMesh connections between vendors can fail because of firmware differences, and that EasyMesh compatibility is still being developed on some models and will follow in software updates. 2.5 Gbps internet speeds require a compatible service plan and equipment; a separate modem may be required.
Package Contents & Ordering Information
Package Contents
| In the Box | TP-Link publishes no package-contents list on the Archer BE400's Singapore page. Ask us and we will confirm the current carton contents before you order. |
Ordering Information
| Model | Archer BE400 |
| SKU | Archer BE400 |
| Warranty | 3 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — Archer BE400
Does the BE400 have a 6 GHz band?
No. It is dual-band, with 5764 Mbps on 5 GHz and 688 Mbps on 2.4 GHz.
How many multi-gig ports are there?
Two: a 2.5 Gbps WAN and a 2.5 Gbps LAN. The other three LAN ports are 1 Gbps.
Does it support WireGuard?
Yes, as both a VPN server and a VPN client, alongside OpenVPN, PPTP and L2TP.
What warranty does SourceIT provide?
Three years local Singapore warranty, under TP-Link's published replacement warranty terms, with a GST invoice.
Can SourceIT quote this for an office or a project?
Yes. Send us the quantity and we will quote with local warranty, delivery and support.
