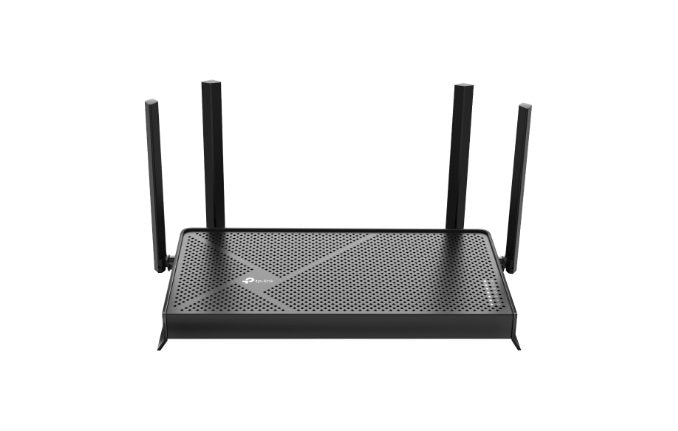

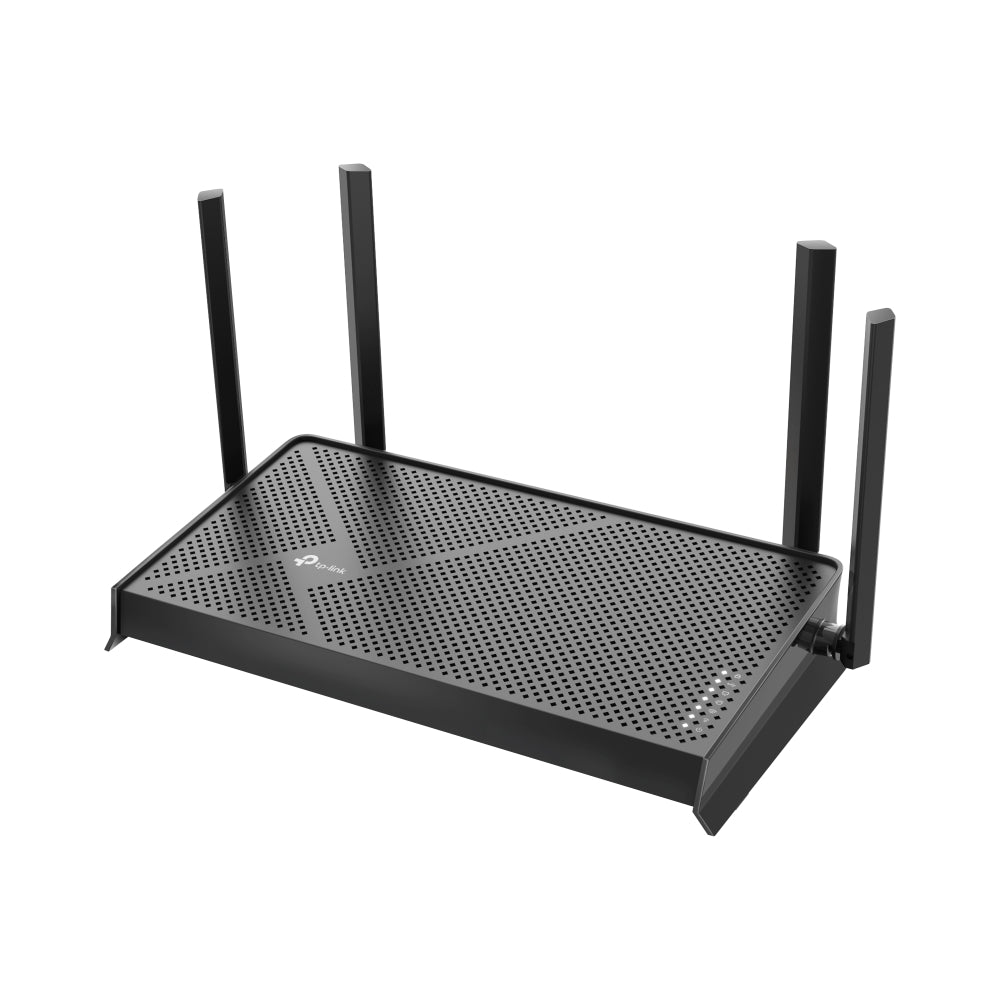

TP-Link Archer BE230 BE3600 Dual-Band Wi-Fi 7 Router
PRODUCT DESCRIPTION
TP-Link BE3600 Dual-Band Wi-Fi 7 Router (Archer BE230) - 3 Years Local Warranty
The Archer BE230 is the accessible way into Wi-Fi 7: 2882 Mbps on 5 GHz and 688 Mbps on 2.4 GHz under 802.11be, with Multi-Link Operation, 4K-QAM, two 2.5 Gbps Ethernet ports, WireGuard VPN both ways and EasyMesh compatibility. It brings genuinely new Wi-Fi 7 mechanics rather than a rebadged Wi-Fi 6 design.
Multi-Link Operation, the Real Wi-Fi 7 Feature
MLO lets a compatible Wi-Fi 7 client use the 2.4 GHz and 5 GHz links at the same time rather than choosing one and sticking with it. For a video call or a game, that means a transient problem on one band does not drop the session — traffic continues on the other link. Combined with 4K-QAM and Multi-RUs, it is the part of Wi-Fi 7 that changes behaviour, not just peak numbers, and it needs a Wi-Fi 7 client to work.
Two 2.5 Gbps Ports on an Entry Wi-Fi 7 Router

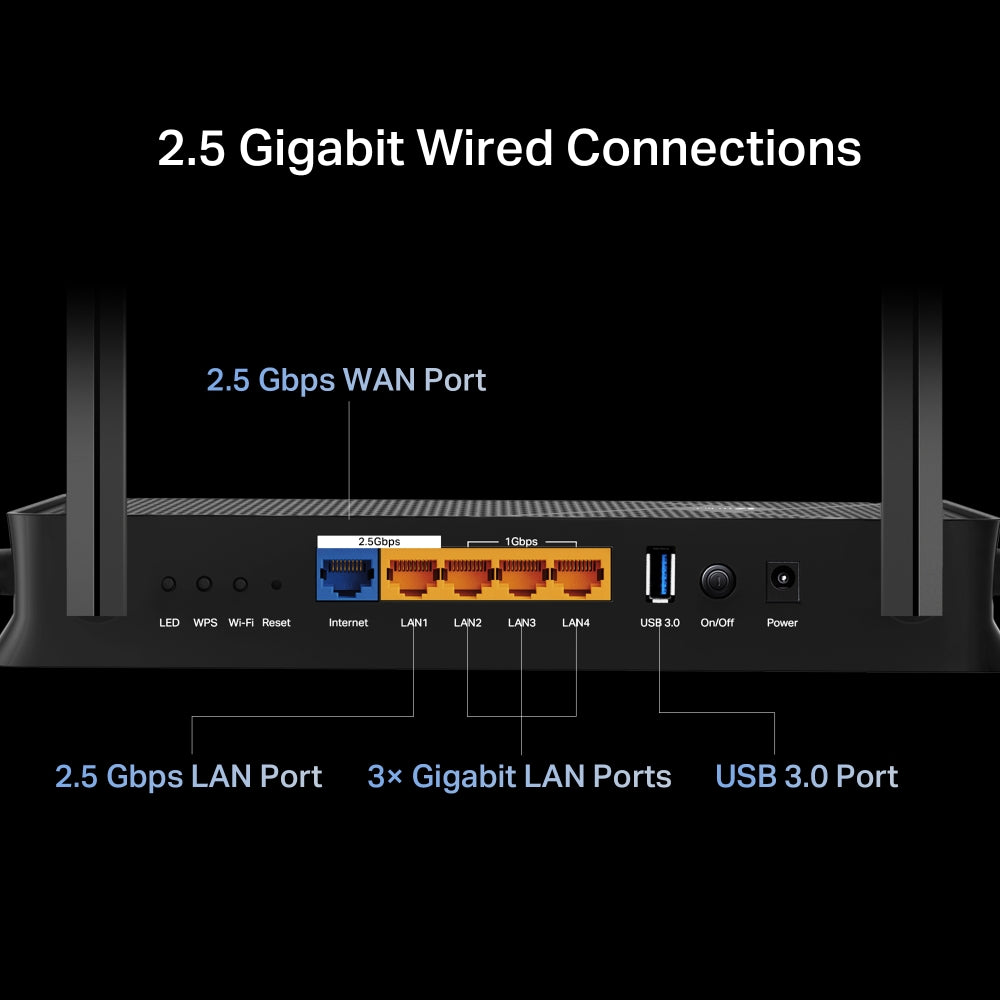

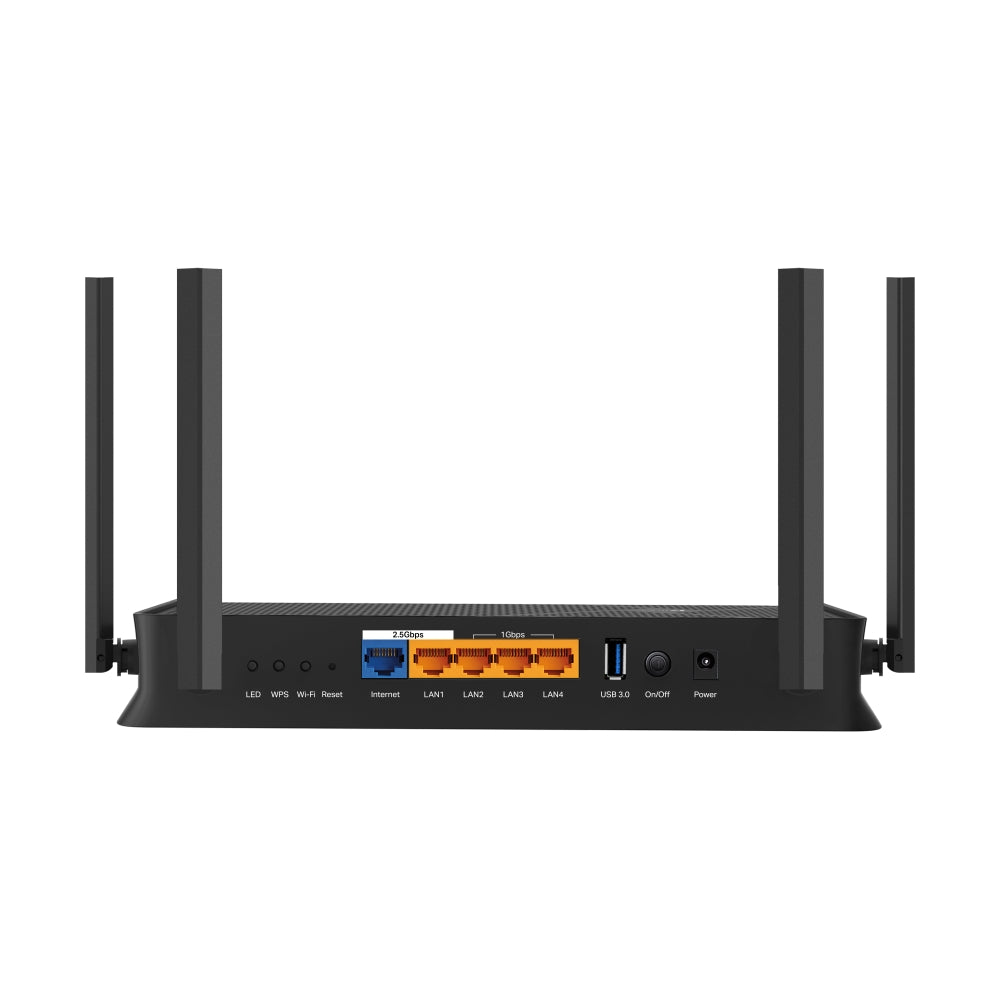

Wired networking is a 2.5 Gbps WAN port, a 2.5 Gbps LAN port and three 1 Gbps LAN ports — multi-gig on both sides at a price where Gigabit-only is still common. That suits a Singapore fibre plan above 1 Gbps with a NAS or a 2.5G switch on the LAN side. Actual speed remains limited by the ISP plan, the cabling and the device at the far end.
Four External Antennas and an IoT Network

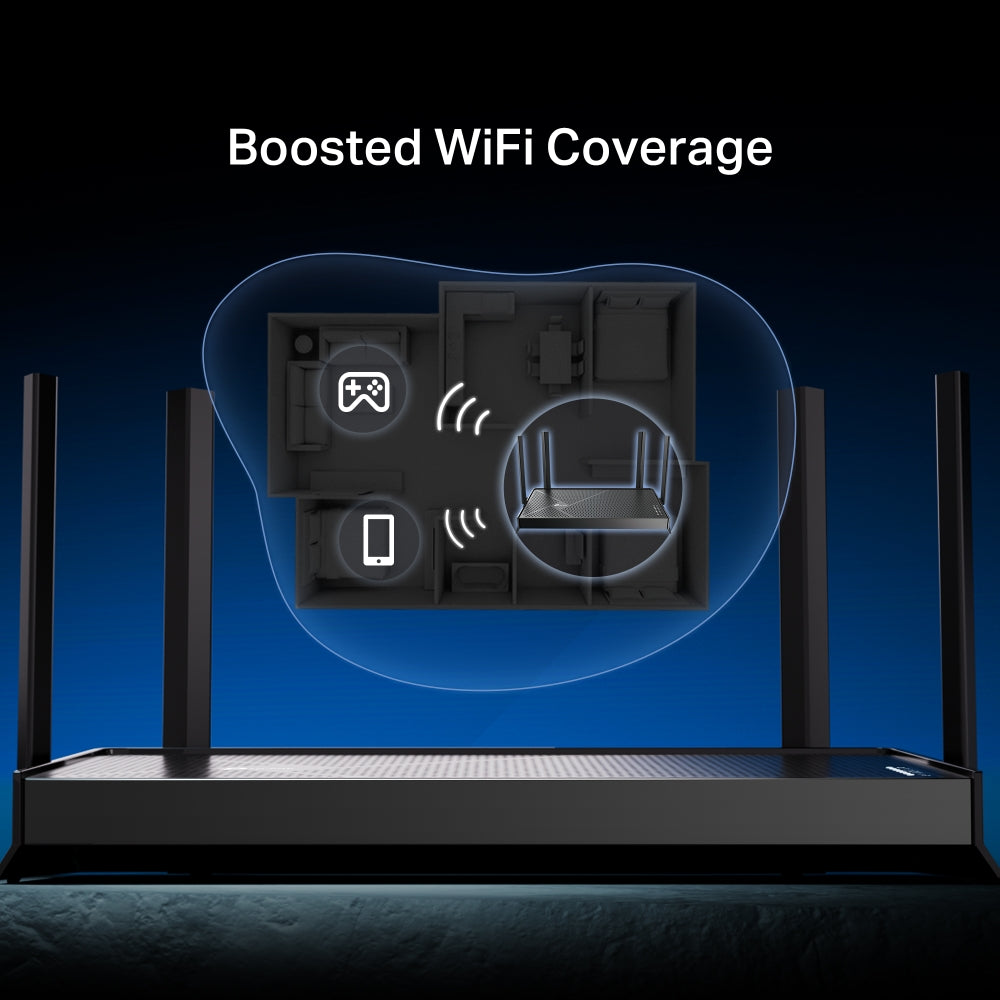

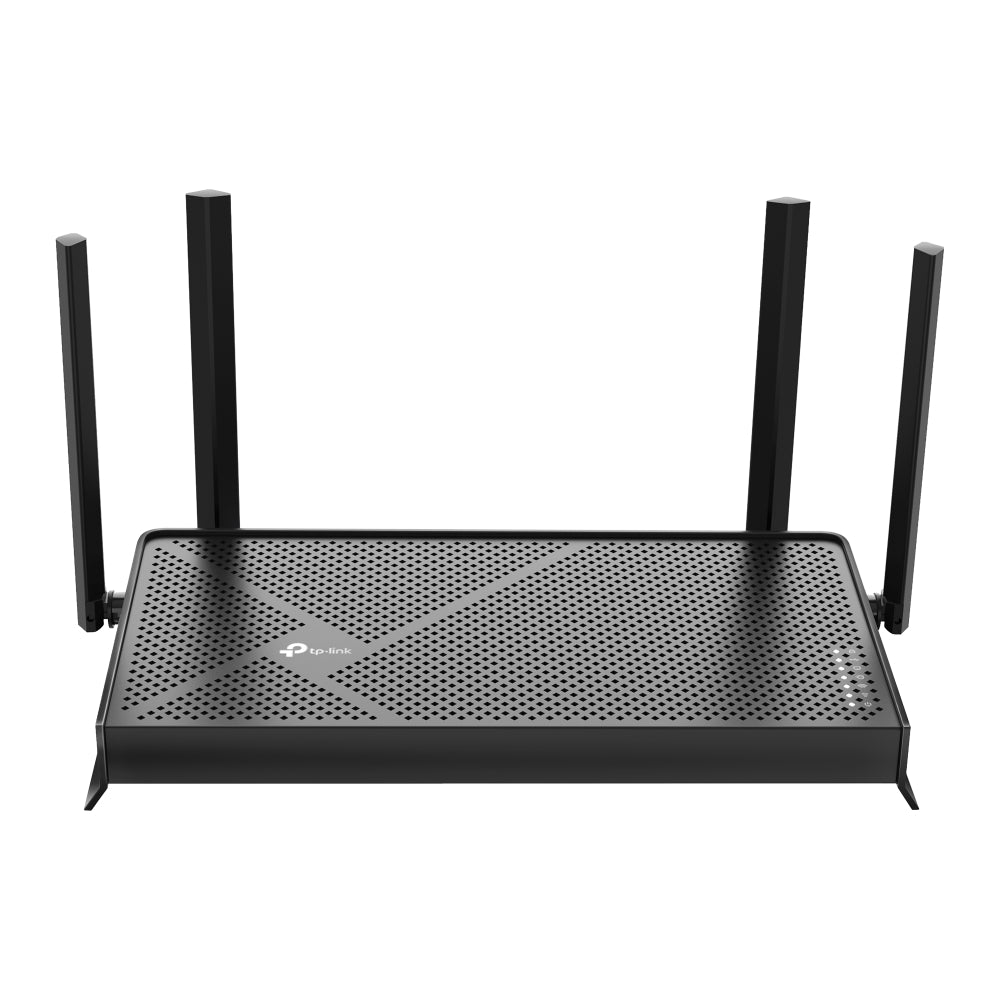

Four external antennas with Beamforming give TP-Link's rated three-bedroom coverage, backed by 2×2 MU-MIMO, OFDMA, Airtime Fairness and DFS across four streams. TP-Link publishes a dedicated IoT Network feature for this model, plus Alexa and Google Assistant support — useful if smart-home gear should sit on its own SSID rather than mixed in with laptops and phones.
WireGuard VPN on Both Server and Client Sides
The VPN list is complete in both directions: OpenVPN, PPTP, L2TP and WireGuard as servers, and the same four as clients. WireGuard in particular is fast enough on modern hardware to route a whole household through a VPN provider without collapsing throughput, or to give remote access back into the home network. Encryption covers WPA3, WPA2, WPA and WPA/WPA2-Enterprise with 802.1x.
EasyMesh, HomeShield and USB 3.0 Sharing
The BE230 is EasyMesh-compatible rather than OneMesh, so it can network with EasyMesh devices from other vendors as well as TP-Link's — though TP-Link notes failed connections may result from firmware differences between vendors, and that EasyMesh support is still being developed on some models. HomeShield adds IoT protection, malicious site blocking, intrusion prevention, DDoS prevention and a network scanner. A USB 3.0 port serves FTP, media and Samba shares.
Ideal For
Singapore households moving to Wi-Fi 7 on a multi-gig plan who want MLO, 2.5G ports and WireGuard without flagship pricing. Supplied by SourceIT with local Singapore warranty and GST invoice.
Archer BE230 Datasheet — Technical Specifications
General
| Model | Archer BE230 |
| Official Product Name | BE3600 Dual-Band Wi-Fi 7 Router |
| Brand | TP-Link |
| Warranty | 3 Years Local Warranty (Singapore) |
Wireless
| Wi-Fi Speeds | BE3600 — 5 GHz: 2882 Mbps (802.11be); 2.4 GHz: 688 Mbps (802.11be) |
| Wi-Fi Range | 3 Bedroom Houses — 4× External Antennas, Beamforming |
| Wi-Fi Capacity | High — Dual-Band, 2×2 MU-MIMO, OFDMA, Airtime Fairness, DFS, 4 Streams |
| Advanced Features | Multi-Link Operation (MLO), 4K-QAM, Multi-RUs, EasyMesh-Compatible, Works with Alexa and Google Assistant, IoT Network |
| Wireless Mode | Router Mode, Access Point Mode |
Hardware
| Ethernet Ports | 1× 2.5 Gbps WAN, 1× 2.5 Gbps LAN, 3× 1 Gbps LAN |
| USB Support | 1× USB 3.0 — NTFS, exFAT, HFS+, FAT32; FTP Server, Media Server, Samba Server |
| Buttons | Power On/Off Button, Wi-Fi On/Off Button, LED Button, WPS Button, Reset Button |
| Power (as published) | 12 V DC 2 A (US); 12 V DC 1.5 A (EU) |
Security
| Network Security | SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway, HomeShield Security (Real-Time IoT Protection, Malicious Site Blocker, Intrusion Prevention System, DDoS Attack Prevention, Home Network Scanner) |
| Guest Network | 1× 5 GHz Guest Network, 1× 2.4 GHz Guest Network |
| VPN Server | OpenVPN, PPTP, L2TP, WireGuard |
| VPN Client | OpenVPN, PPTP, L2TP, WireGuard |
| Wi-Fi Encryption | WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x) |
Software
| Protocol | IPv4, IPv6 |
| Service Kit | HomeShield (free basic plan; Pro plan chargeable by TP-Link) |
| Mesh | Compatible with EasyMesh |
| Parental Controls | HomeShield Parental Controls — Custom Profiles, Professional Content Filter Library, Family Time, Bedtime, Off Time, Time Rewards, Family Online Time Ranking, Pause the Internet, Weekly and Monthly Reports |
| WAN Type | Dynamic IP, Static IP, PPPoE, PPTP, L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | Auto Firmware Upgrade, TP-Link ID, DDNS |
| NAT Forwarding | Port Forwarding, Port Triggering, DMZ, UPnP |
| IPTV | IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN |
| DHCP | Address Reservation, DHCP Client List, Server |
| DDNS | TP-Link, NO-IP, DynDNS |
| Management | Tether App, Webpage |
Environment and Certification
| Certifications | CE, FCC, RoHS |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity | 10% to 90% non-condensing |
TP-Link's Singapore page for the Archer BE230 publishes no physical dimensions, no net weight, no processor row and no package-contents list, and no Singapore-specific power rating — only the US and EU figures above. Those gaps are stated rather than filled in from another model; ask us if you need the carton or unit dimensions before ordering.
Compatibility & Software Support
| Management App | TP-Link Tether (iOS and Android) |
| Web Management | Supported via browser |
| TP-Link Cloud | TP-Link ID, auto firmware upgrade, DDNS |
| Mesh Ecosystem | EasyMesh-compatible — networks with other EasyMesh devices, including other vendors' |
| Voice Assistants | Works with Alexa and Google Assistant |
| Wi-Fi 7 Client Requirement | MLO, 4K-QAM and Multi-RUs require Wi-Fi 7 client devices; older clients connect normally at their own standard |
| USB Storage Formats | NTFS, exFAT, HFS+, FAT32 |
TP-Link notes that EasyMesh connections between vendors can fail because of firmware differences, and that EasyMesh compatibility is still being developed on some models. 2.5 Gbps internet speeds require a compatible service plan and equipment.
Package Contents & Ordering Information
Package Contents
| In the Box | TP-Link publishes no package-contents list on the Archer BE230's Singapore page. We have not carried across another model's list — ask us and we will confirm the current carton contents before you order. |
Ordering Information
| Model | Archer BE230 |
| SKU | Archer BE230 |
| Warranty | 3 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — Archer BE230
Do I need Wi-Fi 7 devices to benefit?
For MLO, 4K-QAM and Multi-RUs, yes — those need a Wi-Fi 7 client. Older phones and laptops still connect normally and still benefit from the 2.5 Gbps ports and the newer radio design.
Is this EasyMesh or OneMesh?
EasyMesh-compatible. That allows mesh with other EasyMesh devices including other brands, though TP-Link notes cross-vendor firmware differences can cause failed connections.
Does it run WireGuard?
Yes, as both a VPN server and a VPN client, alongside OpenVPN, PPTP and L2TP.
What warranty does SourceIT provide?
Three years local Singapore warranty, under TP-Link's published replacement warranty terms, with a GST invoice.
Can SourceIT quote this for an office or a project?
Yes. Send us the quantity and we will quote with local warranty, delivery and support.
