TP-Link Archer BE225 BE3600 Dual-Band Wi-Fi 7 Router
PRODUCT DESCRIPTION
TP-Link BE3600 Dual-Band Wi-Fi 7 Router (Archer BE225) - 3 Years Local Warranty

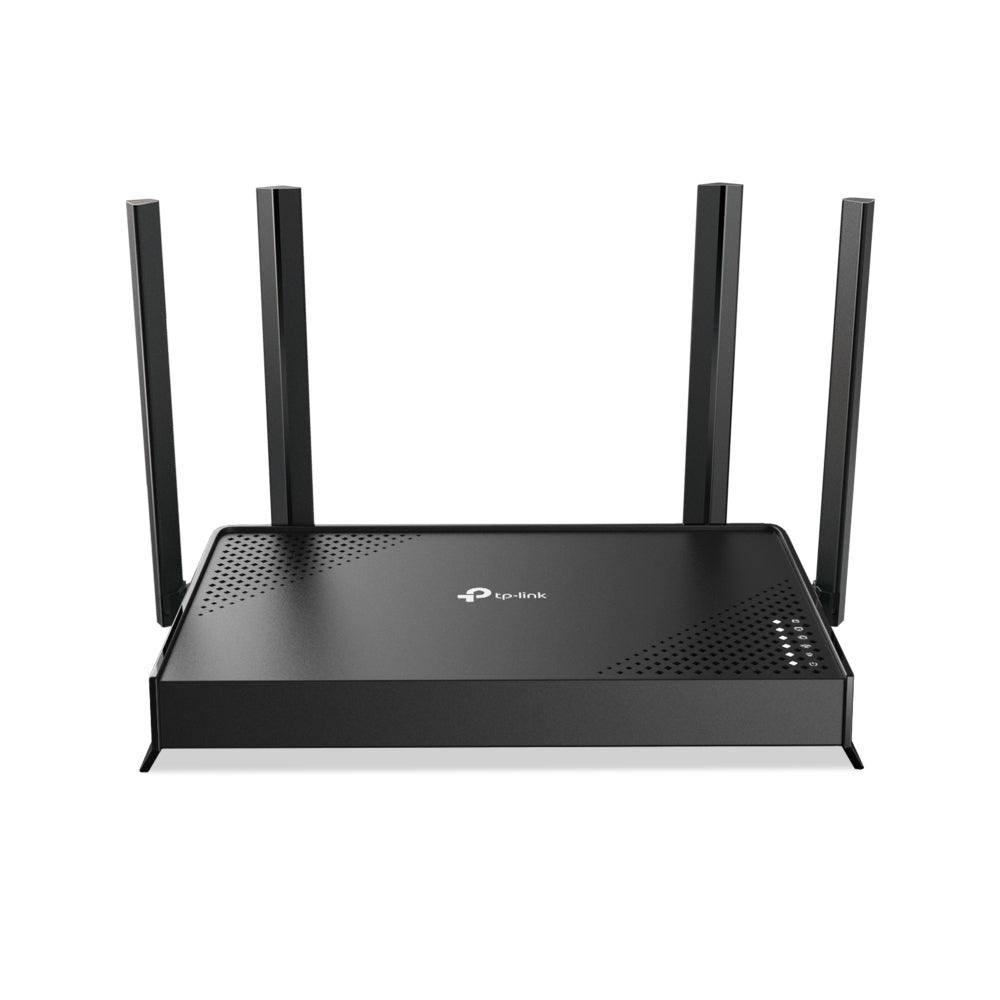

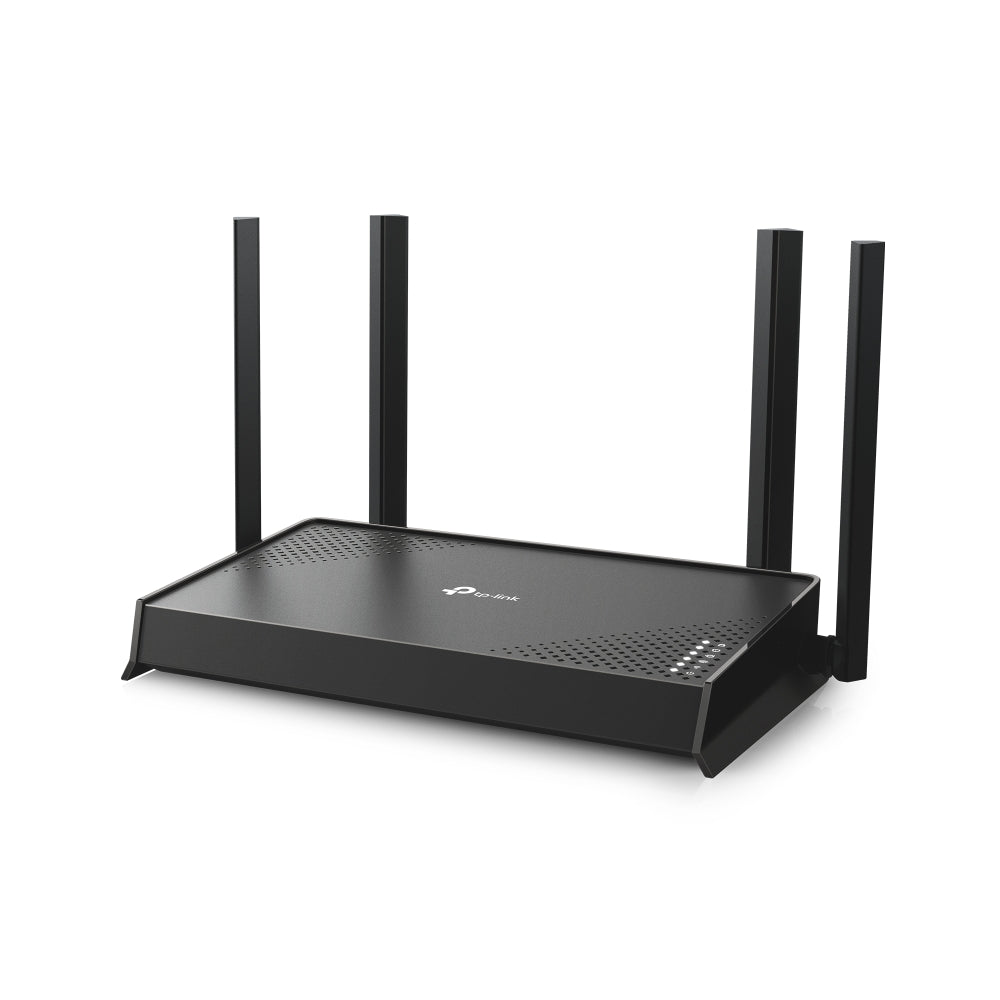

The Archer BE225 is TP-Link's most affordable BE3600 dual-band Wi-Fi 7 router: 2882 Mbps on 5 GHz and 688 Mbps on 2.4 GHz under 802.11be, with Multi-Link Operation, four external antennas, a 2.5 Gbps WAN port and four 1 Gbps LAN ports.
3.6 Gbps Dual-Band Wi-Fi 7
Both bands are 802.11be, and TP-Link lists MLO, 4K-QAM and Multi-RUs, so Wi-Fi 7 clients can use 5 GHz and 2.4 GHz together. Capacity is rated High, with 2x2 MU-MIMO, OFDMA, Airtime Fairness, DFS and four streams.

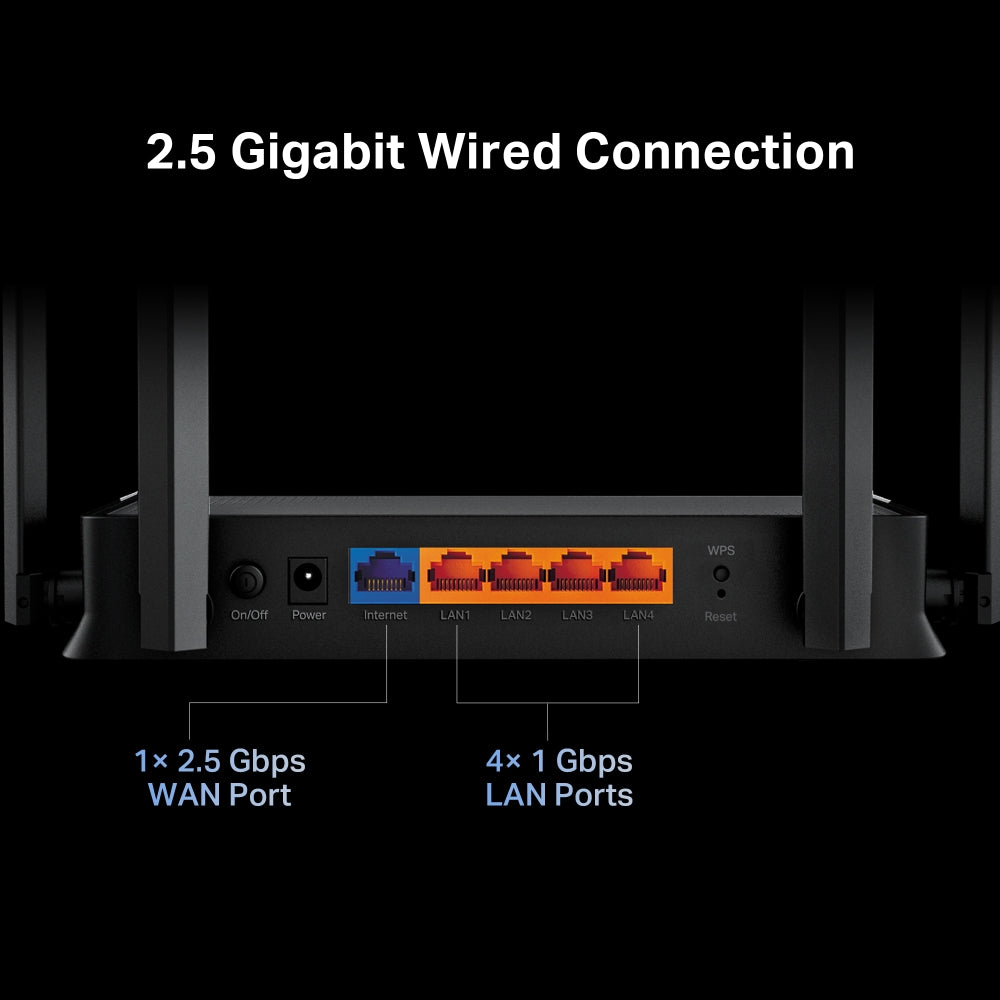

2.5 Gbps WAN Port
A 2.5 Gbps WAN port lets the router take full advantage of fibre plans above 1 Gbps, while four 1 Gbps LAN ports serve wired PCs, TVs and consoles. 2.5 Gbps internet speeds require a compatible service plan and equipment.
Four External Antennas with Beamforming
Four external antennas and Beamforming give TP-Link's rated three-bedroom coverage, with an IoT Network option and works-with-Alexa and Google Assistant support. TP-Link states it supports all Wi-Fi generations and all internet providers.
HomeShield, VPN and EasyMesh
HomeShield includes a free Basic Plan (Pro Plan chargeable) with IoT protection, malicious site blocking, intrusion prevention, DDoS prevention and a network scanner. OpenVPN, PPTP, L2TP and WireGuard run as VPN server and client, and EasyMesh compatibility allows coverage to be extended with other EasyMesh routers and extenders.
Ideal For
Singapore flats and budget-conscious households moving to Wi-Fi 7 that want a 2.5G WAN port for a faster fibre plan without paying for multi-gig LAN. Supplied by SourceIT with local Singapore warranty and GST invoice.
Archer BE225 Datasheet — Technical Specifications
General
| Model | Archer BE225 |
| Official Product Name | BE3600 Dual-Band Wi-Fi 7 Router |
| Brand | TP-Link |
| Warranty | 3 Years Local Warranty (Singapore) |
Wireless
| Wi-Fi Speeds | BE3600 — 5 GHz: 2882 Mbps (802.11be); 2.4 GHz: 688 Mbps (802.11be) |
| Wi-Fi Range | 3 Bedroom Houses — 4x External Antennas, Beamforming |
| Wi-Fi Capacity | High — Dual-Band, 2x2 MU-MIMO, OFDMA, Airtime Fairness, DFS, 4 Streams |
| Advanced Features | Multi-Link Operation (MLO), 4K-QAM, Multi-RUs, EasyMesh-Compatible, Works with Alexa and Google Assistant, IoT Network |
| Wireless Mode | Router Mode, Access Point Mode |
Hardware

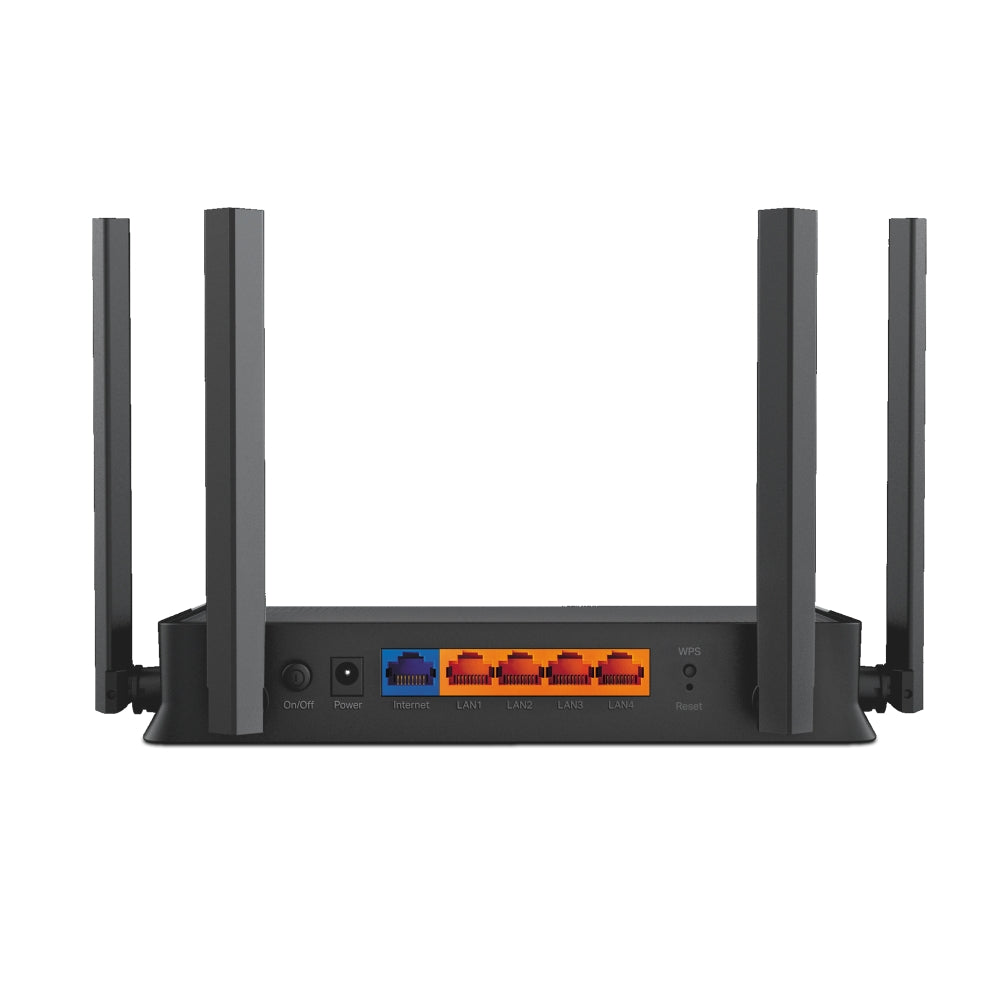

| Ethernet Ports | 1x 2.5 Gbps WAN, 4x 1 Gbps LAN |
| Power (as published) | 12 V DC 2 A (US); 12 V DC 1.5 A (EU) |
| Buttons | Power On/Off Button, Wi-Fi On/Off Button, LED Button, WPS Button, Reset Button |
Security
| Network Security | SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway, HomeShield Security (Real-Time IoT Protection, Malicious Site Blocker, Intrusion Prevention System, DDoS Attack Prevention, Home Network Scanner) |
| Guest Network | 1x 5 GHz Guest Network, 1x 2.4 GHz Guest Network |
| VPN Server | OpenVPN, PPTP, L2TP, WireGuard |
| VPN Client | OpenVPN, PPTP, L2TP, WireGuard |
| Wi-Fi Encryption | WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x) |
Software
| Protocol | IPv4, IPv6 |
| Service Kit | HomeShield (free Basic Plan; fees apply for the Pro Plan) |
| Mesh | Compatible with EasyMesh |
| Parental Controls | HomeShield Parental Controls — Custom Profiles, Professional Content Filter Library, Family Time, Bedtime, Off Time, Time Rewards, Family Online Time Ranking, Pause the Internet, Weekly and Monthly Reports |
| WAN Type | Dynamic IP, Static IP, PPPoE, PPTP, L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | Auto Firmware Upgrade, TP-Link ID, DDNS |
| NAT Forwarding | Port Forwarding, Port Triggering, DMZ, UPnP |
| IPTV | IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN |
| DHCP | Address Reservation, DHCP Client List, Server |
| DDNS | TP-Link, NO-IP, DynDNS |
| Management | Tether App, Webpage |
Environment and Certification
| Certifications | CE, FCC |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity | 10% to 90% non-condensing |
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+ or other JavaScript-enabled browser; cable or DSL modem (if needed); internet service provider subscription |
| Network Services Enabled by Default | Web Server (HTTP/HTTPS, TCP 80/443); DNS (TCP & UDP 53); DHCP Server (UDP 67); App management (ports 20001, 30001, 20002) |
TP-Link's Singapore page for the Archer BE225 lists no USB port, and publishes no dimensions, no weight, no processor specification, no package-contents list and no Singapore-specific power rating — only the US and EU figures above. Those gaps are stated rather than filled in from another model.
Compatibility & Software Support
| Management App | TP-Link Tether (iOS and Android) |
| Web Management | Supported via browser |
| TP-Link Cloud | TP-Link ID, auto firmware upgrade, DDNS |
| Mesh Ecosystem | EasyMesh-compatible — networks with other EasyMesh routers and range extenders, including other vendors' |
| Voice Assistants | Works with Alexa and Google Assistant |
| Wi-Fi 7 Client Requirement | Wi-Fi 7 features require client devices that also support them; older Wi-Fi clients connect at their own standard |
TP-Link notes that EasyMesh connections between vendors can fail because of firmware differences, and that EasyMesh compatibility is still being developed on some models and will follow in software updates. 2.5 Gbps internet speeds require a compatible service plan and equipment.
Package Contents & Ordering Information
Package Contents
| In the Box | TP-Link publishes no package-contents list on the Archer BE225's Singapore page. Ask us and we will confirm the current carton contents before you order. |
Ordering Information
| Model | Archer BE225 |
| SKU | Archer BE225 |
| Warranty | 3 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — Archer BE225
Does the BE225 have a USB port?
TP-Link's Singapore specification for the BE225 lists no USB port or USB sharing functions.
How is it different from the Archer BE3600 or BE230?
All three are BE3600 dual-band Wi-Fi 7 routers. The BE225 has a 2.5 Gbps WAN port with four 1 Gbps LAN ports and no USB listed, whereas those models add a 2.5 Gbps LAN port and USB 3.0.
Do I need Wi-Fi 7 devices to benefit?
MLO, 4K-QAM and Multi-RUs need Wi-Fi 7 clients. Older devices connect normally at their own standard.
What warranty does SourceIT provide?
Three years local Singapore warranty, under TP-Link's published replacement warranty terms, with a GST invoice.
Can SourceIT quote this for an office or a project?
Yes. Send us the quantity and we will quote with local warranty, delivery and support.
