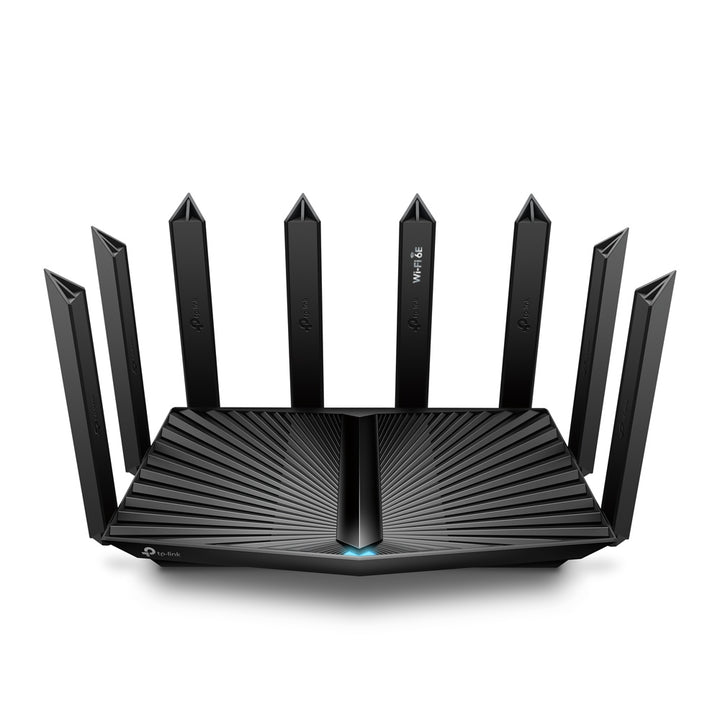

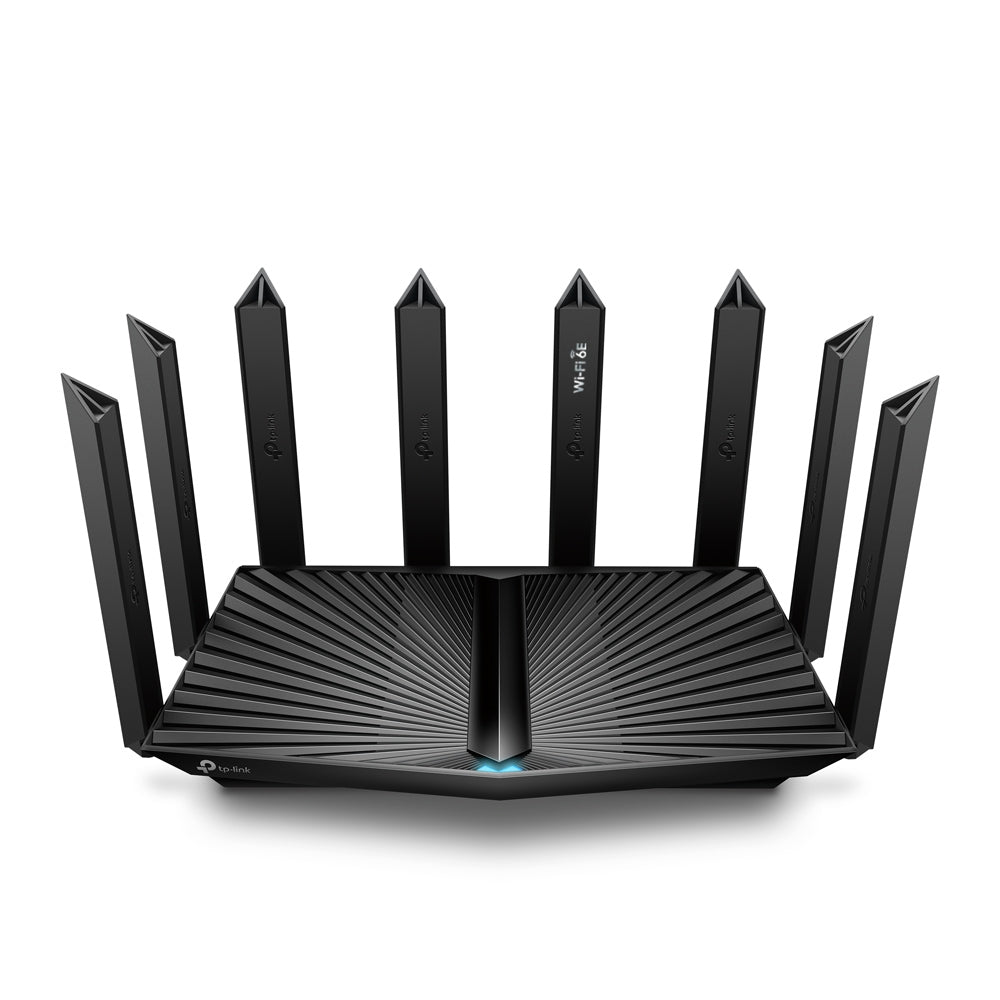

TP-Link Archer AXE95 AXE7800 Tri-Band Wi-Fi 6E Router
PRODUCT DESCRIPTION
TP-Link AXE7800 Tri-Band Wi-Fi 6E Router (Archer AXE95) - 3 Years Local Warranty
The Archer AXE95 adds the 6 GHz band to TP-Link's eight-stream tri-band platform: 4802 Mbps on 6 GHz, 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz, on a 1.7 GHz quad-core processor with a 2.5 Gbps WAN/LAN port. Wi-Fi 6E's value is a clean band that only 6E clients can use.

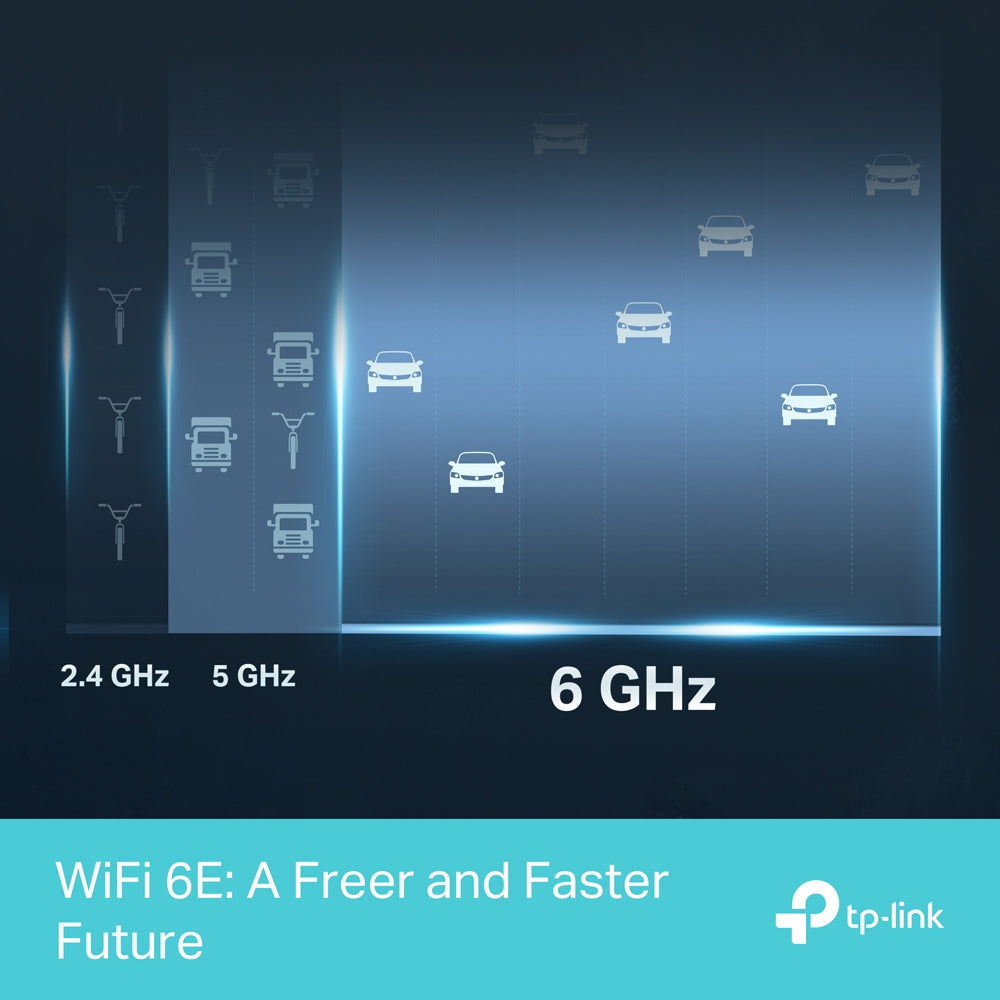

A 6 GHz Band Nothing Older Can Touch
The AXE95's fastest radio is its 6 GHz band at 4802 Mbps. What makes Wi-Fi 6E worth having is not only that figure but the exclusivity: no Wi-Fi 5 or Wi-Fi 4 device can transmit on 6 GHz at all, so a recent phone or laptop gets a band with no legacy traffic on it. In a Singapore condominium where neighbouring 5 GHz networks overlap heavily, that separation is the practical benefit.

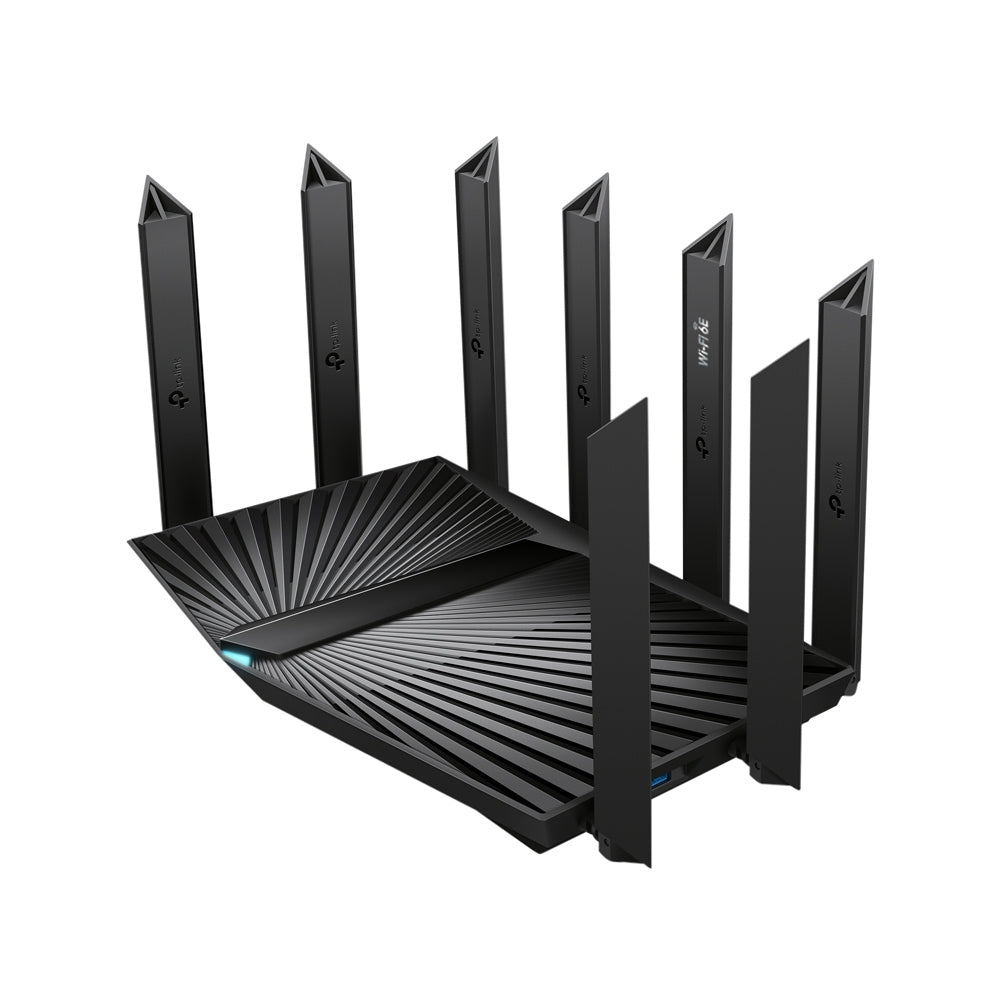

Eight Streams and Four-Bedroom Coverage
Eight fixed high-performance antennas, Beamforming, a high-power front-end module and 4T4R give TP-Link's rated four-bedroom coverage. Capacity comes from tri-band operation, 4×4 MU-MIMO, OFDMA, Airtime Fairness and DFS across eight streams. Each radio gets its own guest network — 6 GHz, 5 GHz and 2.4 GHz — which allows a properly isolated segment for visitors or IoT gear.

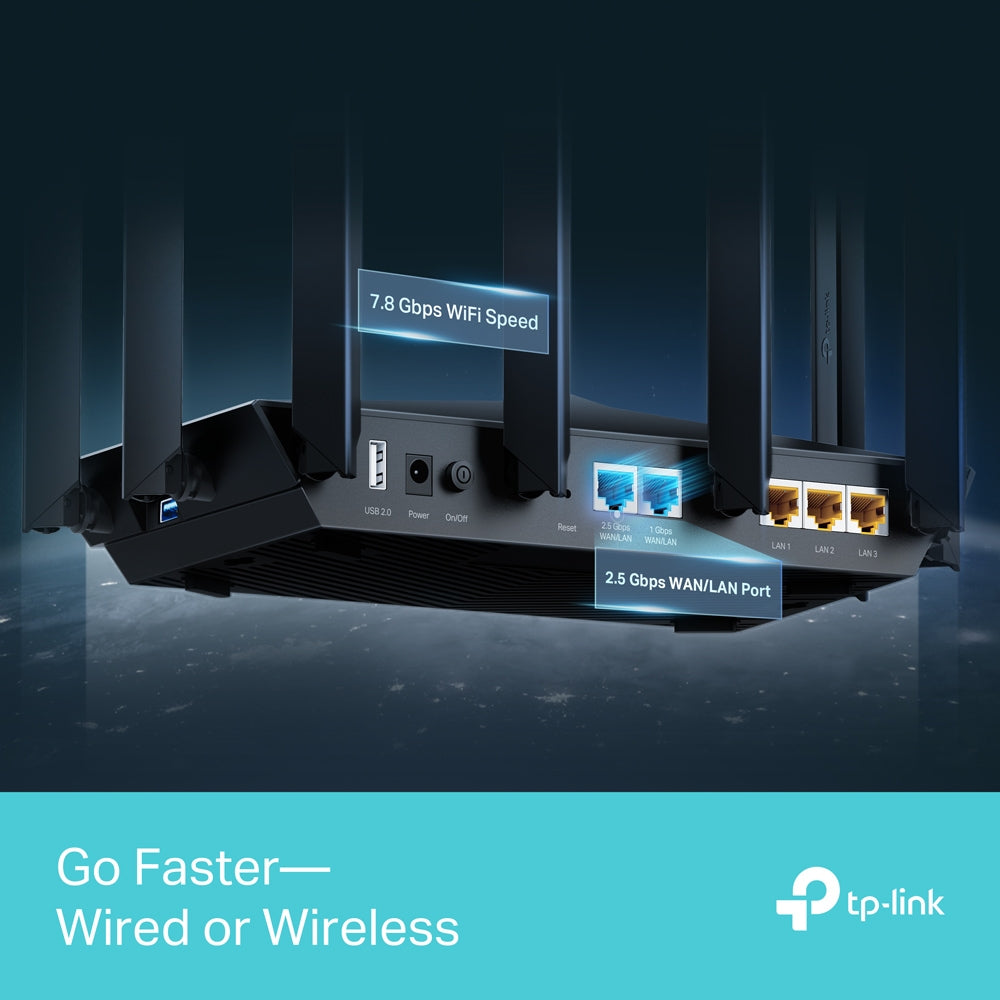

Multi-Gig Wired Ports and Dual USB

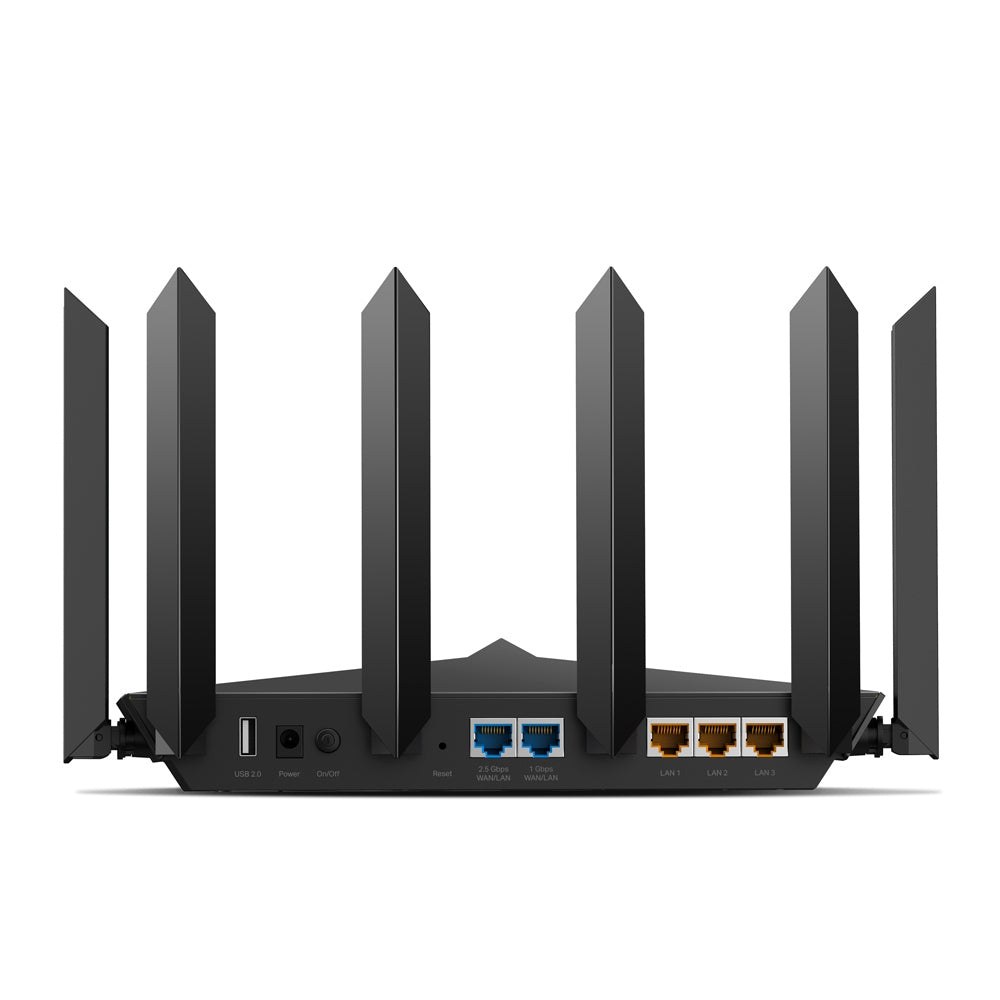

Wired networking is a 2.5 Gbps WAN/LAN port, a 1 Gbps WAN/LAN port and three 1 Gbps LAN ports; the first two can each be assigned as WAN or LAN. A USB 3.0 and a USB 2.0 port read NTFS, exFAT, HFS+ and FAT32 volumes and publish them over FTP, a media server or Samba, with Apple Time Machine support. Actual speed is still bounded by the ISP plan, the cabling and the far-end device.
WPA3, HomeShield, OneMesh and Full VPN
Encryption covers WPA3, WPA2, WPA and WPA/WPA2-Enterprise with 802.1x. HomeShield adds real-time IoT protection, a malicious site blocker, intrusion prevention, DDoS attack prevention and a home network scanner, on top of the SPI firewall, access control, IP and MAC binding and an application layer gateway. OpenVPN, PPTP and L2TP run as both server and client, and the router is OneMesh-supported.
Buttons and Certification — Read Before You Order
Two published details worth flagging. First, TP-Link lists only a Power On/Off button and a Reset button for the AXE95 — no WPS, Wi-Fi or LED button appears in the specification table, unlike its AX siblings. Second, the certification row reads "FCC, RoHS" with no CE mark, while the transmission-power row on the same page quotes both FCC and CE limits. Both are reproduced exactly as TP-Link publishes them; ask us if a CE declaration is required for your deployment.
Ideal For
Singapore homes and offices with recent Wi-Fi 6E phones and laptops, a congested 5 GHz environment and a multi-gig fibre plan. Supplied by SourceIT with local Singapore warranty and GST invoice.
Archer AXE95 Datasheet — Technical Specifications
General
| Model | Archer AXE95 |
| Official Product Name | AXE7800 Tri-Band Wi-Fi 6E Router |
| Brand | TP-Link |
| Warranty | 3 Years Local Warranty (Singapore) |
Wireless
| Standards and Protocols | IEEE 802.11ax 6 GHz; IEEE 802.11ax/ac/n/a 5 GHz; IEEE 802.11ax/n/b/g 2.4 GHz |
| Wi-Fi Speeds | AXE7800 — 6 GHz: 4802 Mbps (802.11ax); 5 GHz: 2402 Mbps (802.11ax); 2.4 GHz: 574 Mbps (802.11ax) |
| Wi-Fi Range | 4 Bedroom Houses — 8× Fixed High-Performance Antennas, Beamforming, High-Power FEM, 4T4R |
| Wi-Fi Capacity | Very High — Tri-Band, 4×4 MU-MIMO, OFDMA, Airtime Fairness, DFS, 8 Streams |
| Working Modes | Router Mode, Access Point Mode |
Hardware
| Processor | 1.7 GHz Quad-Core CPU |
| Ethernet Ports | 1× 2.5 Gbps WAN/LAN Port, 1× 1 Gbps WAN/LAN Port, 3× 1 Gbps LAN Ports |
| USB Support | 1× USB 3.0 Port, 1× USB 2.0 Port — NTFS, exFAT, HFS+, FAT32; Apple Time Machine, FTP Server, Media Server, Samba Server |
| Buttons (as published) | Power On/Off Button, Reset Button — TP-Link lists no WPS, Wi-Fi or LED button for this model |
| Power | 12 V DC, 3.3 A |
| Dimensions (W × D × H) | 12.2 × 8.1 × 6.8 in (311 × 207 × 174 mm) |
Security
| Network Security | SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway, HomeShield Security (Real-Time IoT Protection, Malicious Site Blocker, Intrusion Prevention System, DDoS Attack Prevention, Home Network Scanner) |
| Guest Network | 1× 6 GHz, 1× 5 GHz, 1× 2.4 GHz Guest Network |
| VPN Server | OpenVPN Server, PPTP VPN Server, L2TP VPN Server |
| VPN Client | OpenVPN Client, PPTP VPN Client, L2TP VPN Client |
| Wi-Fi Encryption | WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x) |
Software
| Protocols | IPv4, IPv6 |
| Service Kits | HomeShield (free basic plan; Pro plan chargeable by TP-Link) |
| Mesh | OneMesh Supported |
| Parental Controls | HomeShield Parental Controls — Custom Profiles, Professional Content Filter Library, Family Time, Bedtime, Off Time, Time Rewards, Family Online Time Ranking, Pause the Internet, Weekly and Monthly Reports |
| WAN Types | Dynamic IP, Static IP, PPPoE, PPTP, L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | Auto Firmware Upgrade, TP-Link ID, DDNS |
| NAT Forwarding | Port Forwarding, Port Triggering, DMZ, UPnP, Virtual Server |
| IPTV | IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN |
| DHCP | Address Reservation, DHCP Client List, Server |
| DDNS | TP-Link, NO-IP, DynDNS |
| Management | Tether App, Webpage |
Environment and Certification
| Certifications (as published) | FCC, RoHS — TP-Link's Singapore page lists no CE mark for this model, although the transmission-power row quotes both FCC and CE limits. Reproduced as published. |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity | 10% to 90% non-condensing |
TP-Link publishes no net weight and no storage temperature or humidity figure for the Archer AXE95. Those are left out rather than taken from another model.
Compatibility & Software Support
| Management App | TP-Link Tether (iOS and Android) |
| Web Management | Supported via browser |
| TP-Link Cloud | TP-Link ID, auto firmware upgrade, DDNS |
| Mesh Ecosystem | OneMesh — pairs with TP-Link OneMesh extenders for one seamless network |
| 6 GHz Client Requirement | The 6 GHz band is usable only by Wi-Fi 6E client devices; Wi-Fi 6, Wi-Fi 5 and older clients connect on 5 GHz or 2.4 GHz |
| Client Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or another JavaScript-enabled browser |
| USB Storage Formats | NTFS, exFAT, HFS+, FAT32 |
Wi-Fi 6, Wi-Fi 6E and features including OFDMA, 1024-QAM and HE160 require clients that support them. Not all seven 160 MHz channels may be available in the 6 GHz band in some regions due to regulatory restrictions.
Package Contents & Ordering Information
Package Contents
| In the Box | Wi-Fi Router Archer AXE95, Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide |
Ordering Information
| Model | Archer AXE95 |
| SKU | Archer AXE95 |
| Warranty | 3 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — Archer AXE95
What does Wi-Fi 6E give me over Wi-Fi 6?
An additional 6 GHz band, at 4802 Mbps on this model, that only Wi-Fi 6E client devices can use. Older devices cannot transmit there at all, so it stays clear of legacy traffic.
Will my current phone or laptop use the 6 GHz band?
Only if it is a Wi-Fi 6E or Wi-Fi 7 device. Everything else connects on 5 GHz or 2.4 GHz as usual.
Does it have a WPS button?
TP-Link's published button list for the AXE95 is Power On/Off and Reset only. We have not added buttons the specification table does not list.
What warranty does SourceIT provide?
Three years local Singapore warranty, under TP-Link's published replacement warranty terms, with a GST invoice.
Can SourceIT quote this for an office or a project?
Yes. Send us the quantity and we will quote with local warranty, delivery and support.
