TP-Link Archer AXE300 AXE16000 Quad-Band 16-Stream Wi-Fi 6E Router with Two 10G Ports
PRODUCT DESCRIPTION
TP-Link AXE16000 Quad-Band 16-Stream Wi-Fi 6E Router with Two 10G Ports (Archer AXE300) - 3 Years Local Warranty
The Archer AXE300 is the top of TP-Link's Wi-Fi 6E range: four radios totalling AXE16000, sixteen streams, a 2.0 GHz quad-core processor, and two 10 Gbps ports — one of them an RJ45/SFP+ combo. It is the only router in this family that can take a 10 Gbps fibre uplink without a separate media converter.
Four Radios, Sixteen Streams
The AXE300 publishes 4804 Mbps on 6 GHz, 4804 Mbps on each of two separate 5 GHz radios, and 1148 Mbps on 2.4 GHz. Two full-rate 5 GHz bands plus a clean 6 GHz band means a heavily loaded household can be split three ways before anything shares a channel. Sixteen streams with 4×4 MU-MIMO, OFDMA, Airtime Fairness and DFS keep clients served concurrently rather than in sequence.
Two 10 Gbps Ports, One With an SFP+ Combo
Wired capability is what sets this model apart: a 10 Gbps RJ45/SFP+ combo WAN/LAN port, a second 10 Gbps WAN/LAN port, a 2.5 Gbps WAN/LAN port and four 1 Gbps LAN ports. The SFP+ combo accepts a fibre module directly, so a 10G fibre service or a 10G link to a switch or NAS terminates at the router. Real throughput is still bounded by your ISP plan, the cabling or optics, and the device at the other end.
A Clean 6 GHz Band for Recent Devices
The 6 GHz band can only be used by Wi-Fi 6E and Wi-Fi 7 clients, which is what keeps it clear of legacy traffic — valuable in a dense Singapore condominium where 5 GHz channels from neighbouring units overlap. Each of the four radios also gets its own guest network: 6 GHz, 5 GHz-1, 5 GHz-2 and 2.4 GHz, so visitor or IoT traffic can be isolated on a band of its own.
Eight Antennas and a 2.0 GHz Quad-Core Processor

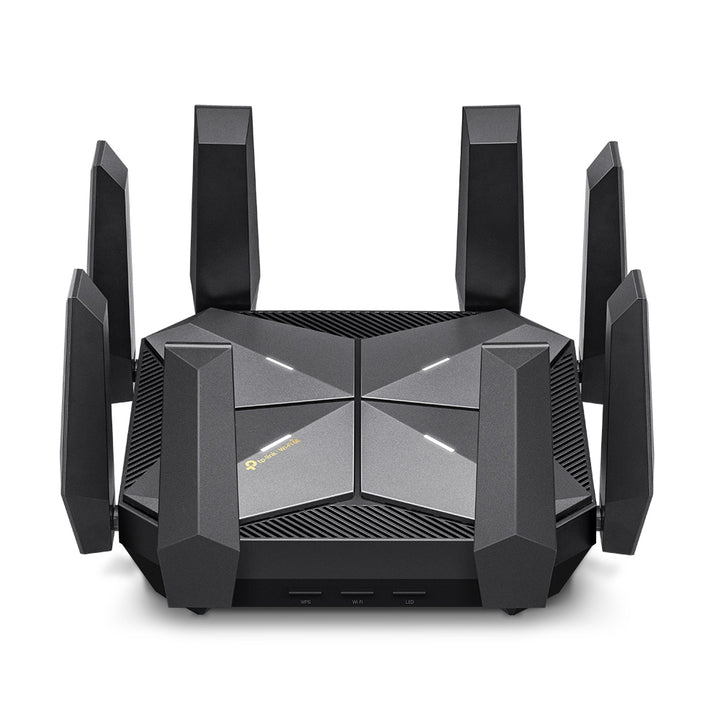

Eight fixed high-performance antennas with Beamforming, a high-power front-end module and 4T4R deliver TP-Link's rated four-bedroom coverage, in a compact 232 × 232 × 68 mm chassis rather than the tall tower shape of the AXE95. A 2.0 GHz quad-core processor, the fastest in this line-up, carries NAT, QoS, HomeShield and VPN duty simultaneously; the unit draws 12 V DC at 5 A.
WPA3, HomeShield, OneMesh and Full VPN — Plus One Note
Encryption covers WPA3, WPA2, WPA and WPA/WPA2-Enterprise with 802.1x. HomeShield adds real-time IoT protection, malicious site blocking, intrusion prevention, DDoS attack prevention and a network scanner. OpenVPN, PPTP and L2TP run as both server and client, and the router is OneMesh-supported. Note that TP-Link's certification row for this model reads "FCC, RoHS" with no CE mark, and transmission power is quoted for FCC only; reproduced as published.
Ideal For
Singapore homes and offices with a 10 Gbps fibre service or 10G LAN gear, many Wi-Fi 6E devices, and no appetite for a separate media converter. Supplied by SourceIT with local Singapore warranty and GST invoice.
Archer AXE300 Datasheet — Technical Specifications
General
| Model | Archer AXE300 |
| Official Product Name | AXE16000 Quad-Band 16-Stream Wi-Fi 6E Router with Two 10G Ports |
| Brand | TP-Link |
| Warranty | 3 Years Local Warranty (Singapore) |
Wireless
| Standards and Protocols | IEEE 802.11ax 6 GHz; IEEE 802.11ax/ac/n/a 5 GHz; IEEE 802.11ax/n/b/g 2.4 GHz |
| Wi-Fi Speeds | AXE16000 — 6 GHz: 4804 Mbps; 5 GHz-1: 4804 Mbps; 5 GHz-2: 4804 Mbps; 2.4 GHz: 1148 Mbps (all 802.11ax) |
| Wi-Fi Range | 4 Bedroom Houses — 8× Fixed High-Performance Antennas, Beamforming, High-Power FEM, 4T4R |
| Wi-Fi Capacity | Very High — Quad-Band, 4×4 MU-MIMO, OFDMA, Airtime Fairness, DFS, 16 Streams |
| Working Modes | Router Mode, Access Point Mode |
Hardware
| Processor | 2.0 GHz Quad-Core CPU |
| Ethernet Ports | 1× 10 Gbps RJ45/SFP+ Combo WAN/LAN Port, 1× 10 Gbps WAN/LAN Port, 1× 2.5 Gbps WAN/LAN Port, 4× 1 Gbps LAN Ports |
| USB Support | 1× USB 3.0 Port — NTFS, exFAT, HFS+, FAT32; FTP Server, Media Server, Samba Server |
| Buttons | Power On/Off Button, Wi-Fi On/Off Button, LED On/Off Button, WPS Button, Reset Button |
| Power | 12 V DC, 5 A |
| Dimensions (W × D × H) | 9.1 × 9.1 × 2.7 in (232 × 232 × 68 mm) |
Security
| Network Security | SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway, HomeShield Security (Real-Time IoT Protection, Malicious Site Blocker, Intrusion Prevention System, DDoS Attack Prevention, Home Network Scanner) |
| Guest Network | 1× 6 GHz, 1× 5 GHz-1, 1× 5 GHz-2, 1× 2.4 GHz Guest Network |
| VPN Server | OpenVPN Server, PPTP VPN Server, L2TP VPN Server |
| VPN Client | OpenVPN Client, PPTP VPN Client, L2TP VPN Client |
| Wi-Fi Encryption | WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x) |
Software
| Protocols | IPv4, IPv6 |
| Service Kits | HomeShield (free basic plan; Pro plan chargeable by TP-Link) |
| Mesh | OneMesh Supported |
| Parental Controls | HomeShield Parental Controls — Custom Profiles, Professional Content Filter Library, Family Time, Bedtime, Off Time, Time Rewards, Family Online Time Ranking, Pause the Internet, Weekly and Monthly Reports |
| WAN Types | Dynamic IP, Static IP, PPPoE, PPTP, L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | Auto Firmware Upgrade, TP-Link ID, DDNS |
| NAT Forwarding | Port Forwarding, Port Triggering, DMZ, UPnP |
| IPTV | IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN |
| DHCP | Address Reservation, DHCP Client List, Server |
| DDNS | TP-Link, NO-IP, DynDNS |
| Management | Tether App, Webpage |
Environment and Certification
| Certifications (as published) | FCC, RoHS — TP-Link's Singapore page lists no CE mark for this model, and quotes transmission power for FCC only. Reproduced as published. |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity | 10% to 90% non-condensing |
TP-Link publishes no net weight and no storage temperature or humidity figure for the Archer AXE300, and does not list Apple Time Machine among its USB functions. None of those has been filled in from another model.
Compatibility & Software Support
| Management App | TP-Link Tether (iOS and Android) |
| Web Management | Supported via browser |
| TP-Link Cloud | TP-Link ID, auto firmware upgrade, DDNS |
| Mesh Ecosystem | OneMesh — pairs with TP-Link OneMesh extenders for one seamless network |
| 10G Combo Port | RJ45 or SFP+ fibre module; SourceIT can supply a matching SFP+ optic or DAC on request |
| 6 GHz Client Requirement | The 6 GHz band is usable only by Wi-Fi 6E and Wi-Fi 7 client devices |
| Client Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or another JavaScript-enabled browser |
| USB Storage Formats | NTFS, exFAT, HFS+, FAT32 |
Wi-Fi 6, Wi-Fi 6E and features including OFDMA, 1024-QAM and HE160 require clients that support them. Not all seven 160 MHz channels may be available in the 6 GHz band in some regions due to regulatory restrictions.
Package Contents & Ordering Information
Package Contents
| In the Box | Wi-Fi Router Archer AXE300, Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide |
| Not Included | SFP+ optical module or DAC cable for the 10G combo port |
Ordering Information
| Model | Archer AXE300 |
| SKU | Archer AXE300 |
| Warranty | 3 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — Archer AXE300
Can I plug fibre straight into the AXE300?
Yes, into the 10 Gbps RJ45/SFP+ combo port with a suitable SFP+ module, which is not included. Ask us and we will quote a matching optic or DAC.
How does it differ from the AXE95?
The AXE300 adds a fourth radio (a second full-rate 5 GHz band), doubles to sixteen streams, moves from a 2.5 Gbps top port to two 10 Gbps ports, and uses a faster 2.0 GHz quad-core processor.
Does it support Time Machine backups?
TP-Link does not list Apple Time Machine among the AXE300's USB functions. FTP server, media server and Samba server are published.
What warranty does SourceIT provide?
Three years local Singapore warranty, under TP-Link's published replacement warranty terms, with a GST invoice.
Can SourceIT quote this for an office or a project?
Yes. Send us the quantity and we will quote with local warranty, delivery and support.
