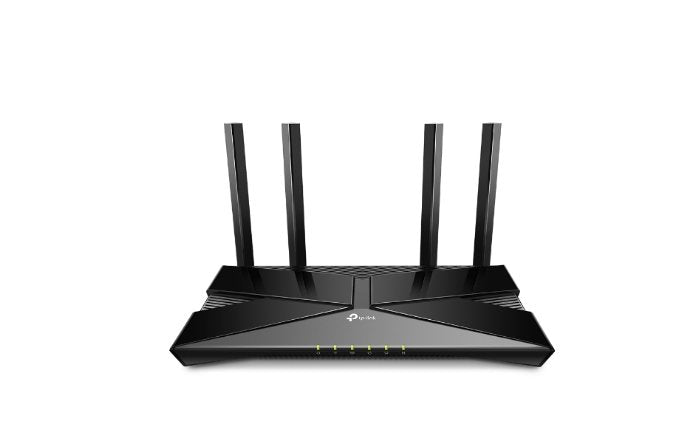

TP-Link Archer AX23 AX1800 Dual-Band Wi-Fi 6 Router
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
TP-Link AX1800 Dual-Band Wi-Fi 6 Router (Archer AX23) - 3 Years Local Warranty
The Archer AX23 is TP-Link's value AX1800: 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz, five Gigabit ports, four fixed antennas and a dual-core processor. It publishes a WireGuard VPN client alongside OpenVPN and PPTP, and it supports both OneMesh and EasyMesh.
AX1800 Speeds With 802.11ax on Both Bands
TP-Link rates the AX23 at 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz, both using 802.11ax. The 2.4 GHz band running Wi-Fi 6 rather than 802.11n is the detail that separates it from the AX10 and AX12, which publish 300 Mbps 802.11n on that band. Four streams and OFDMA let the router communicate with several Wi-Fi 6 clients in the same transmission slot, and Airtime Fairness keeps older devices from holding the channel longer than they need.
Four Fixed Antennas and Beamforming
Coverage comes from four fixed high-performance antennas and Beamforming, which concentrates the signal towards connected devices rather than radiating evenly in all directions. TP-Link rates the result at three-bedroom houses. Working modes are Router and Access Point, so the AX23 can replace an ISP gateway or sit behind one and take over only the wireless side. Power is 12 V DC, 1.5 A.
Five Gigabit Ports, No USB
Wired connectivity is one Gigabit WAN port and four Gigabit LAN ports. TP-Link publishes no USB port for this model, so it is not a file-sharing or Time Machine host — the Archer AX20 is the AX1800 in the range that does publish one, along with a quad-core processor. Buttons are WPS/Wi-Fi, power on/off, LED on/off and reset.
WPA3 and a WireGuard VPN Client
Published encryption is WPA, WPA2, WPA3 and WPA/WPA2-Enterprise with 802.1x, on top of an SPI firewall, access control, IP and MAC binding and an application layer gateway. The AX23 runs OpenVPN and PPTP server roles, and as a VPN client it supports OpenVPN, PPTP and WireGuard — WireGuard being notably faster and lighter than the older protocols, and unusual on a router at this price. Parental controls are the basic set: URL filtering and time controls.
OneMesh and EasyMesh Together
TP-Link publishes both OneMesh support and EasyMesh compatibility for the AX23, so it can pair with TP-Link OneMesh extenders or join a mesh built from EasyMesh-compatible devices, including some from other vendors. TP-Link's specification table for this model publishes no MU-MIMO row and no HomeShield service kit; no claim is made here for either.
Ideal For
Singapore households upgrading from an ISP-supplied router who want genuine Wi-Fi 6 on both bands, WPA3, mesh headroom and a router-level WireGuard VPN client, at the sharpest price in the AX1800 class. Supplied by SourceIT with local Singapore warranty and GST invoice.
Archer AX23 Datasheet — Technical Specifications
General
| Model | Archer AX23 |
| Official Product Name | AX1800 Dual-Band Wi-Fi 6 Router |
| Brand | TP-Link |
| Warranty | 3 Years Local Warranty (Singapore) |
Wireless
| Standards and Protocols | Wi-Fi 6; IEEE 802.11ax/ac/n/a 5 GHz; IEEE 802.11ax/n/b/g 2.4 GHz |
| Wi-Fi Speeds | 5 GHz: 1201 Mbps (802.11ax); 2.4 GHz: 574 Mbps (802.11ax) |
| Wi-Fi Range | 3 Bedroom Houses — 4× Fixed High-Performance Antennas, Beamforming |
| Wi-Fi Capacity | High — Dual-Band, OFDMA, Airtime Fairness, 4 Streams |
| Working Modes | Router Mode, Access Point Mode |
Hardware
| Processor | Dual-Core CPU |
| Ethernet Ports | 1× Gigabit WAN Port, 4× Gigabit LAN Ports |
| USB Support | Not published — TP-Link's specification table for the Archer AX23 lists no USB port |
| Buttons | WPS/Wi-Fi Button, Power On/Off Button, LED On/Off Button, Reset Button |
| Power | 12 V DC, 1.5 A |
| Dimensions (W × D × H) | 10.2 × 5.3 × 1.5 in (260.2 × 135.0 × 38.6 mm) |
Security
| Network Security | SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway |
| Guest Network | 1× 5 GHz Guest Network, 1× 2.4 GHz Guest Network |
| VPN Server | OpenVPN, PPTP |
| VPN Client | OpenVPN Client, PPTP VPN Client, WireGuard VPN Client |
| Wi-Fi Encryption | WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x) |
Software
| Protocols | IPv4, IPv6 |
| Mesh | OneMesh Supported; mesh networking compatible with EasyMesh-Compatible devices |
| Parental Controls | URL Filtering, Time Controls |
| WAN Types | Dynamic IP, Static IP, PPPoE, PPTP, L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | OTA Firmware Upgrade, TP-Link ID, DDNS |
| NAT Forwarding | Port Forwarding, Port Triggering, DMZ, UPnP |
| IPTV | IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN |
| DHCP | Address Reservation, DHCP Client List, Server |
| DDNS | TP-Link, NO-IP, DynDNS |
| Management | Tether App, Webpage |
| Network Services Enabled by Default | Web Server (HTTP/HTTPS ports 80/443 TCP); DNS (port 53 TCP and UDP); DHCP Server (port 67 UDP); App management (ports 20001 TCP, 30001 TCP, 20002 UDP) |
Environment and Certification
| Certifications | FCC, CE, RoHS |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity | 10% to 90% non-condensing |
| Storage Humidity | 5% to 90% non-condensing |
| Wi-Fi Transmission Power | CE: <20 dBm (2.4 GHz), <23 dBm (5.15–5.25 GHz); FCC: <30 dBm (2.4 GHz and 5.15–5.825 GHz) |
Specifications on this page are taken from TP-Link's official Archer AX23 product page for Singapore (www.tp-link.com/sg/home-networking/wifi-router/archer-ax23/). TP-Link publishes no net weight, no MU-MIMO row, no USB row and no HomeShield service kit for the Archer AX23. Those rows are left out rather than taken from another model.
Compatibility & Software Support
| Management App | TP-Link Tether (iOS and Android) |
| Web Management | Supported via browser |
| TP-Link Cloud | TP-Link ID, OTA firmware upgrade, DDNS |
| Mesh Compatibility | OneMesh, and mesh networking with EasyMesh-Compatible devices |
| VPN Client Protocols | OpenVPN, PPTP, WireGuard |
| Client Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+ |
| Internet Requirements | Cable or DSL modem if required by your plan, plus a subscription with an internet service provider |
Use of Wi-Fi 6 (802.11ax) and its features including OFDMA and 1024-QAM requires client devices that support them. Use of WPA3 requires clients that also support WPA3.
Package Contents & Ordering Information
Package Contents
| In the Box | Wi-Fi Router Archer AX23, Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide |
Ordering Information
| Model | Archer AX23 |
| SKU | AX23 |
| Warranty | 3 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — Archer AX23
How does the AX23 differ from the Archer AX10 and AX12?
All three are entry Wi-Fi 6 routers, but the AX23 is rated AX1800 with 802.11ax on both bands (1201 and 574 Mbps), while the AX10 and AX12 are AX1500 with 802.11n on 2.4 GHz at 300 Mbps. The AX23 also publishes a VPN client with WireGuard, which neither of the other two does.
Does it have a USB port?
No. TP-Link publishes no USB port for this model. For USB file sharing in the AX1800 class, the Archer AX20 publishes a USB 2.0 port.
Can it join a mesh network?
Yes. TP-Link publishes both OneMesh support and EasyMesh compatibility for the AX23.
What warranty does SourceIT provide?
Three years local Singapore warranty, under TP-Link's published replacement warranty terms. Every unit is supplied with a GST invoice.
Can SourceIT quote this for an office or a project?
Yes. Send us the quantity and we will quote with local warranty, delivery and support.
