TP-Link Archer T2UB Nano AC600 Nano Wi-Fi Bluetooth 4.2 USB Adapter
PRODUCT DESCRIPTION
TP-Link AC600 Nano Wi-Fi Bluetooth 4.2 USB Adapter (Archer T2UB Nano) - 3 Years Local Warranty
The Archer T2UB Nano puts dual-band 802.11ac Wi-Fi and Bluetooth 4.2 into one 15.7 x 7.4 x 19.2 mm USB dongle. One port, two radios — useful on a desktop that has neither, or on a notebook where the built-in Bluetooth has failed and the machine is out of warranty.

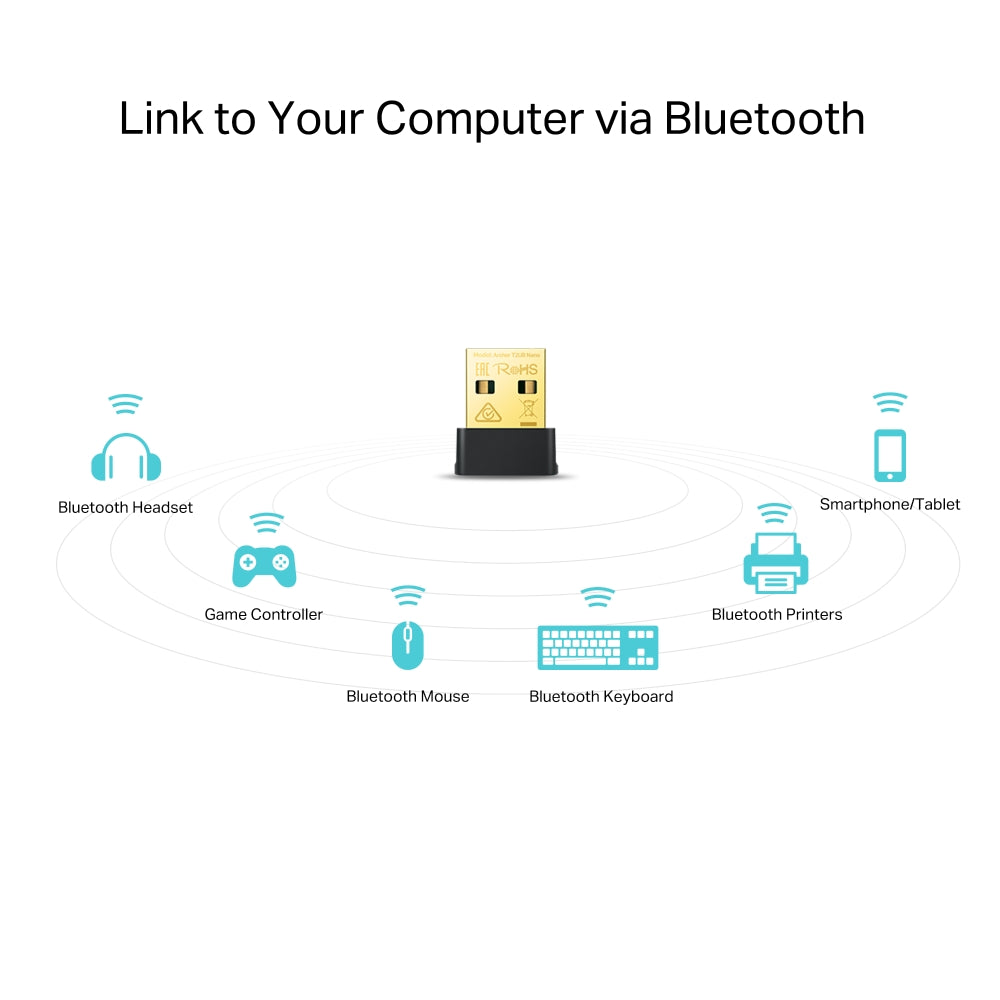

Wi-Fi and Bluetooth in a Single Port
Bluetooth 4.2 is published alongside a full 802.11a/b/g/n/ac dual-band radio, and it supports 7 Bluetooth devices at most. A keyboard, mouse or headset can pair to the same dongle that carries the network connection, freeing a second USB port on a machine that is short of them. It is a practical fix for older desktops and for small-form-factor PCs and thin clients that shipped without wireless of any kind.
Dual-Band AC600 Performance
Published rates are up to 433 Mbps on 5 GHz under 802.11ac and up to 200 Mbps on 2.4 GHz under 802.11n, both dynamic. A complete sensitivity table is published for both bands, down to -96 dBm for 802.11b at 1 Mbps and -82 dBm at 11ac VHT80 MCS0. Modulation is published as DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM and 256-QAM. Published rates are physical-layer maximums, not measured throughput.
WPA3 Encryption Published
The published security row for this model reads "WPA/WPA2/WPA3 encryption standards", and the feature copy extends that to "WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK, WPA3-SAE encryption". So if your site has enabled WPA3 on its SSIDs this is the AC600 model to specify. The system requirements likewise reach Windows 11 rather than stopping at Windows 10.
Read the Windows Lists Carefully
Two separate operating-system lists are published for this model, and they are not identical: Wi-Fi is listed for Win 11/10/8.1/8/7, while Bluetooth is listed for Win 11/10/8.1/7 — Windows 8 appears for Wi-Fi but not for Bluetooth. No macOS support is published at all for this model.
Ideal For
Singapore desktop users, small offices and IT refurbishment work: adding Wi-Fi and Bluetooth together to a machine that has neither, on a Windows build, and particularly where the network already runs WPA3. Supplied by SourceIT with local Singapore warranty, GST invoice and volume pricing on request.
Specifications on this page are reproduced from TP-Link's official Singapore product page for the Archer T2UB Nano, with driver and hardware-version details from TP-Link Singapore's download centre.
Archer T2UB Nano Datasheet — Technical Specifications
Hardware
| Interface | USB 2.0 |
| Antenna | Omni Directional |

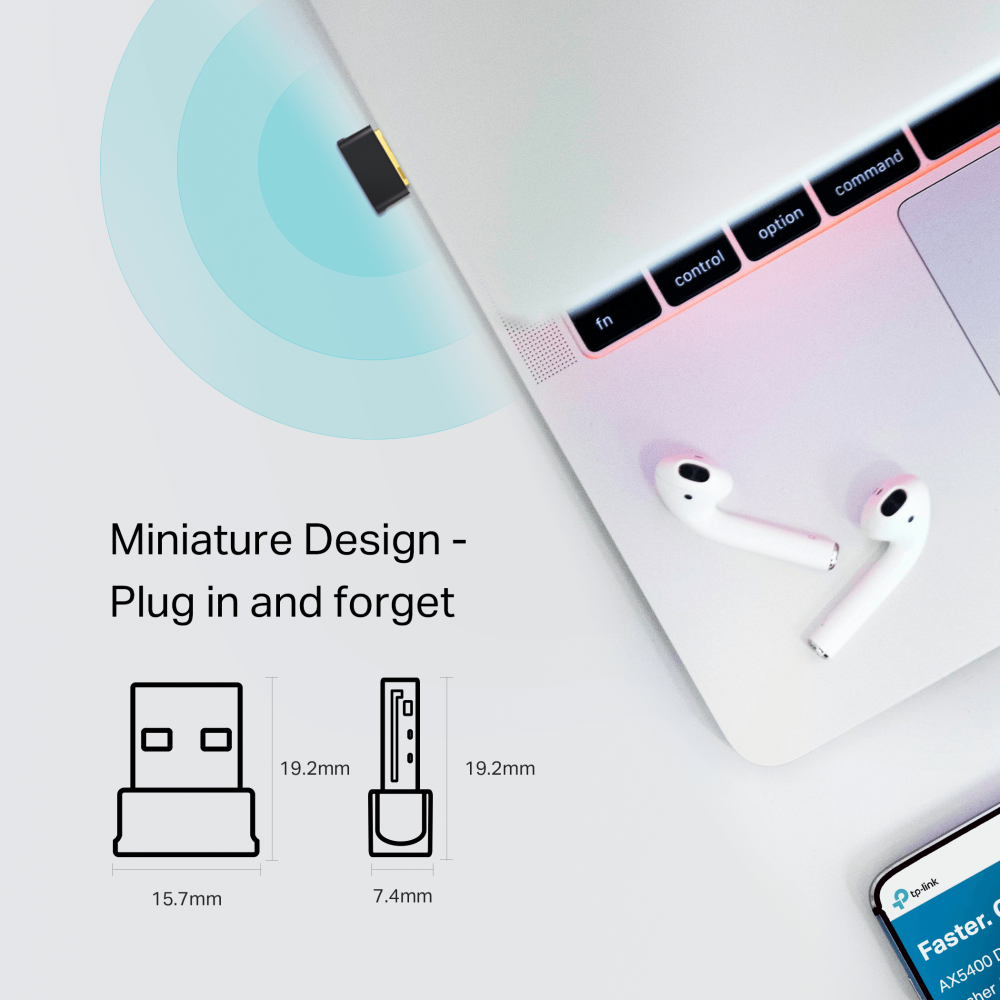

| Dimensions (W x D x H) | 15.7*7.4*19.2mm |
Wireless
| Wireless Standards | IEEE 802.11ac, IEEE 802.11a, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Frequency | 5 GHz, 2.4 GHz |
| Signal Rate (5 GHz) | 11ac: Up to 433 Mbps (dynamic); 11n: Up to 150 Mbps (dynamic); 11a: Up to 54 Mbps (dynamic) |
| Signal Rate (2.4 GHz) | 11n: Up to 200 Mbps (dynamic); 11g: Up to 54 Mbps (dynamic); 11b: Up to 11 Mbps (dynamic) |
| Reception Sensitivity (5 GHz) | 11a 6 Mbps: -90 dBm; 11a 54 Mbps: -73 dBm; 11n HT20 MCS0: -89 dBm; 11n HT20 MCS7: -70 dBm; 11n HT40 MCS0: -86 dBm; 11n HT40 MCS7: -67 dBm; 11ac VHT80 MCS0: -82 dBm; 11ac VHT80 MCS9: -56 dBm |
| Reception Sensitivity (2.4 GHz) | 11b 1 Mbps: -96 dBm; 11b 11 Mbps: -88 dBm; 11g 6 Mbps: -89 dBm; 11g 54 Mbps: -74 dBm; 11n HT20 MCS0: -89 dBm; 11n HT20 MCS7: -72 dBm; 11n HT40 MCS0: -86 dBm; 11n HT40 MCS7: -66 dBm |
| Wireless Modes | Ad-Hoc / Infrastructure mode |
| Wireless Security | WPA/WPA2/WPA3 encryption standards |
| Encryption Supported | WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK, WPA3-SAE encryption |
| Modulation Technology | DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM |
Bluetooth
| Bluetooth | Bluetooth 4.2 (as published in the product name and feature specifications) |
| Paired Devices | Supports 7 Bluetooth devices at most |
Environment and Compliance
| Certification | CE, FCC, RoHS |
| Operating Temperature | 0°C~40°C (32°F~104°F) |
| Storage Temperature | -40°C~70°C (-40°F~158°F) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
| Local Warranty (Singapore) | 3 Years Local Warranty (Singapore) |
No LED row, no transmission-power figure, no net weight and no Bluetooth profile list is published for this model, so none is stated here. TP-Link prints two caveats with these specifications: "Models' appearances and specifications are not determined and will be updated accordingly. Please use the product images only for reference." and "Some features may require software upgrades or subscriptions."
Compatibility & Software Support
| System Requirements (Wi-Fi) | Win 11/10/8.1/8/7 |
| System Requirements (Bluetooth) | Win 11/10/8.1/7 |
| Host Port | USB 2.0 |
| Network Compatibility | Works with any 2.4 GHz or 5 GHz Wi-Fi router or access point; no TP-Link router required |
| Hardware Versions | V1 (TP-Link Singapore download centre) |
The two lists differ as published: Windows 8 appears under Wi-Fi but not under Bluetooth. No macOS support is published for this model. Please confirm your operating system before ordering.
Package Contents & Ordering Information
Package Contents
| Adapter | AC600 Nano Wi-Fi Bluetooth 4.2 USB Adapter Archer T2UB Nano |
| Documentation | Quick Installation Guide |
| Media | Resource CD |
Ordering Information
| Model | Archer T2UB Nano |
| SKU | Archer T2UB Nano |
| Warranty | 3 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — Archer T2UB Nano
Does it work on a Mac?
No macOS support is published for this model — the system requirements are Windows only.
Which Bluetooth version?
Bluetooth 4.2, as published in the product name and in the feature specifications. No supported-profile list is published, so we do not state one.
How many Bluetooth devices can I pair?
It supports 7 Bluetooth devices at most, as published.
Does it support WPA3?
Yes. The published security row reads "WPA/WPA2/WPA3 encryption standards", and the feature copy lists "WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK, WPA3-SAE encryption".
How does it differ from the Archer T600UB Nano?
They are listed as separate models and we do not treat them as interchangeable. Tell us which model code you need and we will supply that one.
What warranty applies in Singapore?
3 Years Local Warranty (Singapore). TP-Link Singapore's replacement-warranty policy states a three-year default and does not list USB wireless adapters among its exception categories.
Can SourceIT quote quantity?
Yes. Send the quantity and we will quote with local warranty, GST invoice and delivery in Singapore.
