TP-Link Archer T4U Plus AC1300 Dual Antennas High-Gain Wireless USB Adapter
PRODUCT DESCRIPTION
TP-Link AC1300 Dual Antennas High-Gain Wireless USB Adapter (Archer T4U Plus) - 3 Years Local Warranty
The Archer T4U Plus adds dual-band AC1300 Wi-Fi to a desktop or notebook over USB 3.0, using two external 5 dBi high-gain antennas and a one-metre USB 3.0 cable so the adapter can sit where the signal is strongest rather than behind a metal chassis. It is the antenna-equipped member of TP-Link's AC1300 USB range.
867 Mbps on 5 GHz, 400 Mbps on 2.4 GHz
TP-Link rates the adapter at up to 867 Mbps (dynamic) on 5 GHz under 802.11ac, and up to 400 Mbps (dynamic) on 2.4 GHz under 802.11n, marketed together as 1300 Mbps. The 5 GHz band suits video calls, file transfers and streaming where the router is within a room or two; the 2.4 GHz band carries further through walls for general browsing and cloud work. Both bands are supported, and the adapter uses whichever network you connect it to. Published rates are physical-layer maximums, not throughput.

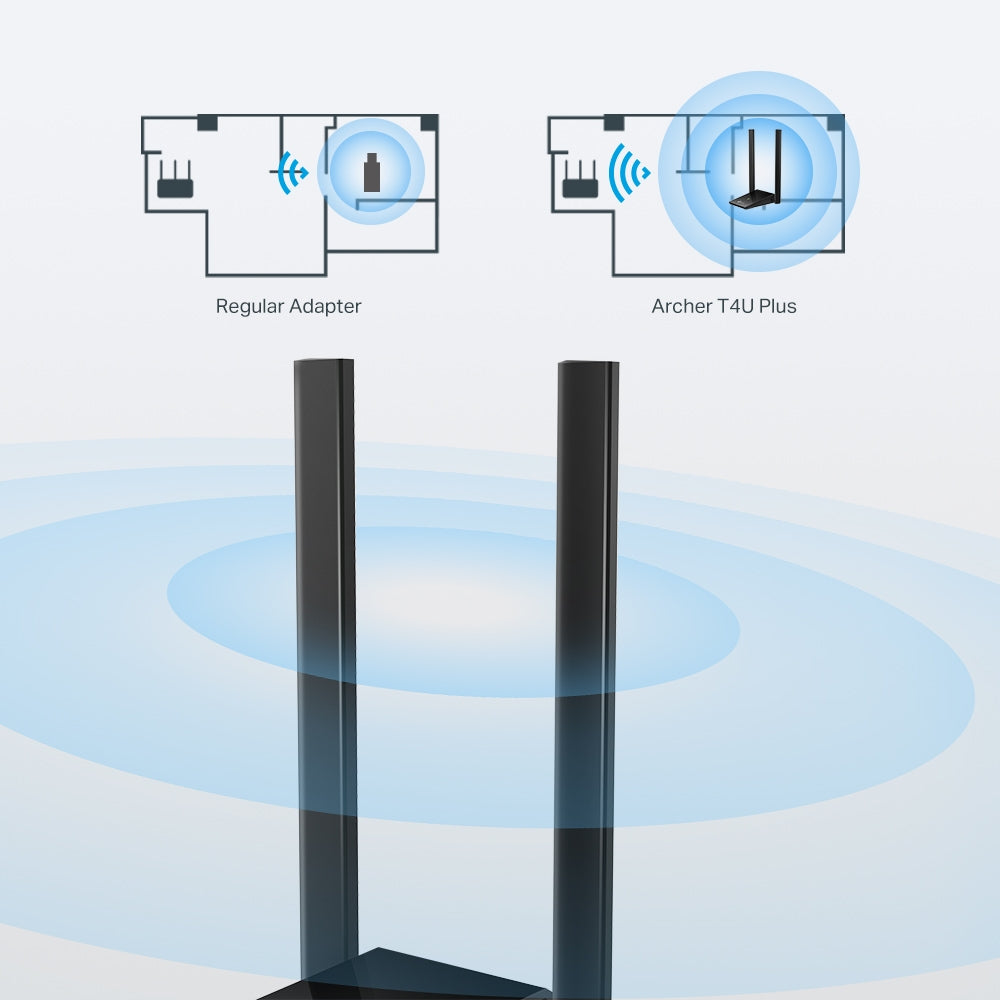

Two External 5 dBi High-Gain Antennas
Two external 5 dBi high-gain antennas are fitted, and TP-Link publishes a full reception-sensitivity set: at 5 GHz, 11ac VHT80 -62 dBm, VHT40 -65 dBm, VHT20 -69 dBm, 11n HT40 -71 dBm, HT20 -74 dBm and 11a 54 Mbps -77 dBm; at 2.4 GHz, 11n HT40 -70 dBm, HT20 -72 dBm, 11g 54 Mbps -75 dBm and 11b 11 Mbps -87 dBm. That sensitivity is what holds a usable link at the edge of coverage, where a built-in laptop card or a flush nano adapter typically drops out. The antennas fold and rotate so they can be aimed toward the router.

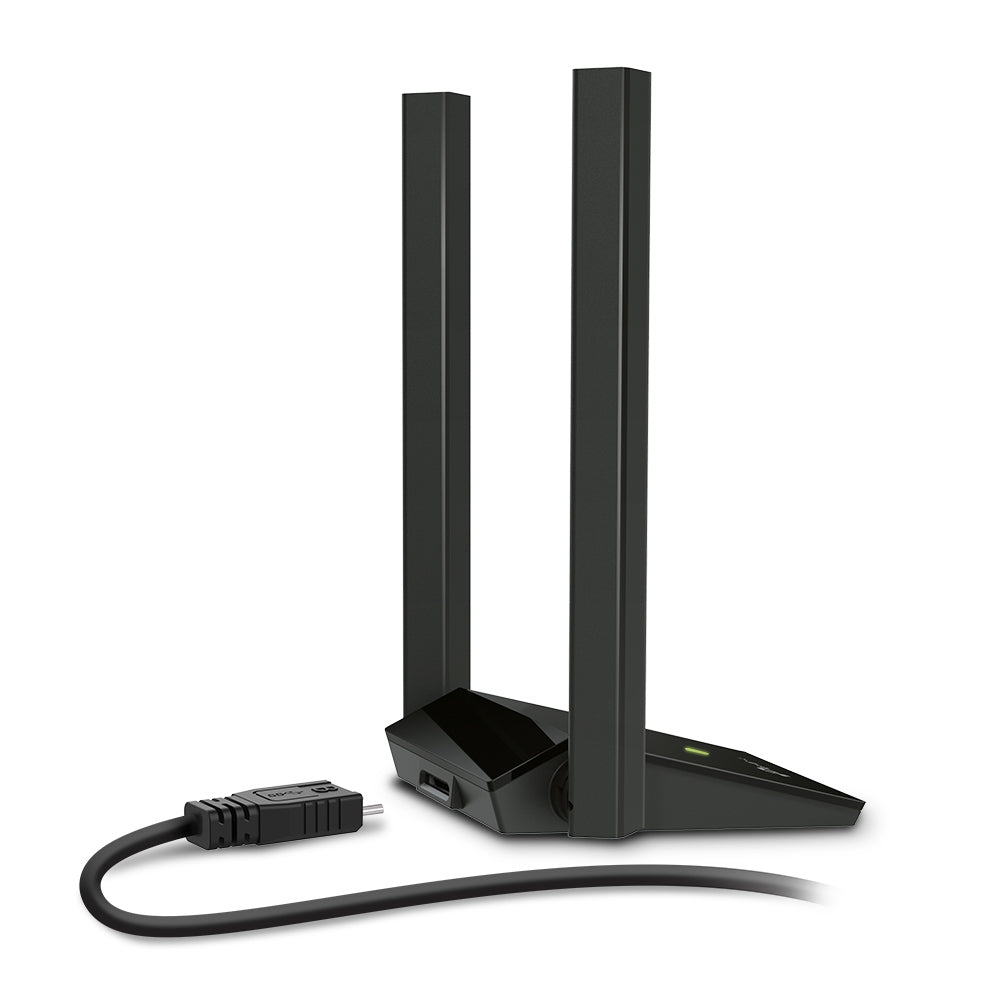

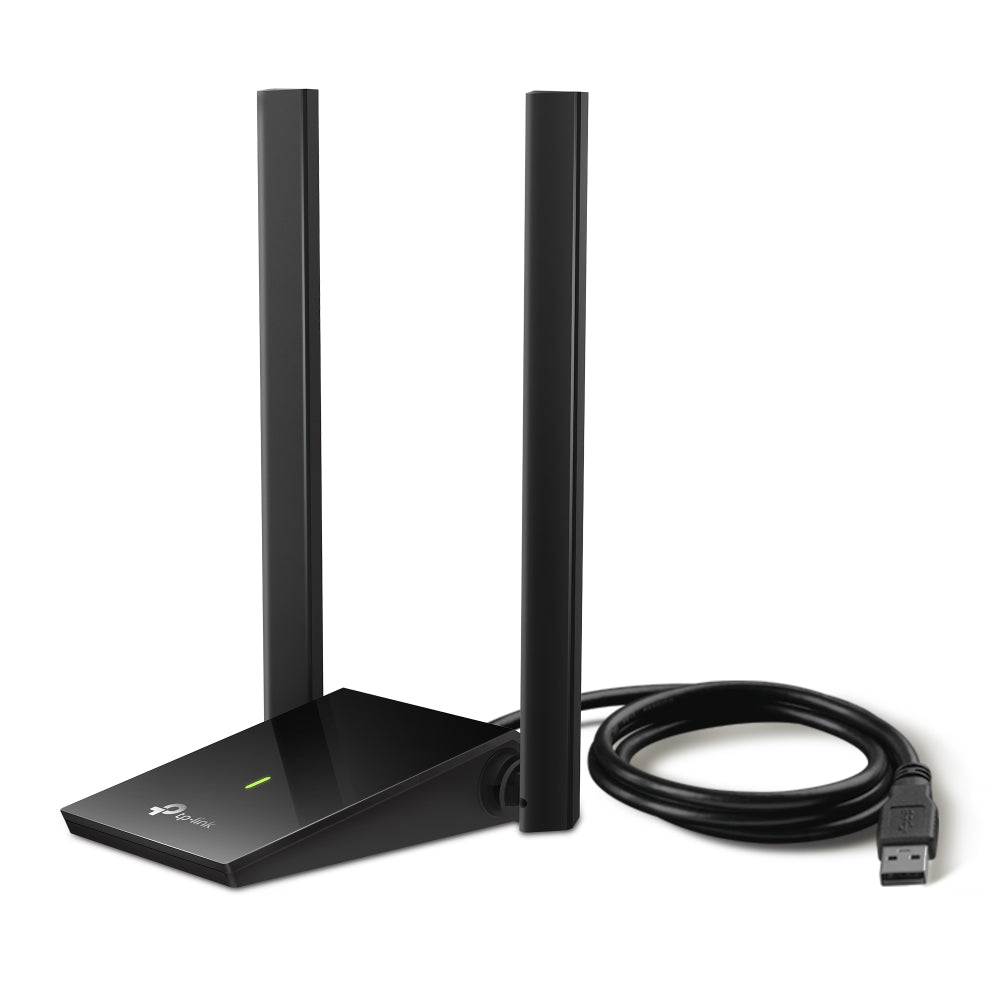

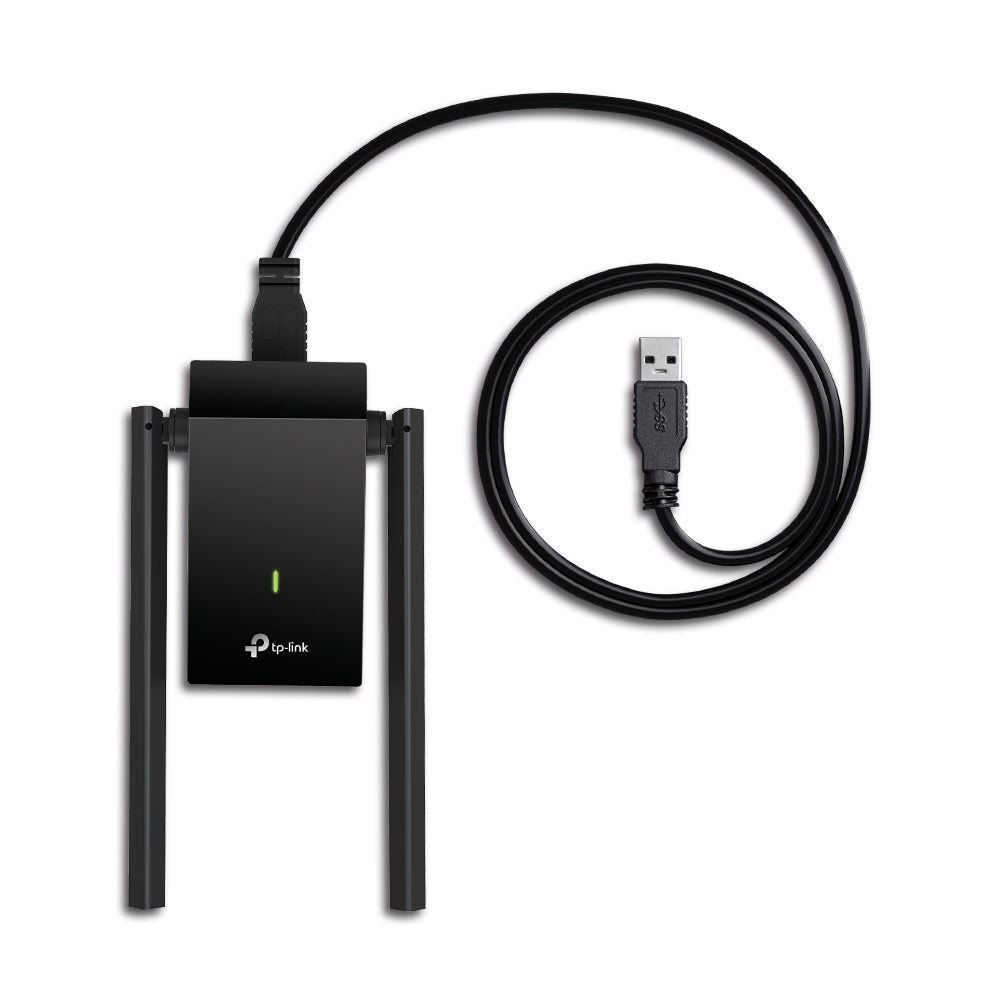

USB 3.0 with a One-Metre Extension Cable
The adapter connects over USB 3.0 and ships with a one-metre USB 3.0 cable in the box. To see USB 3.0 speeds the host computer needs a USB 3.0 port of its own; on a USB 2.0 port the host connection becomes the limit before the wireless link does. The cable matters in practice — desk-side placement away from a metal tower case, a monitor stand or a cluttered rear panel usually gains more real-world speed than any setting change.
Windows and macOS Driver Support
Published system requirements for this model are Windows 10/8.1/8/7 and macOS, and the published security set is WEP, WPA/WPA2 and WPA-PSK/WPA2-PSK. A Windows 11 64-bit driver is published for this adapter alongside Windows 7, 8, 8.1 and 10 builds, across hardware versions V2 and V1. We do not list a WPA3 figure or a specific macOS release for this model. TP-Link notes that adapter drivers may need updating after an operating-system update.
Ideal For
Singapore desktop users, home offices and small businesses adding Wi-Fi to a tower PC that has no wireless card, or replacing a weak built-in adapter in a unit far from the router. A sensible pick where signal strength matters more than a flush, travel-friendly form factor. Supplied by SourceIT with local Singapore warranty, GST invoice and volume pricing on request.
Archer T4U Plus Datasheet — Technical Specifications
Hardware
| Interface | USB 3.0 |
| LED | Status |
| Antenna | 2x External 5 dBi High Gain Antennas |
| Dimensions (W x D x H) | 84 x 156.3 x 19.2 mm (3.3 x 6.2 x 0.76 in) |
Wireless
| Wireless Standards | IEEE 802.11b/g/n 2.4 GHz, IEEE 802.11a/n/ac 5 GHz |
| Signal Rate (5 GHz) | 11ac: Up to 867 Mbps (dynamic); 11n: Up to 300 Mbps (dynamic); 11a: Up to 54 Mbps (dynamic) |
| Signal Rate (2.4 GHz) | 11n: Up to 400 Mbps (dynamic); 11g: Up to 54 Mbps (dynamic); 11b: Up to 11 Mbps (dynamic) |
| Reception Sensitivity (5 GHz) | 11ac VHT80: -62 dBm; 11ac VHT40: -65 dBm; 11ac VHT20: -69 dBm; 11n HT40: -71 dBm; 11n HT20: -74 dBm; 11a 54 Mbps: -77 dBm |
| Reception Sensitivity (2.4 GHz) | 11n HT40: -70 dBm; 11n HT20: -72 dBm; 11g 54 Mbps: -75 dBm; 11b 11 Mbps: -87 dBm |
| Wireless Modes | Infrastructure mode |
| Wireless Security | WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission Power | 5 GHz: 20 dBm (FCC) / 20 dBm (CE) (EIRP); 2.4 GHz: 18 dBm (FCC) / 18 dBm (CE) (EIRP) |
Environment and Compliance
| Certification | FCC, CE, RoHS |
| Operating Temperature | 0°C~40°C (32°F~104°F) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
| Local Warranty (Singapore) | 3 Years Local Warranty (Singapore) |
Specifications are reproduced from TP-Link's official Singapore product page for the Archer T4U Plus, with driver and hardware-version details from TP-Link Singapore's download centre. The dimensions are reproduced exactly as TP-Link orders them. Where TP-Link does not publish a figure for this model, we do not state one here. TP-Link's own footnote applies: "Use of MU-MIMO requires your APs to also support MU-MIMO."
Compatibility & Software Support
| System Requirements | Windows 10/8.1/8/7, macOS |
| Host Port | USB 3.0 recommended; USB 3.0 speeds require the computer to provide a USB 3.0 port |
| Driver Listing | Windows 7 32-bit/64-bit, Windows 8 32-bit/64-bit, Windows 8.1 32-bit/64-bit, Windows 10 32-bit/64-bit, Windows 11 64-bit |
| Network Compatibility | Works with any 2.4 GHz or 5 GHz Wi-Fi router or access point; no TP-Link router required |
| Hardware Versions | V2, V1 |
Published system requirements for this model do not name Windows 11 or a specific macOS release, although a Windows 11 64-bit driver is listed in the Singapore download centre. We do not list a WPA3 figure for this model. TP-Link advises that adapter drivers may need to be updated after an operating-system update.
Package Contents & Ordering Information
Package Contents
| Adapter | AC1300 Dual Antennas High-Gain Wireless USB Adapter Archer T4U Plus |
| Cable | 1-meter USB 3.0 Cable |
| Documentation | Quick Installation Guide |
| Media | Resource CD |
Ordering Information
| Model | Archer T4U Plus |
| SKU | Archer T4U plus |
| Warranty | 3 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — Archer T4U Plus
Will it work in a USB 2.0 port?
It will connect, but USB 3.0 speeds require the computer to provide a USB 3.0 port. On a USB 2.0 port the host connection becomes the limit before the Wi-Fi link does.
Does it support Windows 11?
Published system requirements for this model are Windows 10/8.1/8/7 and macOS, so Windows 11 is not named there. The Singapore download centre does list a Windows 11 64-bit driver for this adapter. Ask us to confirm the current driver before standardising a fleet on it.
Does it support WPA3?
The published security set for this model is WEP, WPA/WPA2 and WPA-PSK/WPA2-PSK. We do not list a WPA3 figure here, so if your network is set to WPA3-only, confirm compatibility with us before ordering.
Does it support MU-MIMO?
TP-Link's footnote for this adapter states: "Use of MU-MIMO requires your APs to also support MU-MIMO." Tell us your router model and we will check it with you.
Is an extension cable included?
Yes. A one-metre USB 3.0 cable is listed in the package contents, which lets you place the adapter away from the back of a desktop tower.
What warranty applies in Singapore?
3 Years Local Warranty (Singapore). TP-Link Singapore's replacement-warranty policy states a three-year default and does not list USB wireless adapters among its exception categories.
Can SourceIT quote quantity?
Yes. Send the quantity and we will quote with local warranty, GST invoice and delivery in Singapore.
