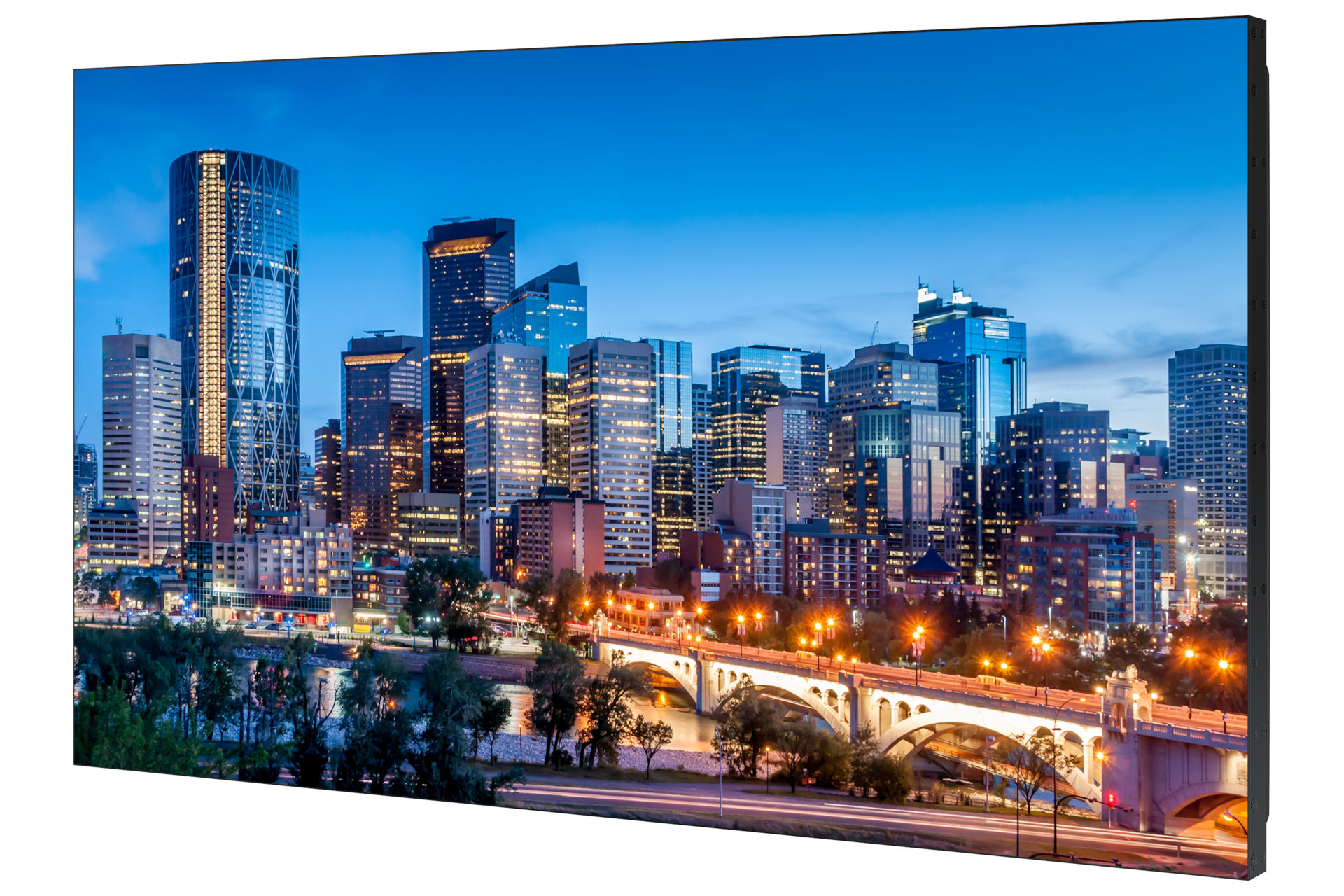

Samsung VM55H-E 55" FHD Video Wall Display
PRODUCT DESCRIPTION
Samsung VM55H-E 55" Video Wall Display (LH55VMHEBGBXXS) - Local Warranty

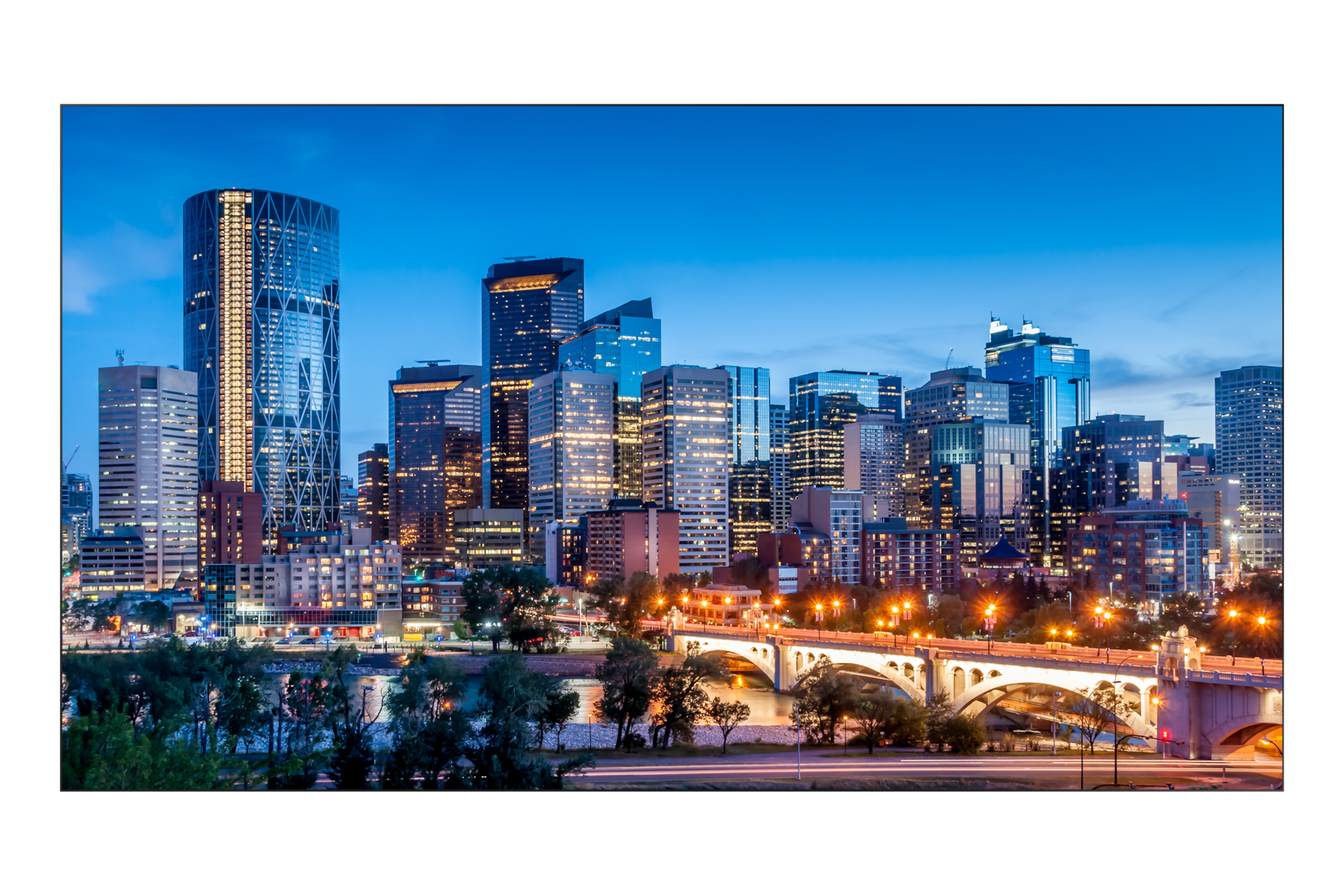

1.74 mm Bezel-to-Bezel for a Near-Seamless Canvas
The Samsung VM55H-E is built for tiled installations, with a combined bezel-to-bezel gap of just 1.74 mm where two panels meet. Across a 2x2 or 3x3 array the seams recede far enough that the wall reads as a single image rather than a grid of screens, which is what separates a convincing video wall from an obvious one. The 55-inch Full HD format tiles cleanly into the array sizes most Singapore lobbies, control rooms and retail spaces are already designed around, so mounts, trunking and joinery are straightforward to source.
500-Nit IPS Panel With Wide Off-Axis Consistency
An IPS panel rated up to 500 nit with 178-degree viewing angles in both planes keeps brightness and colour consistent across the full array, including the tiles a viewer sees at a sharp angle from the edge of the room. On a video wall this matters far more than on a single display, because any shift between adjacent panels shows up as a visible seam inside the content itself. Static contrast is 1000:1, with a 100,000:1 dynamic contrast ratio for high-contrast motion material.
24/7 Duty Rating and IP5x Dust Protection
The VM55H-E is rated for 24 hours a day, 7 days a week of continuous operation, which is the baseline requirement for a wall that is never switched off: a transport interchange, a hospital concourse, a security control room or a 24-hour retail floor. An IP5x rating protects the panel against dust ingress, extending reliable service in retail, transport, industrial and construction-adjacent environments where an enclosed array would otherwise accumulate particulates behind the glass over a multi-year deployment.
Practical Depth, Mounting and Signal Distribution
A 70.4 mm cabinet depth and 19.5 kg weight keep the array manageable on a standard 600 x 400 mm VESA pattern and within the load budget of most video wall mounting systems, so a 3x3 puts around 176 kg of display on the wall before the mount frame. Two HDMI inputs, DisplayPort 1.2, DVI and USB cover source connection and distribution across the array, while RS232 and RJ45 give integrators the centralised control and monitoring paths a multi-panel installation needs.
Samsung VM55H-E Datasheet — Technical Specifications
General
| Product | Samsung VM55H-E 55" Video Wall Display |
| Part Number (SKU) | LH55VMHEBGBXXS |
| Display Type | IPS LCD video wall panel |
| Operating Time | 24/7 continuous commercial operation |
| Platform | No embedded media player — driven by an external source or a Samsung set-back-box signage player |
| Ingress Protection | IP5x (dust protected) |
| Local Warranty (Singapore) | Supplied by SourceIT with GST invoice |
Display
| Screen Size | 55" |
| Resolution | 1,920 x 1,080 (Full HD) |
| Panel Type | IPS |
| Brightness | Up to 500 nit |
| Contrast Ratio | 1,000:1 static / 100,000:1 dynamic |
| Viewing Angle | 178° / 178° (H/V) |
| Bezel-to-Bezel Width | 1.74 mm |
Smart Platform & Management
| Embedded Player | None — content is delivered from an external source |
| Content Management | Samsung MagicINFO via a separate Samsung set-back-box signage player |
| Remote Control & Monitoring | RS232 and RJ45 (LAN) |
Connectivity
| HDMI | 2 x HDMI |
| DisplayPort | 1 x DisplayPort 1.2 |
| DVI | 1 x DVI |
| USB | 1 x USB |
| Network | 1 x RJ45 (LAN) |
| Serial Control | RS232 |
Physical & Environmental

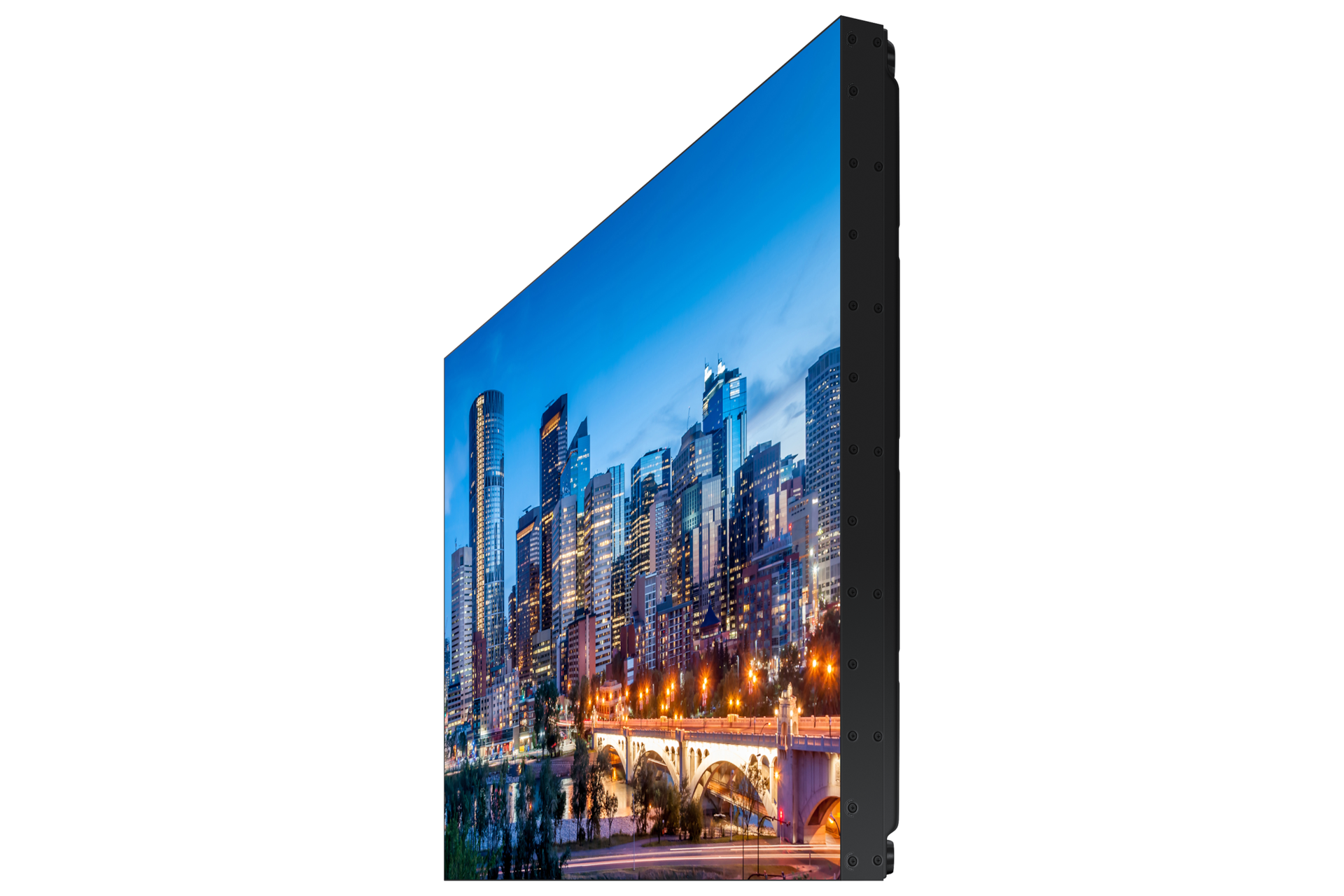

| Cabinet Depth | 70.4 mm |
| Weight | 19.5 kg |

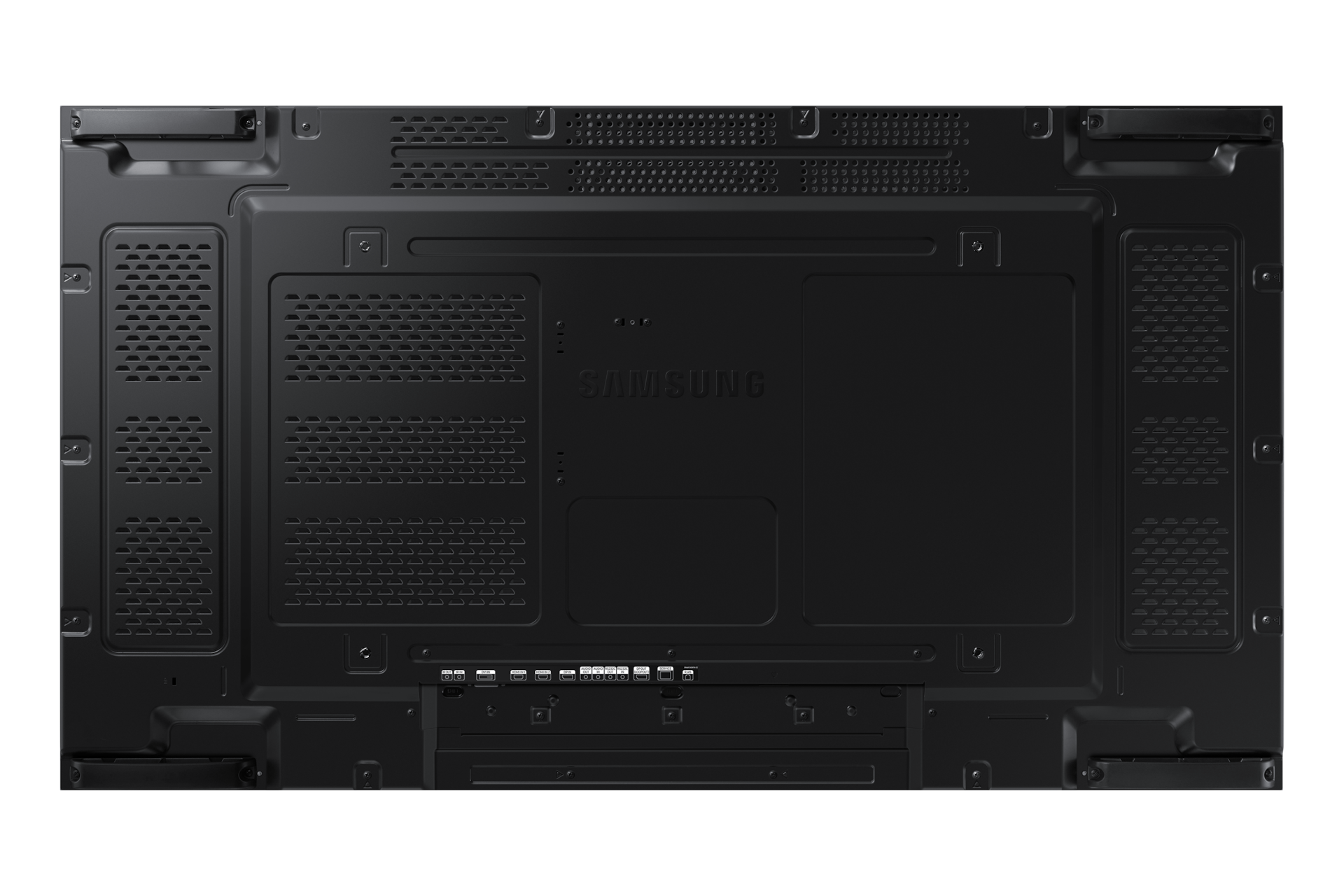

| VESA Mount | 600 x 400 mm |
| Ingress Protection | IP5x (dust protection) |
| Colour | Black |
Specifications are taken from Samsung's published product data for this model. Where Samsung does not publish a figure for this exact model it has been left out rather than estimated.
Compatibility & Installation
Mounting
The VM55H-E uses a 600 x 400 mm VESA pattern and weighs 19.5 kg per tile, so a 3x3 array loads the wall with about 176 kg of display before the mount frame. A video wall needs a purpose-built mount system with micro-adjustment on all axes; a standard flat-panel bracket will not let your installer pull adjacent tiles into plane to a fraction of a millimetre, and that alignment is exactly what makes a 1.74 mm seam look deliberate. Samsung does not publish a portrait-orientation rating for this model on its Singapore data, so confirm the orientation with us before you commit a portrait layout.
What it connects to
Each panel provides 2 x HDMI, 1 x DisplayPort 1.2, 1 x DVI and 1 x USB. That covers a signage player, a small-form-factor PC, a video wall processor, a matrix switcher output, a lectern laptop feed or a camera feed from a security system. There is no embedded media player in this model, so a source is always required and must be budgeted alongside the panels.
Adding a player to the wall
Because the VM55H-E has no player on board, a Tizen signage player is the usual way to bring it onto MagicINFO alongside the rest of your estate. The Samsung SBB-SS08FV2 set-back-box signage player is the matching accessory: it is fanless, draws a maximum of 23 W, mounts behind the panel and outputs UHD at 60 Hz over HDMI with HDCP 2.2.
Network and content management
RJ45 (LAN) and RS232 give a facilities or AV team centralised control over power, input selection and picture settings across every tile from one point, so a whole concourse wall can be brought up or down without touching a remote. Content scheduling runs on Samsung MagicINFO, driven from a separate set-back-box player or a third-party player, since this series carries no player on board.
Related models
For a tighter seam at the same 55-inch tile size, see the Samsung VM55C-R at 0.88 mm or the Samsung VH55C-R at 0.88 mm with 700 nit. For the same 1.74 mm seam at higher brightness, see the Samsung VH55C-E. For a smaller tile at a wider 3.5 mm seam, see the Samsung VM46B-U.
Package Contents & Samsung Video Wall Range
In the box
Samsung does not publish a package contents list for the VM55H-E on its Singapore product data, so we do not itemise one here. SourceIT will confirm the exact carton contents for the current production revision with your quotation.
Package contents follow Samsung's product data for this model; items not listed by Samsung are not claimed here.
Samsung video wall range
| Model | Size | Bezel-to-bezel |
| VH55C-R | 55" | 0.88 mm, 700 nit |
| VM55C-R | 55" | 0.88 mm, 500 nit |
| VH55C-E | 55" | 1.74 mm, 700 nit |
| VM55C-E | 55" | 1.74 mm, 500 nit |
| VM55H-E (this listing) | 55" | 1.74 mm, 500 nit |
| VM46B-U | 46" | 3.5 mm, 500 nit |
| VM55B-U | 55" | 3.5 mm, 500 nit |
Datasheet & Downloads
SourceIT can email the current data sheet revision for the VM55H-E together with a quotation, including a wall layout sketch for your 2x2, 3x3 or custom array. Tell us the array size and the room and we will size the mount, the player and the cabling with you.
Frequently Asked Questions — Samsung VM55H-E
How visible is the 1.74 mm seam?
At 1.74 mm bezel-to-bezel the join reads as a hairline. From a couple of metres it disappears into the content for almost all material, which is why this grade is the usual choice for lobby and retail walls that people walk up to. For a control room reading a single continuous map, or a flagship wall people photograph at arm's length, the 0.88 mm VM55C-R or VH55C-R is a step cleaner again.
Does it need an external player?
Yes. The VM55H-E has no embedded media player, so the wall is driven by an external source: a signage player, a small-form-factor PC or a video wall processor. The fanless Samsung SBB-SS08FV2 set-back-box player is the matching option if you want the wall on MagicINFO.
Can I run it 24 hours a day?
Yes. Samsung rates the VM55H-E for 24/7 continuous operation, and the chassis carries an IP5x dust-protection rating, so it is built for transport interchanges, control rooms, hospital concourses and 24-hour retail.
What does IP5x actually protect against?
IP5x means the enclosure is dust protected — dust may enter but not in a quantity that interferes with operation. On a video wall that is relevant because an enclosed array pulls air and particulates through its cavity continuously over a multi-year deployment, and dust behind the glass is not serviceable.
How much does a 3x3 weigh?
Each panel is 19.5 kg, so nine tiles come to roughly 176 kg of display before the mount frame is counted. That is within masonry and properly specified stud substrates, but it is worth confirming with your contractor at design stage rather than on installation day.
What do the letters in VM55H-E mean?
VM marks the 500 nit standard-brightness video wall line, as against VH at 700 nit. H is the generation. The -E suffix is the extreme narrow bezel grade at 1.74 mm bezel-to-bezel; -R is the razor narrow 0.88 mm grade and -U the ultra narrow 3.5 mm grade.
Can it be mounted in portrait?
Samsung does not publish a portrait-orientation rating for this model on its Singapore data, so we do not claim one here. If your layout calls for portrait tiles, raise it with us before the design is committed and we will confirm with Samsung.
What warranty and invoicing do I get?
Every VM55H-E sold by SourceIT comes with local Singapore warranty and a GST invoice on every unit, which is what your finance and procurement teams need for claims and for local service.
