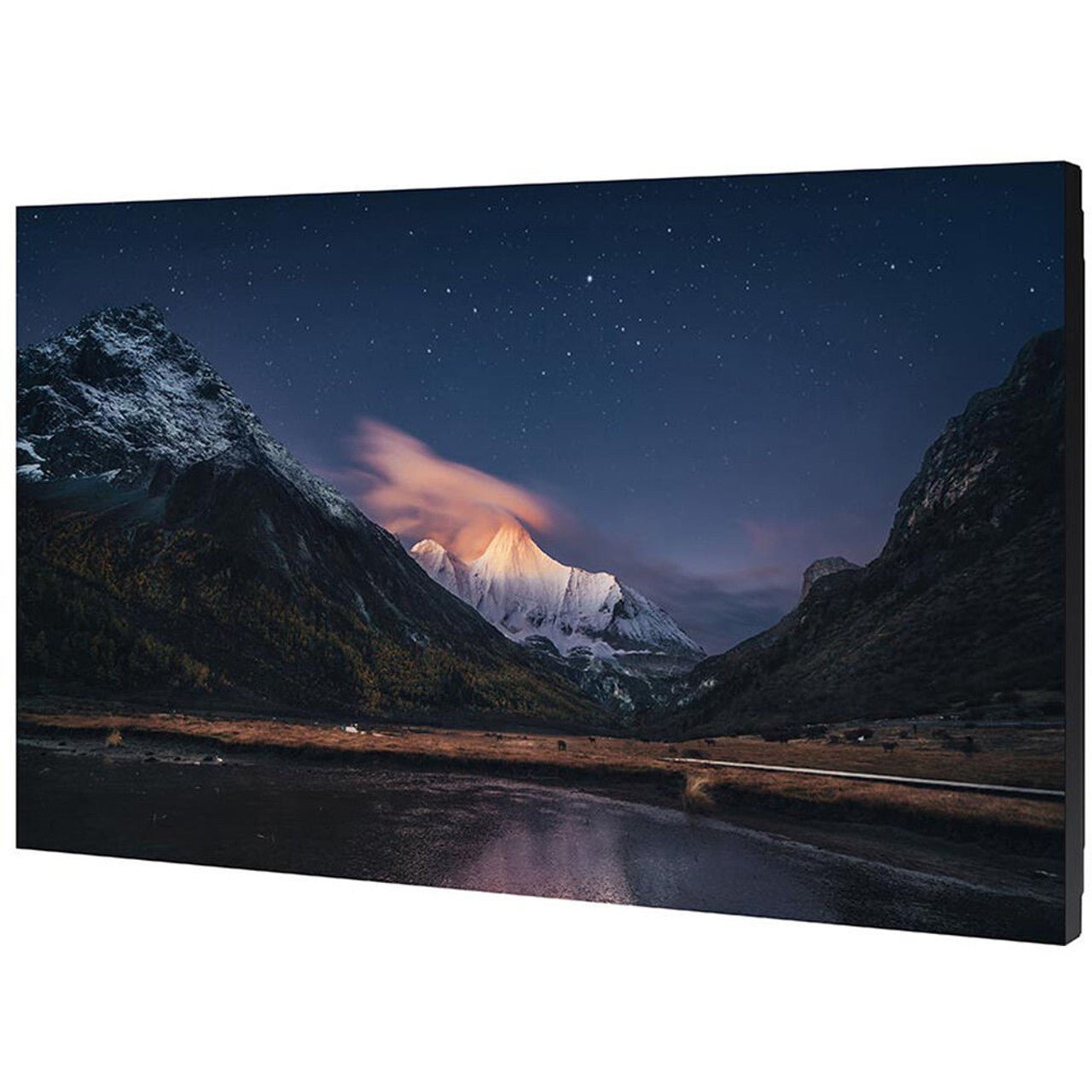

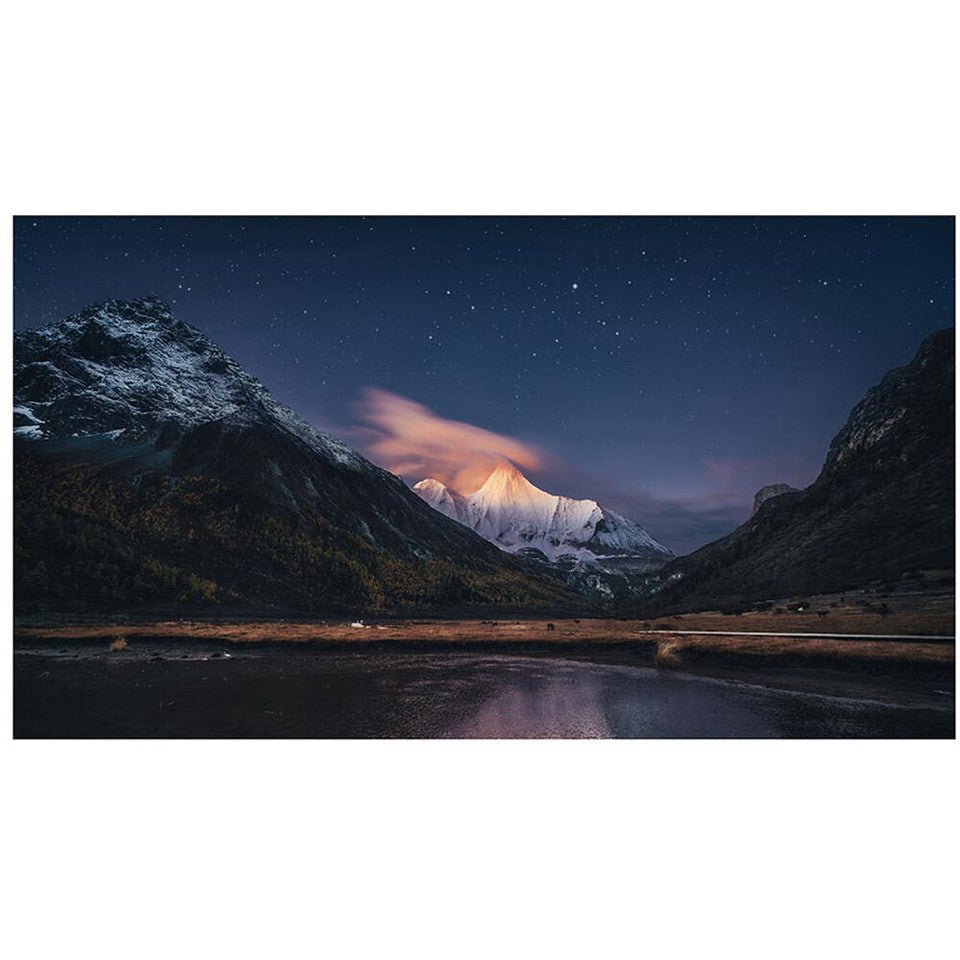

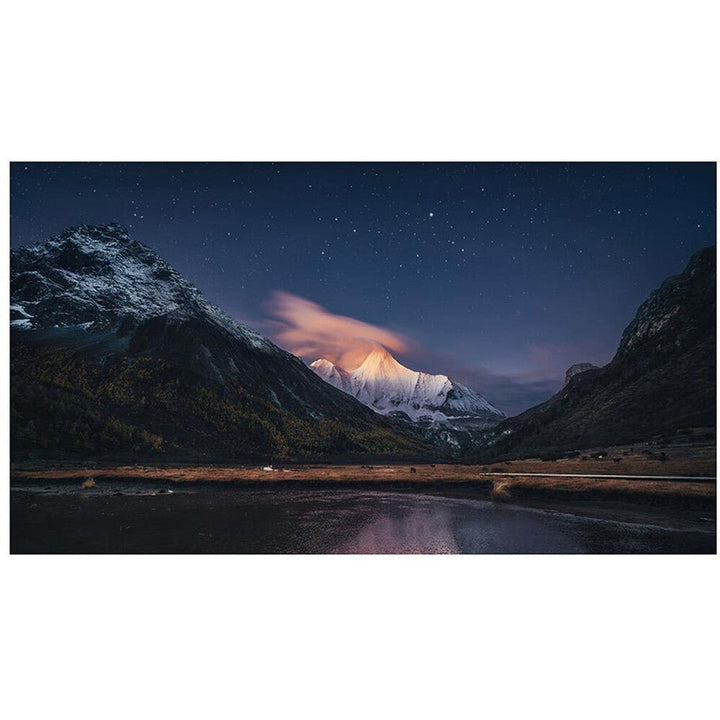

Samsung VM55C-R 55" Video Wall Display
PRODUCT DESCRIPTION
Samsung VM55C-R 55" Video Wall Display (LH55VMCRBGBXXS) - Local Warranty
0.88 mm Bezel-to-Bezel: a Seam You Have to Look For
The VM55C-R is built on a 0.44 mm even bezel, giving 0.88 mm where two tiles meet. That is a hairline. Stand a metre from a 2x2 running a full-bleed photograph and the join is something you notice only if you go looking for it. This is the grade to buy when people get close to the wall: flagship retail, a showroom feature, a boardroom end wall, a broadcast backdrop, or a control room where operators read one wide map or dashboard and a 3.5 mm grid would cut through the data. Everywhere else, the 1.74 mm and 3.5 mm grades save real money.
Where the 0.88 mm Premium Is Worth It — and Where It Is Not
The honest rule is viewing distance and content. Above roughly three metres with motion graphics and cut content, the 3.5 mm VM55B-U looks convincing and costs far less across nine tiles. Between two and three metres with mixed content, the 1.74 mm VM55C-E is the sweet spot. Under two metres, or with a single continuous image, map, plan or data canvas spanning the whole array, only 0.88 mm keeps the illusion intact. Buy the seam the room actually demands — on a 3x3, the difference between grades pays for the mount and the source.
500 Nit, 24/7 Duty and IP5x for Interior Walls That Never Sleep
At 500 nit the VM55C-R is specified for interior environments under artificial light: boardrooms, control rooms, showrooms, back-of-house concourses and meeting suites. Samsung rates it for 24 hours a day, 7 days a week, and the chassis carries an IP5x dust-protection rating, so a control room wall can be commissioned and then left to run. Typical draw is 270 W per tile with 0.5 W standby, and the operating envelope is 0°C to 40°C at 10 to 90 percent humidity. If the wall catches daylight, step up to the 700 nit VH55C-R instead.
Under 70 mm Deep, Daisy-Chained to 10 x 10, Portrait or Landscape
Each tile is 69.9 mm deep and 16.8 kg, which is light and shallow for a 55-inch video wall panel and keeps the finished wall close to the substrate — important when a boardroom or showroom wall has to sit almost flush with adjacent joinery. DisplayPort 1.2 loop-out daisy-chains the array from a single source, with Samsung specifying support up to 10 x 10. Landscape and portrait are both supported, so portrait ribbons work as well as conventional blocks. RS232C in and out plus RJ45 give centralised control of power, input and picture across every tile.
Samsung VM55C-R Datasheet — Technical Specifications
General
| Product | Samsung VM55C-R 55" Video Wall Display |
| Part Number (SKU) | LH55VMCRBGBXXS |
| GTIN | 8806088729882 |
| Display Type | LED-backlit IPS LCD video wall panel |
| Operating Time | 24/7 continuous operation |
| Platform | No embedded media player — MagicINFO and SSSP content run from a separate Samsung Signage Player Box or a third-party source |
| Local Warranty (Singapore) | Supplied by SourceIT with GST invoice |
Display
| Screen Size | 55" |
| Resolution | 1,920 x 1,080 (Full HD) |
| Panel Type | IPS, direct-lit LED backlight |
| Brightness | 500 nit (max) |
| Contrast Ratio | 1,100:1 static / 100,000:1 dynamic |
| Viewing Angle | 178° / 178° (H/V) |
| Response Time | 8 ms (G-to-G) |
| Refresh Rate | 60 Hz |
| Bezel Width | 0.44 mm even on all four edges |
| Bezel-to-Bezel Width | 0.88 mm |
| Colour Calibration | Factory-calibrated for consistent brightness and colour across the array |
Video & Audio
| Internal Speakers | Not included |
| Audio In | Yes |
| Audio Out | 3.5 mm stereo mini jack for an external audio system |
| Video Wall Processor | Built-in, splits and scales one source across the array |
Smart Platform & Management
| Embedded Player | None — content is delivered from an external source |
| Content Management | Samsung MagicINFO / SSSP via a separate Samsung Signage Player Box |
| Remote Control & Monitoring | RS232C (In/Out) and RJ45 (LAN); Samsung MDC |
| Colour Tools | Samsung Color Expert Pro |
| Video Wall Daisy Chain | Up to 10 x 10 via DisplayPort 1.2 loop-out |
Connectivity
| HDMI | 2 x HDMI 2.0 |
| DisplayPort | 1 x DisplayPort 1.2 (in) + 1 x loop-out |
| DVI | 1 x DVI-D |
| USB | 1 |
| Serial Control | RS232C In / Out |
| Network | RJ45 (LAN) |
| IR | In / Out |
Physical & Environmental
| Dimensions (without stand) | 1,211 x 681.7 x 69.9 mm (W x H x D) |
| Weight (without stand) | 16.8 kg |
| VESA Mount | 600 x 400 mm |
| Orientation | Landscape and portrait |
| Ingress Protection | IP5x (dust protection) |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 10% to 90% |
| EMC | Class B |
Power
| Power Supply | AC 100-240 V, 50/60 Hz |
| Power Consumption (typical) | 270 W |
| Power Consumption (standby) | 0.5 W |
Specifications are taken from Samsung's published product data for this model. Where Samsung does not publish a figure for this exact model it has been left out rather than estimated.
Compatibility & Installation

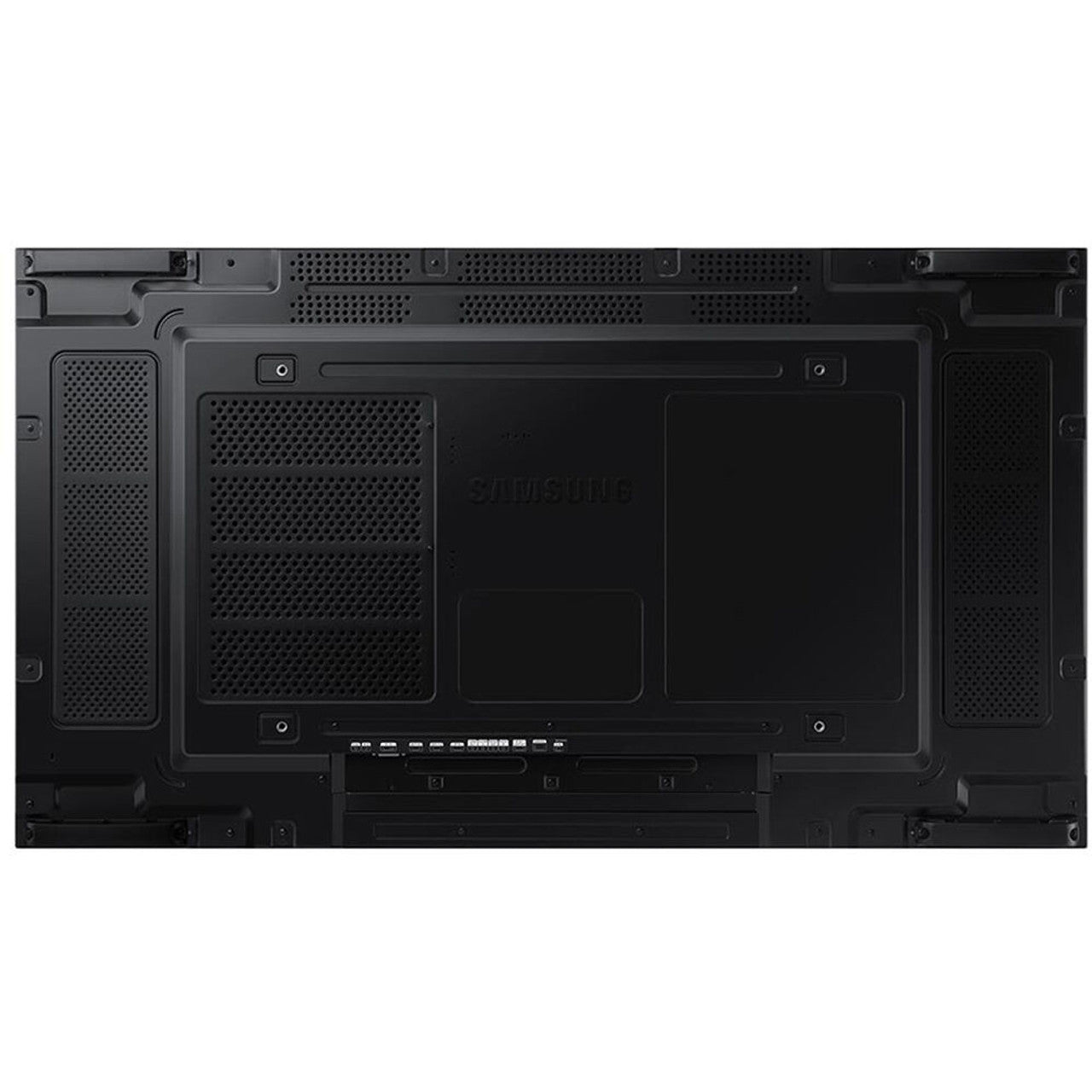

Mounting and orientation
The VM55C-R uses a 600 x 400 mm VESA pattern, weighs 16.8 kg per tile and is 69.9 mm deep, so a 3x3 loads the wall with roughly 151 kg before the mount frame and finishes close to the substrate. Samsung supports both landscape and portrait mounting. At 0.88 mm the mount does more work than on any other grade: use a purpose-built video wall system with micro-adjustment on all axes and pull-out service access, because a fraction of a millimetre out of plane is visible on a seam this fine.

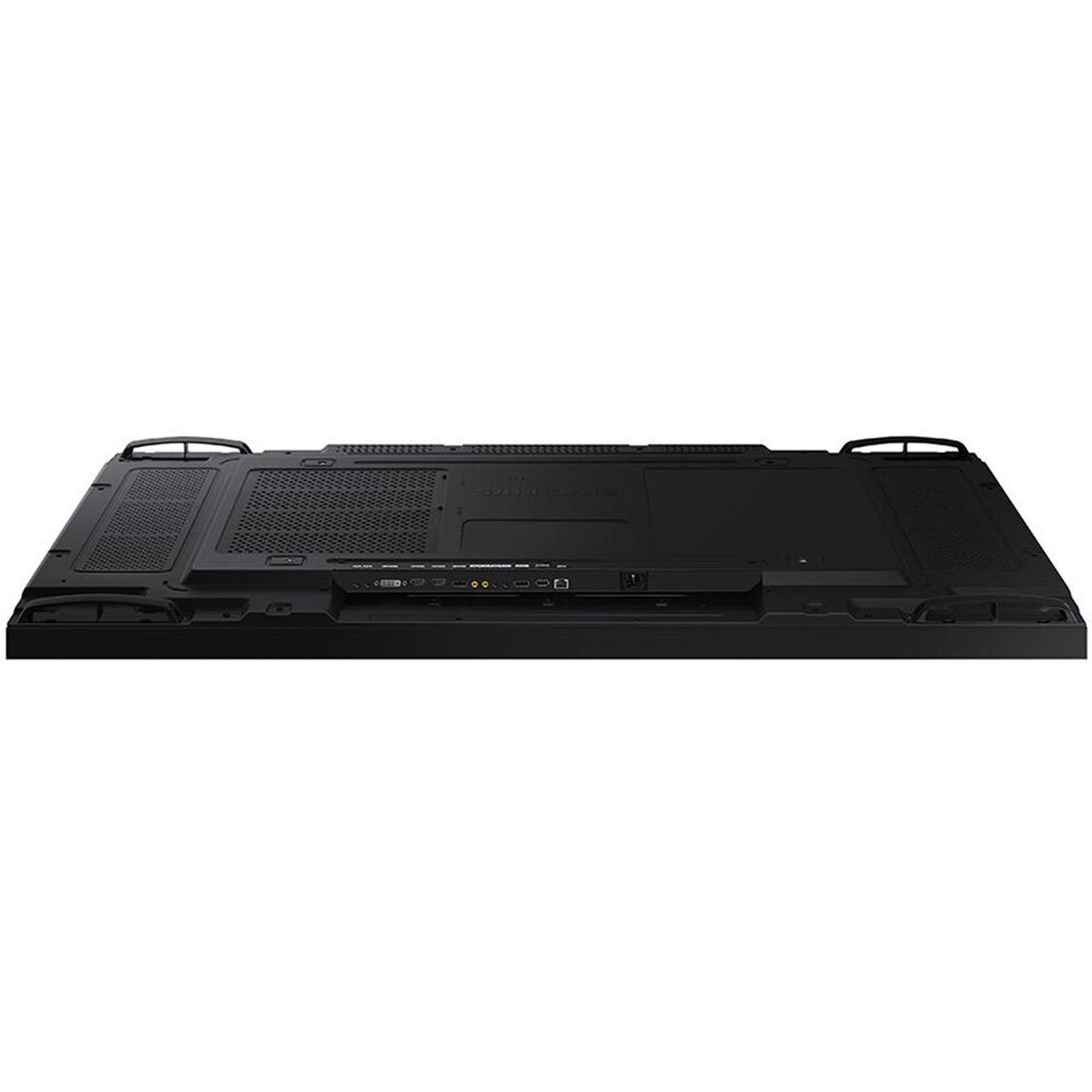

What it connects to
Each panel provides 2 x HDMI 2.0, DisplayPort 1.2 in with loop-out, DVI-D, USB, audio in and a 3.5 mm stereo mini jack out. That covers a signage player, a small-form-factor PC, a video wall processor, a matrix switcher or a camera feed from a security system. There are no internal speakers, so sound comes from an external amplifier driven from the audio out.
Daisy-chaining the wall
DisplayPort 1.2 loop-out carries the signal from tile to tile, with Samsung specifying daisy-chain support for arrays up to 10 x 10. One cable run reaches the first panel and short DP jumpers connect the rest; each panel is addressed so the built-in video wall processor renders the right slice of the image.
Network and content management
RJ45 (LAN) and RS232C In/Out give centralised control of power, input selection and picture settings across every tile via Samsung MDC. Content scheduling runs on Samsung MagicINFO from a separate Samsung Signage Player Box or a third-party player, as this model carries no embedded player. Samsung Color Expert Pro is available to match colour and brightness across the array after installation.
Related models
For the same 0.88 mm seam at 700 nit, where the wall catches daylight, see the Samsung VH55C-R. For a wider 1.74 mm seam at lower cost, see the Samsung VM55C-E or the 700 nit Samsung VH55C-E. For a value 3.5 mm wall, see the Samsung VM55B-U.
Package Contents & Samsung Video Wall Range
In the box
- Quick Setup Guide
- Warranty Card
- Power Cord
- DisplayPort cable
- Stereo-to-DB9 (RS232C IN) adapter cable
- Remote Controller and batteries
- External IR cable
Package contents follow Samsung's product data for this model; items not listed by Samsung are not claimed here.
Samsung video wall range
| Model | Size | Bezel-to-bezel |
| VH55C-R | 55" | 0.88 mm, 700 nit |
| VM55C-R (this listing) | 55" | 0.88 mm, 500 nit |
| VH55C-E | 55" | 1.74 mm, 700 nit |
| VM55C-E | 55" | 1.74 mm, 500 nit |
| VM55H-E (arriving shortly — ask us) | 55" | 1.74 mm, 500 nit |
| VM46B-U | 46" | 3.5 mm, 500 nit |
| VM55B-U | 55" | 3.5 mm, 500 nit |
Datasheet & Downloads
- Samsung Singapore — VM55C-R manuals, firmware and downloads (LH55VMCRBGBXXS)
- Samsung — VMC-R razor narrow bezel video wall product page
SourceIT can email the current data sheet revision for the VM55C-R together with a quotation, including a wall layout sketch for your 2x2, 3x3 or portrait ribbon. Tell us the array and the viewing distance and we will confirm whether 0.88 mm is the grade you actually need.
Frequently Asked Questions — Samsung VM55C-R
Is 0.88 mm really worth the premium over 1.74 mm?
Under about two metres of viewing distance, or with a single continuous image, map or data canvas spanning the array, yes — 0.88 mm is the only grade that keeps the illusion of one screen. Between two and three metres with mixed content, 1.74 mm is close enough and cheaper. Beyond three metres with motion graphics, 3.5 mm is perfectly convincing.
Does it need an external player?
Yes. This model has no embedded media player. Content comes from an external source: a Samsung Signage Player Box, a third-party signage player, a small-form-factor PC or a video wall processor.
Can I run it 24 hours a day?
Yes. Samsung rates the VM55C-R for 24/7 continuous operation and the chassis carries an IP5x dust-protection rating, with an operating envelope of 0°C to 40°C at 10 to 90 percent humidity. That suits a control room or a showroom wall that is never switched off.
Can I mount it in portrait?
Yes. Samsung supports both landscape and portrait orientation on this model, so portrait ribbons in lift lobbies, stair cores and narrow retail bays are a supported design.
How many panels can I daisy-chain?
Samsung specifies daisy-chain support up to a 10 x 10 array over DisplayPort 1.2 loop-out. A 2x2 or 3x3 needs one cable run to the first tile and short jumpers along the chain.
How does it differ from the VH55C-R?
Same 0.88 mm seam, same chassis and same ports. The VH55C-R runs at 700 nit instead of 500 nit and is the one to pick if the wall catches daylight through glazing or a skylight. For interior rooms under artificial light, the VM55C-R at 500 nit is the better value.
What do the letters in VM55C-R mean?
VM marks the 500 nit standard-brightness video wall line, as against VH at 700 nit. C is the generation. The -R suffix is the razor narrow bezel grade at 0.88 mm bezel-to-bezel; -E is the extreme narrow 1.74 mm grade and -U the ultra narrow 3.5 mm grade.
What warranty and invoicing do I get?
Every VM55C-R sold by SourceIT comes with local Singapore warranty and a GST invoice on every unit, which is what your finance and procurement teams need for claims and for local service.
