Samsung SBB-SS08FV2 Set-Back-Box Signage Player (UHD)

General

Playback

Connectivity

Physical

Power

Specifications are taken from Samsung's published product data for this model. Where Samsung does not publish a figure for this exact model it has been left out rather than estimated.

Which displays it is for

The SBB-SS08FV2 exists to add a Tizen MagicINFO player to a display that has no embedded system-on-chip. Samsung's video wall panels are exactly that case: they are built as pure display tiles with no player on board, so a source is always required. These current video wall models in our range all pair with this player — Samsung VM55C-E, Samsung VM55C-R, Samsung VH55C-E, Samsung VH55C-R and Samsung VM55H-E. It will equally drive an older Samsung panel or a third-party screen that has an HDMI input.

Mounting

At 206.4 x 29.9 x 165.6 mm and 0.6 kg the player is designed to sit behind the display or within the mount rather than on a shelf or in a rack. Check the clearance behind the panel on a slim video wall mount before you finalise the bracket, since the depth available behind a tiled array is often the tightest dimension in the whole installation. Samsung does not publish a bracket or mounting-kit part number for this model on its Singapore data, so we do not claim one here.

What it connects to

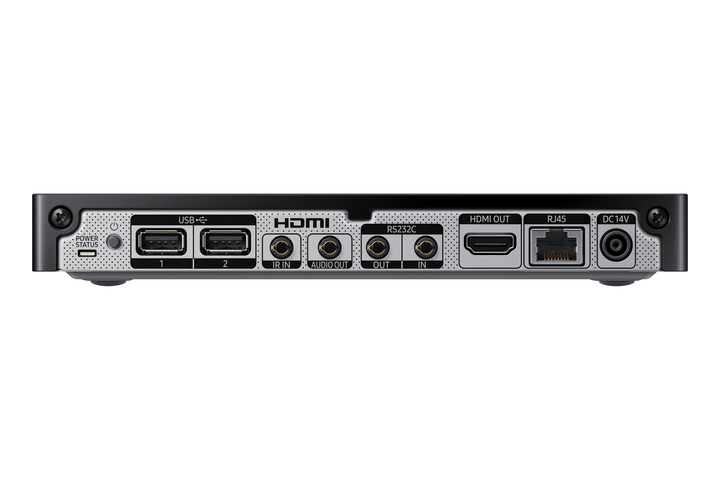

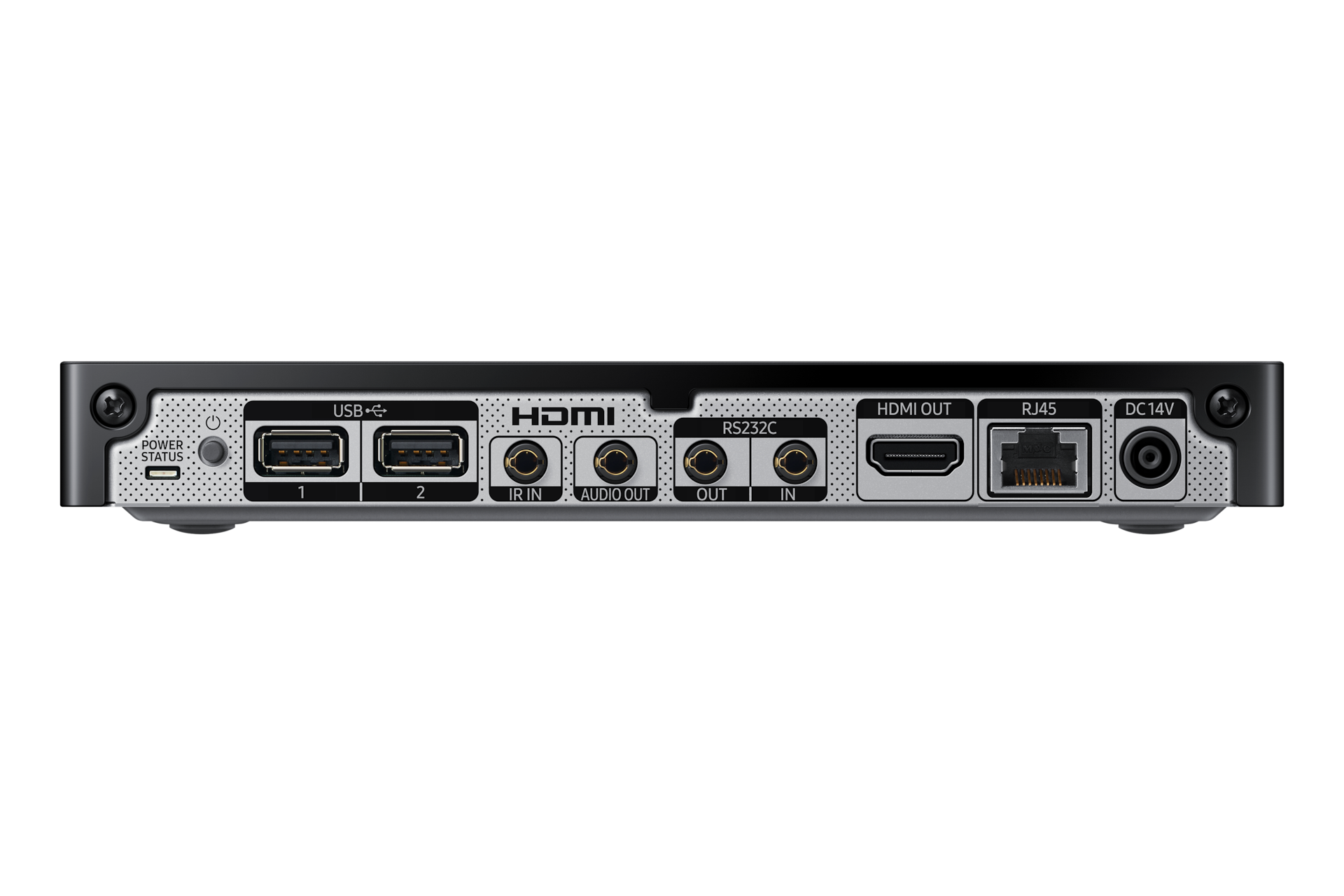

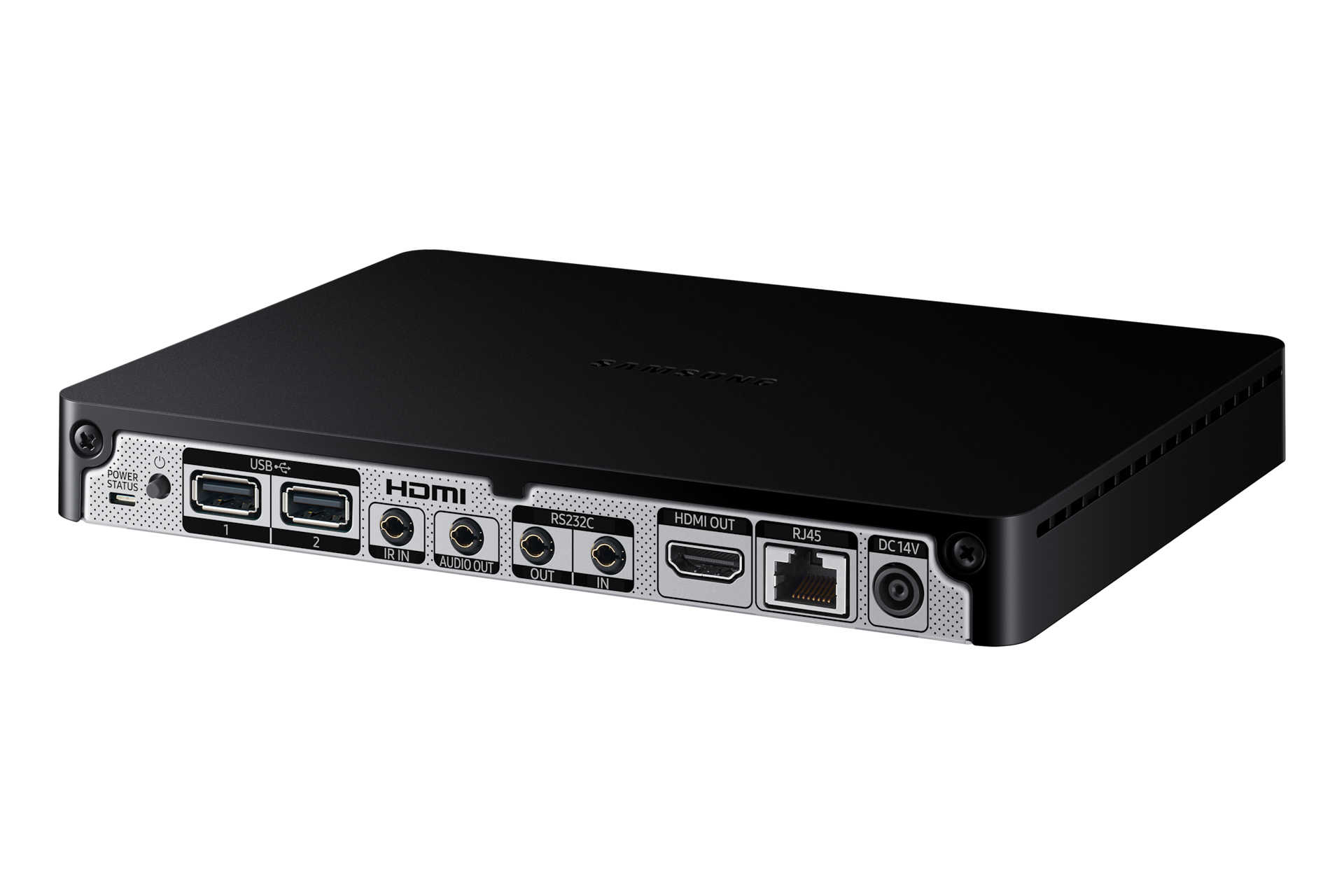

One HDMI output with HDCP 2.2 carries UHD at 60 Hz to the display. Two USB 2.0 ports take local media and peripherals, Ethernet provides a wired network path for content delivery and monitoring, and RS232C in and out give integrators serial control and daisy-chaining across a multi-screen installation. Samsung does not publish built-in Wi-Fi for this model, so plan on a wired network drop at the player position.

Content management

The player runs Tizen 7.0 with MagicINFO Premium S and Player S10, so scheduling, playlists, templates, device health monitoring and remote power control all happen from the same MagicINFO console as the rest of your Samsung estate. Storage is 8 GB eMMC with approximately 3 GB usable for content, so plan large video libraries as scheduled downloads or streams rather than as a permanent local cache.

In the box

Samsung does not publish a package contents list for the SBB-SS08FV2 on its Singapore product data, so we do not itemise one here. SourceIT will confirm the exact carton contents for the current production revision, including the power supply and any mounting hardware supplied, with your quotation.

Package contents follow Samsung's product data for this model; items not listed by Samsung are not claimed here.

Where it fits in the Samsung signage range

The SBB-SS08FV2 is the only set-back-box signage player SourceIT currently lists, so there is no sibling model to rank it against. Its role is defined by the displays it serves: the video wall panels above, which carry no player at all, and any older Samsung or third-party screen with an HDMI input. Where a display already has Tizen on board — for example the Samsung QM55C or the Samsung QB55C — this player is not needed and adds nothing.

We do not have a Samsung Singapore product or support page for the SBB-SS08FV2 (SBB-SS08FV2XXS) to link to — Samsung's Singapore site currently publishes the SBB-SSNV generation rather than this part number, so we are not linking a page for a different model. SourceIT can email the current data sheet revision for the SBB-SS08FV2 together with a quotation. Tell us which displays you are driving and how many, and we will confirm the current revision and the MagicINFO licensing with you.

What is a set-back-box and why would I need one?

It is a compact media player designed to mount behind a display rather than in a rack. You need one when the display itself has no embedded player — a video wall tile, an older panel or a third-party screen — and you want that screen managed from the same MagicINFO console as the rest of your estate.

Which of your displays actually need it?

The video wall panels: VM55C-E, VM55C-R, VH55C-E, VH55C-R and VM55H-E are all built without an embedded player. A smart signage panel with Tizen on board does not need this box.

Will it drive a non-Samsung display?

Yes. The output is standard HDMI with HDCP 2.2, so any display with an HDMI input will take the signal. That is how a mixed-brand estate gets standardised onto a single content management system.

Does it output true 4K at 60 Hz?

Yes. The SBB-SS08FV2 outputs 3840 x 2160 at 60 Hz with HDCP 2.2, so 4K content and protected sources play at full resolution and full frame rate rather than being downgraded.

How much content can I store locally?

Storage is 8 GB eMMC with approximately 3 GB usable for content. For a large video library, plan scheduled downloads or streaming from MagicINFO rather than a permanent local copy of everything.

Is it silent?

Yes. The chassis is fanless with no moving parts and a maximum draw of 23 W, so it is inaudible in a boardroom, a clinic, a hotel guest area or a quiet reception, and it will not pull dust through a sealed enclosure.

Does it have Wi-Fi?

Samsung does not publish built-in Wi-Fi for this model, so we do not claim it. Plan on the Ethernet port and a wired network drop at the player position. If wireless is essential for your site, tell us and we will confirm the options with Samsung.

What warranty and invoicing do I get?

Every SBB-SS08FV2 sold by SourceIT comes with local Singapore warranty and a GST invoice on every unit, which is what your finance and procurement teams need for claims and for local service.
