Samsung QB24C-T 24" FHD Touch Small Signage Display
PRODUCT DESCRIPTION
Samsung QB24C-T 24" Touch Small Signage Display (LH24QBCTBGCXXS) - Local Warranty
A 24-Inch Interactive Panel for Counters, Lobbies and Self-Service Points

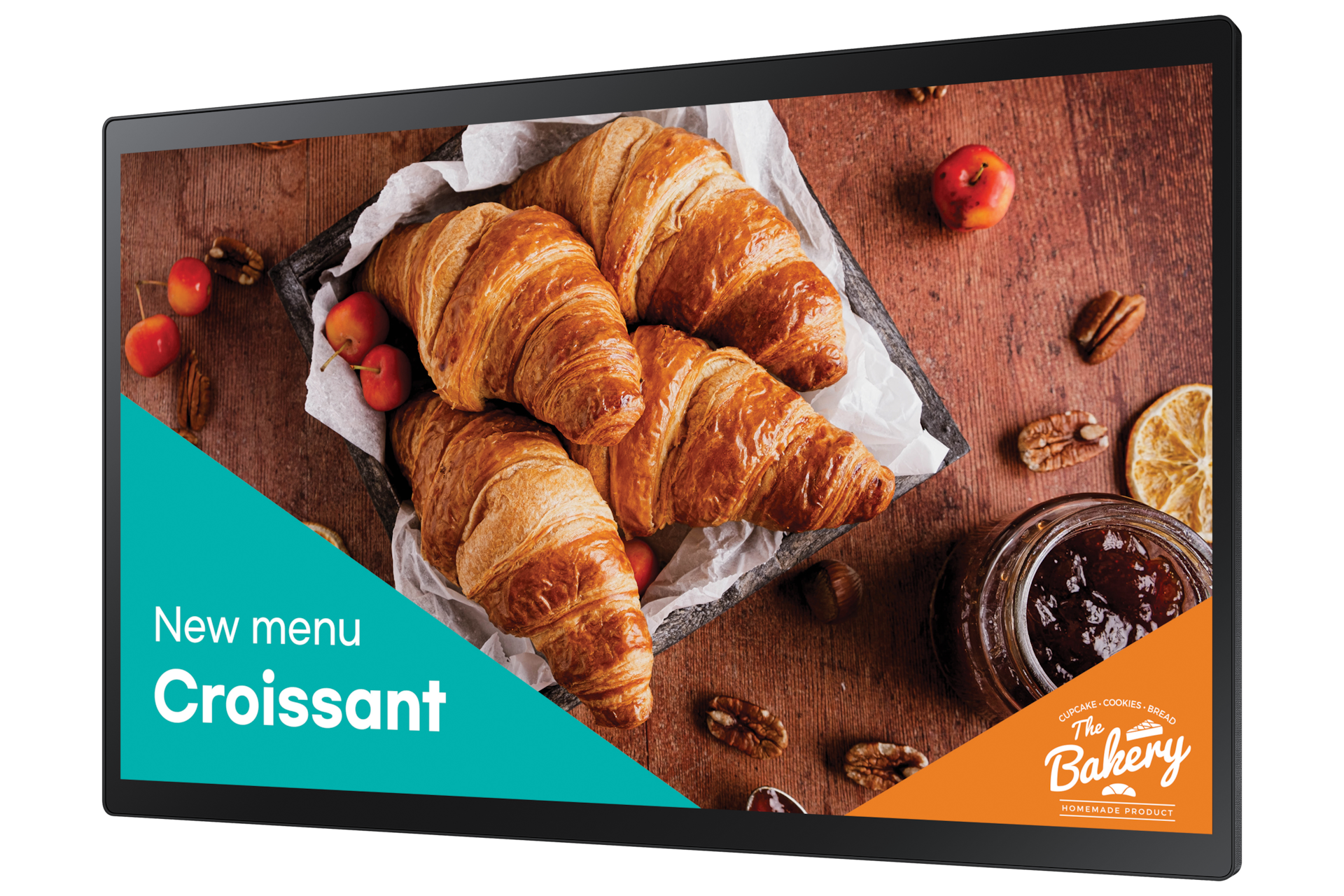

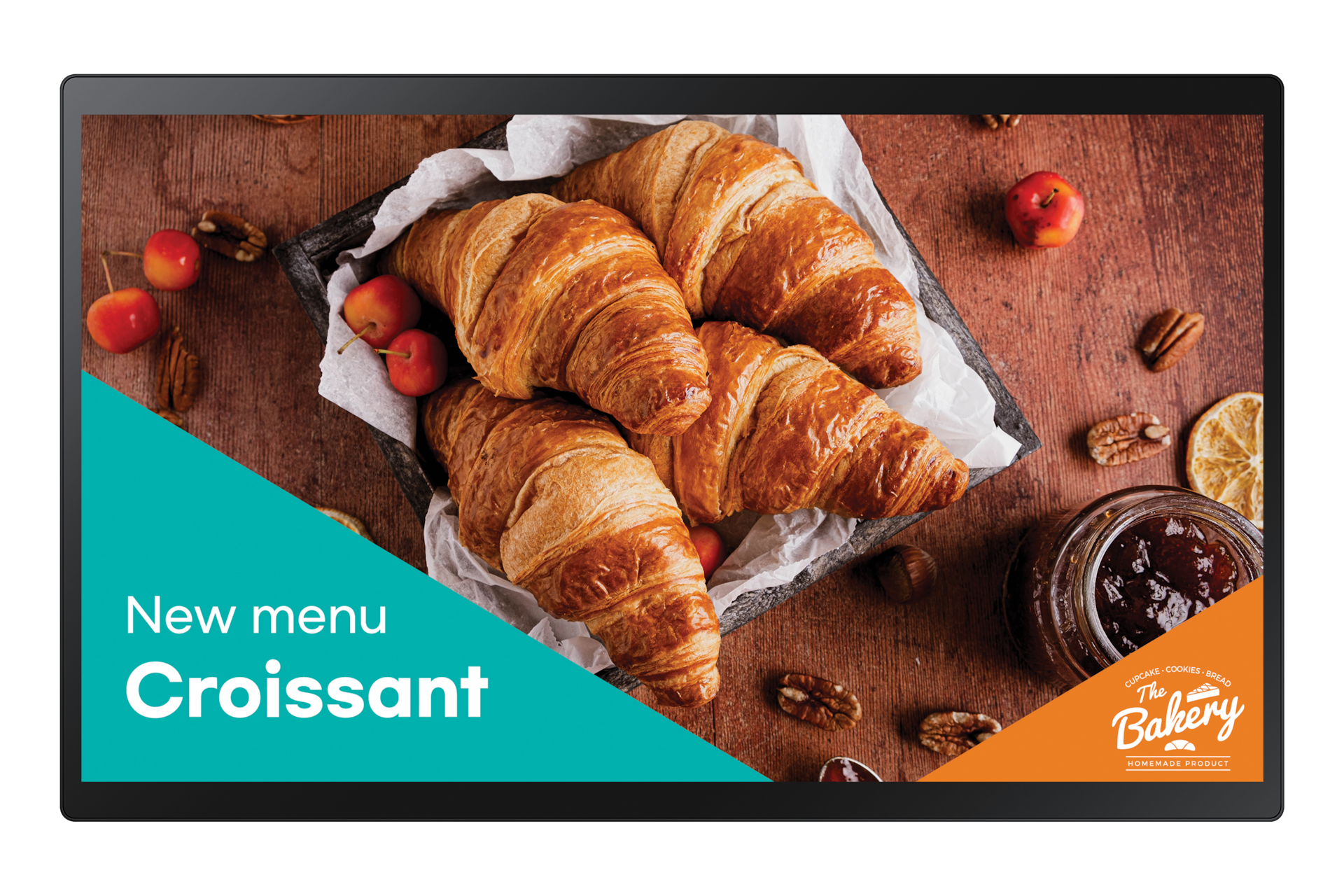

The Samsung QB24C-T gives you a 24-inch Full HD interactive surface in a chassis only 34.6 mm deep and 4.0 kg in weight. That combination suits arm-mounted counter positions, recessed kiosk enclosures and wall-mounted information points where a larger display would dominate the space but a tablet would be too small to read from across a room. At 547.9 x 334.4 mm it gives a genuine working area for forms, maps and menus without taking over the counter it sits on.
10-Point Capacitive Touch on a 250-Nit ADS Panel
A 10-point capacitive touch layer supports multi-finger gestures, so menus, forms and wayfinding maps respond the way visitors expect from their own devices. The ADS panel is rated at 250 nit without protective glass with a 1000:1 contrast ratio, which is well matched to indoor lighting at arm's length, and the wide viewing characteristics of ADS keep the image consistent when two people use the QB24C-T side by side at a counter. The display is rated for 16 hours a day, seven days a week of commercial operation.
IP5x Dust Rating and a Centre IR Receiver Built Into the Panel
An IP5x dust rating lets the QB24C-T hold up in environments where fine particulate is a fact of life, from workshop counters and warehouse desks to busy retail floors. The infrared receiver is built into the centre of the panel itself, so the display responds to a remote without the external IR extender cable that small-format signage usually needs dangling from the bezel — a small detail that keeps a public-facing installation looking finished. The unit also meets EMC Class B limits for commercial and light-industrial settings.
Tizen 7.0 With Built-In Wi-Fi for Player-Free Deployment
Tizen 7.0 with 8 GB of onboard flash runs content directly on the panel, removing the cost and the cabling of an external media player at every site. Built-in Wi-Fi with Bluetooth means the QB24C-T can join your network without a data drop at the fixture, and RJ-45 Ethernet is fitted where a wired path is preferred. Note that no stand is supplied, so plan for a 100 x 100 mm VESA wall plate, arm or kiosk bracket as part of the installation.
Samsung QB24C-T Datasheet — Technical Specifications
General
| Product | Samsung QB24C-T 24" Touch Small Signage Display |
| Part Number (SKU) | LH24QBCTBGCXXS |
| Display Type | Small-format interactive commercial signage |
| Operating Time | 16/7 commercial operation |
| Platform | Tizen 7.0 |
| IR Receiver | Centre IR built into the panel (no IR extender cable required) |
| Compliance | EMC Class B |
| Local Warranty (Singapore) | Supplied by SourceIT with GST invoice |
Display
| Screen Size | 24 inch (23.8" panel) |
| Resolution | 1920 x 1080 (Full HD) |
| Brightness | 250 nit (without protective glass) |
| Contrast Ratio | 1000:1 |
| Panel Type | ADS |
| Touch | 10-point capacitive multi-touch |
Video & Audio
| Audio Output | Stereo mini-jack out |
| Audio Input | Not fitted |
Smart Platform & Management
| Operating System | Tizen 7.0 |
| Internal Storage | 8 GB flash |
| External Player | Not required — content plays on the panel |
| Serial Control | RS232 |
Connectivity
| HDMI | 1 x HDMI 1.4 |
| USB | 1 x USB |
| LAN | 1 x Ethernet (RJ-45) |
| Serial | RS232 |
| Wi-Fi | Built-in |
| Bluetooth | Supported |
Physical & Environmental
| Dimensions (W x H x D) | 547.9 x 334.4 x 34.6 mm |
| Weight | 4.0 kg |
| Ingress Protection | IP5x dust rated |
| VESA Mount | 100 x 100 mm |
| Stand | No stand included — VESA mount or arm required |
| Operating Temperature | 0 to 40°C |
| Operating Humidity | 10 to 80%, non-condensing |
| Colour | Black |
Power
| Typical Power Consumption | 38.5 W |
| Sleep Mode Power | 0.5 W |
Specifications are taken from Samsung's published product data for this model. Where Samsung does not publish a figure for this exact model it has been left out rather than estimated.
Compatibility & Installation
Mounting and orientation

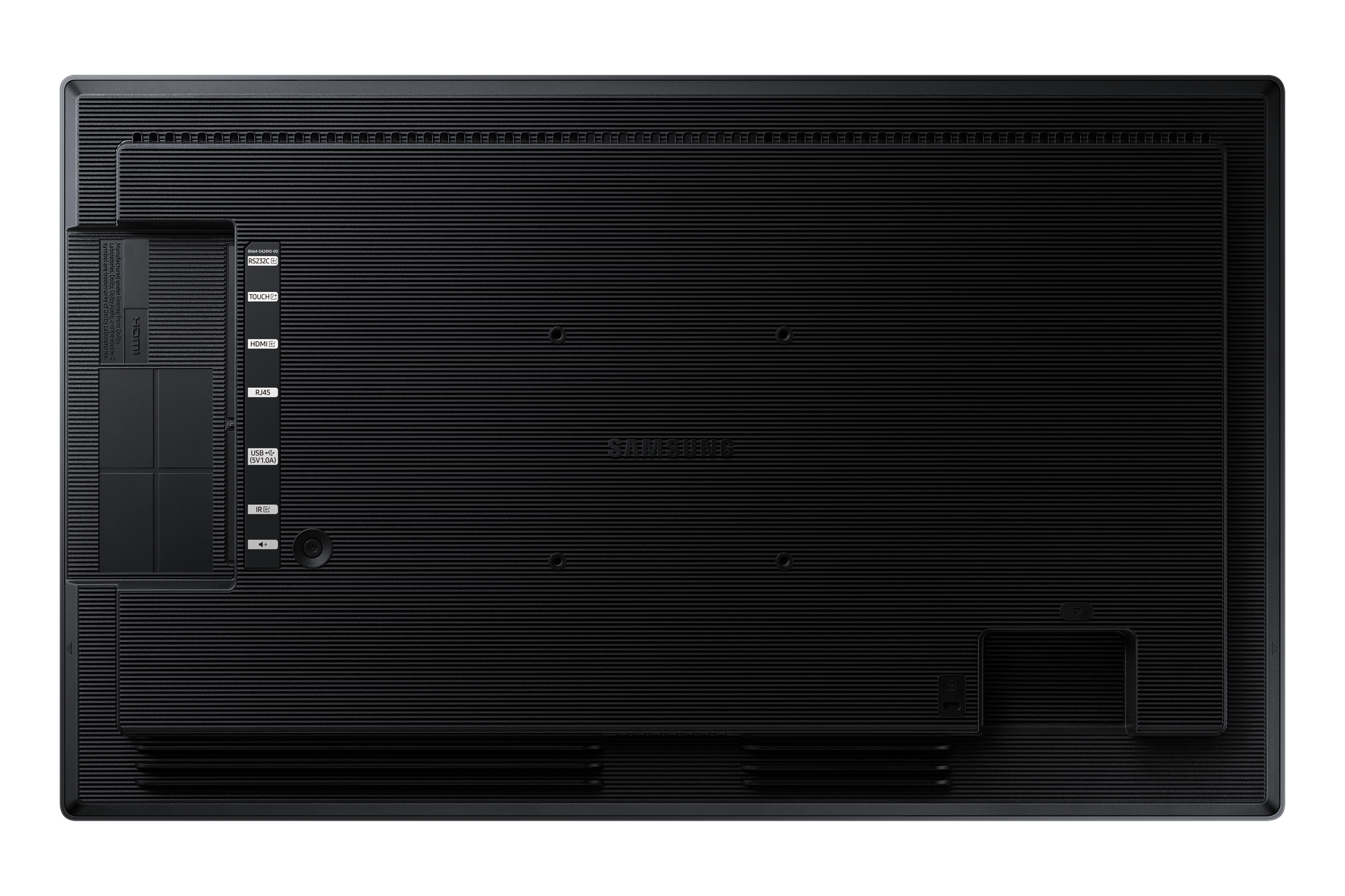

The QB24C-T uses a standard 100 x 100 mm VESA pattern. No stand is supplied with this model, so a wall plate, a counter arm or a kiosk bracket needs to be specified as part of the installation. At 4.0 kg and 34.6 mm deep it suits monitor arms and shallow joinery recesses without special fixings. The IP5x dust rating makes it a sensible choice for shop floors, workshops and warehouse counters as well as clean office environments.
What it connects to

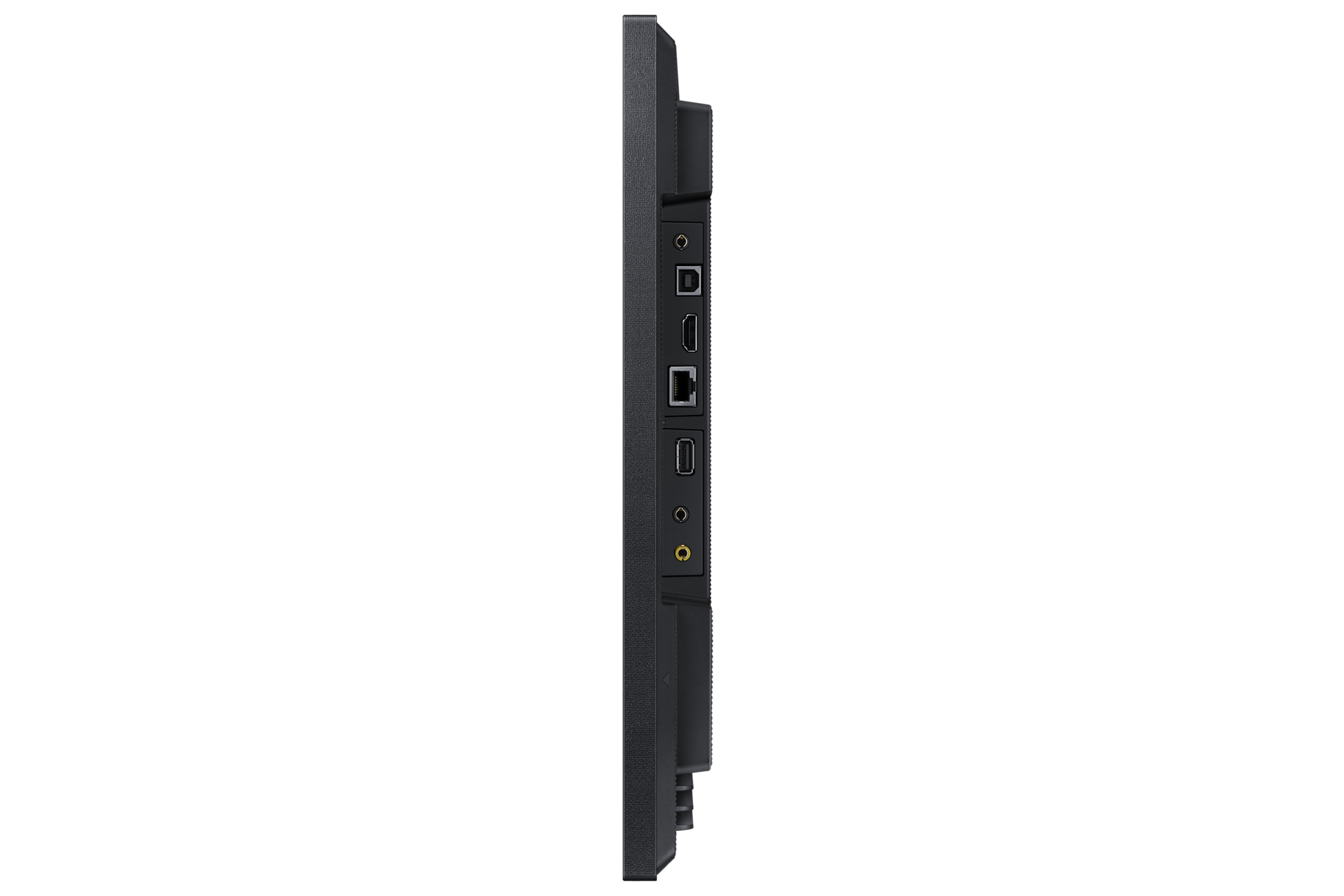

One HDMI 1.4 input takes a laptop, a room controller, a signage stick or a camera feed. One USB port covers a content drive or a peripheral such as a barcode scanner. RJ-45 Ethernet provides a wired network path and built-in Wi-Fi with Bluetooth covers the wireless case. Audio leaves over a stereo mini-jack output; there is no audio input on this model. RS232 gives a serial control path from a room controller.
Network and content management
Tizen 7.0 with 8 GB of flash runs scheduled content and interactive layouts on the panel itself, so no external media player is needed at each fixture. Content can be delivered over Ethernet or Wi-Fi, and the centre IR receiver means a remote works without an extender cable hanging from the bezel — useful where the display is public-facing and must look finished.
Related models
For a smaller interactive surface at counter or door level, see the Samsung QB13C-T at 13 inches. For a larger one with a brighter anti-glare panel, see the Samsung QM32C-T at 32 inches.
Package Contents & Samsung Touch Small Signage Range
In the box
- Samsung QB24C-T 24" touch small signage display
- No stand supplied — a VESA mount, arm or kiosk bracket is required
Package contents follow Samsung's product data for this model; items not listed by Samsung are not claimed here.
Samsung touch small signage range
| Model | Size |
| QB13C-T | 13 inch |
| QB13R-T | 13 inch |
| QB24C-T (this listing) | 24 inch |
| QB24R-T | 24 inch |
| QM32C-T | 32 inch |
| QM32R-T | 32 inch |
| QM43B-T | 43 inch |
| QM55B-T | 55 inch |
Datasheet & Downloads
SourceIT can email the current data sheet revision for the QB24C-T together with a quotation. Ask for it when you enquire and we will send the latest published version along with pricing and lead time.
Frequently Asked Questions — Samsung QB24C-T
What does the "-T" suffix mean?
It marks a touch variant. The QB24C-T is the 24-inch small signage panel with a 10-point capacitive multi-touch layer fitted, for self-service check-in, ordering, wayfinding and interactive directories.
Is a stand included?
No. Samsung does not supply a stand with this model, so a 100 x 100 mm VESA wall plate, monitor arm or kiosk bracket must be specified as part of the installation. Plan for it in the project cost rather than discovering it on site.
Is 250 nit bright enough?
For an indoor, arm's-length interactive position it generally is — the panel is read from close range under normal office or retail lighting rather than from across a bright atrium. The figure quoted is without protective glass; fitting the display behind glass in an enclosure will reduce it. For a brighter interactive panel, look at the 32-inch QM32C-T.
Can it run 24 hours a day?
It is rated for 16 hours a day, seven days a week. That covers extended retail trading and full office days. A position that must never power down calls for a 24/7-rated model.
What does the IP5x rating cover?
IP5x is a dust-protection rating — it means ingress of dust is limited enough not to interfere with operation. It is not a water rating, so the QB24C-T is not intended for outdoor or wash-down environments.
Why does the centre IR receiver matter?
Small-format signage usually requires an external IR extender cable taped to the bezel so a remote can reach the receiver. The QB24C-T has the receiver built into the centre of the panel, so nothing hangs off a public-facing installation.
Does it need an external media player?
No. Tizen 7.0 with 8 GB of flash runs content and interactive layouts on the panel itself, delivered over Ethernet or built-in Wi-Fi.
What warranty applies and will I get a GST invoice?
Every unit sold by SourceIT carries local Singapore warranty and is supplied with a GST invoice. Warranty is handled locally rather than through a parallel-import channel.
