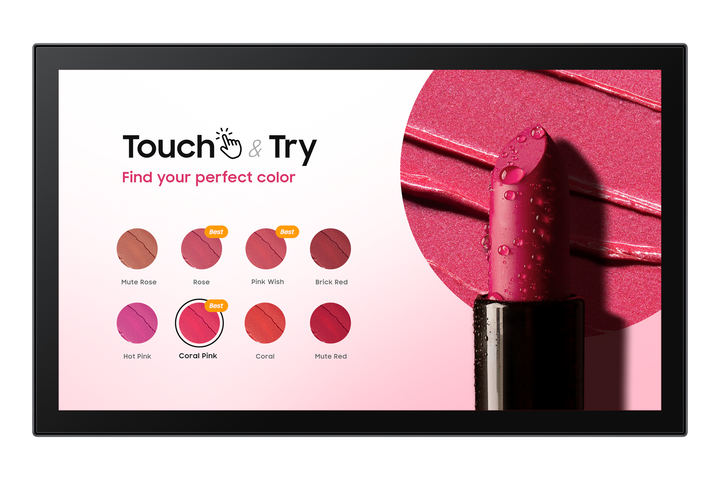

Samsung QB13C-T 13" FHD Touch Small Signage Display
PRODUCT DESCRIPTION
Samsung QB13C-T 13" Touch Small Signage Display (LH13QBCTBGBXXS) - Local Warranty
Interactive 13-Inch Signage for Counters, Desks and Kiosks
The Samsung QB13C-T is a 13-inch Full HD touch signage display built for the places a full-size panel will never fit. At 322 x 193.5 mm, 22 mm deep and just 1.1 kg, it sits comfortably on a service counter, a reception desk, a meeting-room door frame or inside a slim kiosk enclosure. The difference from a display-only panel is what visitors do with it: instead of reading a message and walking on, they check in, look something up or complete a form at the point where they are already standing.
10-Point Capacitive Multi-Touch on an ADS Panel
A 10-point capacitive multi-touch layer over the ADS panel supports the pinch, swipe and multi-finger gestures people already bring from their phones, so self-service menus, check-in flows and product finders feel immediate rather than instructional. A 600:1 static contrast ratio with 10,000:1 dynamic contrast keeps text crisp and images punchy at arm's length, and the wide viewing characteristics of ADS hold colour accuracy when the QB13C-T is used from off to one side or by two people at once.
Dual-Band Wi-Fi and Wired Connectivity in a 22 mm Chassis
Built-in dual-band Wi-Fi covering 2.4 GHz and 5 GHz plus Bluetooth means the QB13C-T can go live without a data drop at the fixture, which is usually the deciding factor for small-format placements in an existing space. Where a cable is available, RJ-45 Ethernet is there as well, alongside one HDMI 1.4 input and two USB ports for a local source, a peripheral or a touch-driven accessory. An RS232 connection over stereo mini-jack provides a serial control path.
Tizen 7.0 With SmartThings Pro and Samsung VXT
Tizen 7.0 with 8 GB of onboard flash runs your content directly on the panel, so no external media player is needed at each site. SmartThings Pro and the Samsung VXT cloud CMS let your team schedule content, push updates, check status and power screens on or off across every location from one console. ENERGY STAR v8.0 certification and EPEAT Silver registration help the QB13C-T sit within corporate sustainability reporting and green procurement requirements.
Samsung QB13C-T Datasheet — Technical Specifications
General
| Product | Samsung QB13C-T 13" Touch Small Signage Display |
| Part Number (SKU) | LH13QBCTBGBXXS |
| Display Type | Small-format interactive commercial signage |
| Operating Time | 16/7 commercial operation |
| Platform | Tizen 7.0 |
| Certifications | ENERGY STAR v8.0, EPEAT Silver |
| Local Warranty (Singapore) | Supplied by SourceIT with GST invoice |
Display
| Screen Size | 13 inch |
| Resolution | 1920 x 1080 (Full HD) |
| Panel Type | ADS |
| Contrast Ratio | 600:1 |
| Dynamic Contrast Ratio | 10,000:1 |
| Touch | 10-point capacitive multi-touch |
Video & Audio
| Audio Output | Stereo mini-jack out |
Smart Platform & Management
| Operating System | Tizen 7.0 |
| Internal Storage | 8 GB flash |
| Remote Management | SmartThings Pro |
| Content Management | Samsung VXT cloud CMS |
| External Player | Not required — content plays on the panel |
| Serial Control | RS232 over stereo mini-jack |
Connectivity
| HDMI | 1 x HDMI 1.4 |
| USB | 2 x USB |
| LAN | 1 x Ethernet (RJ-45) |
| Serial | RS232 over stereo mini-jack |
| Wi-Fi | Dual-band 2.4 GHz + 5 GHz |
| Bluetooth | Supported |
Physical & Environmental
| Dimensions (W x H x D) | 322.0 x 193.5 x 22.0 mm |
| Weight | 1.1 kg |
| VESA Mount | 100 x 100 mm |
| Operating Temperature | 0 to 40°C |
| Operating Humidity | 10 to 80%, non-condensing |
| Colour | Black |
Power
| Power Supply | AC 100-240 V, 50/60 Hz |
| Sleep Mode Power | 0.5 W |
Specifications are taken from Samsung's published product data for this model. Where Samsung does not publish a figure for this exact model it has been left out rather than estimated.
Compatibility & Installation
Mounting and orientation

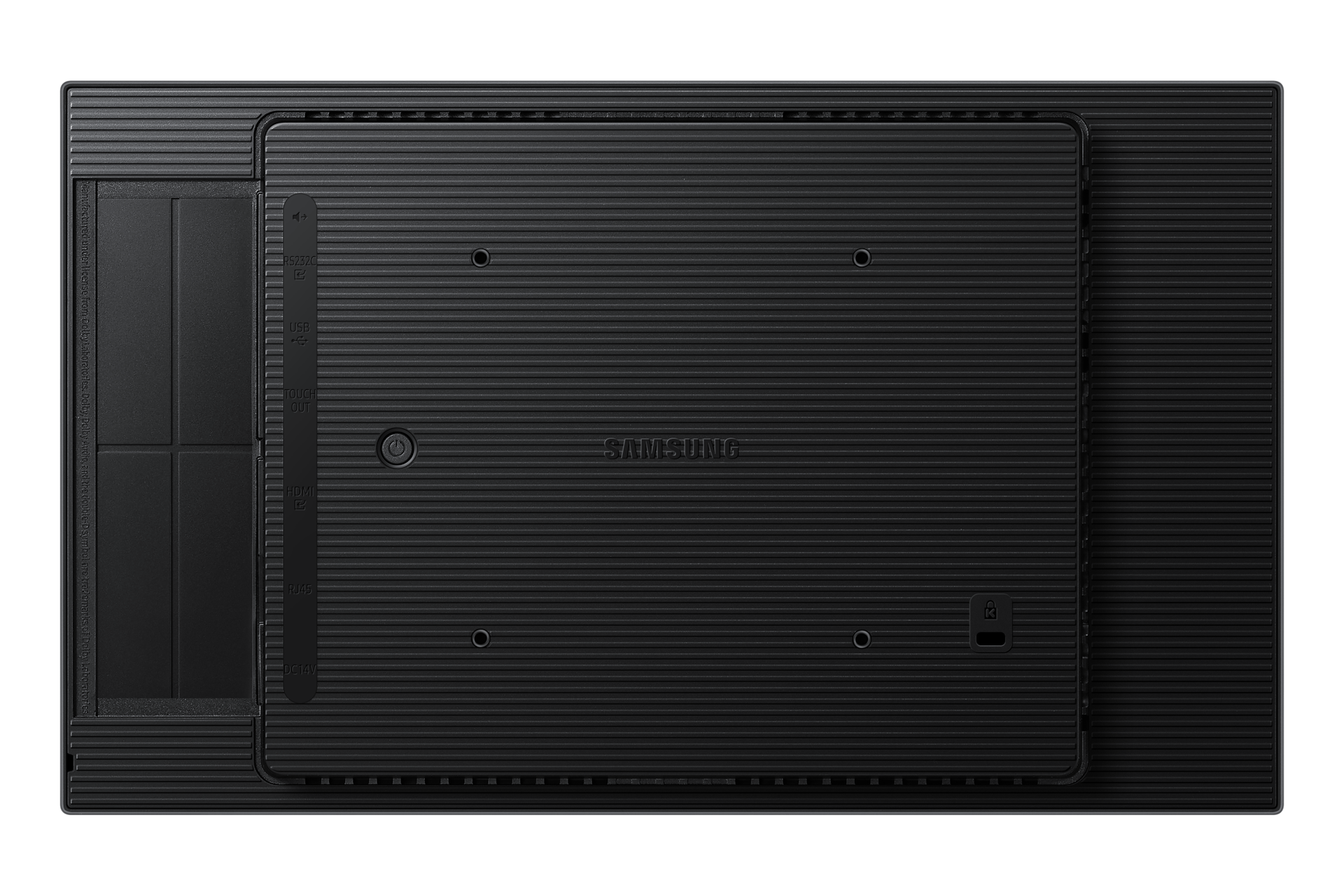

The QB13C-T uses a standard 100 x 100 mm VESA pattern, so it fits small-format wall plates, counter arms, desk stands and kiosk brackets without a custom adapter. Samsung supplies a pair of simple stands in the box for desk and counter placement. At 22 mm deep and 1.1 kg it adds very little to a joinery recess, and the light weight means a counter arm or a door-frame plate does not need reinforcement.
What it connects to

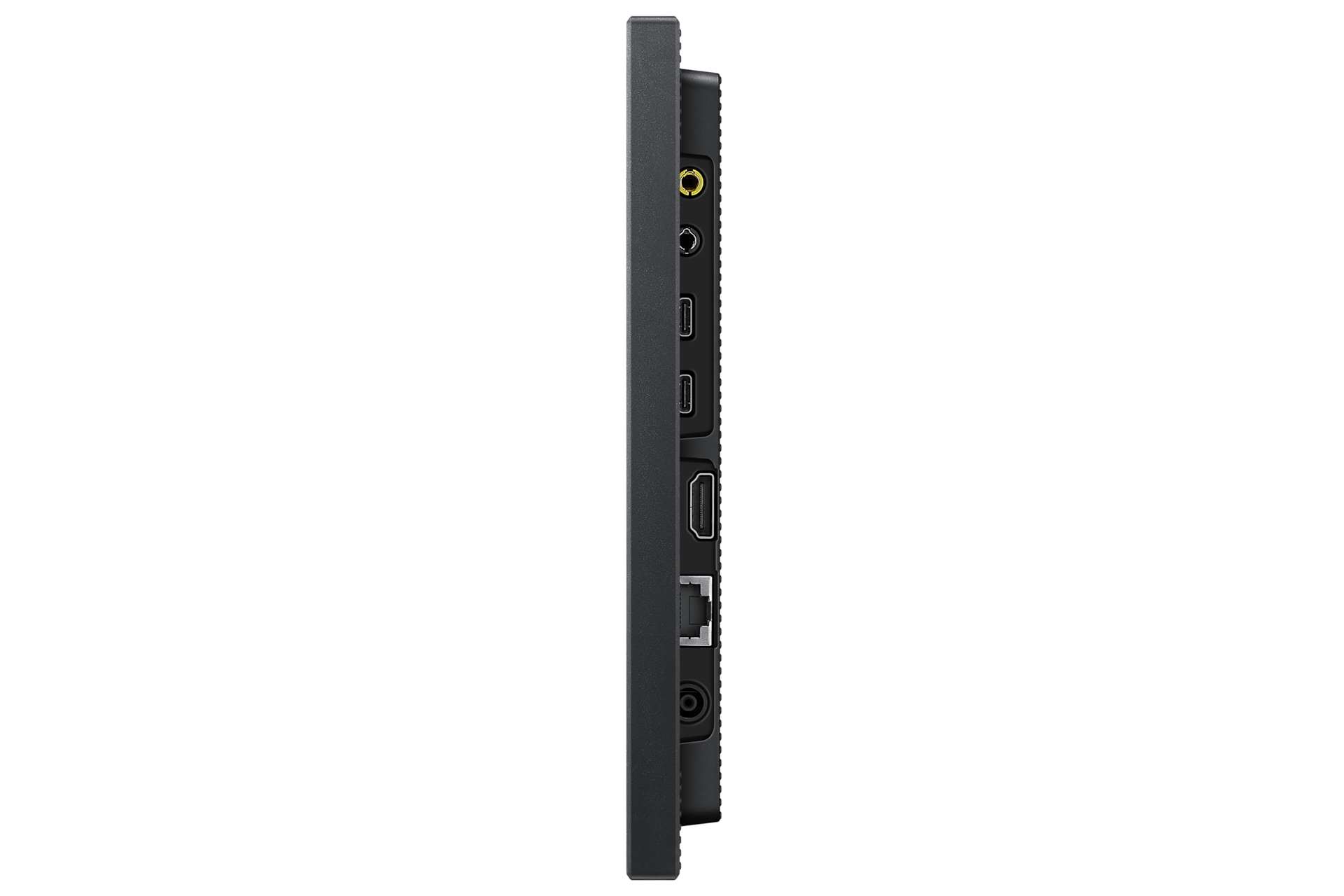

One HDMI 1.4 input accepts a laptop, a room controller, a signage stick or a camera feed. Two USB ports cover a content drive, a peripheral or a touch-driven accessory such as a scanner. RJ-45 Ethernet provides a wired network path where a data drop exists, and dual-band Wi-Fi covers the more common case where it does not. Audio leaves over a stereo mini-jack output, and RS232 over stereo mini-jack gives a serial control path.
Network and content management
Tizen 7.0 with 8 GB of flash runs scheduled content and interactive layouts on the display itself, so no external media player is required at each fixture. Samsung VXT is the cloud CMS for building playlists, scheduling by site and daypart, and pushing content across the estate. SmartThings Pro adds device management: status monitoring, firmware updates and remote power on and off from one console, which is what keeps a multi-site rollout of small screens manageable.
Related models
Where the placement only needs to be read rather than touched, the Samsung QB13C is the display-only panel at the same 13-inch size. For a larger interactive surface, see the Samsung QB24C-T at 24 inches.
Package Contents & Samsung Touch Small Signage Range
In the box
- Samsung QB13C-T 13" touch small signage display
- Simple stand (2 pieces)
Package contents follow Samsung's product data for this model; items not listed by Samsung are not claimed here.
Samsung touch small signage range
| Model | Size |
| QB13C-T (this listing) | 13 inch |
| QB13R-T | 13 inch |
| QB24C-T | 24 inch |
| QB24R-T | 24 inch |
| QM32C-T | 32 inch |
| QM32R-T | 32 inch |
| QM43B-T | 43 inch |
| QM55B-T | 55 inch |
Datasheet & Downloads
SourceIT can email the current data sheet revision for the QB13C-T together with a quotation. Ask for it when you enquire and we will send the latest published version along with pricing and lead time.
Frequently Asked Questions — Samsung QB13C-T
What does the "-T" suffix mean?
It marks a touch variant. The QB13C is the display-only panel and the QB13C-T is the same 13-inch format with a 10-point capacitive multi-touch layer fitted, for check-in flows, product finders and interactive wayfinding.
How many touch points does it support?
Ten. That covers pinch, swipe and multi-finger gestures, and it allows two people to interact with the panel at the same time without the display losing track of either.
Is it rated for round-the-clock operation?
It is rated for 16 hours a day, seven days a week, which covers extended retail trading hours and full office days. For a position that must run continuously without powering down, choose a model rated 24/7.
Does it need an external media player?
No. Tizen 7.0 with 8 GB of flash runs content and interactive layouts on the panel itself, so there is no player to power, mount or maintain at each fixture.
Will it work without a network cable at the fixture?
Yes. Dual-band Wi-Fi covering 2.4 GHz and 5 GHz is built in, plus Bluetooth. An RJ-45 Ethernet port is fitted for sites where a wired drop is available or required by IT policy.
Is a stand included?
Yes. Samsung supplies a pair of simple stands with this model for desk and counter placement. A 100 x 100 mm VESA pattern is also provided for wall plates, counter arms and kiosk brackets.
How do I manage a fleet of these across several sites?
Samsung VXT is the cloud CMS for playlists, scheduling and content delivery, and SmartThings Pro handles device management including status monitoring, firmware updates and remote power. Both operate across sites from one console.
What warranty applies and will I get a GST invoice?
Every unit sold by SourceIT carries local Singapore warranty and is supplied with a GST invoice. Warranty is handled locally rather than through a parallel-import channel.
