Samsung QB24C 24" FHD Touch Commercial Monitor
PRODUCT DESCRIPTION
Samsung QB24C 24" FHD Small Commercial Signage Display (LH24QBCEBGCXXS) - Local Warranty
A 24-Inch Signage Panel for Counters, Desks and Kiosk Enclosures

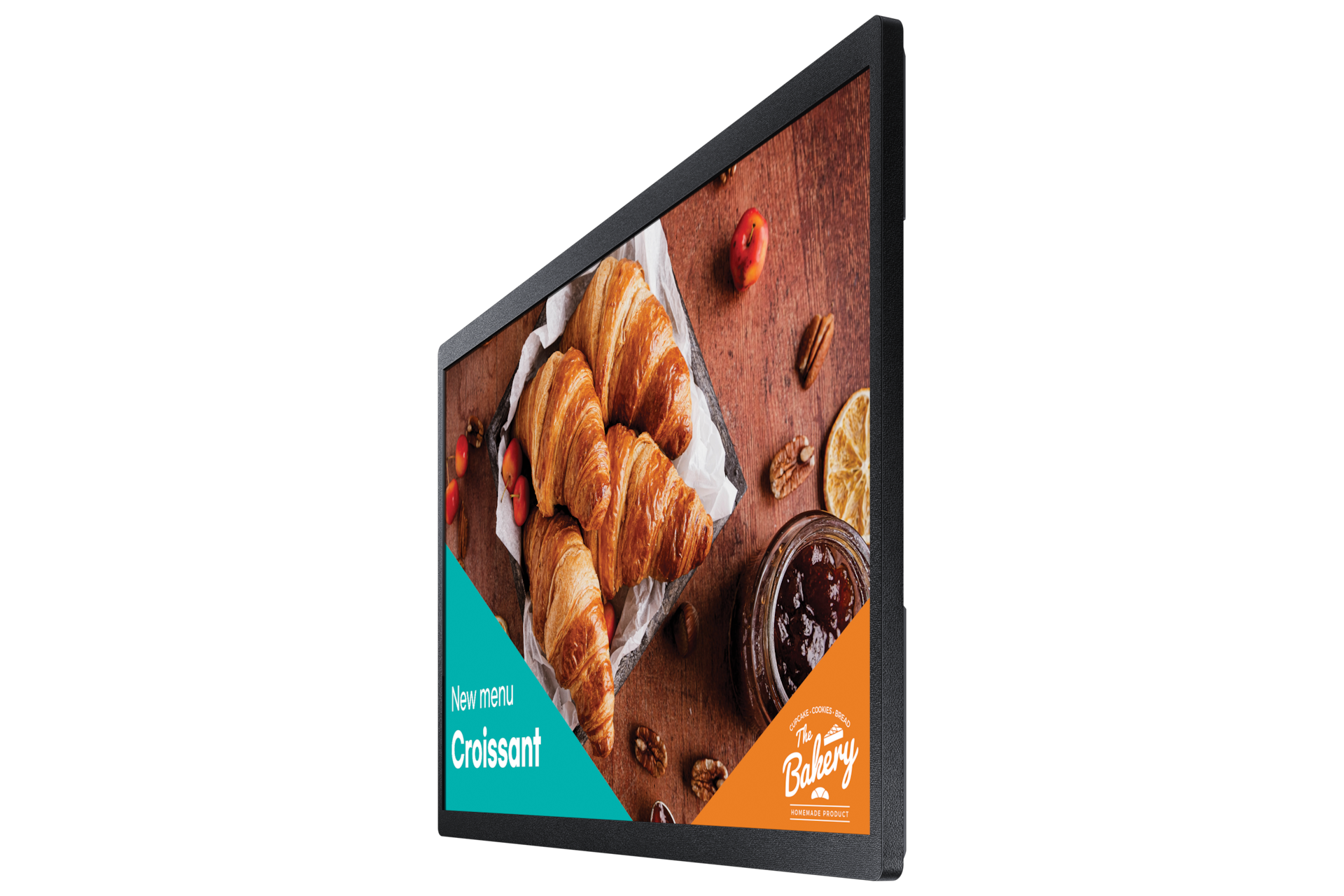

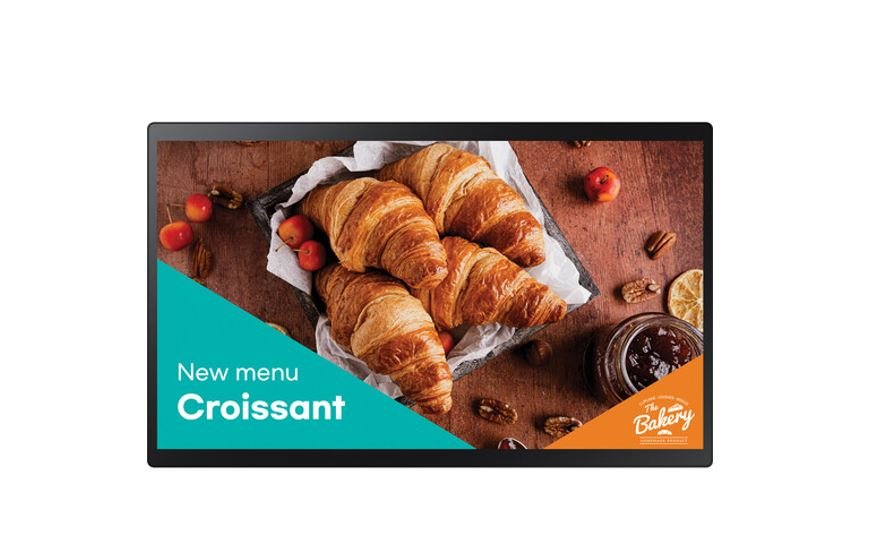

The QB24C is the size you use when a full signage panel will not fit: a service counter, a teller window, a reception desk, a self-service kiosk enclosure or a meeting-room door. At 547.9 x 334.4 x 31.8 mm and 3.0 kg it mounts on a 100 x 100 VESA pattern almost anywhere, including under-counter arms and joinery cut-outs. The 1,920 x 1,080 ADS panel gives 178-degree viewing both ways, so it stays readable to someone standing beside the counter rather than square in front of it.
Tizen 7.0 Built In, So the Kiosk Does Not Need a PC
Small-format placements are exactly where an external media player hurts most: there is no room for it, no spare outlet and often no service access once the joinery is closed. Tizen 7.0 with 8 GB of onboard storage runs the content on the display itself. Schedule from Samsung VXT in the cloud, push over the network, and the panel plays on its own. For a bank branch, a clinic or a quick-service counter rolling out twenty of these, that removes twenty small computers from the bill of materials and from the support queue.
16/7 Commercial Rating in a Desktop-Sized Chassis
A 24-inch office monitor is not built to run shop hours every day, and its warranty will usually say so. The QB24C is a commercial signage display rated by Samsung for 16 hours a day, seven days a week, with an IP5X dust rating on the chassis that suits counter and kiosk environments where a sealed office is not on offer. It draws 38.5 W in operation and 0.5 W asleep, which keeps a fleet of counter screens from becoming a noticeable line on the electricity bill.
Wired or Wireless, Landscape or Portrait, Managed Remotely
One HDMI 1.4 input takes a local source where you have one, one USB port handles local media, and RJ45, dual-band Wi-Fi and Bluetooth cover the network side - useful because a counter position often has no data drop. RS232C and IR in give an integrator wired control. The even-sided chassis mounts in landscape or portrait, so a tall queue-number or door-plate layout is a supported orientation. SmartThings Pro handles remote power scheduling, status and firmware across every counter screen from one console.
Samsung QB24C Datasheet — Technical Specifications
General
| Product | Samsung QB24C Small Signage |
| Part Number (SKU) | LH24QBCEBGCXXS |
| Display Type | Small-format commercial signage display |
| Operating Time | 16 hours a day, 7 days a week (16/7) |
| Platform | Tizen 7.0 |
| Local Warranty (Singapore) | Supplied by SourceIT with GST invoice |
Display
| Screen Size | 23.8" (24" class) |
| Panel Type | ADS |
| Resolution | 1,920 x 1,080 (Full HD, 16:9) |
| Brightness | 250 nit (typical) |
| Contrast Ratio | 1,000:1 |
| Viewing Angle | 178° horizontal / 178° vertical |
| Response Time | 14 ms |
| Colour Gamut | NTSC 72% |
| Pixel Pitch | 0.2745 x 0.2745 mm |
| Bezel Width | 17.9 mm top and bottom, 9.4 mm sides |
| Orientation | Landscape and portrait |
Video & Audio
| HDMI Input | HDMI 1.4, up to 1,920 x 1,080 |
| Audio Output | Stereo mini jack |
Smart Platform & Management
| Operating System | Tizen 7.0 |
| Internal Storage | 8 GB |
| Content Management | Samsung VXT cloud CMS / MagicINFO ready |
| Device Management | SmartThings Pro |
Connectivity
| HDMI | 1 x HDMI 1.4 |
| USB | 1 x USB |
| Network | RJ45 (LAN) |
| Wi-Fi | Dual band, 2.4 GHz and 5 GHz |
| Bluetooth | Yes |
| External Control | RS232C |
| Infrared | IR in |
Physical & Environmental
| Set Dimensions (W x H x D) | 547.9 x 334.4 x 31.8 mm |
| Set Weight | 3.0 kg |
| VESA Mount Pattern | 100 x 100 mm |
| Dust Protection | IP5X |
| Operating Temperature | 0 °C to 40 °C |
| Operating Humidity | 10% to 80%, non-condensing |
Power
| Power Supply | AC 100-240 V, 50/60 Hz |
| Power Consumption (on mode) | 38.5 W |
| Power Consumption (sleep mode) | 0.5 W |
Specifications are taken from Samsung's published product data for this model. Where Samsung does not publish a figure for this exact model it has been left out rather than estimated.
Compatibility & Installation
Mounting and orientation
The QB24C uses a 100 x 100 mm VESA pattern and weighs 3.0 kg, which opens up mounting options a larger panel rules out: monitor arms, counter posts, joinery brackets, kiosk enclosures and partition fixings. Landscape and portrait are both supported, so a tall queue-number strip, a meeting-room door plate or a narrow shelf-edge position is a normal installation rather than a workaround. The set is 31.8 mm deep and carries an IP5X dust rating on the chassis, which suits counter and retail environments that are not sealed offices.
What it connects to

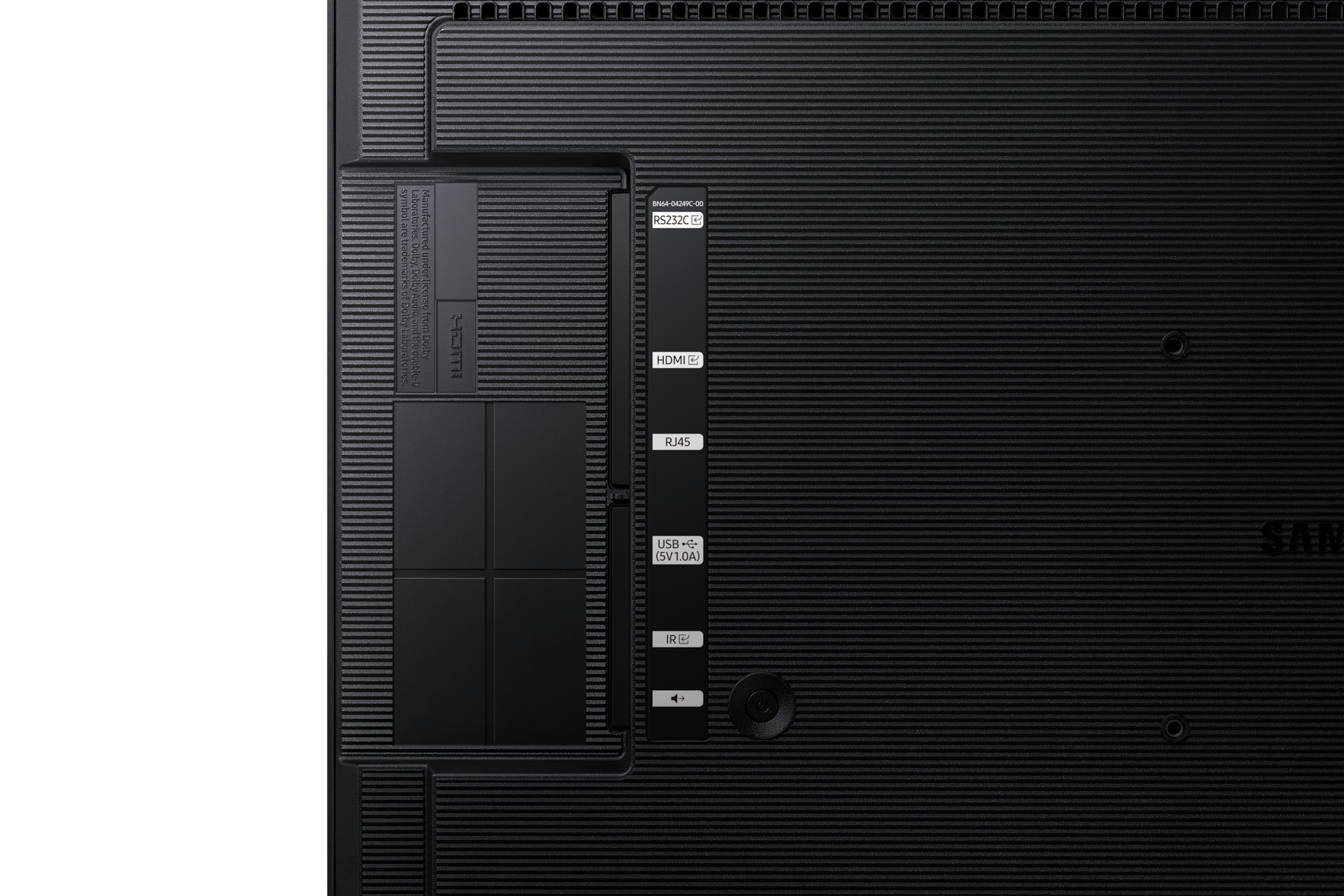

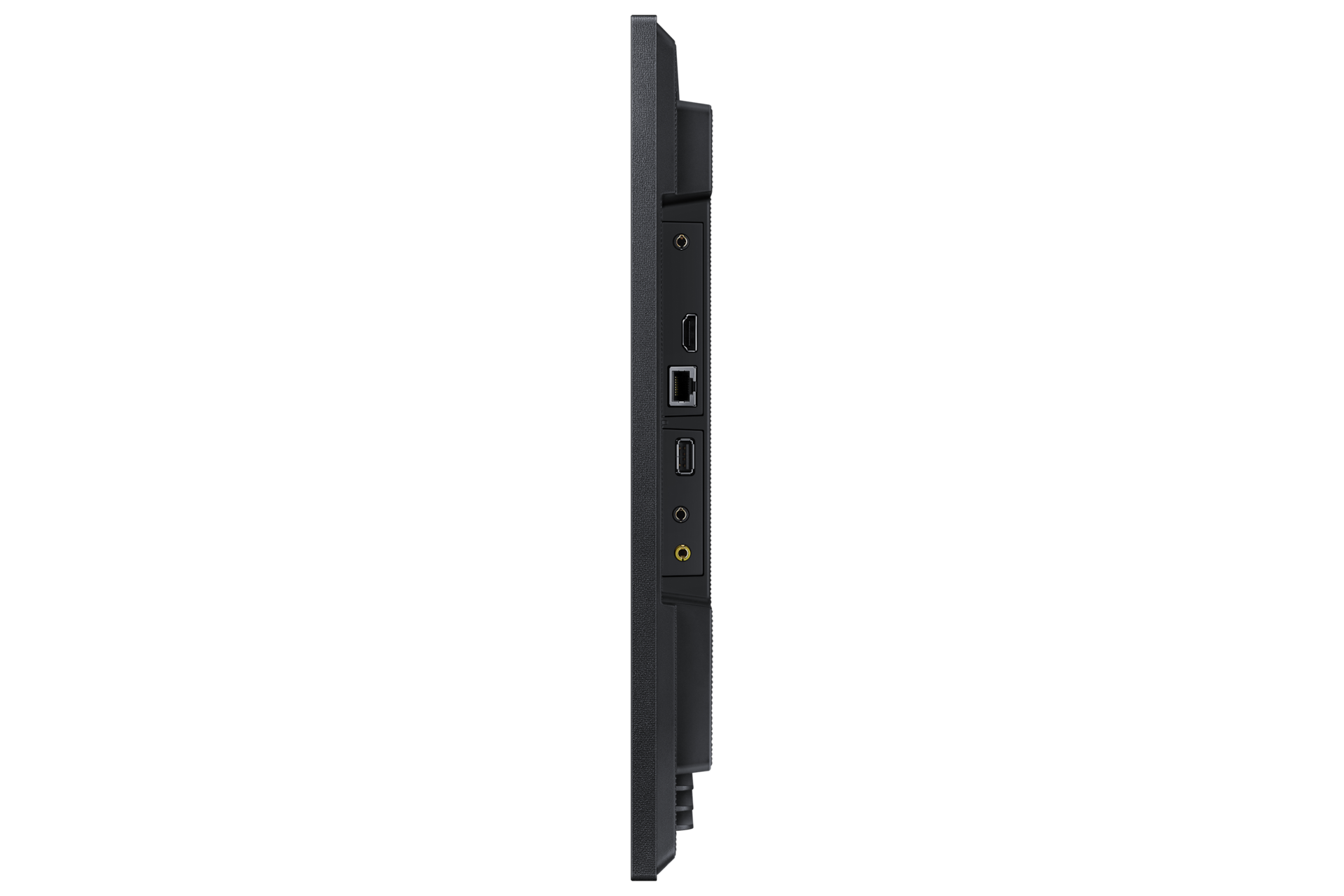

One HDMI 1.4 input accepts a laptop, a thin client or a local source at up to 1,920 x 1,080, and one USB port takes local media for direct playback. Audio leaves through a stereo mini jack if the position needs sound. For wired control there is RS232C and an IR input, so an integrator can drive power and source selection from a kiosk controller or a queue management system rather than relying on the remote.
Network and content management
Tizen 7.0 with 8 GB of onboard storage plays scheduled content on the display itself, so a counter or kiosk position does not need a PC hidden in the joinery. Connect by RJ45 or by dual-band Wi-Fi at 2.4 GHz or 5 GHz - the wireless option is often the deciding factor, because counters rarely have a spare data drop and cutting one in is disruptive. Samsung VXT handles cloud scheduling and multi-site publishing, the panel is ready for a MagicINFO estate, and SmartThings Pro covers remote power scheduling, status and firmware across every screen from one console.
Other Samsung QBC displays it pairs with
QBC displays share the same Tizen platform, so counter screens and lobby panels are managed as one fleet. For a smaller shelf-edge or door-plate position look at the QB13C; for a lobby or retail feature wall, the UHD sizes from QB43C upwards. Note that this part number is the non-touch QB24C - Samsung sells the interactive version as a separate QB24C-T model, which we can quote on request.
Package Contents & Samsung QBC Range
In the box
- Quick setup guide
- Warranty card and regulatory guide
- Power cord
- Remote controller
- Batteries for the remote controller
Package contents follow Samsung's product data for this model; items not listed by Samsung are not claimed here.
Samsung QBC range
| Model | Size |
| QB13C | 13" |
| QB24C (this listing) | 24" |
| QB43C | 43" |
| QB50C | 50" |
| QB55C | 55" |
| QB65C | 65" |
| QB75C | 75" |
| QB85C | 85" |
Datasheet & Downloads
SourceIT can email the current data sheet revision for this model together with a quotation. Tell us the mounting position, whether you need the touch variant, and how many units you are deploying, and we will send the specification and pricing in one reply.
Frequently Asked Questions — Samsung QB24C
Is the QB24C a touchscreen?
This part number, LH24QBCEBGCXXS, is the standard non-touch QB24C. Samsung's interactive version of this size is the QB24C-T, a separate model with its own part number. If your application needs on-screen touch input - a self-service selector or a check-in station - tell us and we will quote the touch variant instead so you get the right panel for the job.
Does it need an external media player?
No. Tizen 7.0 runs on the display with 8 GB of onboard storage, so it plays scheduled content on its own. Samsung VXT gives you cloud scheduling and SmartThings Pro gives you remote power, status and firmware management. For counter and kiosk placements this is the main reason to choose a signage panel over a monitor: there is nowhere to put a player anyway.
Can it run all day, every day?
Samsung rates the QB24C for 16 hours a day, seven days a week. That suits branch, counter, clinic and retail opening hours. It is not a 24/7 rating, so for a position that genuinely never switches off, ask us about a 24/7-rated Samsung series.
Will it mount in portrait?
Yes. It uses a 100 x 100 mm VESA pattern and supports landscape and portrait, which is what you want for a queue-number strip, a meeting-room door plate or a narrow counter position. At 3.0 kg it is light enough for arms, joinery brackets and partition fixings that would not take a larger panel.
Is 250 nit bright enough at a counter?
250 nit is specified for indoor use at close range - a counter, a desk, a kiosk face or a door plate, where the viewer is within a metre or two and the panel is not fighting daylight. It is not a shopfront specification. If the screen will face a glazed frontage, tell us the orientation and we will propose a brighter model.
What connections does it have?
One HDMI 1.4 input, one USB port, RJ45, dual-band Wi-Fi and Bluetooth. For control there is RS232C and an IR input. The wireless networking matters at counters, where a data drop is often not available and running one is disruptive.
What do the letters in LH24QBCEBGCXXS mean?
LH marks a commercial display, 24 is the screen size, QBC is the series, and the trailing letters identify the variant and the regional model. The E in QBCE is the standard non-touch variant, where a T would indicate the interactive model. XXS is the Singapore code, which is what governs local warranty and support.
What warranty and invoicing do I get?
Every QB24C we sell carries local Singapore warranty and ships with a GST invoice, so support is handled locally and your finance team receives a compliant tax invoice.
