Ricoh SP-1425 A4 Duplex ADF & Flatbed Scanner
PRODUCT DESCRIPTION
Ricoh SP-1425 A4 Duplex Scanner with ADF & Flatbed, 25 ppm / 50 ipm, USB 2.0 (PA03753-B001) - 1 Year Local Warranty

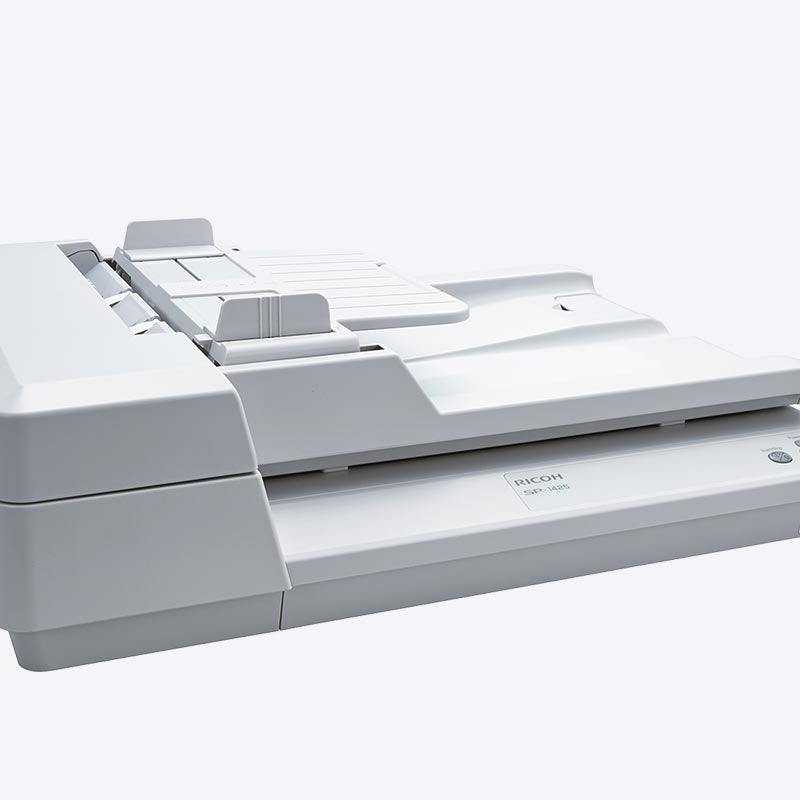

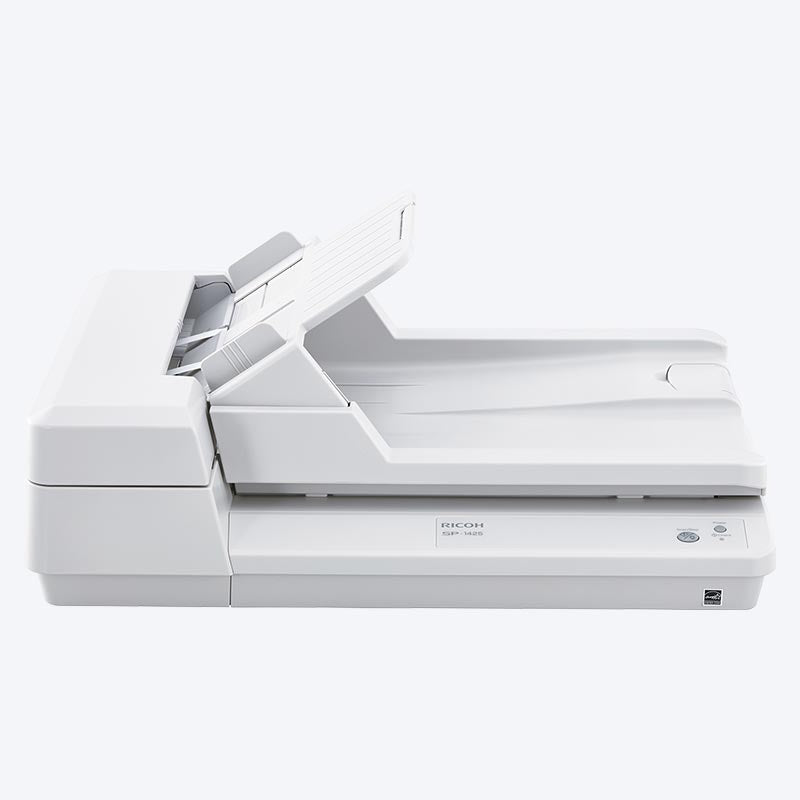

ADF and Flatbed in One Compact Scanner
The Ricoh SP-1425 combines a 50-sheet duplex automatic document feeder with an A4 flatbed, designed for offices with limited space. It scans at 25 pages per minute simplex and 50 images per minute duplex (A4 portrait, 200/300 dpi) and is rated by Ricoh for an expected daily volume of 4,000 sheets.
Passports, Cards and Fragile Originals

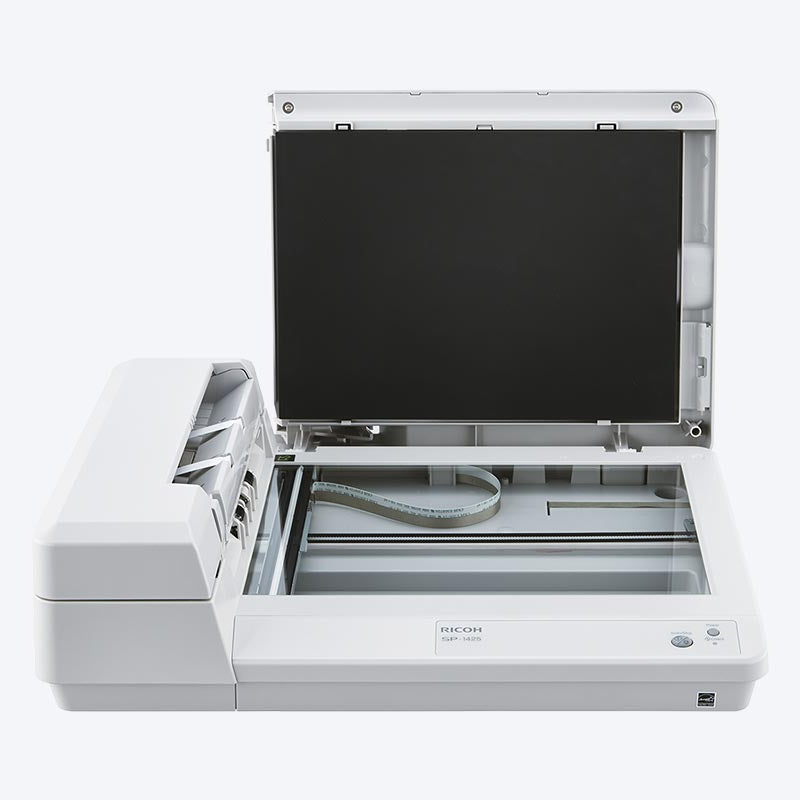

Use the ADF for everyday office paperwork and the flatbed for plastic cards, passports, old fragile documents and booklets. The flatbed takes originals up to 216 x 297 mm with no paper weight limitation, and the first flatbed scan is ready in 4 seconds (200/300 dpi).
Simple Two-Button Operation
With just two buttons to press, the SP-1425 is easy for anyone in the office to use. An ultrasonic sensor detects overlapping sheets in the ADF, helping keep feeding stable and preventing lost pages.
PaperStream Software Included
PaperStream IP for SP Series (TWAIN/ISIS) automatically converts scans into clean images and helps improve OCR accuracy even with wrinkled or soiled documents. PaperStream Capture and PaperStream ClickScan are supplied for scanning workflows, and the scanner connects by USB 2.0.
Need help choosing? Email sales@sourceit.com.sg with your daily volume, document types and connection needs and we will size it for you.
Ricoh SP-1425 Datasheet — Technical Specifications
General
| Product Name | Ricoh SP-1425 Image Scanner |
| Part Number | PA03753-B001 |
| Series | Ricoh SP series (A4 ADF + Flatbed) |
| Scanner Type | ADF (Automatic Document Feeder) / Flatbed, Duplex |
| Local Warranty (Singapore) | 1 year, supplied by SourceIT with a GST invoice |
Scanning
| Image Sensor | Single line CMOS-CIS x 2 (front/flatbed x 1, back x 1) |
| Light Source | 3 colour LED x 2 (front/flatbed x 1, back x 1) |
| Optical Resolution | 600 dpi |
| Output Resolution | 50 to 600 dpi (1 dpi increments), 1,200 dpi (driver) |
| Scanning Speed (A4 Portrait, ADF) | Simplex 25 ppm / Duplex 50 ipm (200/300 dpi) |
| First Scan Time (Flatbed) | 4 seconds (200/300 dpi) |
| Output Format | Colour 24-bit, Grayscale 8-bit, Monochrome 1-bit |
| Background Colour | ADF: White / Flatbed: Black |
Paper Handling
| Maximum Document Size | ADF 216 x 356 mm (8.5 x 14 in); Flatbed 216 x 297 mm (8.5 x 11.7 in) |
| Minimum Document Size | 114 x 140 mm (4.5 x 5.5 in) |
| Long Page Scanning | Up to 3,048 mm (120 in) at 200 dpi or less |
| Paper Weight | ADF 52 to 127 g/m² (14 to 34 lb); Flatbed no limitation |
| ADF Capacity | 50 sheets (A4 80 g/m²) |
| Expected Daily Volume | 4,000 sheets |
| Multifeed Detection | Overlap detection (ultrasonic sensor) |
Connectivity & Power
| Interface | USB 2.0 / USB 1.1 |
| Power Requirements | AC 100 to 240 V ±10% |
| Power Consumption | Operating 16 W or less; Sleep 2.9 W or less; Auto Standby (Off) 0.5 W or less |
Physical & Environmental
| Dimensions (W x D x H) | 454 x 331 x 129 mm |
| Weight | 4.3 kg (9.5 lb) |
| Operating Temperature | 5 to 35 °C |
| Operating Humidity | 20 to 80% (non-condensing) |
| Environmental Compliance | ENERGY STAR®, RoHS |
Compatibility & Software Support
Supported Operating Systems
Windows 11, Windows 10, Windows Server 2025 / 2022 / 2019 / 2016 and Linux (Ubuntu), per Ricoh's SP-1425 datasheet. macOS is not listed.
Drivers
PaperStream IP for SP Series (TWAIN / TWAIN x64 / ISIS), WIA driver and Image Scanner Driver for Linux (SANE).
Software
PaperStream Capture, PaperStream ClickScan, Software Operation Panel, Error Recovery Guide and PaperStream Central Admin. PaperStream Capture Pro is available as a separate licence — ask us for pricing.
Image Processing
Multi-image output, automatic colour detection, automatic page size detection, blank page detection, iDTC / Advanced DTC / SDTC, error diffusion, dither, de-screen, emphasis, dropout colour, sRGB output, split image, de-skew, edge filler, vertical streak reduction, digital endorser and background pattern removal.
Package Contents & SP Series Ordering Information
In the Box (per Ricoh)
SP-1425 scanner, pad unit, AC cable, AC adapter, USB cable and setup DVD-ROM.
Ricoh SP Series Models
| Model | Speed (ppm / ipm) | Type | Interface | Part No. |
| SP-1120N | 20 / 40 | ADF | USB 3.2 + Ethernet | PA03811-B001 |
| SP-1125N | 25 / 50 | ADF | USB 3.2 + Ethernet | PA03811-B011 |
| SP-1130N | 30 / 60 | ADF | USB 3.2 + Ethernet | PA03811-B021 |
| SP-1425 (this listing) | 25 / 50 | ADF + Flatbed | USB 2.0 | PA03753-B001 |
Consumables: Pad Unit PA03753-0001 (every 30,000 sheets) and Pick Roller Unit PA03753-0002 (every 200,000 sheets), replacement guidelines per Ricoh.
Only need an ADF with a network port? See the SP-1120N / SP-1125N / SP-1130N.
Datasheet & Downloads
| Ricoh datasheet | SP-1425 Datasheet (PDF) |
| Ricoh product page | SP-1425 on pfu.ricoh.com |
| Drivers & software | SP-1425 downloads |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting PA03753-B001.
Frequently Asked Questions — Ricoh SP-1425
How fast is the SP-1425?
25 ppm simplex and 50 ipm duplex through the ADF on A4 portrait at 200/300 dpi. The first flatbed scan takes 4 seconds at 200/300 dpi.
Can it scan passports and ID cards?
Yes. Place plastic cards, passports, booklets or fragile originals on the flatbed, which has no paper weight limitation.
Can it be shared on the network?
No. The SP-1425 connects by USB 2.0 only. For a network-ready ADF scanner, see the SP-1120N / SP-1125N / SP-1130N.
Does it work with a Mac?
Ricoh lists Windows, Windows Server and Linux (Ubuntu) support for the SP-1425. macOS is not listed in the datasheet.
What warranty do I get?
1 year local warranty in Singapore, supplied by SourceIT with a GST invoice.
