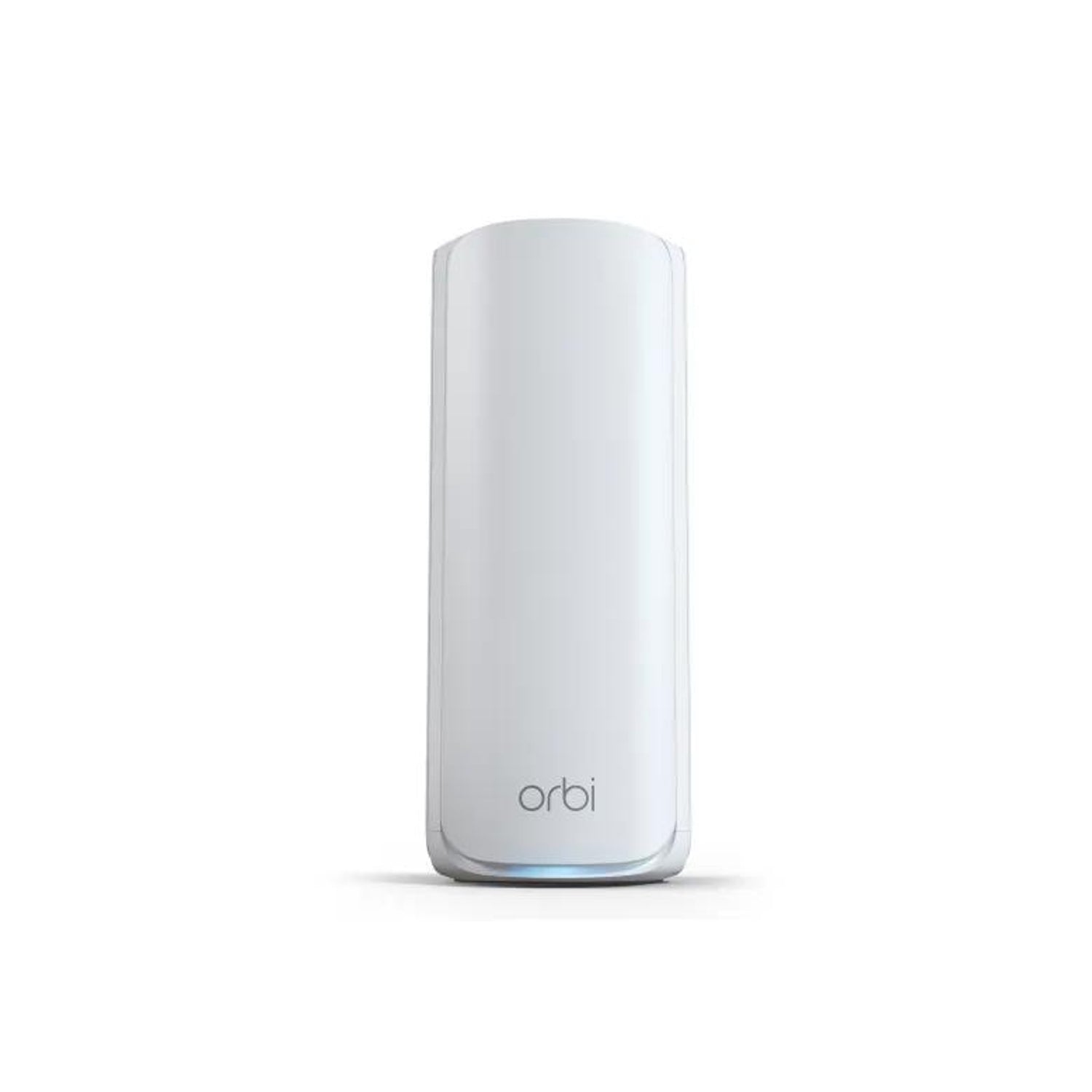

NETGEAR Orbi 770 RBE770 Tri-Band WiFi 7 Mesh Add-on Satellite BE11000
PRODUCT DESCRIPTION
NETGEAR Orbi 770 Series Tri-Band WiFi 7 Mesh Add-on Satellite (RBE770-100APS) - Local Warranty
Extend Your Orbi 770 System
The NETGEAR RBE770 adds another tri-band WiFi 7 node to an Orbi 770 Series system, adding up to 180 sq. m. of coverage (NETGEAR Singapore; up to 2,750 sq. ft. on the datasheet).
BE11000 WiFi 7
Tri-band with 6 streams of WiFi, four internal antennas with high-power amplifiers and a quad-core 1.5 GHz processor.

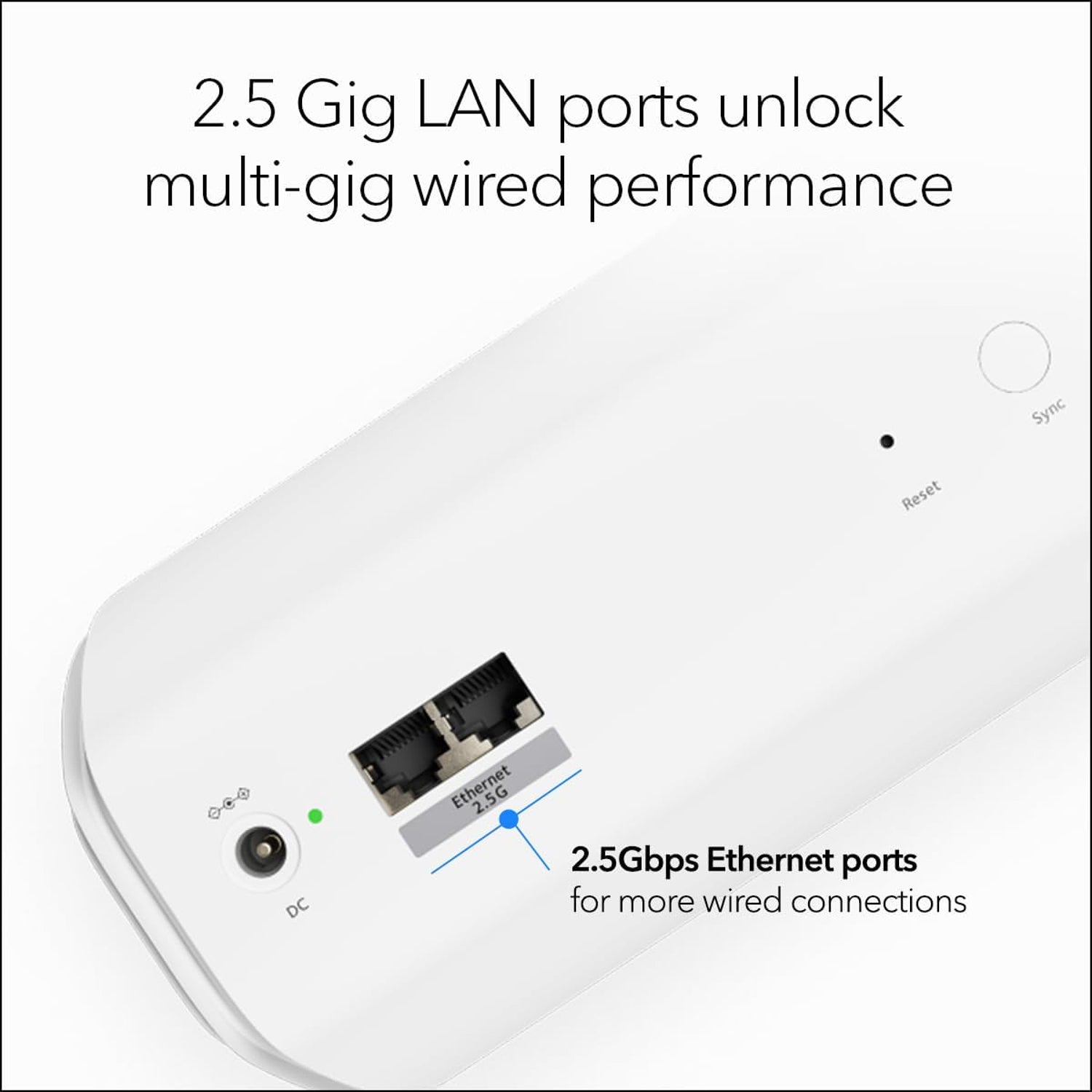

Wired Ports at the Satellite
Two 2.5 Gbps Multi-Gig Ethernet ports connect PCs, consoles and smart TVs directly.
Need help choosing? Email sales@sourceit.com.sg with your home size, number of floors and internet plan and we will recommend the right system.
NETGEAR RBE770 Datasheet — Technical Specifications
General
| Product Name | NETGEAR Orbi 770 Series Tri-Band WiFi 7 Mesh Add-on Satellite |
| Part Number | RBE770-100APS |
| Series | NETGEAR Orbi 770 Series (WiFi 7) |
| Local Warranty (Singapore) | Local warranty in Singapore, supplied by SourceIT with a GST invoice |
Wireless
| WiFi Standard | WiFi 7 |
| Speed Class | BE11000 — combined WiFi speeds up to 11 Gbps |
| Bands | Tri-band: 6 GHz (2x2), 5 GHz (2x2), 2.4 GHz (2x2) — 6 streams |
| Multi-Link Operation | Combines 5 GHz and 6 GHz bands for backhaul and fronthaul |
| Coverage | Up to 180 sq. m. per satellite (NETGEAR Singapore); up to 2,750 sq. ft. per datasheet |
| Concurrent Devices | Up to 100 |
Ports
| Satellite (RBE770) | 2 x 10/100/1000/2500 Mbps Multi-Gig Ethernet LAN ports |
Hardware & Security
| Processor | Quad-core 1.5 GHz |
| Antennas | 4 high-performance internal antennas with high-power amplifiers |
| Management | NETGEAR Orbi app |
Physical
| Dimensions | 251.2 x 134.2 x 100.4 mm (9.88 x 5.28 x 3.95 in) |
| Weight | 0.916 kg (2.02 lb) |
Compatibility & Software Support
Compatibility
Requires an Orbi 770 Series router (RBE771, included in the RBE773 and RBE772 packs) — sold separately.
App
Add and manage the satellite with the NETGEAR Orbi app.
Package Contents & Orbi 770 Series Ordering Information
In the Box
1 x Orbi WiFi 7 satellite (RBE770), 1 x power adapter, quick start guide.
NETGEAR Orbi 770 Series Models
| Model | Description | Part No. |
| RBE773 | Router + 2 satellites (3-pack) | RBE773-100APS |
| RBE772 | Router + 1 satellite (2-pack) | RBE772-100APS |
| RBE770 (this listing) | Add-on satellite | RBE770-100APS |
Datasheet & Downloads
| NETGEAR tech spec sheet | RBE770 Technical Specifications (PDF) |
| Quick start guide | RBE770 Quick Start Guide (PDF) |
| User manual | Orbi 770 Series User Manual (PDF) |
| NETGEAR product page | RBE770 on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting RBE770-100APS.
Frequently Asked Questions — NETGEAR RBE770
Does the RBE770 work on its own?
No. It is an add-on satellite and requires an Orbi 770 Series router (RBE771), sold separately.
How much coverage does it add?
Up to 180 sq. m. per NETGEAR Singapore (up to 2,750 sq. ft. on the datasheet).
Which ports does it have?
Two 10/100/1000/2500 Mbps Multi-Gig Ethernet LAN ports.
What warranty do I get?
Local warranty in Singapore, supplied by SourceIT with a GST invoice. Contact us for the warranty period.
