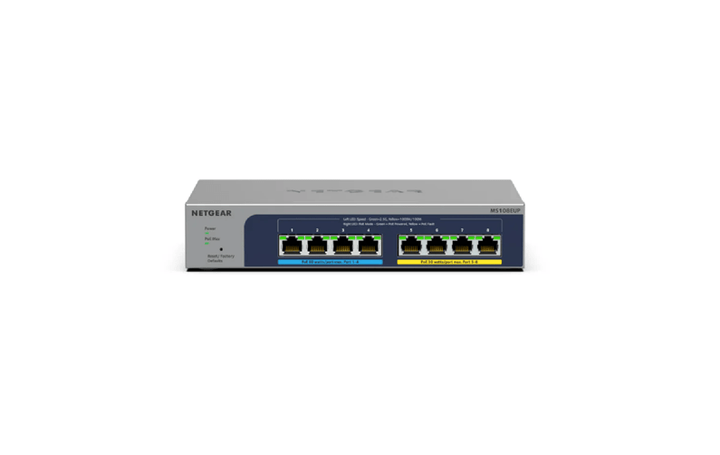

NETGEAR MS108EUP 8-Port 2.5G Multi-Gigabit Ultra60 PoE++ Easy Smart Managed Switch (230W)
PRODUCT DESCRIPTION
NETGEAR MS108EUP 8-Port Multi-Gigabit (2.5G) Ethernet Ultra60 PoE++ Easy Smart Managed Switch (230W) (MS108EUP-100UKS) - Limited Lifetime Local Warranty
2.5G Multi-Gigabit on Every Port
The NETGEAR MS108EUP gives all 8 ports 100M/1G/2.5G Multi-Gigabit speed with 40 Gbps non-blocking switching — ideal for WiFi 6/6E/7 access points and fast workstations that outgrow Gigabit.
Ultra60 PoE++ and 230W Budget
Ports 1-4 deliver IEEE 802.3bt PoE++ at up to 60W each and ports 5-8 deliver 802.3at PoE+ at up to 30W each, from a 230W total budget. Advanced PoE controls add prioritisation, per-port limits and scheduling.
Easy Smart Management, Silent Design
Plug-and-play out of the box, with VLANs, QoS, IGMP snooping and link aggregation available from a web browser. The fanless metal chassis (0 dBA) mounts on a desk or wall.
Need help choosing? Email sales@sourceit.com.sg with your port count, PoE and uplink needs and we will size it for you.
NETGEAR MS108EUP Datasheet — Technical Specifications
General
| Product Name | NETGEAR MS108EUP 8-Port Multi-Gigabit (2.5G) Ethernet Ultra60 PoE++ Easy Smart Managed Switch |
| Part Number | MS108EUP-100UKS |
| Series | NETGEAR Easy Smart (Plus) Multi-Gigabit Switches |
| Local Warranty (Singapore) | Limited lifetime, supplied by SourceIT with a GST invoice |
Interfaces
| Ethernet Ports | 8 x 100M/1G/2.5G RJ-45 |
| PoE++ | Ports 1-4: IEEE 802.3bt, up to 60W per port |
| PoE+ | Ports 5-8: IEEE 802.3at, up to 30W per port |
| PoE Budget | 230W total |
Performance
| Switching Bandwidth | 40 Gbps (non-blocking, store-and-forward) |
| MAC Address Table | 16K |
| Packet Buffer | 1.5 MB |
| Jumbo Frames | Up to 12,000 bytes |
| VLANs | Up to 64 |
Software Features
| VLANs | 802.1Q and port-based VLANs |
| QoS | Rate limiting, DSCP, 802.1p CoS, port-based, ToS, WRR |
| Multicast | IGMP snooping v1/v2/v3, block unknown multicast (128 groups) |
| Other | Static link aggregation (4 LAGs, 4 members each), loop prevention, broadcast storm control, DoS prevention, port mirroring, cable test |
| Management | Web browser-based GUI |
Power & Environmental

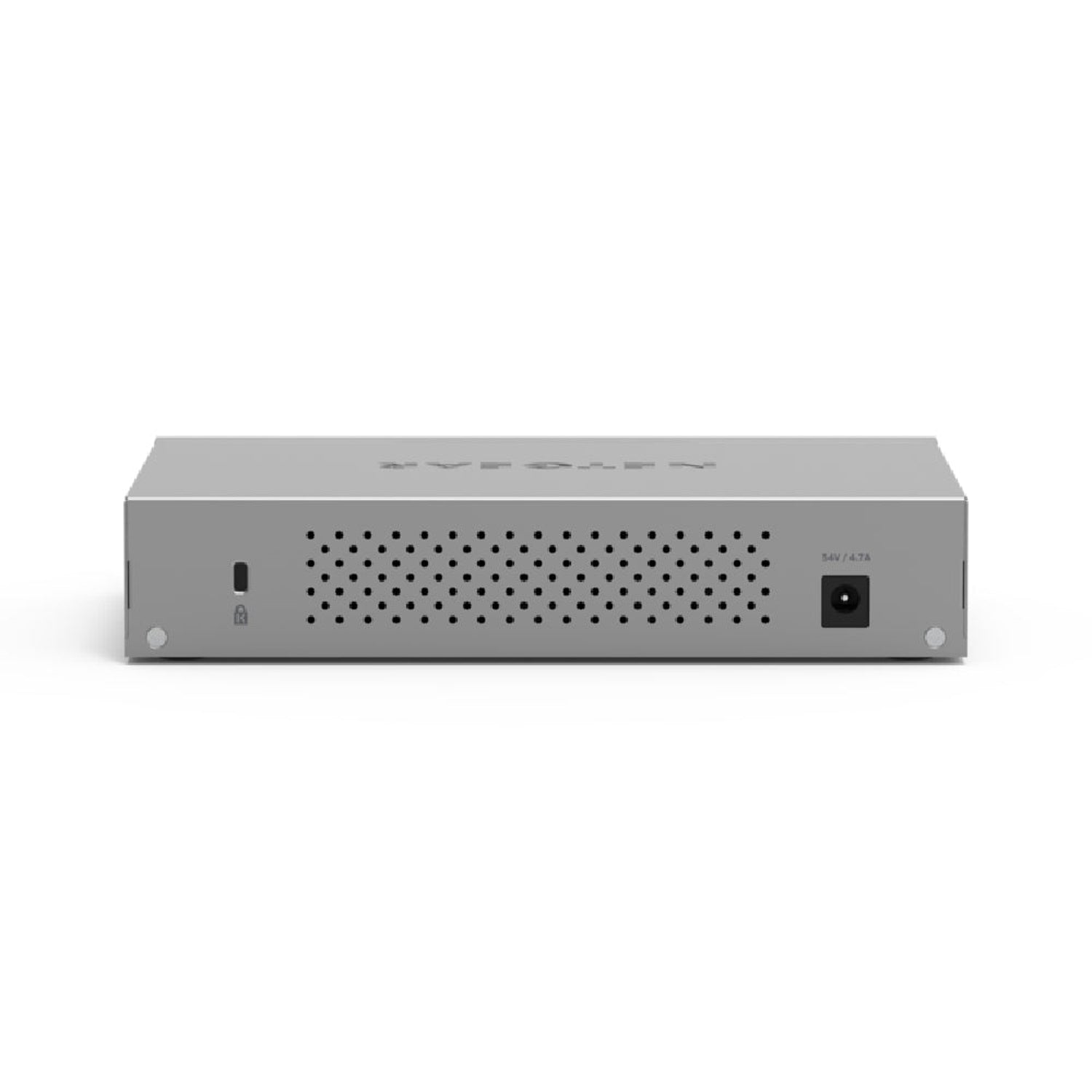

| Power Supply | External power adapter (54 V, 4.7 A input per NETGEAR hardware installation guide) |
| Cooling | Fanless (0 dBA) |
| MTBF | 373,644 hours at 25 °C |
| Operating Temperature | 0 to 40 °C |
| Operating Humidity | 90% max RH, non-condensing |
Physical
| Dimensions (W x D x H) | 210 x 140 x 40 mm |
| Weight | 0.9 kg |
| Mounting | Desktop, wall mount (horizontal or vertical) or 100 mm VESA mount |
Certifications
| Compliance | CE, FCC Part 15 Class B, CSA, VCCI, ACMA, KC, CCC, BSMI |
Compatibility & Software Support
Management
Plug-and-play out of the box; optional configuration through the web browser GUI.
Typical Use
Small offices and prosumer networks powering WiFi 6/6E/7 access points, PTZ cameras and other high-power PoE++ devices at 2.5G speeds.
Package Contents & Easy Smart Multi-Gigabit PoE++ Switch Ordering Information
In the Box
MS108EUP switch, power adapter and cable (varies by region), wall installation kit, rubber feet, installation guide.
NETGEAR Easy Smart Multi-Gigabit PoE++ Switch Models
| Model | Ports | Part No. |
| MS108EUP (this listing) | 8 x 2.5G (4 x PoE++ 60 W + 4 x PoE+ 30 W, 230 W) | MS108EUP-100UKS |
Datasheet & Downloads
| NETGEAR datasheet | MS108EUP Datasheet (PDF) |
| Installation guide | MS108EUP Installation Guide (PDF) |
| Hardware installation guide | MS108EUP Hardware Installation Guide (PDF) |
| User manual | MS108EUP User Manual (PDF) |
| NETGEAR product page | MS108EUP on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting MS108EUP-100UKS.
Frequently Asked Questions — NETGEAR MS108EUP
How much PoE power does the MS108EUP provide?
230W total: up to 60W per port on ports 1-4 (802.3bt PoE++) and up to 30W per port on ports 5-8 (802.3at PoE+).
Are all ports 2.5G?
Yes. All 8 RJ-45 ports support 100M, 1G and 2.5G.
Can it be rack mounted?
NETGEAR specifies desktop, wall and VESA mounting; rack mounting is not listed.
Is it fanless?
Yes. NETGEAR specifies a fanless design with 0 dBA acoustic noise.
What warranty do I get?
Limited lifetime local warranty in Singapore, supplied by SourceIT with a GST invoice.
