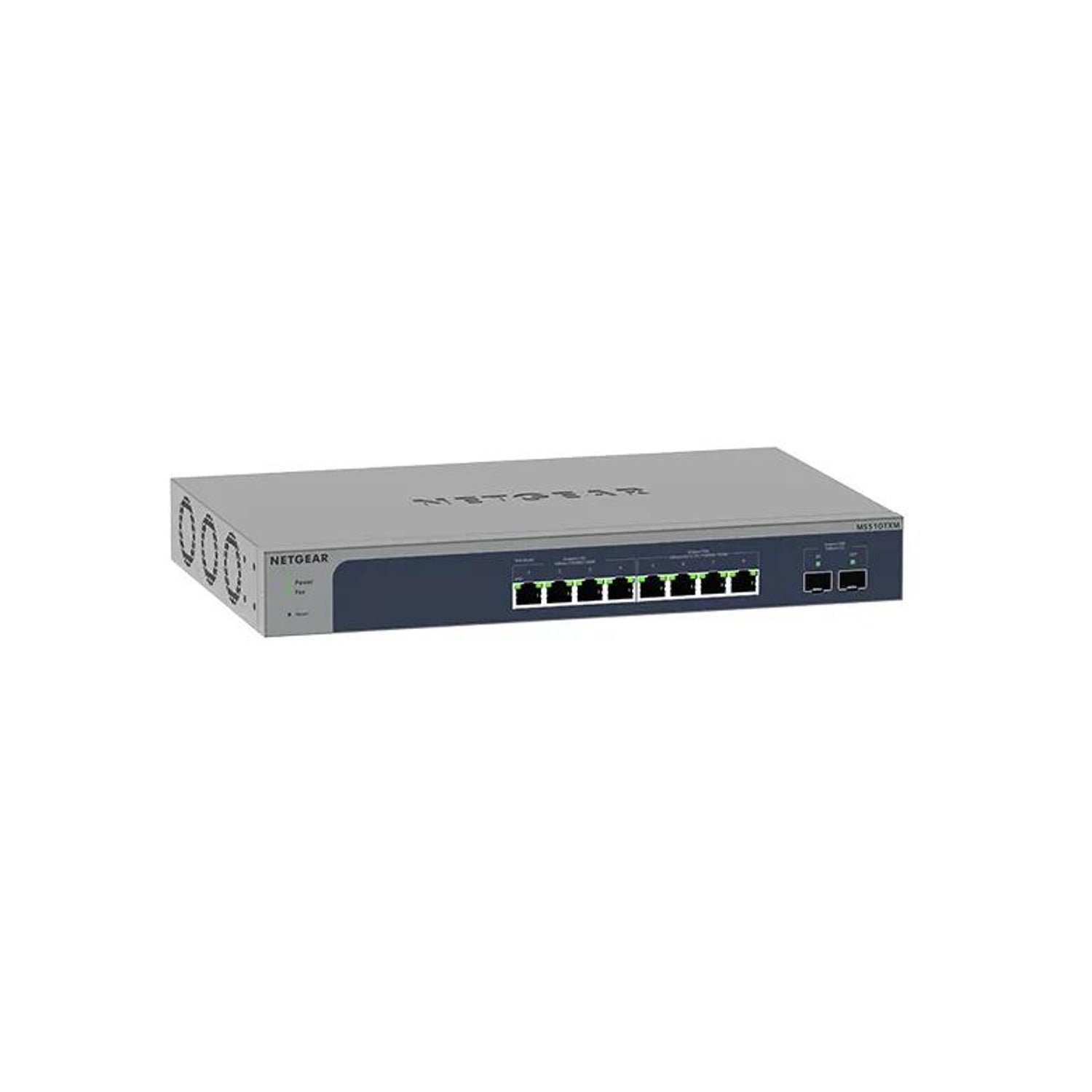

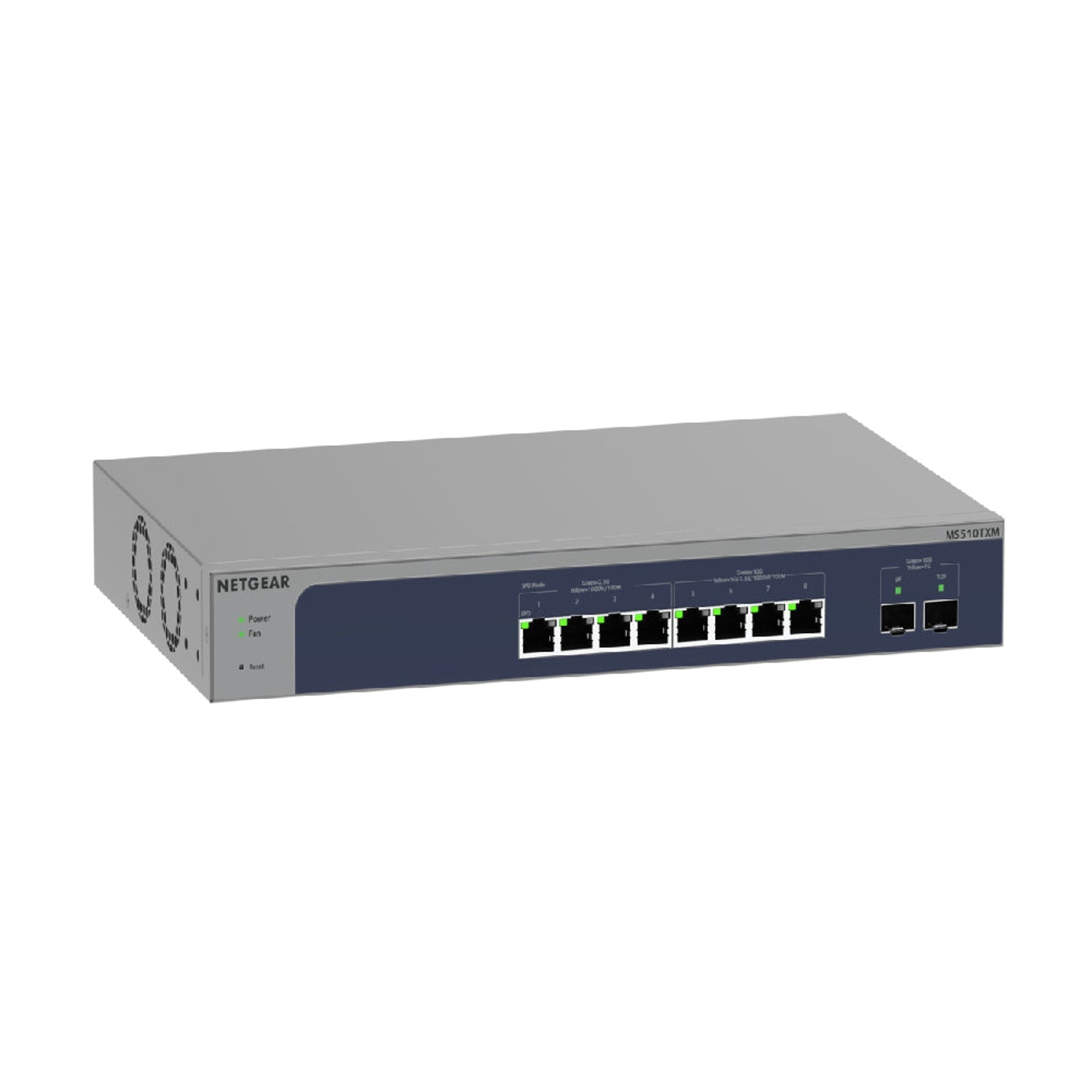

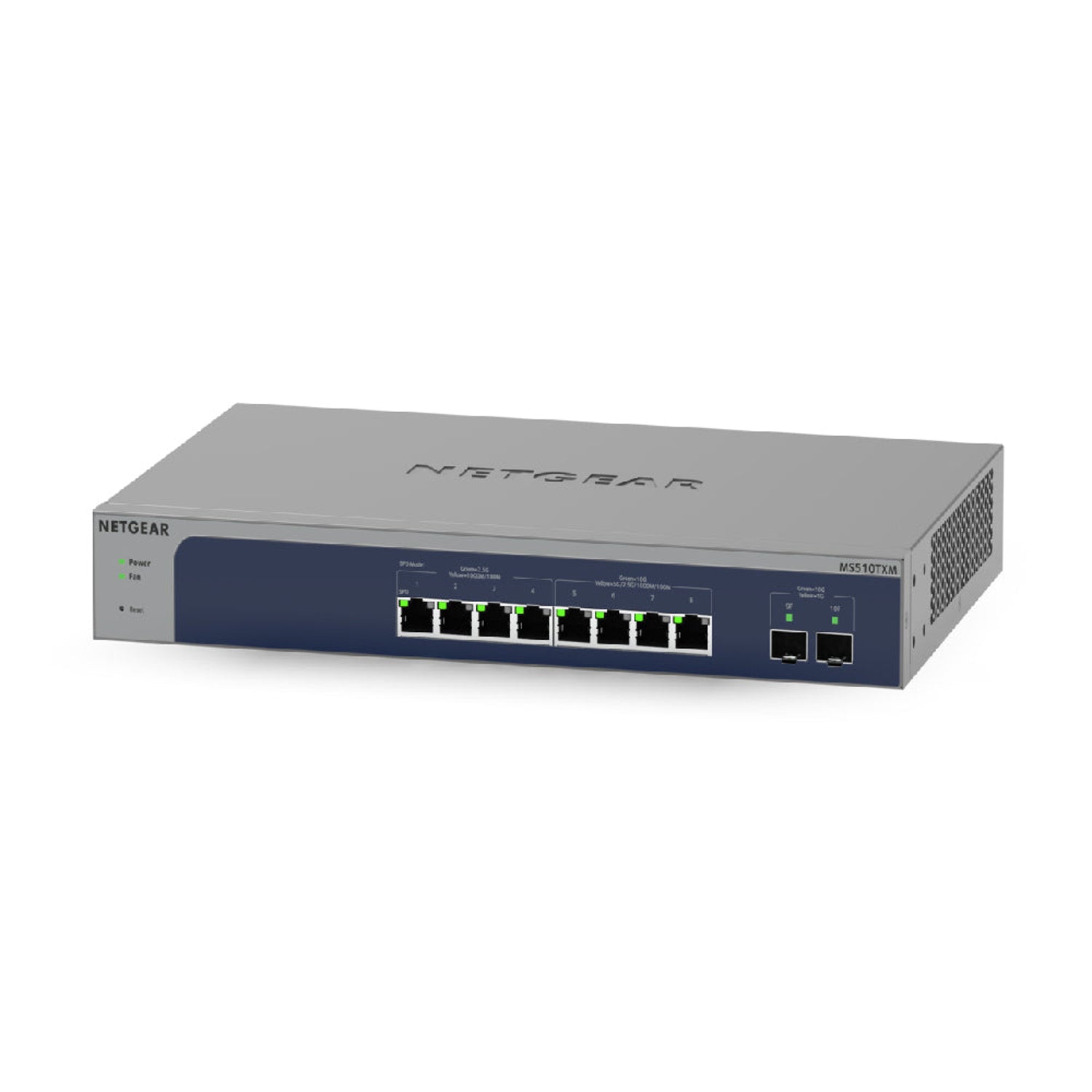

NETGEAR MS510TXM 8-Port Multi-Gigabit/10G Smart Managed Pro Switch with 2 SFP+ Ports
PRODUCT DESCRIPTION
NETGEAR MS510TXM 8-Port Multi-Gigabit/10G Ethernet Smart Managed Pro Switch with 2 SFP+ Ports (MS510TXM-100AJS) - Limited Lifetime Local Warranty
Multi-Gig and 10G for Small Business
The NETGEAR MS510TXM gives you 4 x 1G/2.5G and 4 x Multi-Gigabit/10G copper ports plus 2 dedicated 10G SFP+ fiber ports, so WiFi 6 access points, NAS, servers and power users can go beyond Gigabit without re-cabling.
Cloud or Local Smart Management
Configure it locally through the web browser GUI or remotely with NETGEAR Insight Cloud (mobile app and portal), with zero-touch provisioning and multi-site views.
L2+ Features for Converged Networks
802.1Q VLANs with Auto-Voice, Auto-WiFi and Auto-Camera VLAN, IGMP/MLD snooping, DiffServ QoS, 802.1x with RADIUS, L2/L3/L4 ACLs and DHCP snooping make it a capable aggregation or access switch.
Quiet, Non-Blocking Performance
A 140 Gbps non-blocking fabric runs every port at line rate, while temperature- and load-based fan control keeps noise to just 25 dBA on the desktop or in a rack.
Need help choosing? Email sales@sourceit.com.sg with your port count, PoE and uplink needs and we will size it for you.
NETGEAR MS510TXM Datasheet — Technical Specifications
General
| Product Name | NETGEAR MS510TXM 8-Port Multi-Gigabit/10G Ethernet Smart Switch with 2 SFP+ Ports |
| Part Number (SKU) | MS510TXM-100AJS |
| Series | NETGEAR MS510TX Series Smart Managed Pro Multi-Gigabit Switches |
| Local Warranty (Singapore) | Limited Lifetime, supplied by SourceIT with a GST invoice |
Interfaces
| 1G/2.5G Copper Ports | 4 x RJ-45 (100M/1G/2.5G) |
| Multi-Gigabit/10G Copper Ports | 4 x RJ-45 (100M/1G/2.5G/5G/10G) |
| Fiber Ports | 2 x dedicated 10 Gigabit SFP+ (1G/10G) |
| PoE | Not supported (non-PoE model) |
Performance
| Switching Fabric | 140 Gbps non-blocking |
| Forwarding Rate | 104.16 Mpps (64-byte packets) |
| CPU / Memory | 1 GHz dual-core CPU, 256 MB RAM, 64 MB SPI flash |
| Packet Buffer | 2 MB (16 Mbit), dynamically shared |
| MAC Address Table | 32K |
| ARP Entries | 256 |
| VLANs | 256 |
| Multicast Groups | 256 |
| DHCP Snooping Bindings | 256 |
| ACLs | 100 shared (L2/L3/L4 ingress) |
| Priority Queues | 8 (WRR and Strict Priority) |
| Link Aggregation | 8 LAGs, up to 4 members each |
| Jumbo Frames | 10K |
| Latency (2.5G copper) | 5.903 µs (64-byte); 6.040 µs (1518-byte); 6.079 µs (9216-byte) |
| Latency (10G copper) | 2.420 µs (64-byte); 2.501 µs (1518-byte); 2.499 µs (9216-byte) |
| Latency (10G SFP+ fiber) | 1.257 µs (64-byte); 1.337 µs (1518-byte); 1.348 µs (9216-byte) |
Software Features
| Layer 2 / Lite L3 | 802.1Q VLANs, 802.1D STP, 802.1w RSTP, 802.1s MSTP, 802.3ad LACP and static LAG, 802.3x flow control |
| Multicast | IGMP snooping v1/v2/v3, MLD snooping v1/v2, IGMP snooping querier, block unknown multicast |
| QoS | 802.1p CoS, DiffServ (ingress), IPv4/IPv6 DSCP, TCP/UDP-based QoS, port-based rate limiting, Auto-VoIP / Auto-Voice VLAN, Auto-WiFi and Auto-Camera VLAN |
| Security | 802.1x with Guest VLAN and RADIUS VLAN assignment, MAC-based 802.1x, RADIUS accounting, L2/L3/L4 ACLs (IPv4/IPv6), MAC lockdown, DHCP snooping, DoS prevention, protected ports, broadcast/multicast/unknown unicast storm control |
| Management | Web GUI (HTTP/HTTPS), NETGEAR Insight Cloud (app and portal), SNMP v1/v2c/v3, RMON 1/2/3/9, LLDP / LLDP-MED, RADIUS and TACACS+ admin access, Syslog, SNTP, IPv6 management |
| Diagnostics | Port mirroring (many-to-one), cable test, ping and traceroute |
| Energy Efficiency | IEEE 802.3az Energy Efficient Ethernet (off by default) |
Power & Environmental
| Power Supply | Internal |
| Power Consumption | 47.0 W max (line rate); 23.90 W idle |
| Heat Dissipation | 160.46 BTU/hr max; 81.59 BTU/hr min |
| Cooling | 2 internal fans (fixed), temperature- and load-based fan-speed control |
| Acoustic Noise | 25 dBA @ 25 °C |
| Operating Temperature | 0 to 50 °C |
| Storage Temperature | -20 to 70 °C |
| Humidity | 95% max RH, non-condensing |
| Altitude | 3,000 m (10,000 ft) max |
| MTBF | 1,059,519 hours (121 years) @ 25 °C |
Physical
| Dimensions (W x D x H) | 330 x 206 x 43 mm (13.0 x 8.12 x 1.7 in) |
| Weight | 2.08 kg (4.25 lb) |
| Mounting | Desktop or rack-mount (rack mount kit included) |
| LEDs | Power (with Cloud mode indicator), Fan, LED Mode; per-port speed/link/activity |
Compatibility & Software Support
Management
Local web browser GUI (HTTPS) or NETGEAR Insight Cloud via the Insight mobile app and Insight Cloud Portal, with remote setup, monitoring and firmware upgrades; SNMP v1/v2c/v3 for network management systems.
Transceivers
SFP+ ports accept NETGEAR 1G and 10G modules and DAC cables, e.g. AXM761 10GBASE-SR, AGM731F 1000BASE-SX, AGM732F 1000BASE-LX, AXC761 (1 m) and AXC763 (3 m) SFP+ DAC (sold separately).
Typical Use
Small-business 10G / multi-gig aggregation for WiFi 6 access points, NAS, servers and workstations, with 10G fiber uplinks to the core.
Package Contents & MS510TX Series Ordering Information
In the Box
MS510TXM switch, power cord (localized), rack mount kit, rubber footpads for tabletop use, installation guide.
NETGEAR MS510TX Series Smart Managed Pro Models
| Model | Ports / Key Spec | Part No. |
| MS510TX | 4 x 1G + 2 x 2.5G + 2 x 5G + 1 x 10G copper + 1 x 10G SFP+ | MS510TX-100AJS |
| MS510TXPP | As MS510TX, 8 x PoE+ (802.3at), 180 W | MS510TXPP-100AJS |
| MS510TXM (this listing) | 4 x 2.5G + 4 x 10G copper + 2 x 10G SFP+ | MS510TXM-100AJS |
| MS510TXUP | 4 x 2.5G + 4 x 10G copper + 2 x 10G SFP+ (8 x Ultra60 PoE++, 295 W) | MS510TXUP-100EUS |
Other MS510TX series models are available to order — email sales@sourceit.com.sg for a quote.
Datasheet & Downloads
| NETGEAR datasheet | MS510TXM / MS510TXUP Datasheet (PDF) |
| Installation guide | MS510TXM / MS510TXUP Installation Guide (PDF) |
| User manual | MS510TXM / MS510TXUP User Manual (PDF) |
| NETGEAR product page | MS510TXM on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting MS510TXM-100AJS.
Frequently Asked Questions — NETGEAR MS510TXM
Does the MS510TXM support PoE?
No. The MS510TXM is the non-PoE model; for PoE choose the MS510TXUP (8 x Ultra60 PoE++, 295 W).
What port speeds does it support?
4 ports at 100M/1G/2.5G and 4 ports at 100M/1G/2.5G/5G/10G, plus 2 dedicated 10G SFP+ fiber ports.
Can it be managed from the cloud?
Yes. It supports NETGEAR Insight Cloud management through the Insight app and portal, or local management through the web GUI.
Are SFP+ modules included?
No, SFP+ transceivers and DAC cables are sold separately (e.g. NETGEAR AXM761 10GBASE-SR or AXC761 DAC).
Can it be rack mounted?
Yes. It works on a desktop or in a 19-inch rack; the rack mount kit and rubber footpads are included.
What warranty do I get?
Limited Lifetime local warranty in Singapore, supplied by SourceIT with a GST invoice.
