NETGEAR XS748T 48-Port 10G Smart Managed Pro Switch with 4 SFP+ Ports
PRODUCT DESCRIPTION
NETGEAR XS748T 48-Port 10-Gigabit Ethernet Smart Managed Pro Switch with 4 Dedicated SFP+ Ports (XS748T-100AJS) - Limited Lifetime Local Warranty

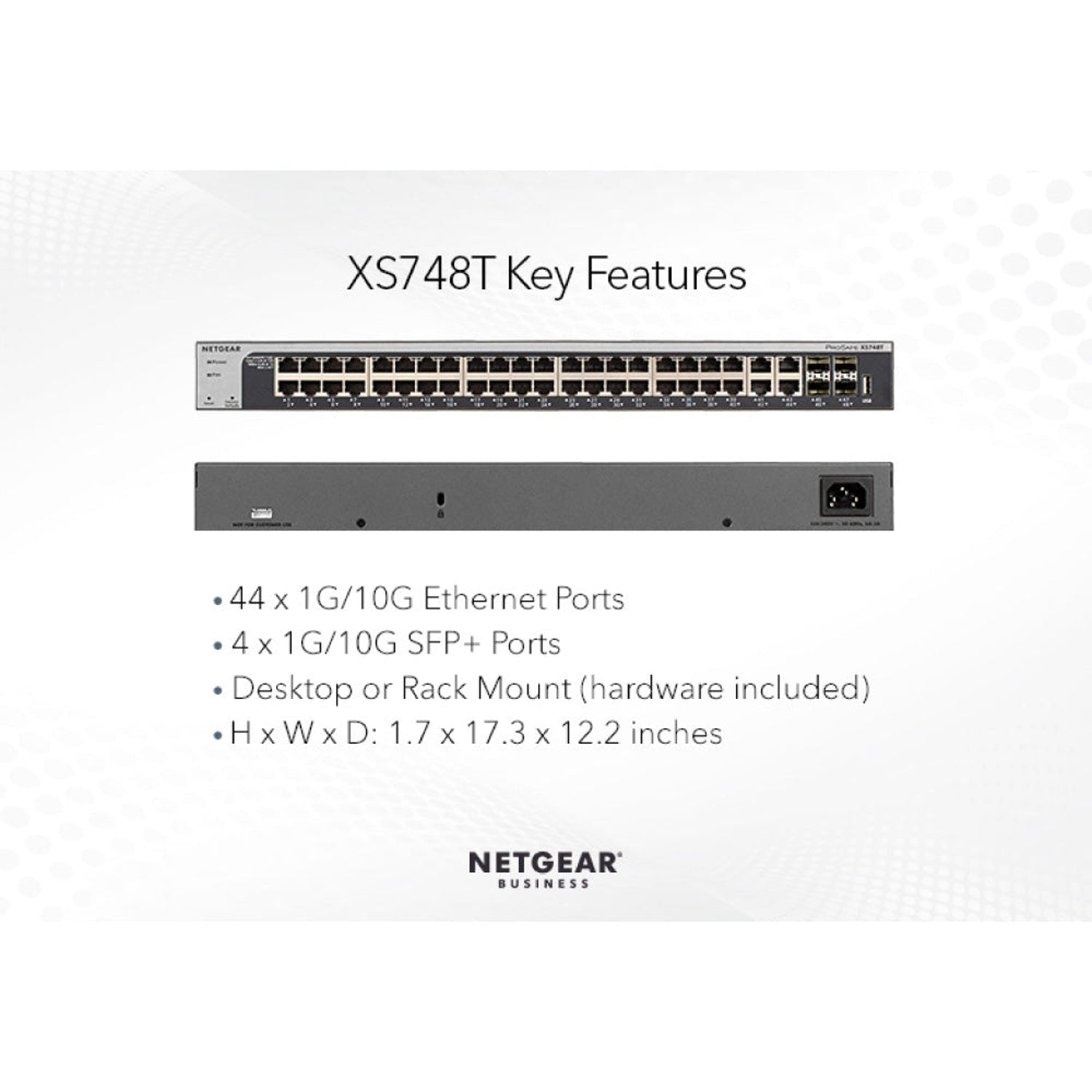

48 Ports of 10-Gigabit Performance

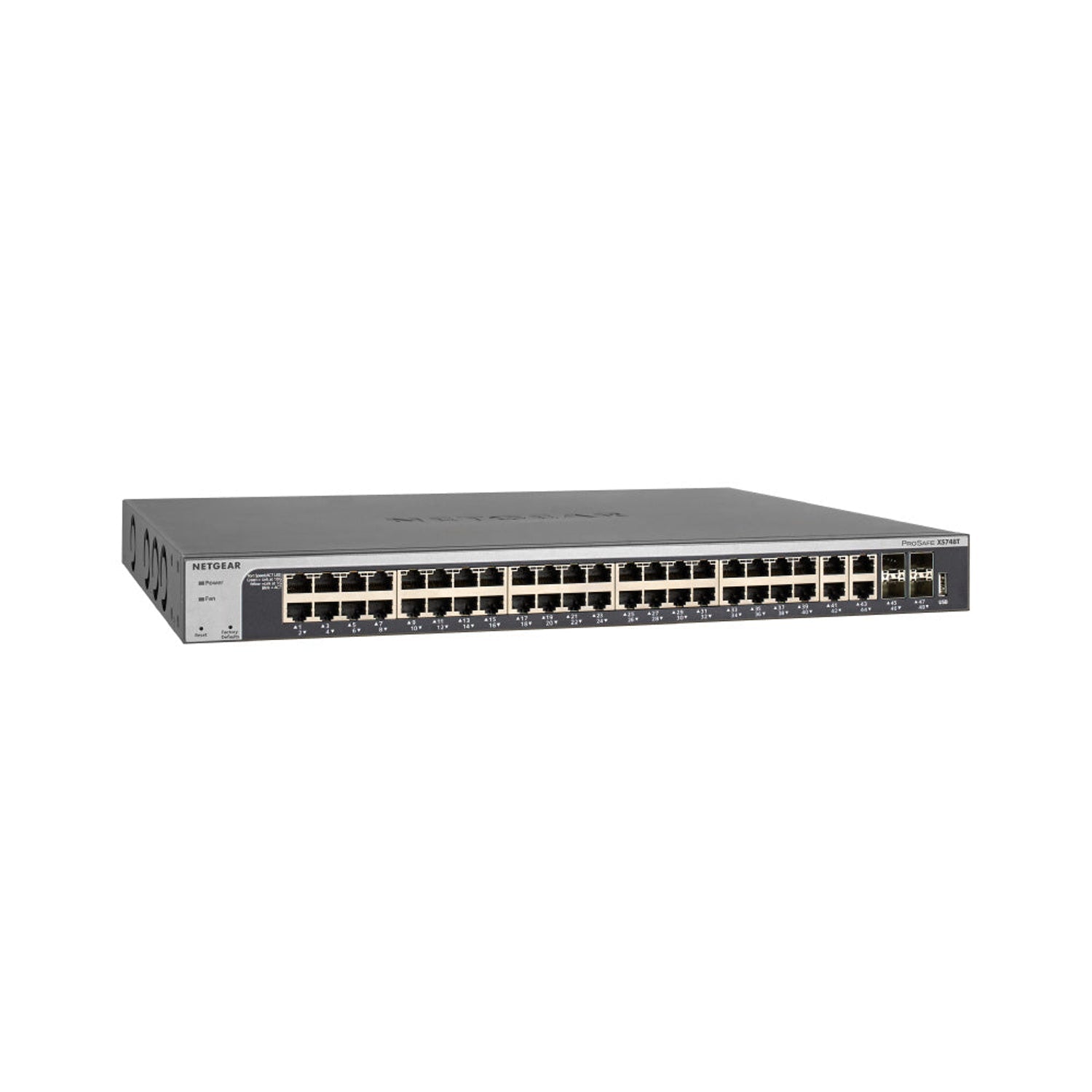

The NETGEAR XS748T packs 44 dedicated 10GBASE-T copper ports and 4 dedicated 10GBASE-X SFP+ ports into a 1U rackmount chassis. Every port runs at 10G or 1G, so you can connect 10G servers, NAS and storage today while existing Gigabit devices keep working.
Line-Rate 960 Gbps Switching
With 960 Gbps of switching bandwidth, 714.2 Mpps throughput, a 3 MB packet buffer and jumbo frames up to 10K, the XS748T is built for virtualization clusters, storage networks and 10G aggregation where bandwidth cannot be the bottleneck.
Smart Managed Layer 2+ Features
802.1Q VLANs (512), private VLANs, IPv4/IPv6 static routing, STP/RSTP/MSTP, 24 LACP link aggregation groups, IGMP/MLD snooping, DiffServ QoS with 8 priority queues and L2/L3/L4 ACLs with 802.1x RADIUS give you enterprise-grade control through a simple web GUI.
Resilient and Easy to Maintain
Dual firmware images and dual configuration files, SNMP v1/v2c/v3, RMON and syslog make upgrades and monitoring safe and straightforward, while IEEE 802.3az Energy Efficient Ethernet helps cut power use on idle links.
Need help choosing? Email sales@sourceit.com.sg with your port count, copper/fiber mix and uplink needs and we will size it for you.
NETGEAR XS748T Datasheet — Technical Specifications
General
| Product Name | NETGEAR XS748T 48-Port 10-Gigabit Ethernet Smart Switch with 4 Dedicated SFP+ Ports |
| Part Number (SKU) | XS748T-100AJS |
| Series | NETGEAR 10-Gigabit Ethernet Smart Managed Pro Switches (XS708T, XS712Tv2, XS716T, XS728T, XS748T) |
| Local Warranty (Singapore) | Limited Lifetime, supplied by SourceIT with a GST invoice |
Interfaces
| 10GBASE-T Copper Ports | 44 x dedicated 10GBASE-T RJ-45 ports supporting 10G/1G speeds |
| SFP+ Ports | 4 x dedicated 10GBASE-X SFP+ ports supporting 10G/1G speeds |
| Total Ports | 48 |
| Form Factor | 1U rackmount (rack mount kit included) or desktop |
Performance
| Switching Bandwidth | 960 Gbps |
| Throughput | 714.2 Mpps (64-byte packets) |
| Latency | 10GBASE-T: <3.674 µs; 10GBASE-X SFP+: <3.693 µs |
| Packet Buffer | 3 MB |
| MAC Address Table | 16K |
| VLANs | 512 |
| ARP/NDP Entries | 1,024 |
| Static Routes | 64 IPv4 + 64 IPv6 |
| Link Aggregation | 24 LAGs, up to 8 members per LAG |
| Priority Queues | 8 |
| Jumbo Frames | Up to 10K packet size |
| CPU / Memory | 800 MHz dual core, 512 MB RAM |
| Flash | 8 MB SPI + 256 MB NAND flash |
Software Features
| Layer 2 Switching | IEEE 802.1Q VLAN tagging, private VLAN, Auto-VoIP, Auto-Video VLAN, IEEE 802.1D STP, 802.1w RSTP, 802.1s MSTP, IEEE 802.3ad LACP, LLDP / LLDP-MED, port mirroring |
| Layer 3 | IPv4 and IPv6 static routing |
| Multicast | IGMP snooping (v1, v2, v3); MLD snooping (v1, v2) |
| Quality of Service | DiffServ QoS; Weighted Round Robin (WRR) and Strict Priority; port-based ingress and egress rate limiting; IPv6 QoS |
| Security | IEEE 802.1x with RADIUS; L2/L3/L4 ACLs (including IPv6); DHCP snooping; MAC lockdown; broadcast, multicast and unknown unicast storm control |
| Management | Web browser-based GUI; SNMP v1, v2c, v3; RMON groups 1, 2, 3, 9; IPv6 management; SNTP client; syslog (RFC 3164); dual firmware image; dual configuration file; cable test utility |
| Green Ethernet | IEEE 802.3az Energy Efficient Ethernet |
Power & Environmental
| Power Supply | 1 x internal fixed power supply |
| Power Consumption | 262.8 W max (line rate, all ports active); 97.6 W min |
| Heat Dissipation | 897.17 BTU/hr max; 333.14 BTU/hr min |
| Fans | 4 |
| Acoustic Noise | 47.8 dBA |
| Operating Temperature | 0 to 50 °C |
| Storage Temperature | -20 to 70 °C |
| Humidity | 90% max operating; 95% max storage |
| Altitude | 3,000 m (10,000 ft) max |
| MTBF | 483,808 hours @ 25 °C |
Physical
| Dimensions (W x D x H) | 440 x 347 x 43 mm |
| Weight | 6.25 kg |
Certifications
| EMC | CE mark, commercial; FCC Part 15 Class A; VCCI Class A |
| Safety | CB mark, commercial; CSA certified; UL listed; IEC 60950-1 |
Compatibility & Software Support
Management
Local web browser-based GUI with IPv6 management; SNMP v1/v2c/v3 and RMON for network management systems; SNTP time sync and syslog. Dual firmware images and dual configuration files support safe upgrades and rollback.
Optics & Cabling
The 44 copper ports run 10G or 1G over RJ-45 cabling. The 4 SFP+ ports take 10G or 1G SFP+/SFP modules or direct-attach cables (sold separately).
Typical Use
10G aggregation for small and mid-size business networks, virtualization and server clusters, NAS/SAN storage and high-bandwidth workstations, with fiber uplinks to the core or other buildings.
Package Contents & 10-Gigabit Smart Managed Pro Switch Ordering Information
In the Box
XS748T 10-Gigabit Ethernet Smart switch, power cord (localized to country of sale), rack mount kit, rubber footpads for tabletop installation, installation guide.
NETGEAR 10-Gigabit Smart Managed Pro Switch Models
| Model | Ports | Part No. |
| XS708T | 8 x 10G copper (2 shared SFP+ combo) | XS708T-100AJS |
| XS712Tv2 | 12 x 10G copper (2 shared SFP+ combo) | XS712T-200AJS |
| XS716T | 16 x 10G copper (2 shared SFP+ combo) | XS716T-100AJS |
| XS728T | 24 x 10G copper + 4 dedicated SFP+ | XS728T-100AJS |
| XS748T (this listing) | 44 x 10G copper + 4 dedicated SFP+ | XS748T-100AJS |
Other 10-Gigabit Smart Managed Pro models are available to order — email sales@sourceit.com.sg for a quote.
Datasheet & Downloads
| NETGEAR datasheet | XS708T / XS712Tv2 / XS716T / XS728T / XS748T Datasheet (PDF) |
| Installation guide | XS728T / XS748T Installation Guide (PDF) |
| Hardware installation guide | XS728T / XS748T Hardware Installation Guide (PDF) |
| User manual | XS728T / XS748T User Manual (PDF) |
| NETGEAR product page | XS748T on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting XS748T-100AJS.
Frequently Asked Questions — NETGEAR XS748T
Can the XS748T ports run at 1G as well as 10G?
Yes. All 44 10GBASE-T copper ports and all 4 SFP+ ports support both 10G and 1G speeds.
Are the SFP+ ports shared with copper ports?
No. On the XS748T the 4 SFP+ ports are dedicated, so you get 44 copper plus 4 fiber ports usable at the same time (48 ports total).
Does the XS748T support routing?
It supports IPv4 and IPv6 static routing (64 routes each) in addition to full Layer 2 switching, VLANs, QoS and ACLs.
Is it rackmountable, and is it fan-cooled?
Yes. It is a 1U 440 mm-wide switch with a rack mount kit in the box, cooled by 4 fans (47.8 dBA).
What warranty do I get?
Limited Lifetime local warranty in Singapore, supplied by SourceIT with a GST invoice.
