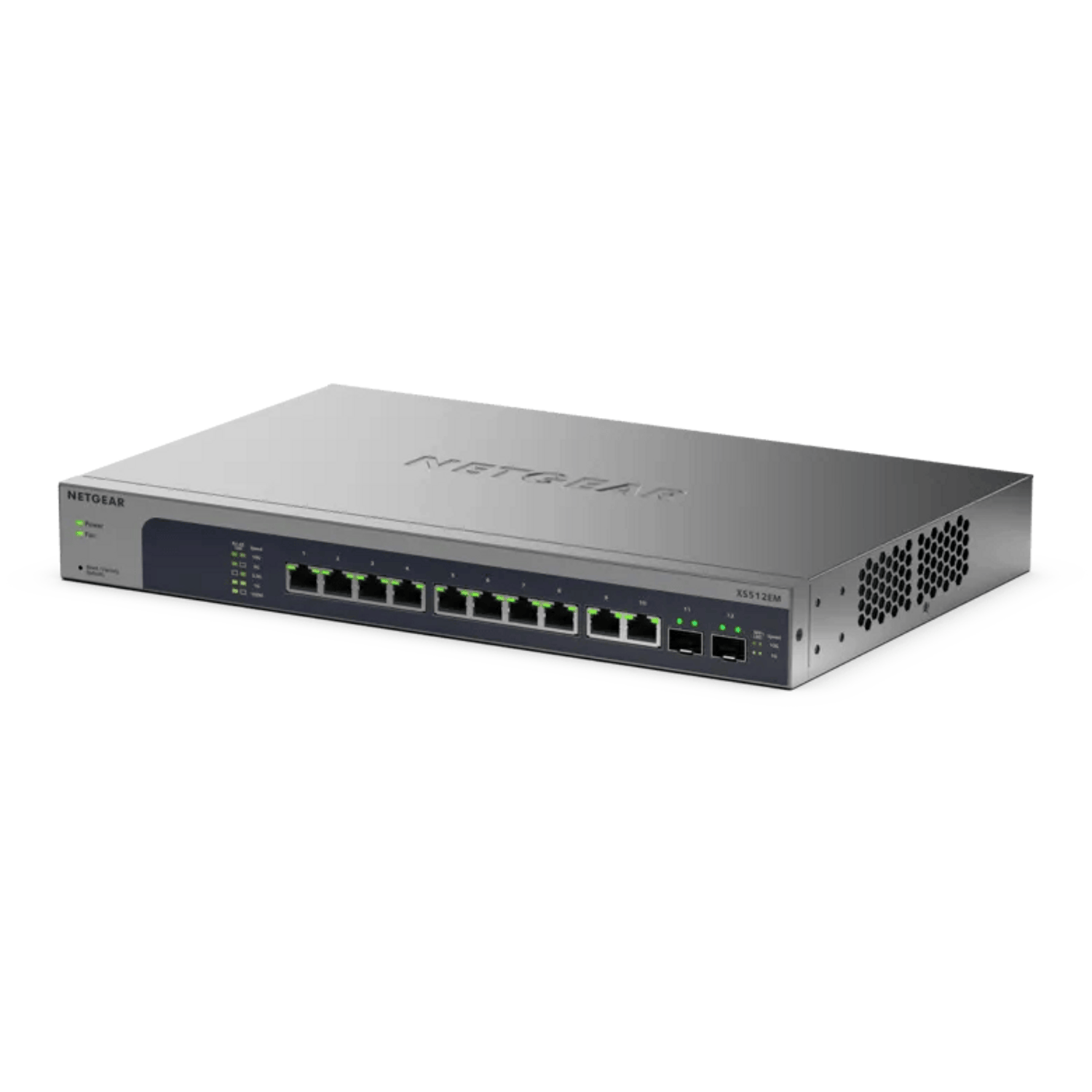

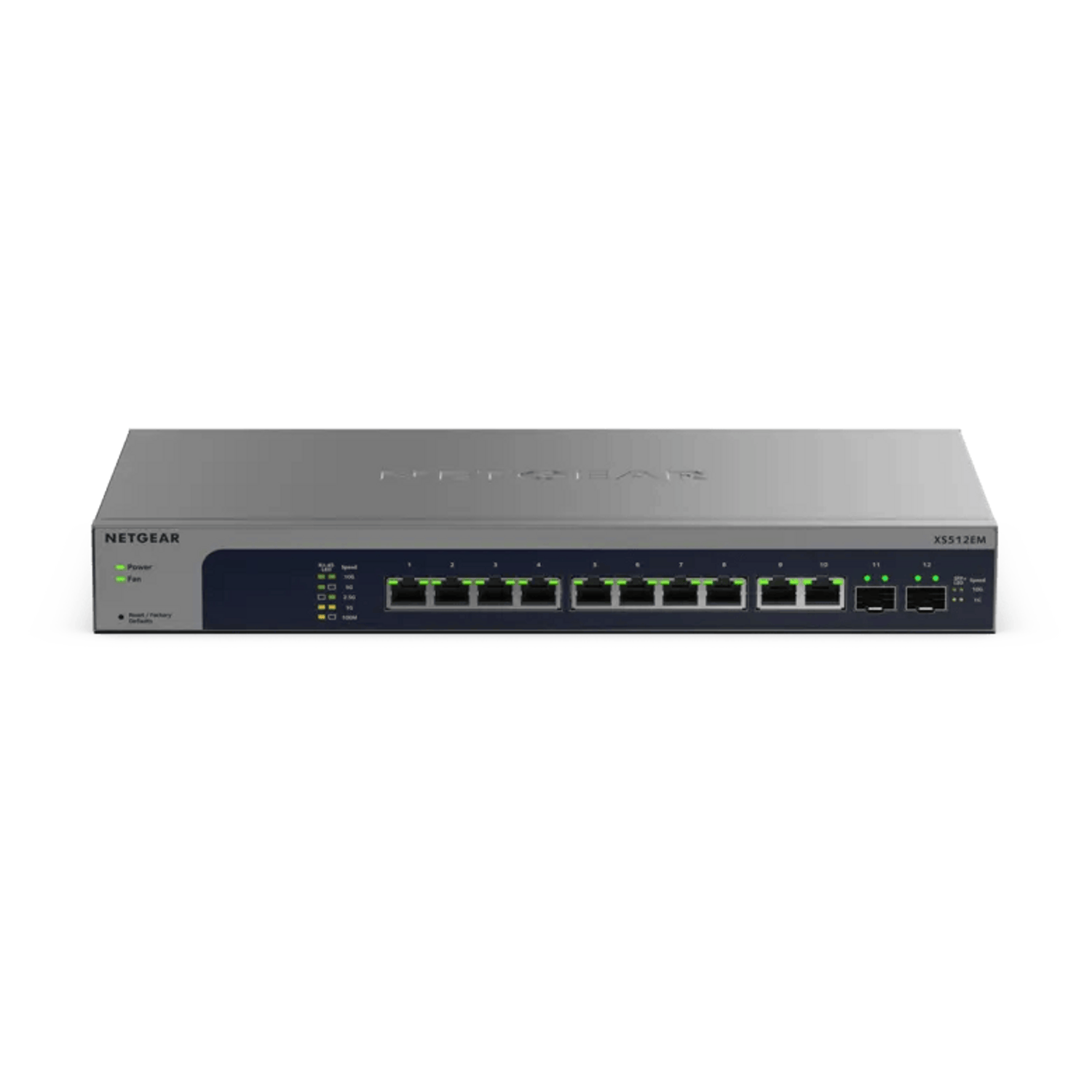

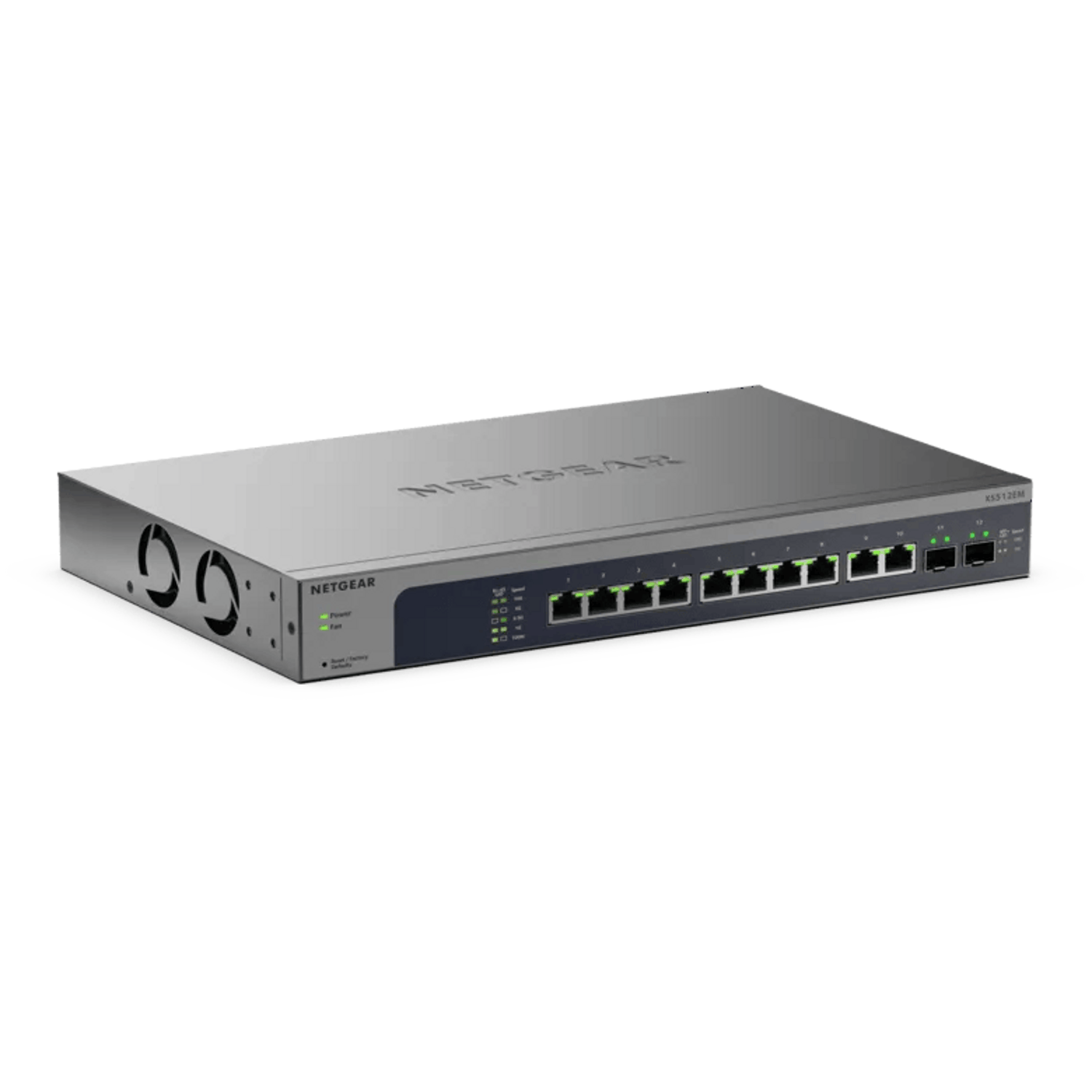

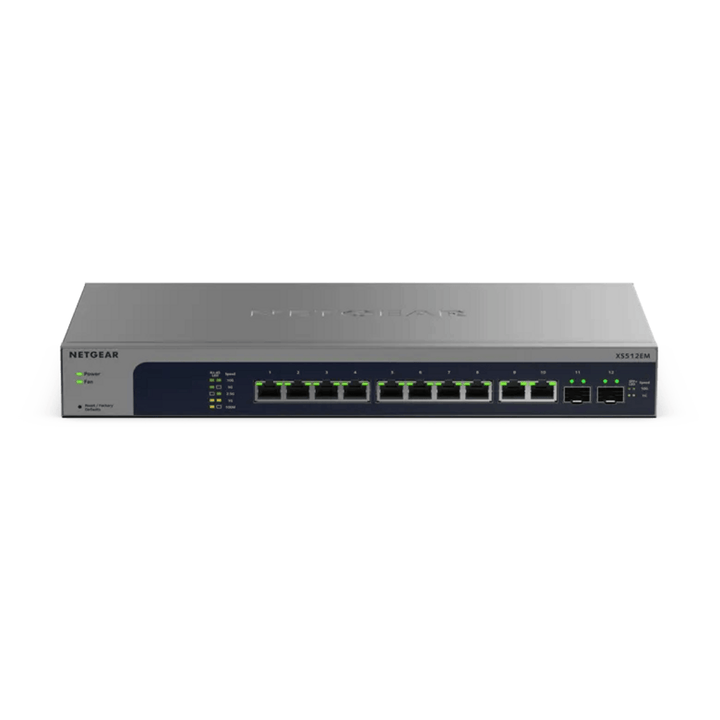

NETGEAR XS512EMv2 12-Port 10G Multi-Gigabit Easy Smart Managed Switch, 10 x 10G RJ-45 + 2 x SFP+
PRODUCT DESCRIPTION
NETGEAR XS512EMv2 12-Port 10G/Multi-Gigabit Ethernet Easy Smart Managed Switch with 2 Dedicated 10G SFP+ Ports (XS512EM-200UKS) - Limited Lifetime Local Warranty
10 Multi-Gig Copper Ports Plus 2 Dedicated SFP+
The NETGEAR XS512EMv2 has 10 RJ-45 ports that auto-detect 100M, 1G, 2.5G, 5G and 10G, plus 2 dedicated 10G SFP+ ports — 12 ports in total. Unlike the original XS512EM's combo ports, the SFP+ ports are separate, so you keep all 10 copper ports while using fibre or DAC uplinks.
240 Gbps Switching Performance
A 240 Gbps switching fabric, 178.6 Mpps forwarding rate, 2 MB packet buffer, 32K MAC table and jumbo frames up to 12K bytes support 10G servers, NAS units and Multi-Gig WiFi access points.
Easy Smart Management
Configure 802.1Q VLANs with Auto-Voice, Auto-Video, Auto-WiFi and Auto-Camera VLANs, 802.1p/DSCP QoS, rate limiting, IGMP snooping, LACP link aggregation, port mirroring, loop detection and cable test from a simple web GUI.
Desktop or Rack
A fixed internal power supply, 802.3az Energy Efficient Ethernet and two fans (28.2 dBA at full load) suit offices and studios, and the included rackmount kit fits it into a rack.
NETGEAR XS512EMv2 Datasheet — Technical Specifications
General
| Product Name | NETGEAR XS512EMv2 12-Port 10G/Multi-Gigabit Ethernet Easy Smart Managed Switch with 2 Dedicated 10G SFP+ Ports |
| Part Number (SKU) | XS512EM-200UKS |
| Hardware Version | v2 (XS512EMv2) |
| Series | NETGEAR 10G/Multi-Gigabit Easy Smart Managed Switches |
| Local Warranty (Singapore) | Limited Lifetime, supplied by SourceIT with a GST invoice |
Interfaces
| Copper Ports | 10 x 100M/1G/2.5G/5G/10G RJ-45 |
| SFP+ Ports | 2 x dedicated 10G SFP+ (10G or 1G; not combo) |
| Total Ports | 12 |
| PoE | Not supported |
| LEDs | Power, fan, per-port speed and link/activity |
Performance
| Switching Fabric | 240 Gbps |
| Forwarding Rate (64-byte) | 178.6 Mpps |
| Forwarding Mode | Store-and-forward |
| Latency | 100M: < 29.427 µs; 1G: < 4.714 µs; 2.5G: < 7.629 µs; 5G: < 5.215 µs; 10G: < 3.919 µs |
| Packet Buffer | 2 MB (shared) |
| MAC Address Table | 32K entries (dynamic) |
| Jumbo Frames | Up to 12K bytes |
| VLANs | 64 |
| Priority Queues | 8 (WRR) |
| IGMP Multicast Groups | 256 |
| Link Aggregation | 6 LAGs, up to 8 members per LAG (static or LACP) |
Software Features
| Layer 2 | Port-based and IEEE 802.1Q VLANs; Auto-Voice, Auto-Video, Auto-WiFi and Auto-Camera VLANs; management VLAN; broadcast, multicast and unknown-unicast storm control; IEEE 802.3x flow control |
| Multicast | IGMP snooping v1/v2/v3, IGMP querier, block unknown multicast, static multicast router port |
| QoS | Port-based QoS, IEEE 802.1p CoS, IPv4 DSCP and ToS, WRR; port-based ingress and egress rate limiting |
| Security & Diagnostics | Auto denial-of-service (DoS) prevention, loop detection, port mirroring, cable test, password management |
| Management | Web browser GUI; DHCP client; firmware upgrade via HTTP and online; configuration download/upload via HTTP |
| Green Ethernet | IEEE 802.3az Energy Efficient Ethernet, auto power-down |
Power & Environmental
| Power Supply | Fixed internal, 100–240 V AC, 50–60 Hz, 1.5 A max |
| Power Consumption | 60 W max (all ports, line rate); 21 W min (link-down standby) |
| Heat Dissipation | 181.744 BTU/hr max; 72.672 BTU/hr min |
| Cooling | 2 fans |
| Acoustic Noise | 28.2 dBA @ 25 °C, full load |
| MTBF | 420,709 hours @ 25 °C |
| Operating Temperature | 0 to 50 °C (32 to 122 °F) |
| Operating Humidity | 95% max RH, non-condensing |
| Storage Temperature | –20 to 70 °C (–4 to 158 °F) |
| Storage Humidity | 95% max RH, non-condensing |
Physical
| Dimensions (W x D x H) | 330 x 208 x 43 mm (12.9 x 8.2 x 1.7 in) |
| Weight | 2.5 kg (5.5 lb) |
| Form Factor | Desktop or rackmount |
Certifications
| EMC | FCC, CAN ICES, CE, RCM, VCCI, KC, BSMI (Class A) |
| Safety | CB, CE LVD, CSA, RCM, BSMI |
Compatibility & Software Support
Management
Easy Smart Managed through a local web browser GUI. Find the switch with UPnP discovery or the NETGEAR Discovery Tool (Windows, Mac or Linux); the default admin password is printed on the switch label and can be changed at first login.
Cabling
100 Mbps: Cat 5 or higher. 1G, 2.5G and 5G: Cat 5e or higher. 10G: Cat 6A or higher. Maximum copper distance 100 m.
Compatible NETGEAR SFP/SFP+ Modules
10G SFP+: AXM761 (10GBASE-SR), AXM762 (10GBASE-LR), AXM763 (10GBASE-LRM), AXM764 (10GBASE-LR Lite). Passive Direct Attach Cables: AXC761 (1 m), AXC763 (3 m). 1G SFP: AGM731, AGM732F, AGM734. Modules sold separately; the SFP+ ports run at 10G or 1G.
Typical Use
10G/Multi-Gig access or small core for offices, creative studios and labs: 10G servers and NAS, Multi-Gig WiFi access points and workstations on copper, with fibre or DAC uplinks on the 2 dedicated SFP+ ports.
Package Contents & 10G/Multi-Gig Easy Smart Switch Ordering Information
In the Box
XS512EMv2 switch, power cord (localized to the country of sale), rackmount kit, documentation download flyer.
NETGEAR 10G/Multi-Gigabit Easy Smart Managed Switches (v2)
| Model | Ports | Part No. |
| XS512EMv2 (this listing) | 10 x 10G/Multi-Gig RJ-45 + 2 x dedicated 10G SFP+ (12 ports) | XS512EM-200UKS |
| XS724EMv2 | 24 x 10G/Multi-Gig RJ-45 + 4 x dedicated 10G SFP+ (28 ports) | XS724EM-200UKS |
Datasheet & Downloads
| NETGEAR datasheet | XS512EMv2 / XS724EMv2 Datasheet (PDF) |
| Installation guide | XS512EMv2 / XS724EMv2 Installation Guide (PDF) |
| User manual | XS512EMv2 / XS724EMv2 User Manual (PDF) |
| NETGEAR product page | XS512EMv2 on netgear.com |
Frequently Asked Questions — NETGEAR XS512EMv2
How is the XS512EMv2 different from the original XS512EM?
The v2 has 10 copper 10G/Multi-Gig ports plus 2 dedicated SFP+ ports, whereas the original had 12 copper ports with 2 SFP+ combo ports shared with copper ports.
What speeds do the copper ports support?
All 10 RJ-45 ports auto-detect 100M, 1G, 2.5G, 5G and 10G. Use Cat 6A or higher for 10G.
Are the SFP+ ports extra ports?
Yes. The 2 SFP+ ports are dedicated (not combo), running at 10G or 1G with NETGEAR SFP+/SFP modules or DAC cables, sold separately.
Does it support PoE?
No, the XS512EMv2 does not supply PoE.
What warranty do I get?
Limited Lifetime local warranty in Singapore, supplied by SourceIT with a GST invoice.
