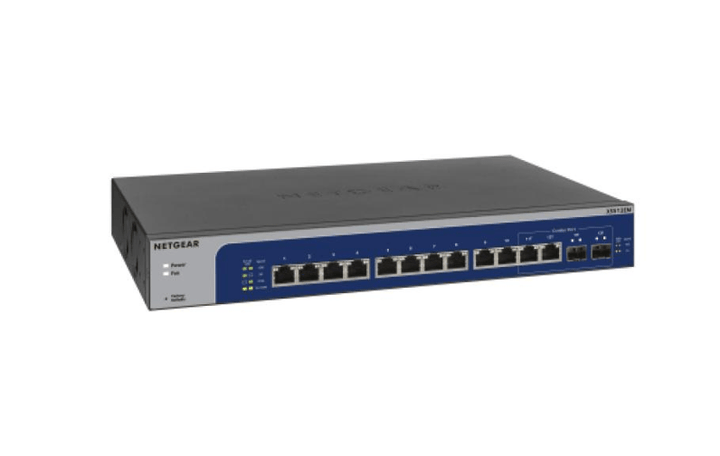

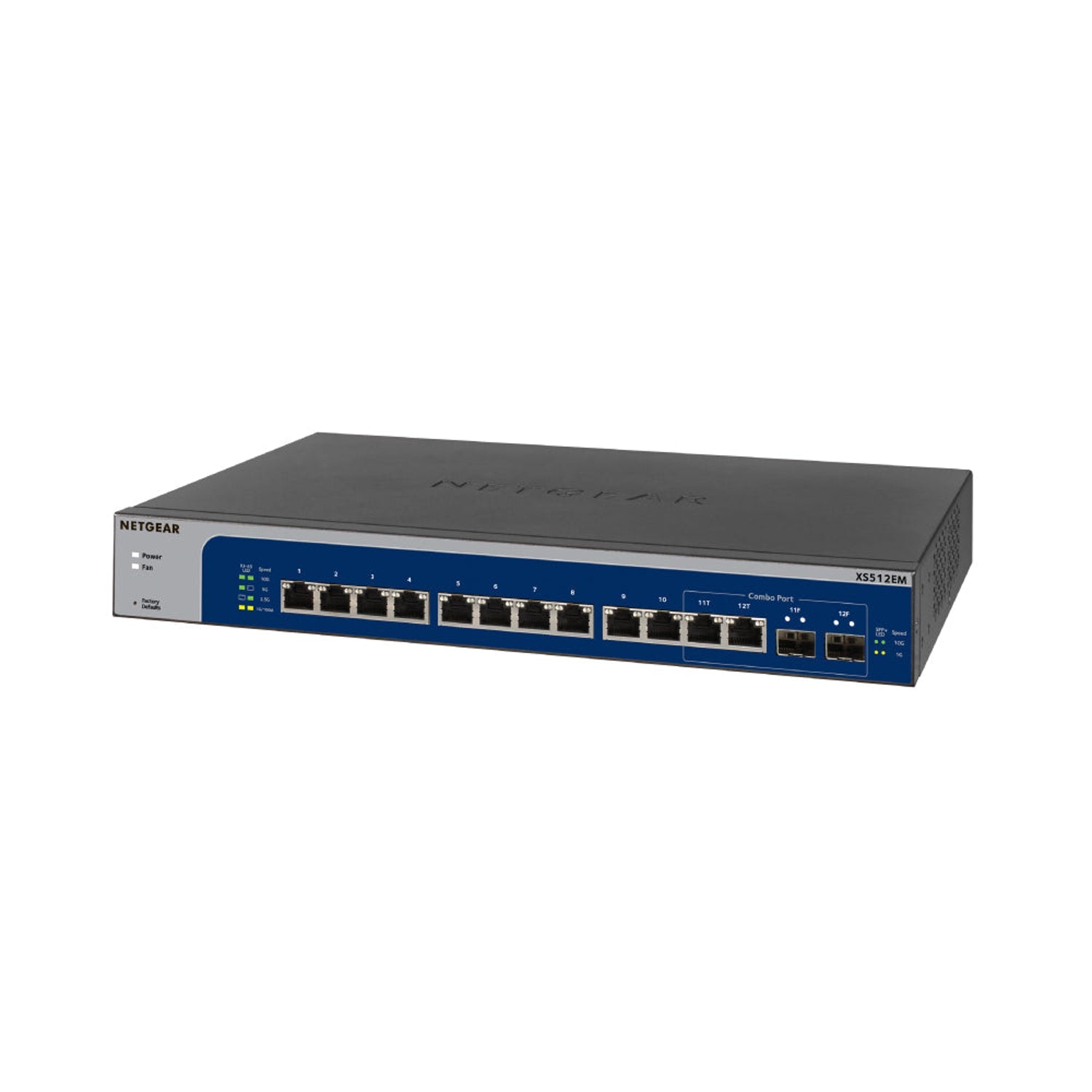

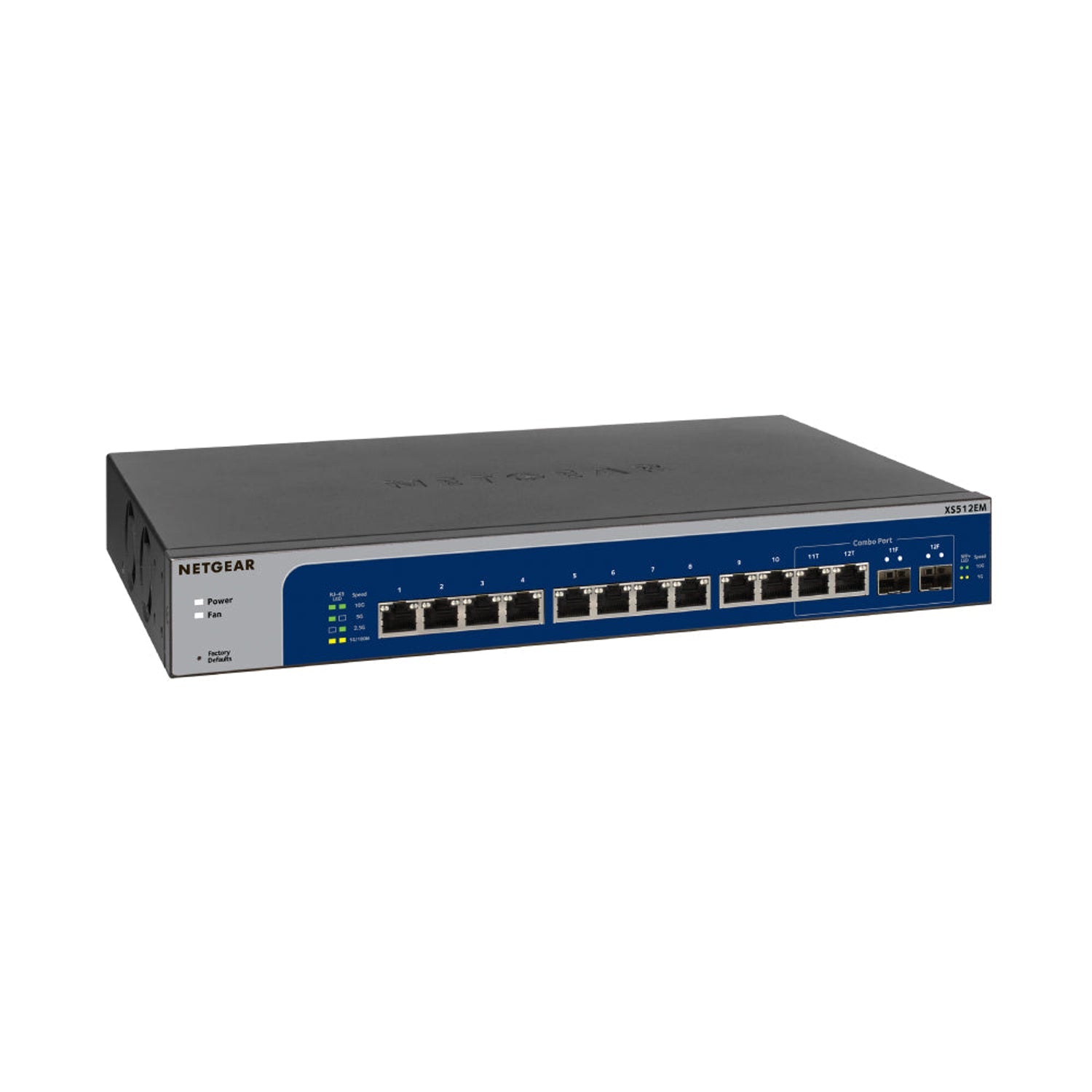

NETGEAR XS512EM 12-Port 10G Multi-Gigabit Easy Smart Managed Switch, 2 SFP+ Combo
PRODUCT DESCRIPTION
NETGEAR XS512EM 12-Port 10G/Multi-Gigabit Ethernet Easy Smart Managed Switch with 2 SFP+ Combo Ports (XS512EM-100EUS) - Limited Lifetime Local Warranty
12 Ports of 10-Gig and Multi-Gig Copper
The NETGEAR XS512EM gives you 12 RJ-45 ports that auto-detect 100M, 1G, 2.5G, 5G and 10G, so one compact switch connects existing Gigabit devices, Multi-Gig Wi-Fi access points and 10G servers or NAS units over standard copper cabling.
Fiber-Ready with 2 SFP+ Combo Ports
Ports 11 and 12 are combo ports: use them as 10G copper ports or as SFP+ slots for 10G fiber or Direct Attach Cable uplinks to your core switch or storage. A 240 Gbps switching fabric and 3 MB packet buffer keep traffic moving.
Easy Smart Management
Configure 802.1Q VLANs, Voice VLAN, QoS with 8 priority queues, rate limiting, IGMP snooping, LACP link aggregation, port mirroring and loop prevention from a simple web GUI or the NETGEAR Plus Configuration Utility, without the complexity of a fully managed switch.
Quiet, Efficient, Rack or Desk
An internal power supply removes the power brick, Energy Efficient Ethernet (IEEE 802.3az) saves power on idle links, and the included rackmount kit and rubber feet let you install it in a rack or on a desk.
Need help choosing? Email sales@sourceit.com.sg with your port count, speed and fiber uplink needs and we will size it for you.
NETGEAR XS512EM Datasheet — Technical Specifications
General
| Product Name | NETGEAR XS512EM 12-Port 10G/Multi-Gigabit Ethernet Easy Smart Managed Switch with 2 SFP+ Combo Ports |
| Part Number (SKU) | XS512EM-100EUS |
| Series | NETGEAR 10-Gigabit/Multi-Gigabit Ethernet Plus (Easy Smart Managed) Switches |
| Local Warranty (Singapore) | Limited Lifetime, supplied by SourceIT with a GST invoice |
Interfaces

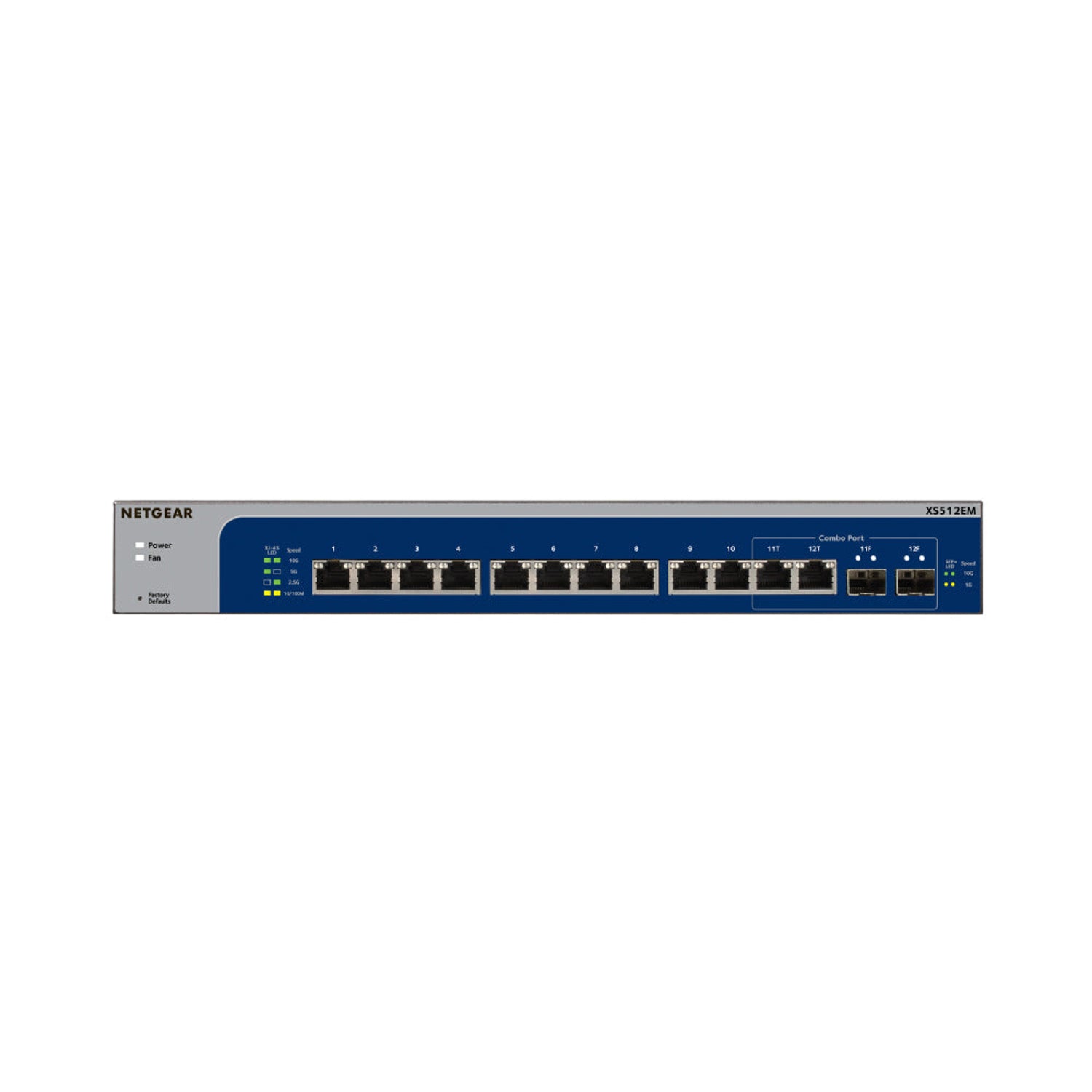

| Copper Ports | 12 x 10-Gig/Multi-Gig RJ-45 (100M/1G/2.5G/5G/10G auto-detect) |
| SFP+ Ports | 2 x 10G SFP+ (shared combo with copper ports 11 and 12) |
| PoE | Not supported |
| LEDs | Per port: speed, link, activity; per device: power, fan |
Performance
| Switching Fabric | 240 Gbps |
| Forwarding Rate (64-byte) | 178.6 Mpps |
| Latency | 10G: 4.3 µs; 5G: 5.2 µs; 2.5G: 7.1 µs; 1G: 3.76 µs; 100M: 13.63 µs (average) |
| Packet Buffer | 3 MB |
| MAC Address Table | 32K entries (dynamic) |
| Jumbo Frames | Up to 9K |
| VLANs | 64 (802.1Q VLAN ID 1–4093) |
| Priority Queues | 8 (WRR) |
| IGMP Multicast Groups | 128 |
| Link Aggregation | 8 LAGs, up to 8 members per LAG |
Software Features
| Layer 2 | Port-based VLANs, IEEE 802.1Q VLAN tagging, Voice VLAN, static LAG and LACP, IEEE 802.3x flow control, broadcast/multicast/unknown unicast storm control |
| Multicast | IGMP snooping v1/v2/v3, block unknown multicast, static multicast router port |
| QoS | Port-based QoS, IEEE 802.1p CoS, IPv4 DSCP and ToS, WRR, ingress and egress port-based rate limiting |
| Security & Diagnostics | Auto denial-of-service (DoS) prevention, loop detection/prevention, port mirroring, cable test |
| Management | Web browser-based GUI, NETGEAR Plus Configuration Utility (multi-switch), DHCP client, firmware upgrade via HTTP (web GUI) or TFTP (Plus Utility) |
| Green Ethernet | Energy Efficient Ethernet (IEEE 802.3az) |
Power & Environmental

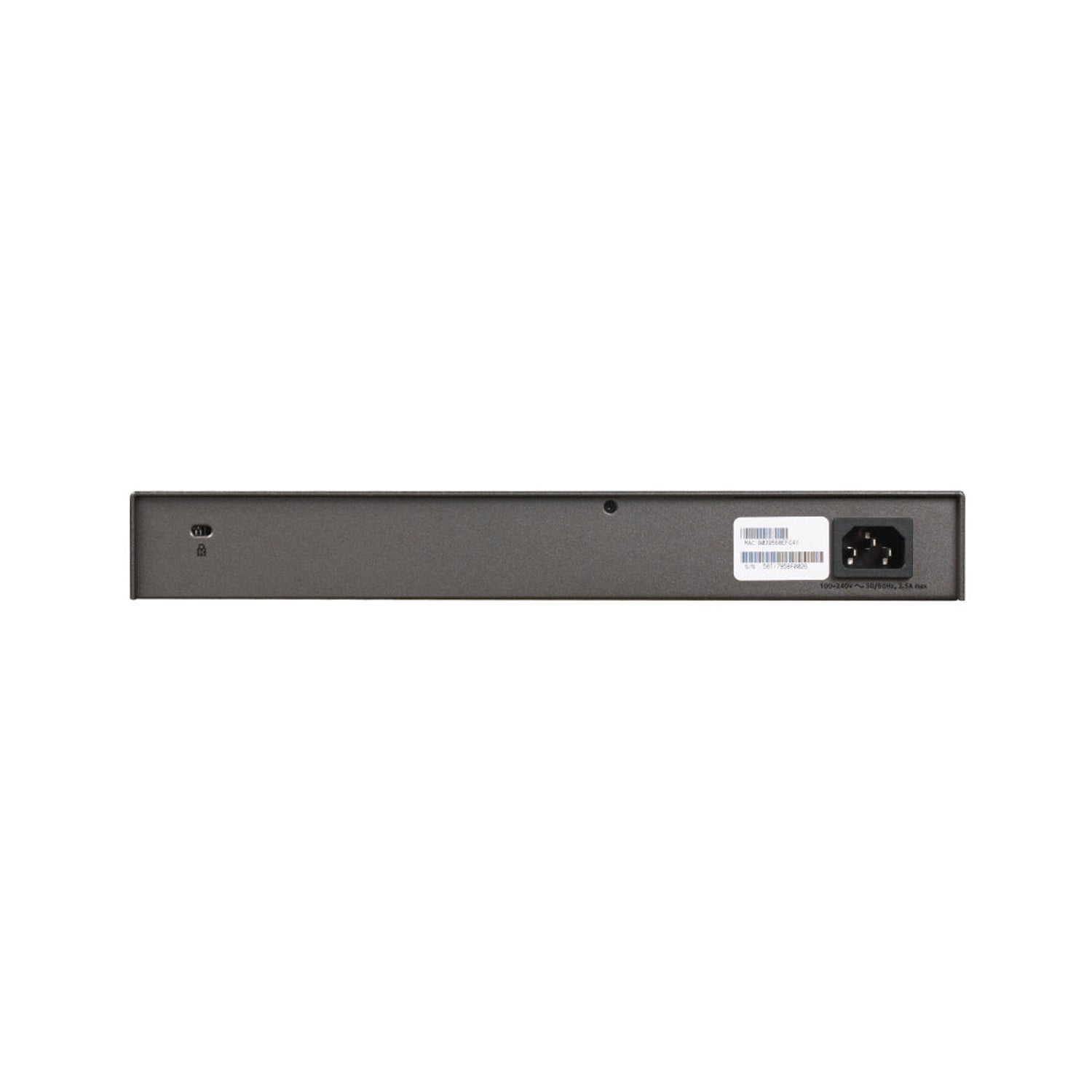

| Power Input | 100–240 VAC, 50–60 Hz, 2.5 A max (fixed internal PSU) |
| Power Consumption | 76.56 W max (all ports, line-rate traffic); 36.5 W min (standby) |
| Heat Dissipation | 261.38 BTU/hr max; 164.2 BTU/hr min |
| Cooling | 2 fans |
| Acoustic Noise | Idle: 29.13 dB @ 25 °C; full load: 40.85 dB @ 50 °C |
| MTBF | 1,113,477 hours @ 25 °C |
| Operating Temperature | 0 to 50 °C (32 to 122 °F) |
| Operating Humidity | 90% max relative humidity, non-condensing |
| Storage Temperature | –20 to 70 °C (–4 to 158 °F) |
| Storage Humidity | 95% max relative humidity, non-condensing |
Physical
| Dimensions (W x D x H) | 328 x 204 x 43 mm (12.9 x 8.0 x 1.7 in) |
| Weight | 2.51 kg (5.54 lb) |
| Form Factor | Desktop or rackmount, compact small form factor |
Certifications
| EMC | FCC Part 15 Subpart B Class A, EN 55032 Class A, EN 55024, ICES-003 Class A, AS/NZS CISPR 32 Class A, VCCI-CISPR32, KC, CNS 13438 |
| Safety | CB, IEC 60950-1, UL/cUL (UL 60950-1, CAN/CSA C22.2 No. 60950-1-07), EN 60950-1, AS/NZS 60950.1, EAC |
Compatibility & Software Support
Management
Local web browser GUI, or the NETGEAR Plus Configuration Utility for managing multiple switches. The switch can be found with Windows network discovery, Bonjour on a Mac, or the NETGEAR Switch Discovery Tool. By default it obtains an IP address from a DHCP server; its default IP address is 192.168.0.239 and the default password is "password".
Cabling
100 Mbps: Cat 5 or higher. 1G, 2.5G and 5G: Cat 5e or higher. 10G: Cat 6A or higher (Cat 6 is acceptable for 10G runs under 55 m).
Compatible NETGEAR SFP/SFP+ Modules
10G SFP+: AXM761 (10GBASE-SR), AXM762 (10GBASE-LR), AXM763 (10GBASE-LRM), AXM764 (10GBASE-LR Lite). Direct Attach Cables: AXC761 (1 m), AXC763 (3 m). 1G SFP: AGM731 (1000BASE-SX), AGM732F (1000BASE-LX), AGM734 (1000BASE-T). Modules sold separately.
Typical Use
10G/Multi-Gig access or small core for offices, creative studios and labs: connect 10G servers and NAS, Multi-Gig Wi-Fi access points and workstations, with fiber or DAC uplinks through the 2 SFP+ combo ports.
Package Contents & 10-Gigabit/Multi-Gigabit Plus (Easy Smart) Switch Ordering Information
In the Box
XS512EM switch, power cord (localized to the country of sale), four rubber footpads, rackmount kit, installation guide.
NETGEAR 10-Gigabit/Multi-Gigabit Plus (Easy Smart) Switch Models
| Model | Ports | Part No. |
| XS512EM (this listing) | 12 x 10G/Multi-Gig RJ-45 (2 combo SFP+) | XS512EM-100EUS |
| XS724EM | 24 x 10G/Multi-Gig RJ-45 (2 combo SFP+) | XS724EM |
Other NETGEAR Plus / Easy Smart models are available to order — email sales@sourceit.com.sg for a quote.
Datasheet & Downloads
| NETGEAR datasheet | XS512EM / XS724EM Datasheet (PDF) |
| Installation guide | XS512EM / XS724EM Installation Guide (PDF) |
| User manual | XS512EM / XS724EM User Manual (PDF) |
| NETGEAR product page | XS512EM on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting XS512EM-100EUS.
Frequently Asked Questions — NETGEAR XS512EM
What speeds do the copper ports support?
All 12 RJ-45 ports auto-detect 100M, 1G, 2.5G, 5G and 10G. Use Cat 6A (or Cat 6 under 55 m) for 10G.
Are the SFP+ ports extra ports?
No. The 2 SFP+ ports are combo ports shared with copper ports 11 and 12; each pair works as either copper or SFP+. SFP+ modules and DAC cables are sold separately (e.g. NETGEAR AXM761 or AXC761).
Does it support PoE?
No, the XS512EM does not supply PoE.
How is it managed?
Through a web browser GUI or the NETGEAR Plus Configuration Utility, with VLANs, QoS, IGMP snooping, LACP and port mirroring.
What warranty do I get?
Limited Lifetime local warranty in Singapore, supplied by SourceIT with a GST invoice.
