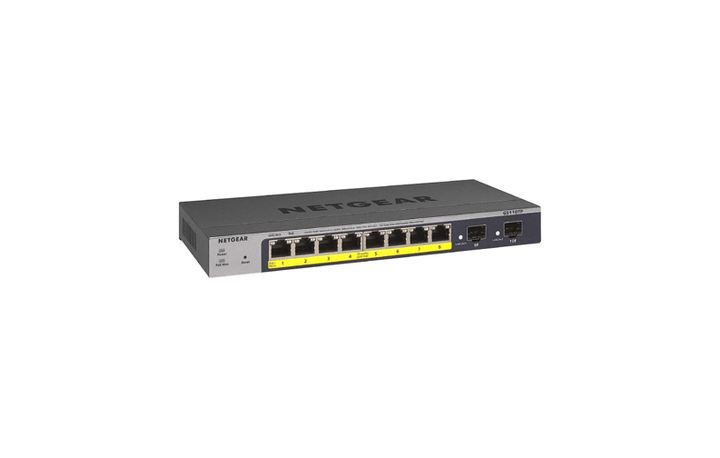

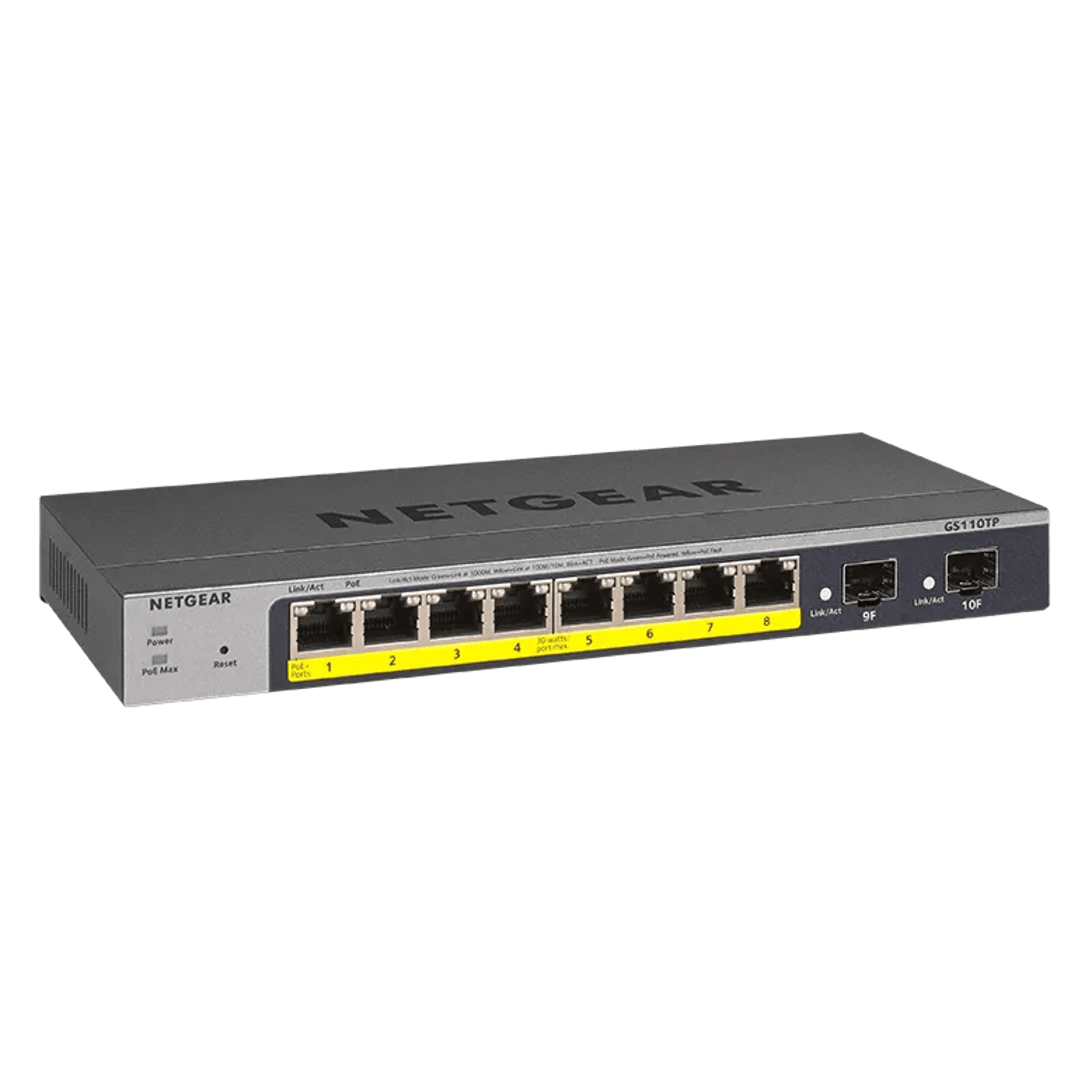

NETGEAR GS110TP 8-Port Gigabit PoE+ Smart Cloud Managed Switch with 2 SFP (55W)
PRODUCT DESCRIPTION
NETGEAR GS110TP 8-Port Gigabit PoE+ Ethernet Smart Switch with 2 SFP Ports and Cloud Management (55W) (GS110TP-300EUS) - Limited Lifetime Local Warranty
Switch Now, Cloud-Manage Now or Later

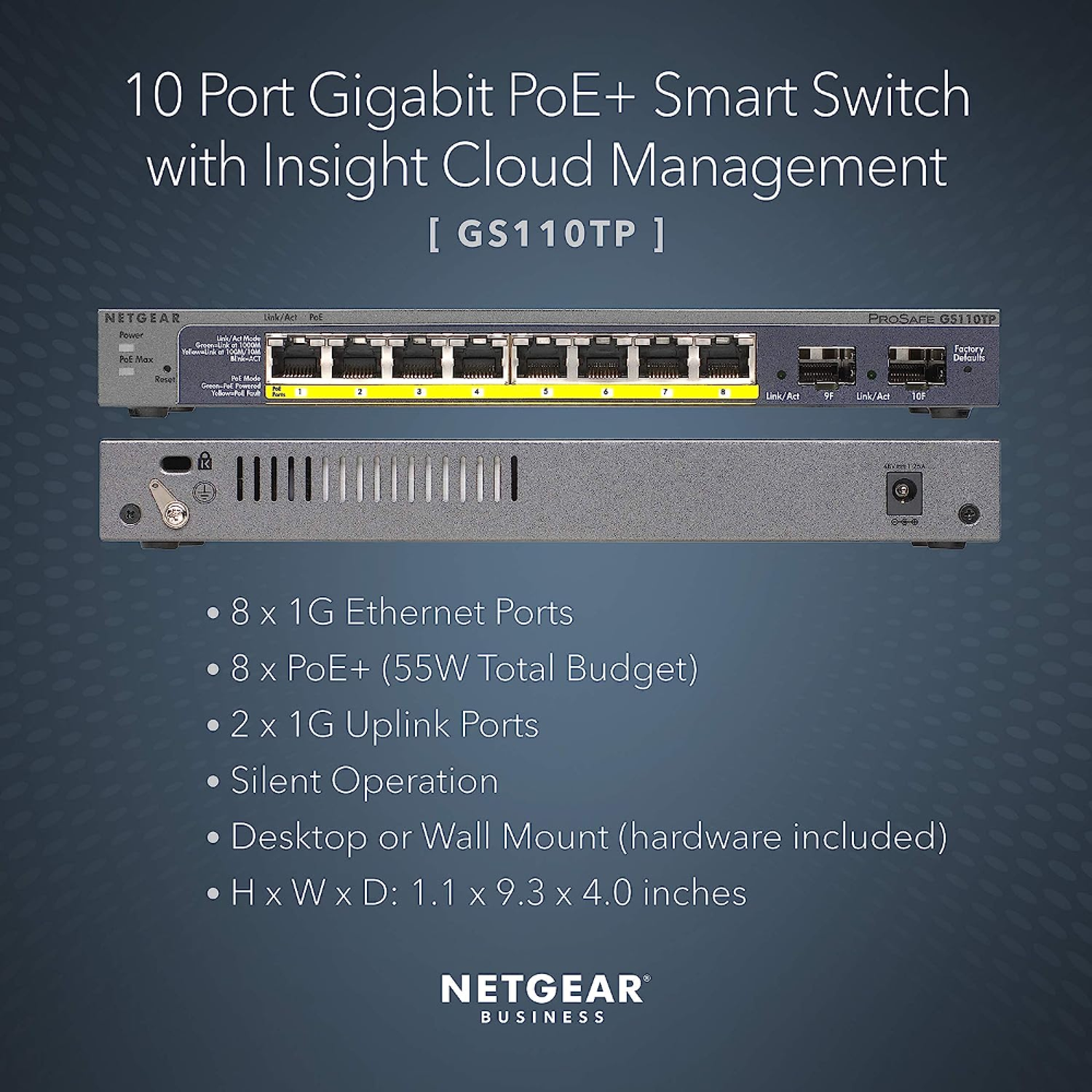

The NETGEAR GS110TP (GS110TPv3) is an 8-port Gigabit PoE+ smart switch with 2 SFP ports. Use it straight away with local web management, then switch to NETGEAR Insight cloud management (app and portal) whenever you want remote control.
8 PoE+ Ports, 55W Budget

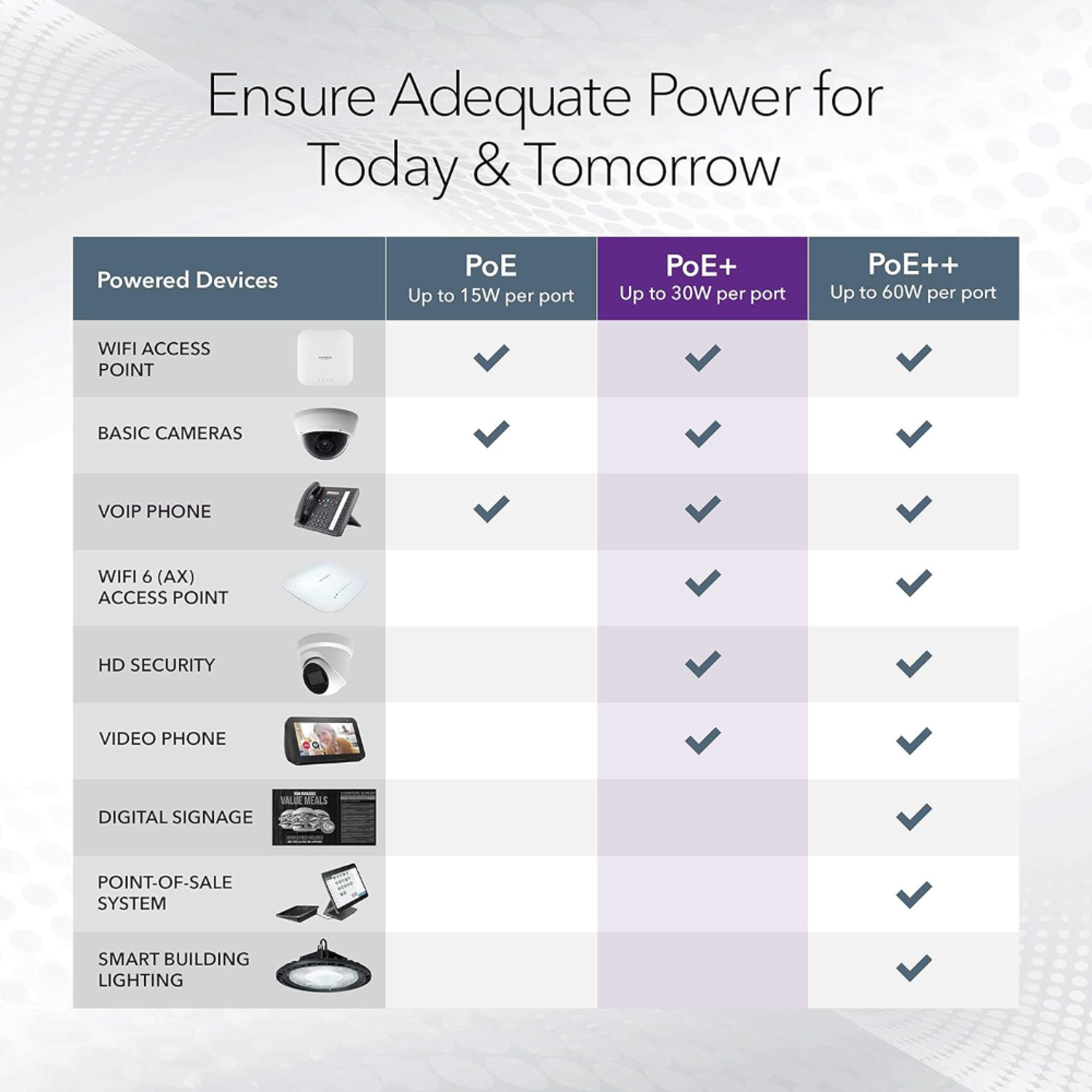

All 8 copper ports provide IEEE 802.3at PoE+ at up to 30W per port from a 55W total budget — enough for a small cluster of IP phones, cameras or access points.
Essential L2/L2+ Features, Fanless
802.1Q VLANs, Auto-VoIP/Video, QoS with 8 queues, IGMP and MLD snooping, LACP, ACLs and 32 IPv4 static routes, in a silent fanless chassis for the desk or wall.
Need help choosing? Email sales@sourceit.com.sg with your port count, PoE and uplink needs and we will size it for you.
NETGEAR GS110TP Datasheet — Technical Specifications
General
| Product Name | NETGEAR GS110TP 8-Port Gigabit PoE+ Ethernet Smart Switch with 2 SFP Ports and Cloud Management (55W) |
| Part Number | GS110TP-300EUS |
| Hardware Version | GS110TPv3 |
| Series | NETGEAR Smart Cloud Switches (Insight Managed) |
| Local Warranty (Singapore) | Limited lifetime, supplied by SourceIT with a GST invoice |
Interfaces
| Ethernet Ports | 8 x 10/100/1000BASE-T RJ-45 |
| PoE | 8 x IEEE 802.3at/af PoE+ ports, up to 30W per port, 55W total budget |
| Fiber Ports | 2 x dedicated 1G SFP |
Performance
| Switching Bandwidth | 20 Gbps (non-blocking) |
| Forwarding Rate | 14.8 Mpps |
| Latency | 3.693 µs (1G copper, 64-byte packets) |
| MAC Address Table | 8K |
| Packet Buffer | 512 KB |
| Jumbo Frames | Up to 10K |
| VLANs | Up to 64 |
Software Features
| Layer 2 | 802.1Q, protocol- and MAC-based VLANs, Auto-VoIP / Auto-Video, STP/RSTP/MSTP, static or LACP link aggregation (8 LAGs, up to 8 members each), LLDP / LLDP-MED |
| Layer 3 Lite | 32 IPv4 static routes |
| QoS & Multicast | 8 priority queues (WRR and Strict Priority); IGMP snooping v1/v2/v3 with querier, MLD snooping |
| Security | 802.1x (port- and MAC-based), 100 shared L2/L3/L4 ACLs |
| Management | HTTPS web GUI, NETGEAR Insight app and cloud portal, zero-touch provisioning, SNMP v1/v2c/v3, RMON 1/2/3/9, syslog, port mirroring, cable test |
Power & Environmental
| Power Supply | External 54 V DC, 1.25 A adapter |
| Power Consumption | 15.1 W max (switch only); 69.5 W max with full PoE |
| Cooling | Fanless (0 dBA) |
| MTBF | 1,200,041 hours at 25 °C |
| Operating Temperature | 0 to 40 °C |
| Operating Humidity | 95% max RH, non-condensing |
Physical
| Dimensions (W x D x H) | 236 x 101 x 27 mm |
| Weight | 0.61 kg |
| Mounting | Desktop or wall mount |
Compatibility & Software Support
Management

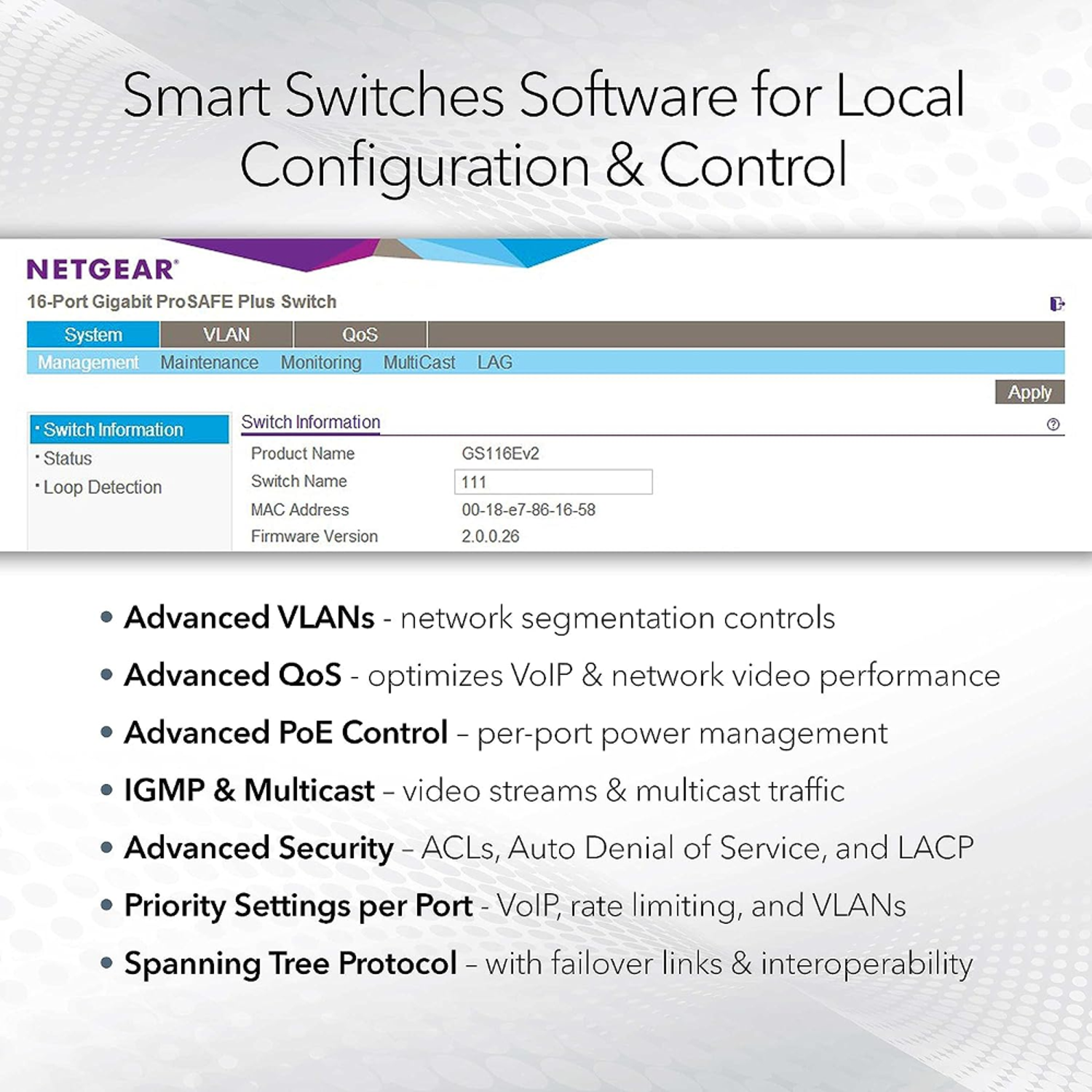

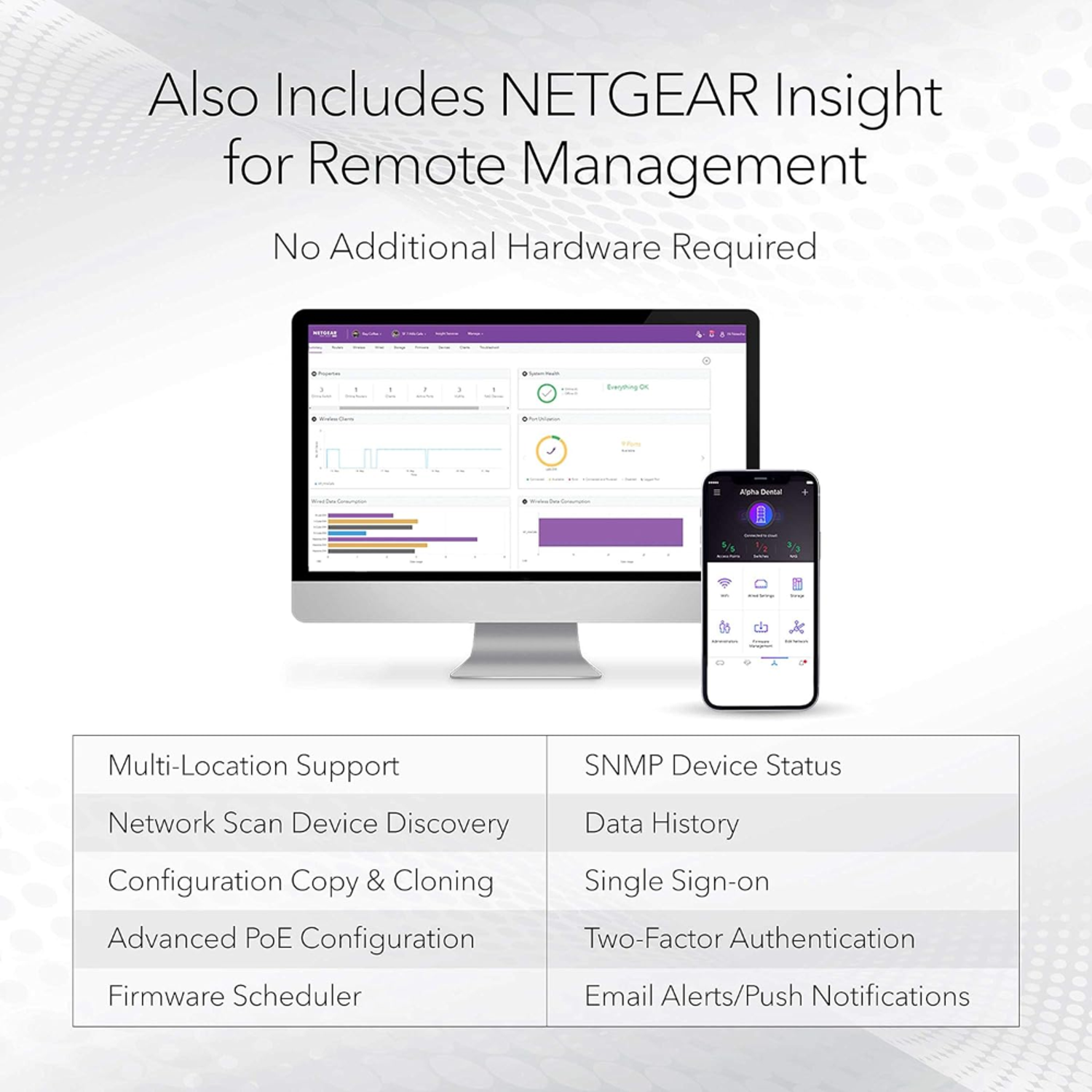

Manage locally through the built-in web browser interface, or switch to NETGEAR Insight cloud management (mobile app and cloud portal) from the web GUI.
Typical Use
Small offices, branch sites and retail powering up to 8 PoE+ devices, with 2 SFP ports for fiber uplinks.
Package Contents & Smart Cloud Switch Ordering Information
In the Box
GS110TP switch, power adapter, regional power cord, wall-mount kit, rubber footpads, installation guide.
NETGEAR Smart Cloud Switch Models
| Model | Ports | Part No. |
| GS108T | 8 x GE (no PoE) | GS108T-300UKS |
| GS110TP (this listing) | 8 x GE PoE+ + 2 x SFP (55 W) | GS110TP-300EUS |
Datasheet & Downloads
| NETGEAR datasheet | GS108Tv3 / GS110TPv3 Datasheet (PDF) |
| Installation guide | GS110TPv3 / GS110TPP Installation Guide (PDF) |
| User manual | GS108Tv3 / GS110TPv3 / GS110TPP User Manual (PDF) |
| NETGEAR product page | GS110TP on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting GS110TP-300EUS.
Frequently Asked Questions — NETGEAR GS110TP
How much PoE power does the GS110TP provide?
55W total, up to 30W per port, across 8 PoE+ ports.
Can it be managed from the cloud?
Yes. NETGEAR lists NETGEAR Insight cloud management (app and portal) as well as local web management.
Does it have fiber uplinks?
Yes, 2 dedicated 1G SFP ports (SFP modules sold separately, e.g. NETGEAR AGM731F or AGM732F).
Is it fanless?
Yes. NETGEAR specifies a fanless design with 0 dBA acoustic noise.
What warranty do I get?
Limited lifetime local warranty in Singapore, supplied by SourceIT with a GST invoice.
