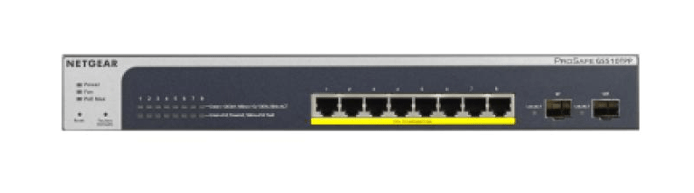

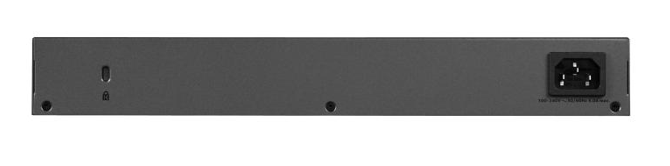

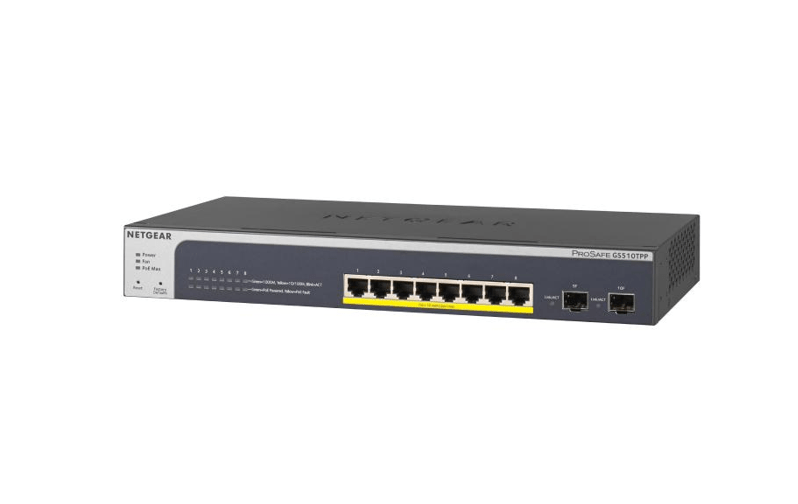

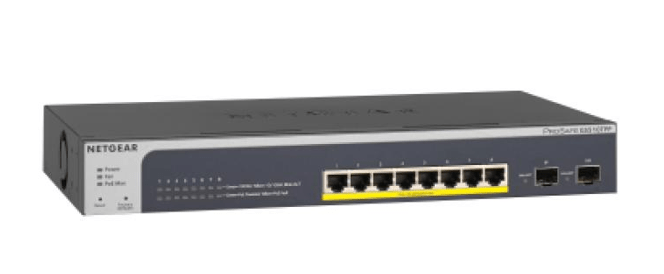

NETGEAR GS510TPP 8-Port Gigabit PoE+ Smart Managed Pro Switch with 2 SFP (190W)
PRODUCT DESCRIPTION
NETGEAR GS510TPP 8-Port Gigabit Ethernet High-Power PoE+ Smart Managed Pro Switch with 2 Dedicated SFP Ports (190W) (GS510TPP-100EUS) - Limited Lifetime Local Warranty
High-Power PoE+ in a Compact Switch
The NETGEAR GS510TPP gives 8 Gigabit copper ports — every one PoE+ (802.3at) — a generous 190W budget, plus 2 dedicated SFP ports for fiber uplinks. Per-port PoE controls and a PoE timer let you schedule power.
Layer 3 Lite and Rich L2
Static routing (32 IPv4 / 32 IPv6 routes), 256 VLANs, Auto-VoIP and Auto-Video, DiffServ QoS, LACP, 100 shared ACLs, 802.1x and DHCP snooping deliver business-grade control for voice, video and data.
Reliable and Cloud-Capable
Dual firmware images and dual configuration files protect uptime, and NETGEAR lists Insight remote/cloud management activation from the web GUI for the GS510TPP.
Need help choosing? Email sales@sourceit.com.sg with your port count, PoE and uplink needs and we will size it for you.
NETGEAR GS510TPP Datasheet — Technical Specifications
General
| Product Name | NETGEAR GS510TPP 8-Port Gigabit Ethernet High-Power PoE+ Smart Managed Pro Switch with 2 Dedicated SFP Ports (190W) |
| Part Number | GS510TPP-100EUS |
| Series | NETGEAR Smart Managed Pro Switches |
| Local Warranty (Singapore) | Limited lifetime, supplied by SourceIT with a GST invoice |
Interfaces
| Ethernet Ports | 8 x 10/100/1000BASE-T RJ-45 |
| PoE | 8 x IEEE 802.3at PoE+ ports, 190W total budget |
| Fiber Ports | 2 x dedicated 100/1000X SFP |
Performance
| Switching Bandwidth | 20 Gbps |
| Forwarding Rate | 14.88 Mpps (64-byte packets) |
| Latency | 3.313 µs (64-byte packets) |
| MAC Address Table | 16K |
| Packet Buffer | 1.5 MB |
| Jumbo Frames | Up to 9K |
| VLANs | Up to 256 |
Software Features
| Layer 2 | 802.1Q VLANs, Auto-VoIP (SIP, H.323, SCCP), Auto-Video, STP/RSTP/MSTP, link aggregation (5 LAGs, up to 8 members each) |
| Layer 3 Lite | Static routing: 32 IPv4 / 32 IPv6 routes; 479 ARP / 223 NDP entries |
| QoS & Multicast | DiffServ QoS; IGMP snooping v1/v2/v3; 512 multicast groups |
| Security | 802.1x, DHCP snooping, 100 shared ACLs (MAC/IP/IPv6) |
| Management | Web GUI (HTTPS/SSL), NETGEAR Insight cloud management capable, SNMP v1/v2c/v3, RMON 1/2/3/9, syslog, SNTP, port mirroring, cable test, dual firmware image and dual configuration file, PoE timer |
Power & Environmental
| Power Supply | 1 x internal fixed PSU |
| Power Consumption | 225 W max (full PoE); 12.5 W without PoE |
| Cooling | 1 internal fixed fan, 32 dBA at 25 °C |
| MTBF | 1,509,979 hours at 25 °C |
| Operating Temperature | 0 to 50 °C |
| Operating Humidity | 90% max RH, non-condensing |
Physical
| Dimensions (W x D x H) | 328 x 169 x 43 mm |
| Weight | 1.83 kg |
| Mounting | Desktop or rackmount (rackmount kit included) |
Certifications
| Safety | UL 1950, CB IEC 60950-1, CE LVD, RCM, CCC, BSMI |
| EMC | CE CISPR 32, VCCI, RCM, FCC Part 15 Class A |
Compatibility & Software Support
Management
Local web browser GUI (English, German, Japanese); NETGEAR Insight remote/cloud management can be activated from the web GUI; SNMP v1/v2c/v3.
Typical Use
Small offices and branch sites powering up to 8 higher-draw PoE+ devices — PTZ cameras, access points, IP phones — with 2 fiber uplinks.
Package Contents & GS510 / GS418 Smart Managed Pro PoE+ Switch Ordering Information
In the Box
GS510TPP switch, power cord (localized), rackmount kit, rubber footpads, installation guide.
NETGEAR GS510 / GS418 Smart Managed Pro PoE+ Switch Models
| Model | Ports | Part No. |
| GS510TLP | 8 x GE + 2 x SFP (8 x PoE+, 75 W) | GS510TLP |
| GS510TPP (this listing) | 8 x GE + 2 x SFP (8 x PoE+, 190 W) | GS510TPP-100EUS |
| GS418TPP | 16 x GE + 2 x SFP (16 x PoE+, 240 W) | GS418TPP |
Other models are available to order — email sales@sourceit.com.sg for a quote.
Datasheet & Downloads
| NETGEAR datasheet | GS510TLP / GS510TPP / GS418TPP Datasheet (PDF) |
| Installation guide | GS510TPP Installation Guide (PDF) |
| User manual | GS510TPP User Manual (PDF) |
| NETGEAR product page | GS510TPP on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting GS510TPP-100EUS.
Frequently Asked Questions — NETGEAR GS510TPP
How many ports does the GS510TPP have?
8 Gigabit RJ-45 ports (all PoE+) plus 2 dedicated SFP ports — 10 ports in total.
How much PoE power does it provide?
190W total across the 8 PoE+ (802.3at) ports.
Does it support static routing?
Yes. NETGEAR lists 32 IPv4 and 32 IPv6 static routes.
Does it have a fan?
Yes, 1 internal fan rated at 32 dBA at 25 °C.
What warranty do I get?
Limited lifetime local warranty in Singapore, supplied by SourceIT with a GST invoice.
