MuxLab USB-C 3.2 Gen1 4-Port Extender Kit (100 m over Cat6a)
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
MuxLab USB-C 3.2 Gen1 4-Port Extender Kit (100 m over Cat6a) 500534 - 2 Years Warranty
USB-C Extension to 100 m
The MuxLab 500534 extends USB 3.2 Gen1 at up to 5 Gbps over a single Cat6a cable up to 100 m (328 ft), from a USB-C host such as a modern laptop or room PC.
Ports at Both Ends
The transmitter has the USB-C host input plus three local ports (one USB-C, two USB-A). The receiver provides four device ports: two USB-C and two USB-A.
Room-Ready Control
RS-232 and FSYNC GPIO pass-through, hardware acceleration for isochronous and bulk transfers, bi-directional 24 VDC PoC and plug-and-play operation with no drivers.
MuxLab 500534 Datasheet — Technical Specifications
General
| Product Name | MuxLab USB-C 3.2 Gen1 4-Port Extender Kit, 100m |
| Model | 500534 |
| UPC | 627699005347 |
| Kit | 1 x transmitter, 1 x receiver |
| Warranty | 2 years (MuxLab) |
Performance
| USB Protocol | USB 3.2 Gen1 (backwards compatible with USB 2.0 / 1.1) |
| Data Rate | Up to 5 Gbps |
| Network Bandwidth | 10G |
| Distance | 100 m / 328 ft over Cat6a (F/FTP) |

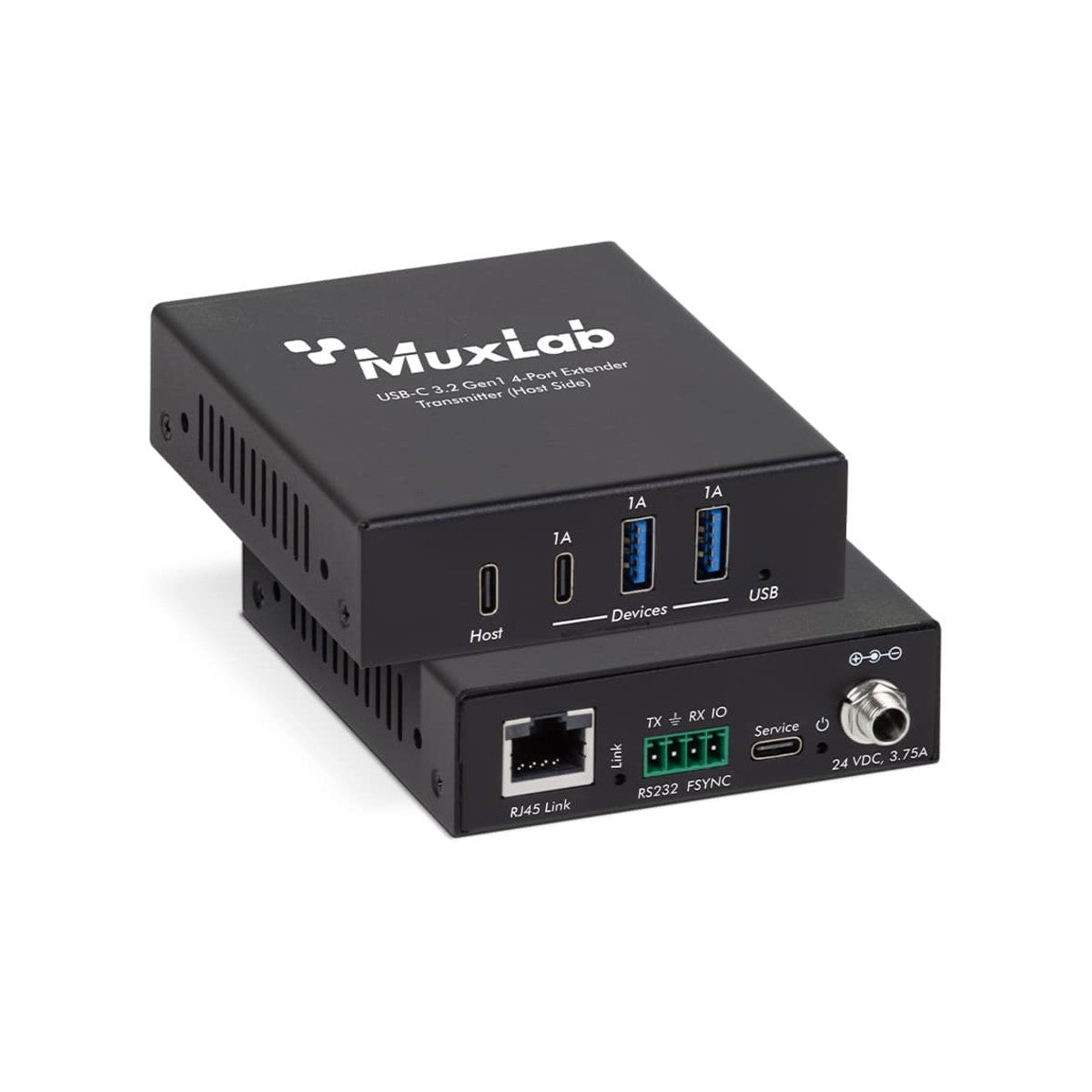

Transmitter Connectors
| Host | 1 x USB-C host |
| Local Devices | 1 x USB-C, 2 x USB-A |
| Link | 1 x HDBT-USB3 RJ45 with 24 V PoC |
| Control | 1 x RS-232 (3.5 mm Phoenix); 1 x FSYNC (3.5 mm Phoenix) |

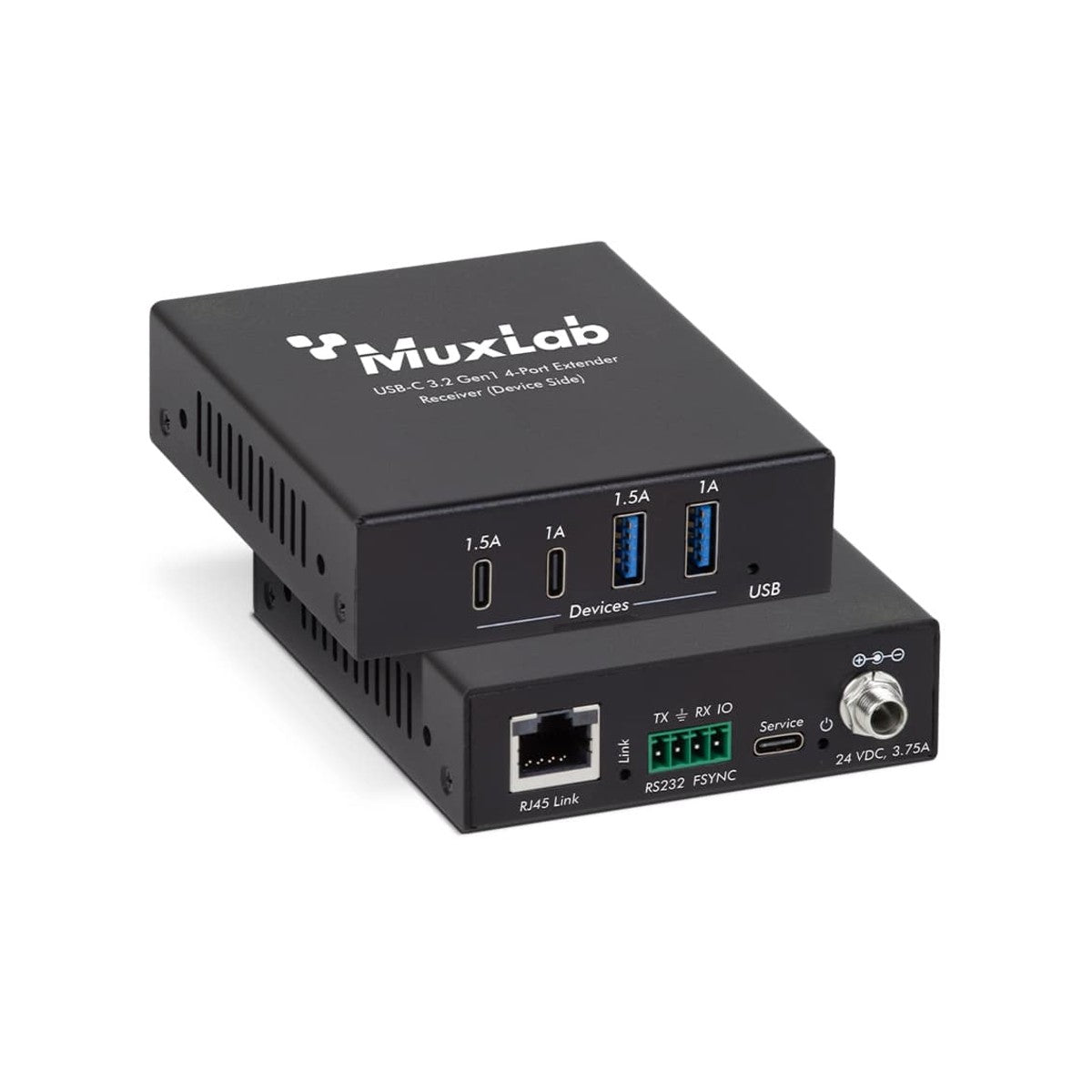

Receiver Connectors
| Devices | 2 x USB-C, 2 x USB-A |
| Link | 1 x HDBT-USB3 RJ45 with 24 V PoC |
| Control | 1 x RS-232 (3.5 mm Phoenix); 1 x FSYNC (3.5 mm Phoenix) |
Power & Environmental
| Power Supply | 100–240 VAC 50/60 Hz in; 24 VDC/3.75 A out |
| Port Power | Up to 1.5 A (transmitter) and 1 A (receiver) at 5 VDC |
| Operating Temperature | 0–40 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 20–90% RH, non-condensing |
| ESD Protection | IEC 61000-4-2: ±8 kV air, ±4 kV contact |
Physical
| Housing | Metal enclosure, black |
| Dimensions (each unit) | 85 x 100 x 25.5 mm (W x D x H) |
| Weight | Transmitter 265 g; receiver 275 g |
Compatibility & Applications
Typical Devices
USB-C laptops and room PCs connecting to USB cameras, speakerphones, touch displays and storage at the far end of the room.
Typical Use
Conference rooms, classroom projector systems, collaborative PC systems, digital signage and boardrooms.
Selection Tip
Choose the 500534 for USB-C hosts. For a USB-B host connection choose the 500530; add dual HDMI outputs with the 500536.
Package Contents & MuxLab Ordering Information
In the Box
1 x transmitter, 1 x receiver (kit). See the user manual for the full package list.
MuxLab Extender Models
| Model | Key feature |
| 500451 | HDMI 1.4 HDBaseT extender kit, 4K up to 40 m / 1080p up to 70 m, IR |
| 500449 | HDMI 2.0 KVM HDBaseT extender kit, 4K60 4:4:4 up to 100 m, USB 2.0, RS-232, IR |
| 500530 | USB 3.2 Gen1 4-port extender kit, USB-B host, 100 m over Cat6a |
| 500534 (this listing) | USB-C 3.2 Gen1 4-port extender kit, USB-C host, 100 m over Cat6a |
| 500536 | USB-C 3.2 Gen1 extender kit with dual 4K60 HDMI outputs, 100 m over Cat6a |
Official MuxLab Videos
MuxLab in 2025 — who MuxLab is and the Pro AV solutions it makes (official MuxLab channel)
Datasheet & Downloads
| Datasheet | 500534 Datasheet (PDF) |
| User manual | 500534 User Manual (PDF) |
| MuxLab product page | 500534 on muxlab.com |
Frequently Asked Questions — MuxLab 500534
What is the difference between the 500530 and 500534?
The 500530 uses a USB-B host input and four USB-A outputs. The 500534 uses a USB-C host input, adds local ports at the transmitter, and gives two USB-C plus two USB-A at the receiver.
How fast and how far?
Up to 5 Gbps over up to 100 m of Cat6a.
Do I need drivers?
No. It is plug and play.
What warranty do I get?
2 years MuxLab warranty. Supplied by SourceIT with a GST invoice.
