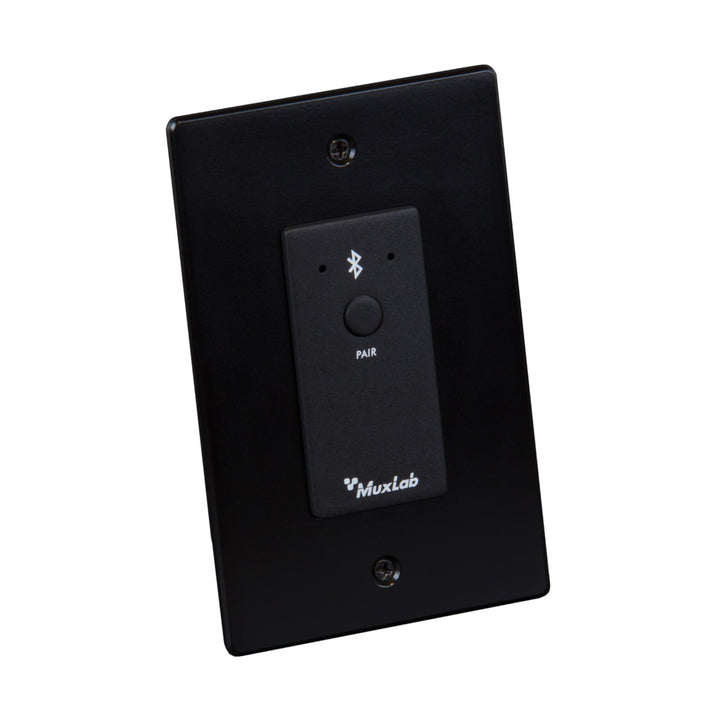

MuxLab Bluetooth Audio to Dante Interface Wall Plate (Black)
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
MuxLab Bluetooth Audio to Dante Interface Wall Plate (Black) 500554 - 2 Years Warranty
Bluetooth Audio into Dante
The MuxLab 500554 is a two-way audio panel between Bluetooth and Dante. Guests pair a phone, iPad or Android tablet and their audio plays through the Dante system, with one network cable carrying both audio and power.
Simple Pairing, Stable Link
Bluetooth 5.0 gives longer range and more stable connections (typically 15–23 m), and an LED shows the connection status.
Clean Install
It fits standard single-gang US wall boxes with Decora faceplates, is powered by PoE (IEEE 802.3af), avoids ground-loop issues of analog cabling, and supports AES67 RTP audio transport.
MuxLab 500554 Datasheet — Technical Specifications
General
| Product Name | MuxLab Bluetooth Audio to Dante Interface |
| Model | 500554 (black) |
| UPC | 627699005545 |
| Warranty | 2 years (MuxLab) |
Audio & Network
| Bluetooth | Bluetooth 5.0, stereo input/output |
| Bluetooth Range | Typically 15–23 m (50–75 ft) |
| Dante | RJ45, stereo input/output; AES67 RTP supported |
| Sampling Rate | 48 kHz, 24-bit |
| Frequency Response | 20 Hz–20 kHz |
| THD | <0.005% |
| Noise Floor | -90 dB |
Power & Environmental
| Power | PoE IEEE 802.3af |
| Power Consumption | 2 W |
| Operating Temperature | 0–40 °C |
| Humidity | 5–95% |
Physical
| Form Factor | 1-gang US wall plate (Decora) |
| Colour | Black |
| Dimensions | 123.5 x 79 x 35 mm (L x W x H) |
| Net Weight | 156 g |
Compatibility & Applications
Typical Devices
Apple iPhone and iPad, Android phones and tablets, and laptops with Bluetooth audio.
Typical Use
Bring-your-own-device music and presentation audio in meeting rooms, classrooms, hotels, restaurants, gyms and houses of worship with a Dante sound system.
Selection Tip
MuxLab also makes a white version (500554-WH). For wired analog sources choose the 500551 encoder; for computers over USB choose the 500550.
Package Contents & MuxLab Ordering Information
In the Box
1 x 500554 Bluetooth to Dante interface wall plate. See the user manual for the full package list.
MuxLab Dante Interface Models
| Model | Key feature |
| 500550 | Dante 2-channel USB audio encoder/decoder |
| 500551 | Dante 2-channel analog audio encoder (analog in → Dante) |
| 500552 | Dante 2-channel analog audio decoder (Dante → analog out) |
| 500554 (this listing) | Bluetooth 5.0 audio to Dante wall-plate interface, 1-gang US Decora |
Official MuxLab Videos
MuxLab's Complete Dante Audio Solution (official MuxLab channel)
MuxLab's Complete Dante Audio Line — webinar (official MuxLab channel)
Datasheet & Downloads
| Datasheet | 500554 Datasheet (PDF) |
| User manual | 500554 User Manual (PDF) |
| MuxLab product page | 500554 on muxlab.com |
Frequently Asked Questions — MuxLab 500554
Is it one-way or two-way?
Two-way: stereo audio in and out between Bluetooth and Dante.
What is the Bluetooth range?
Typically 15–23 m with Bluetooth 5.0.
Does it fit Singapore wall boxes?
It is sized for single-gang US wall boxes with Decora faceplates, so plan a US-style back box or surface box.
How is it powered?
PoE (IEEE 802.3af) over the same network cable that carries Dante audio.
What warranty do I get?
2 years MuxLab warranty. Supplied by SourceIT with a GST invoice.
