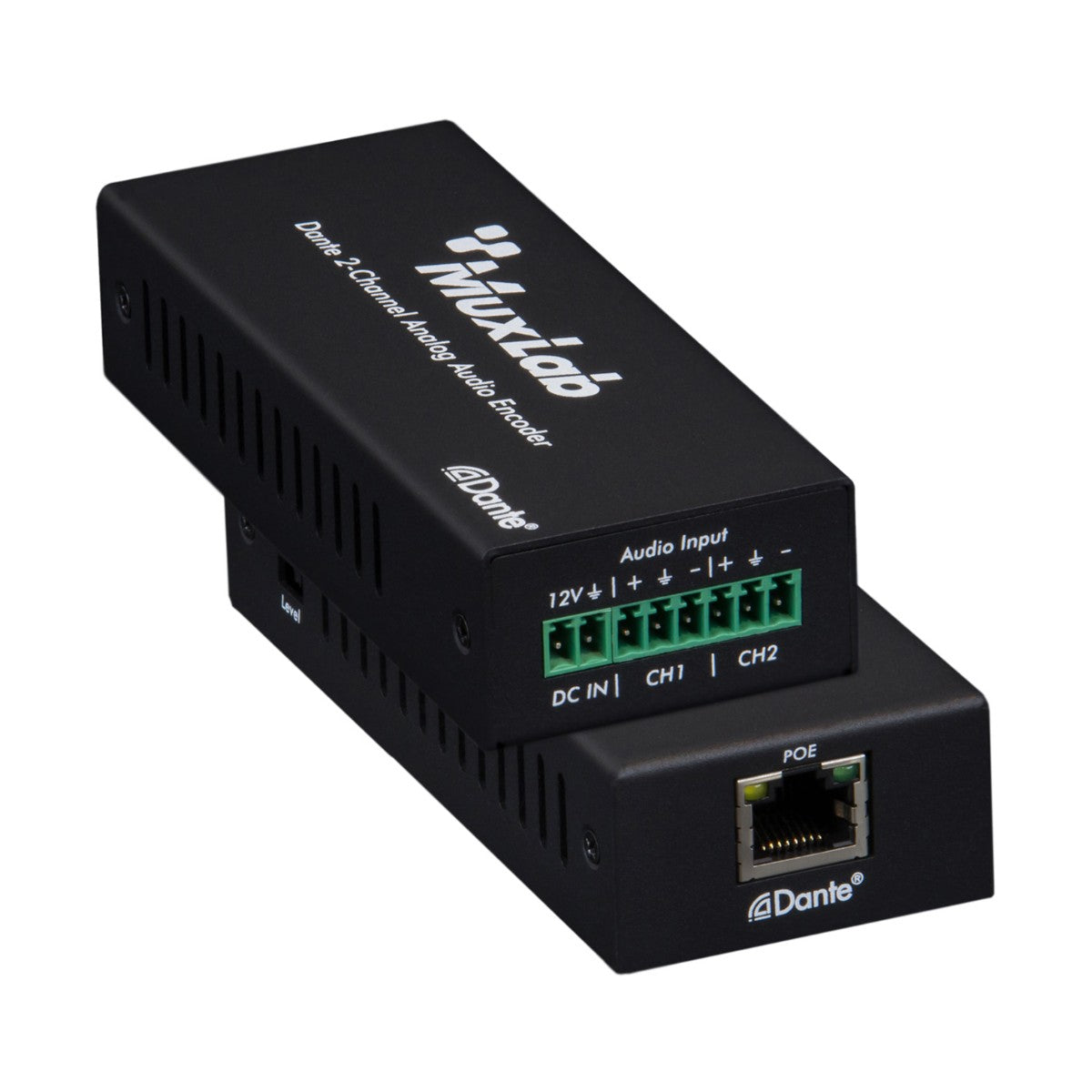

MuxLab Dante 2-Channel Analog Audio Encoder
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
MuxLab Dante 2-Channel Analog Audio Encoder 500551 - 2 Years Warranty
Bring Analog Gear onto Dante
The MuxLab 500551 lets non-Dante analog equipment such as mixers and media players feed a Dante network, sending full-range (20 Hz–20 kHz) 2-channel audio over the network.
Balanced or Unbalanced Input
The 2-channel input accepts balanced or unbalanced signals, with 3-level gain: +18 dBu, 0 dBu (default) and -10 dBV.
Network-Ready
Sampling at 44.1, 48 or 96 kHz (24-bit), AES67 RTP audio transport, and power from PoE (IEEE 802.3af Class 0) or a 12 VDC supply.
MuxLab 500551 Datasheet — Technical Specifications
General
| Product Name | MuxLab Dante 2-Channel Analog Audio Encoder |
| Model | 500551 |
| UPC | 627699005514 |
| Warranty | 2 years (MuxLab) |
Audio & Network
| Audio Format | PCM 2.0 |
| Sampling Rate | 44.1 / 48 / 96 kHz, up to 24-bit |
| Network | 100M; up to 100 m over Cat6/6a to the switch |
| Interoperability | Dante; AES67 RTP audio transport |
| Management | Audinate Dante Controller |
| Analog Input | 2-channel balanced/unbalanced |
| Input Gain | +18 dBu, 0 dBu (default), -10 dBV |
Connectors

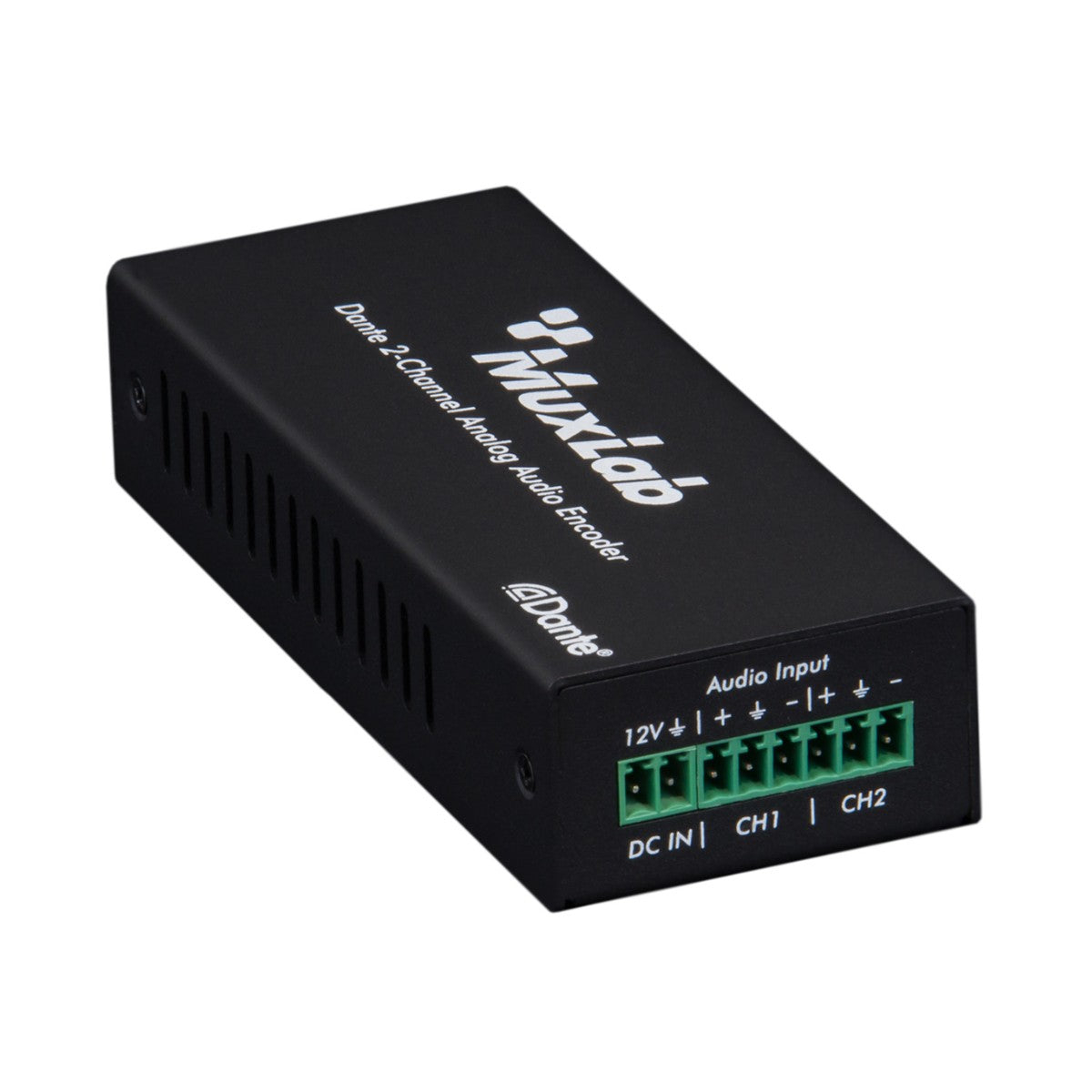

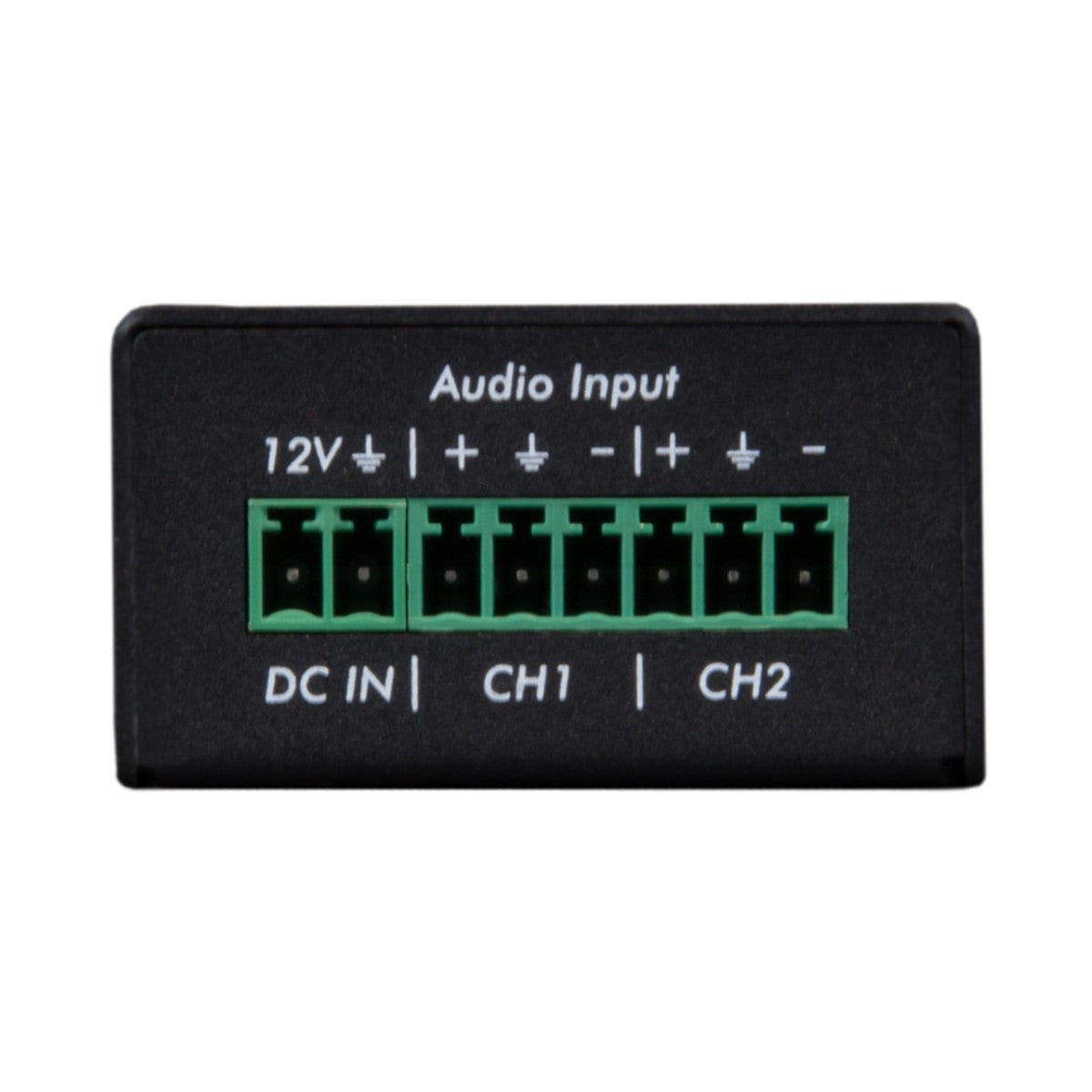

| Audio Input | 1 x 6-pin Phoenix (3.81 mm) |

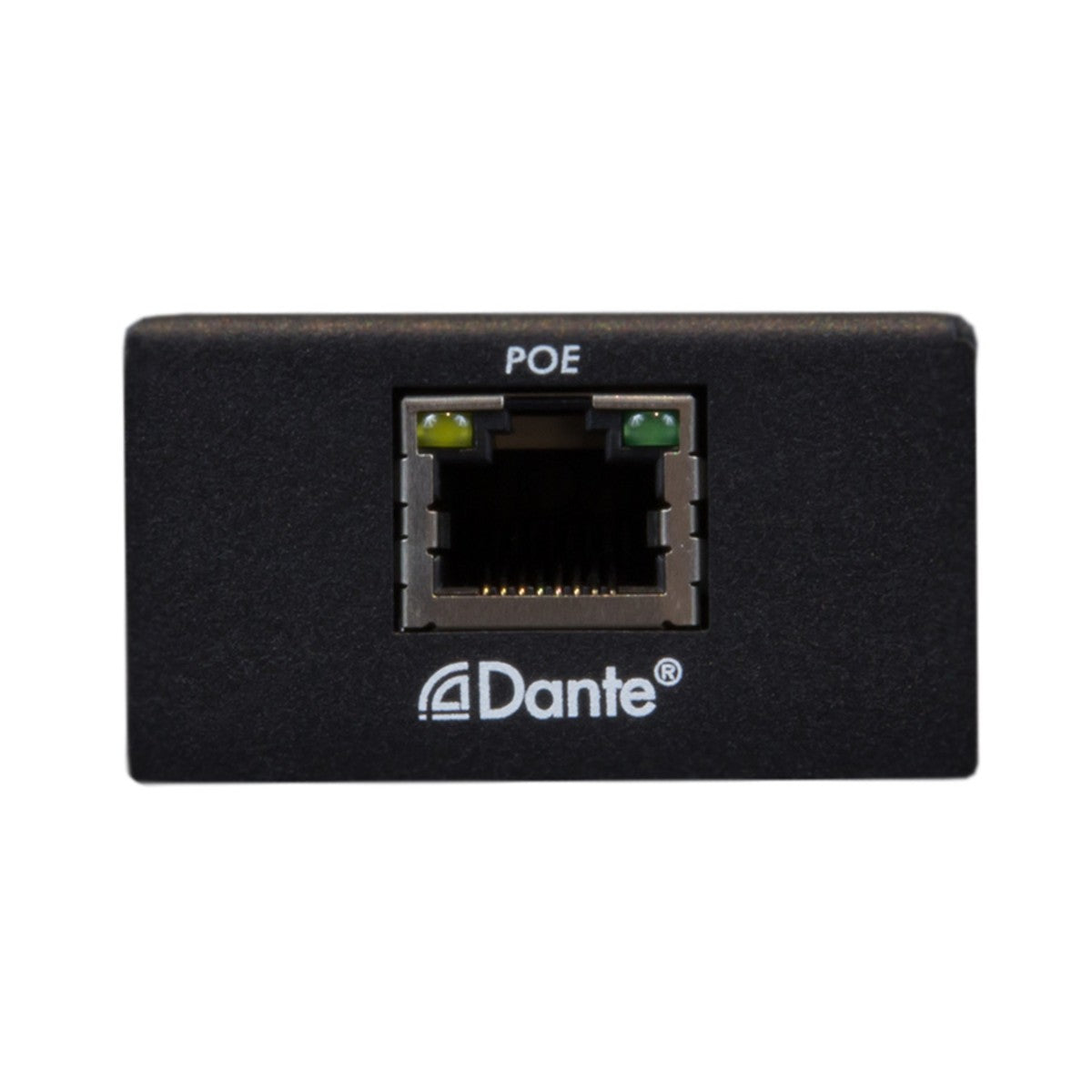

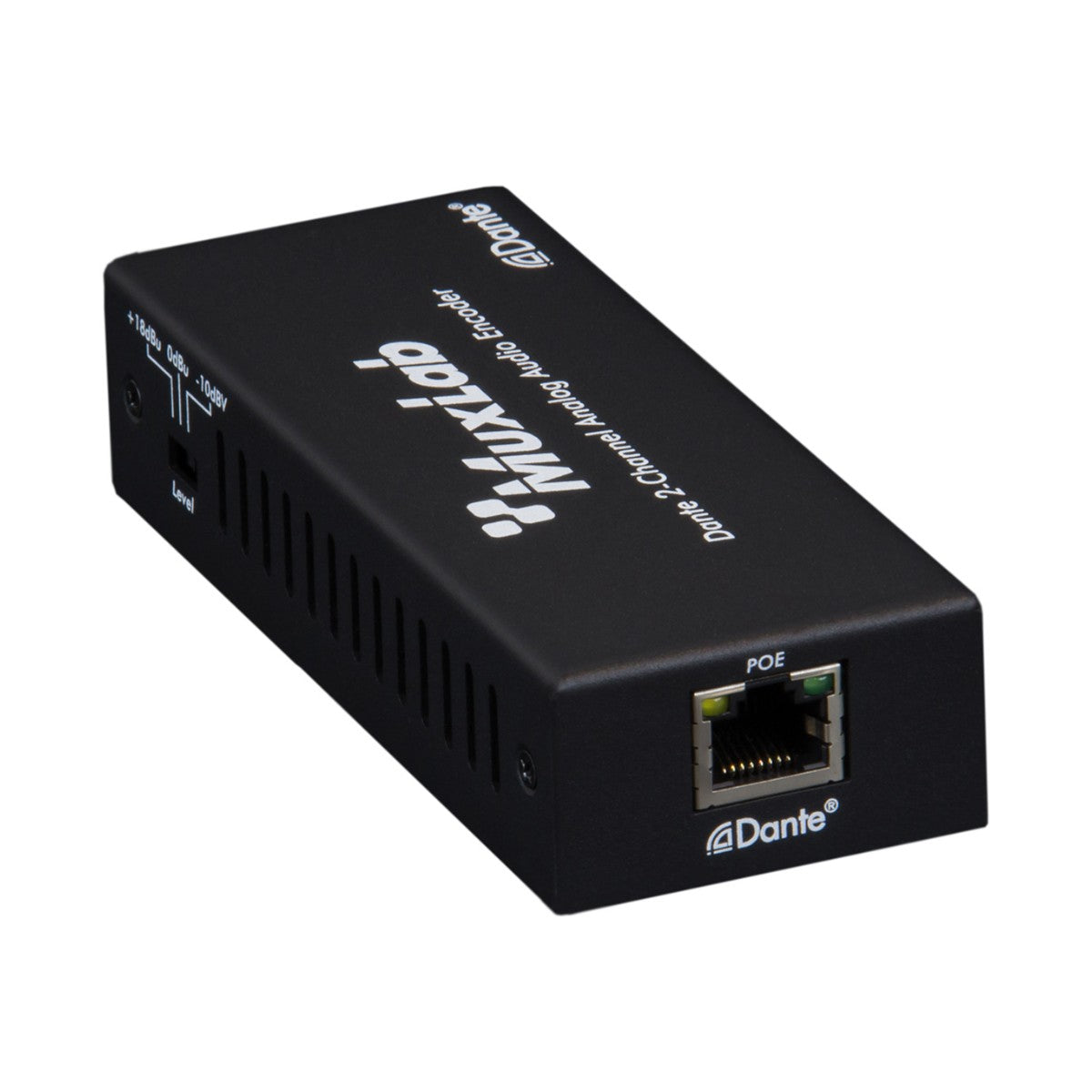

| Dante | 1 x RJ45 (PoE) |
| Power | 1 x 2-pin Phoenix (3.81 mm) |
Power & Environmental
| Power Supply | DC 12 V, or PoE IEEE 802.3af Class 0 |
| Power Consumption | 1.2 W |
| Operating Temperature | 0–40 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 20–90% RH, non-condensing |
Physical
| Housing | Metal enclosure, black |
| Dimensions | 120 x 47 x 26 mm (W x D x H) |
| Weight | 186 g |
Compatibility & Applications
Typical Use
Feeding analog mixers, wireless mic receivers, media players and paging sources into Dante-based meeting rooms, classrooms, houses of worship and venues.
Selection Tip
Pair with the 500552 decoder for analog-to-analog runs over the network, or with any Dante speaker, amplifier or DSP.
Package Contents & MuxLab Ordering Information
In the Box
1 x 500551 Dante analog audio encoder. See the user manual for the full package list.
MuxLab Dante Interface Models
| Model | Key feature |
| 500550 | Dante 2-channel USB audio encoder/decoder |
| 500551 (this listing) | Dante 2-channel analog audio encoder (analog in → Dante) |
| 500552 | Dante 2-channel analog audio decoder (Dante → analog out) |
| 500554 | Bluetooth 5.0 audio to Dante wall-plate interface, 1-gang US Decora |
Official MuxLab Videos
MuxLab's Complete Dante Audio Solution (official MuxLab channel)
MuxLab's Complete Dante Audio Line — webinar (official MuxLab channel)
Datasheet & Downloads
| Datasheet | 500551 Datasheet (PDF) |
| User manual | 500551 User Manual (PDF) |
| MuxLab product page | 500551 on muxlab.com |
Frequently Asked Questions — MuxLab 500551
Does it accept balanced audio?
Yes, balanced or unbalanced 2-channel analog input.
Can I adjust input level?
Yes. Three gain levels: +18 dBu, 0 dBu (default) and -10 dBV.
How is it powered?
PoE (IEEE 802.3af Class 0) or a 12 VDC supply.
What warranty do I get?
2 years MuxLab warranty. Supplied by SourceIT with a GST invoice.
