MuxLab USB-C 3.2 Gen1 Dual HDMI Extender Kit (100 m over Cat6a)
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
MuxLab USB-C 3.2 Gen1 Dual HDMI Extender Kit (100 m over Cat6a) 500536 - 2 Years Warranty
USB-C, Dual Displays, One Cable
The MuxLab 500536 extends USB 3.2 Gen1 at up to 5 Gbps over a single Cat6a cable up to 100 m (328 ft), and drives two HDMI displays at the far end using built-in DisplayLink technology (video over USB) at up to 4K/60 Hz.
Two Selectable Hosts

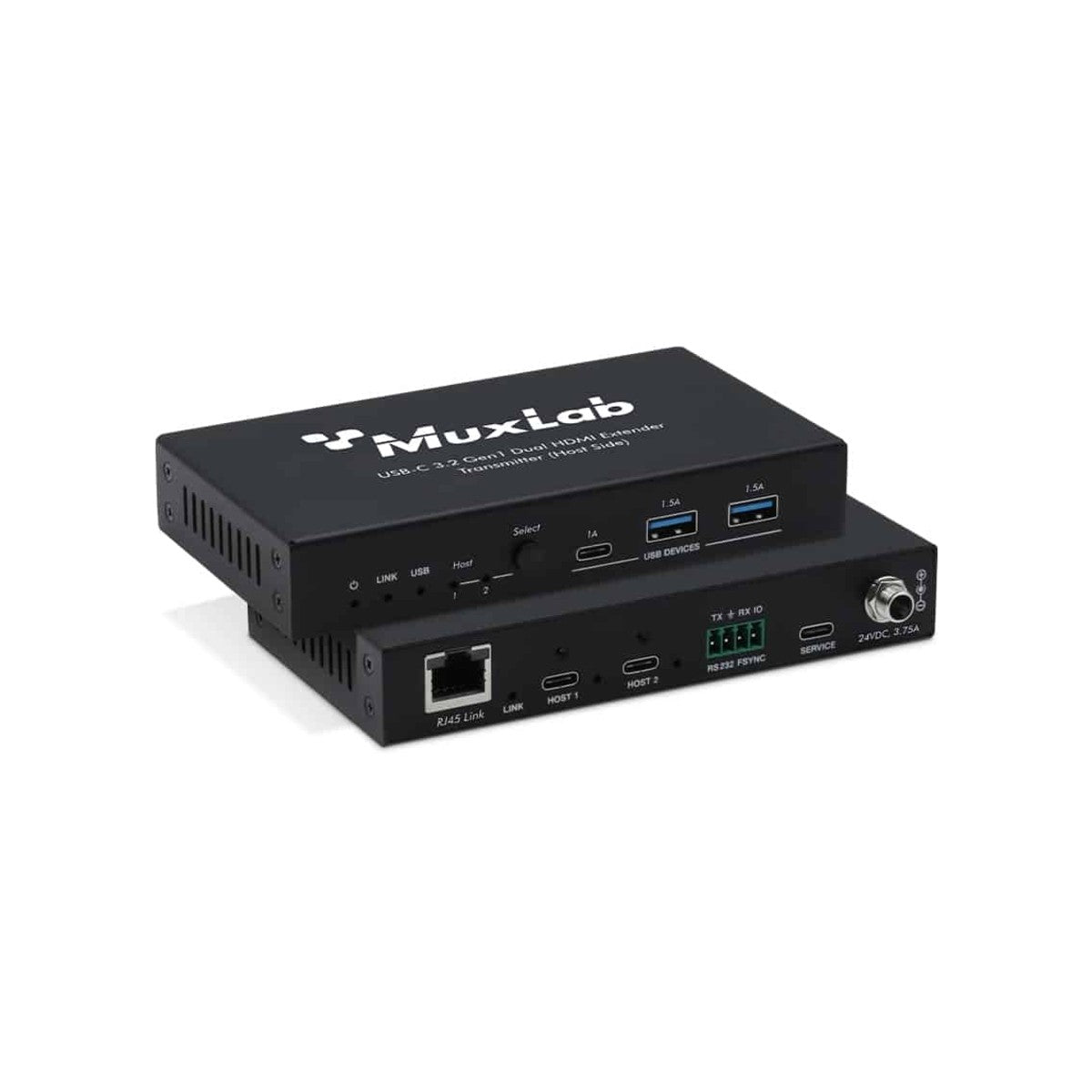

The transmitter has two selectable USB-C 3.2 Gen1 host ports plus three local ports (one USB-C, two USB-A), so two computers can share the remote peripherals and displays.
Complete Far-End Hub

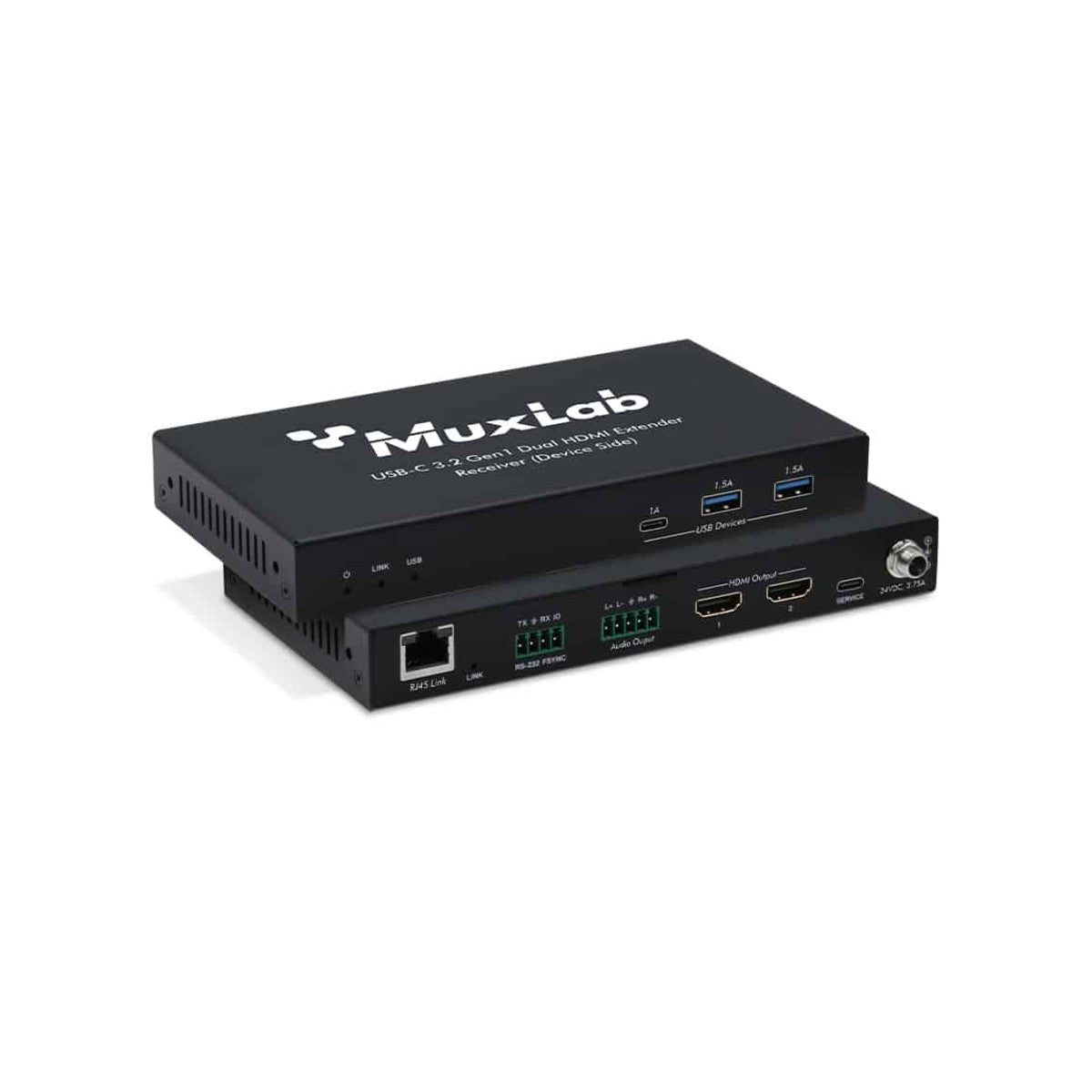

The receiver provides one USB-C and two USB-A ports, two HDMI outputs and an audio output, with RS-232 and FSYNC GPIO pass-through and bi-directional 24 VDC PoC.
MuxLab 500536 Datasheet — Technical Specifications
General
| Product Name | MuxLab USB-C 3.2 Gen1 Dual HDMI Extender Kit, 100m |
| Model | 500536 |
| UPC | 627699005361 |

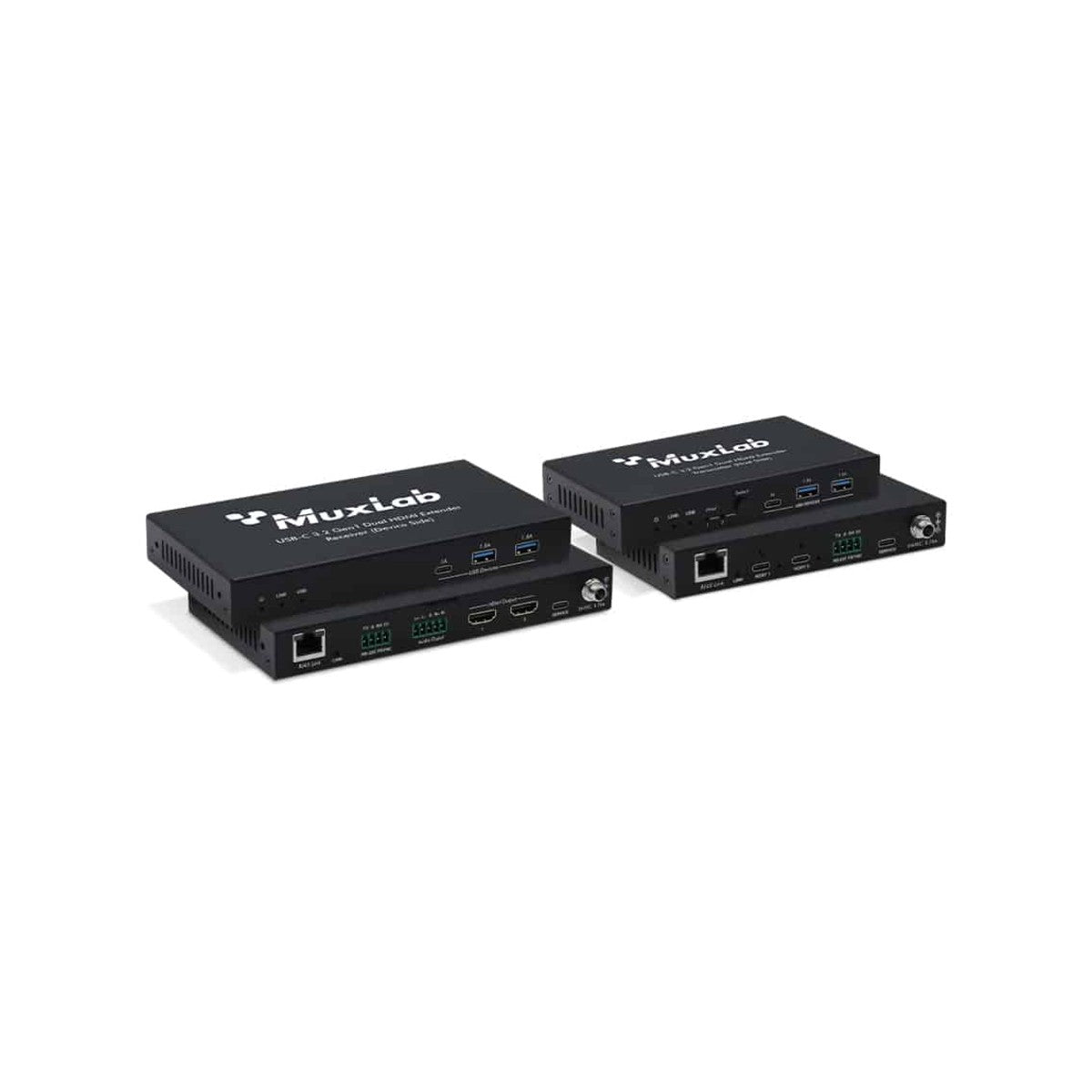

| Kit | 1 x transmitter, 1 x receiver |
| Warranty | 2 years (MuxLab) |
Performance
| USB Protocol | USB 3.2 Gen1 (backwards compatible with USB 2.0 / 1.1) |
| Data Rate | Up to 5 Gbps |
| Network Bandwidth | 10G |
| Video | Dual HDMI via DisplayLink, up to 4K/60 Hz |
| Distance | 100 m / 328 ft over Cat6a (F/FTP) |
Transmitter Connectors
| Hosts | 2 x USB-C host (selectable) |
| Local Devices | 1 x USB-C, 2 x USB-A |
| Link | 1 x HDBT-USB3 RJ45 with 24 V PoC |
| Control | 1 x RS-232 (3.5 mm Phoenix); 1 x FSYNC (3.5 mm Phoenix); 1 x USB-C service |
Receiver Connectors
| Devices | 1 x USB-C, 2 x USB-A |
| Video | 2 x HDMI OUT (Type A) |
| Audio | 1 x audio out (5-pin terminal block) |
| Link | 1 x HDBT-USB3 RJ45 with 24 V PoC |
| Control | 1 x RS-232 (3.5 mm Phoenix); 1 x FSYNC (3.5 mm Phoenix); 1 x USB-C firmware port |
Power & Environmental
| Power Supply | 100–240 VAC 50/60 Hz in; 24 VDC/3.75 A out |
| PoC Power | 68 W max |
| Operating Temperature | 0–40 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 20–90% RH, non-condensing |
| ESD Protection | IEC 61000-4-2: ±8 kV air, ±4 kV contact |
Physical
| Housing | Metal enclosure, black |
| Dimensions | Transmitter 140 x 75 x 23 mm; receiver 180 x 95 x 23 mm (W x D x H) |
| Weight | Transmitter 324 g; receiver 486 g |
Compatibility & Applications
Typical Use
Meeting rooms and huddle spaces where a USB-C laptop or room PC sits far from the displays, camera and speakerphone; also classrooms, digital signage and collaborative PC systems.
DisplayLink Video
The HDMI outputs use DisplayLink video over USB. DisplayLink output relies on DisplayLink host software, so check support for your computer's operating system.
Selection Tip
Choose the 500536 when you need USB plus two displays at the far end. For USB only, the 500534 (USB-C) or 500530 (USB-B) is enough.
Package Contents & MuxLab Ordering Information
In the Box
1 x transmitter, 1 x receiver (kit). See the user manual for the full package list.
MuxLab Extender Models
| Model | Key feature |
| 500451 | HDMI 1.4 HDBaseT extender kit, 4K up to 40 m / 1080p up to 70 m, IR |
| 500449 | HDMI 2.0 KVM HDBaseT extender kit, 4K60 4:4:4 up to 100 m, USB 2.0, RS-232, IR |
| 500530 | USB 3.2 Gen1 4-port extender kit, USB-B host, 100 m over Cat6a |
| 500534 | USB-C 3.2 Gen1 4-port extender kit, USB-C host, 100 m over Cat6a |
| 500536 (this listing) | USB-C 3.2 Gen1 extender kit with dual 4K60 HDMI outputs, 100 m over Cat6a |
Official MuxLab Videos
MuxLab in 2025 — who MuxLab is and the Pro AV solutions it makes (official MuxLab channel)
Datasheet & Downloads
| Datasheet | 500536 Datasheet (PDF) |
| User manual | 500536 User Manual (PDF) |
| MuxLab product page | 500536 on muxlab.com |
Frequently Asked Questions — MuxLab 500536
How many displays can it drive?
Two HDMI displays, up to 4K/60 Hz, using DisplayLink.
Can two computers share it?
Yes. The transmitter has two selectable USB-C host ports.
How far does it reach?
Up to 100 m over Cat6a F/FTP.
What warranty do I get?
2 years MuxLab warranty. Supplied by SourceIT with a GST invoice.
