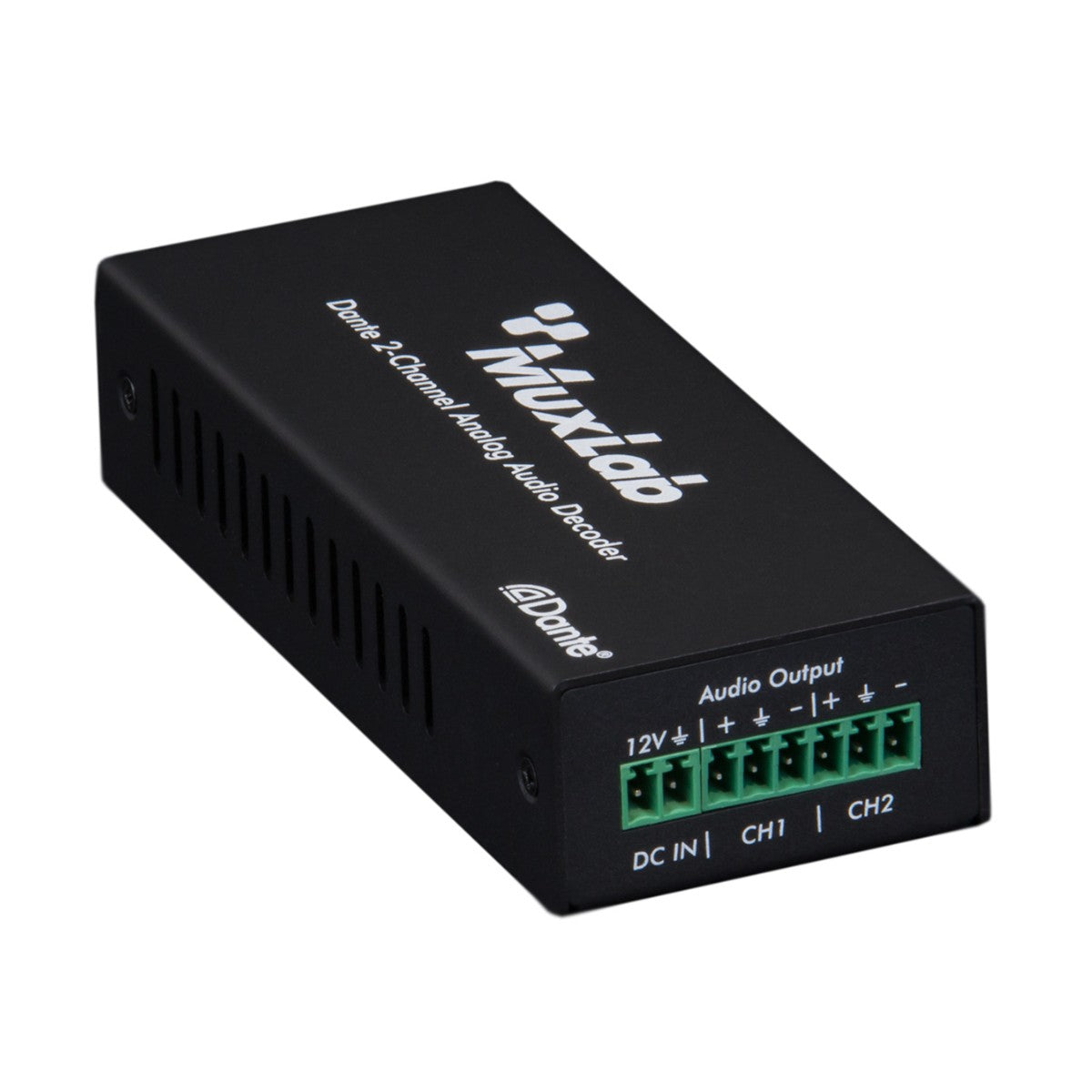

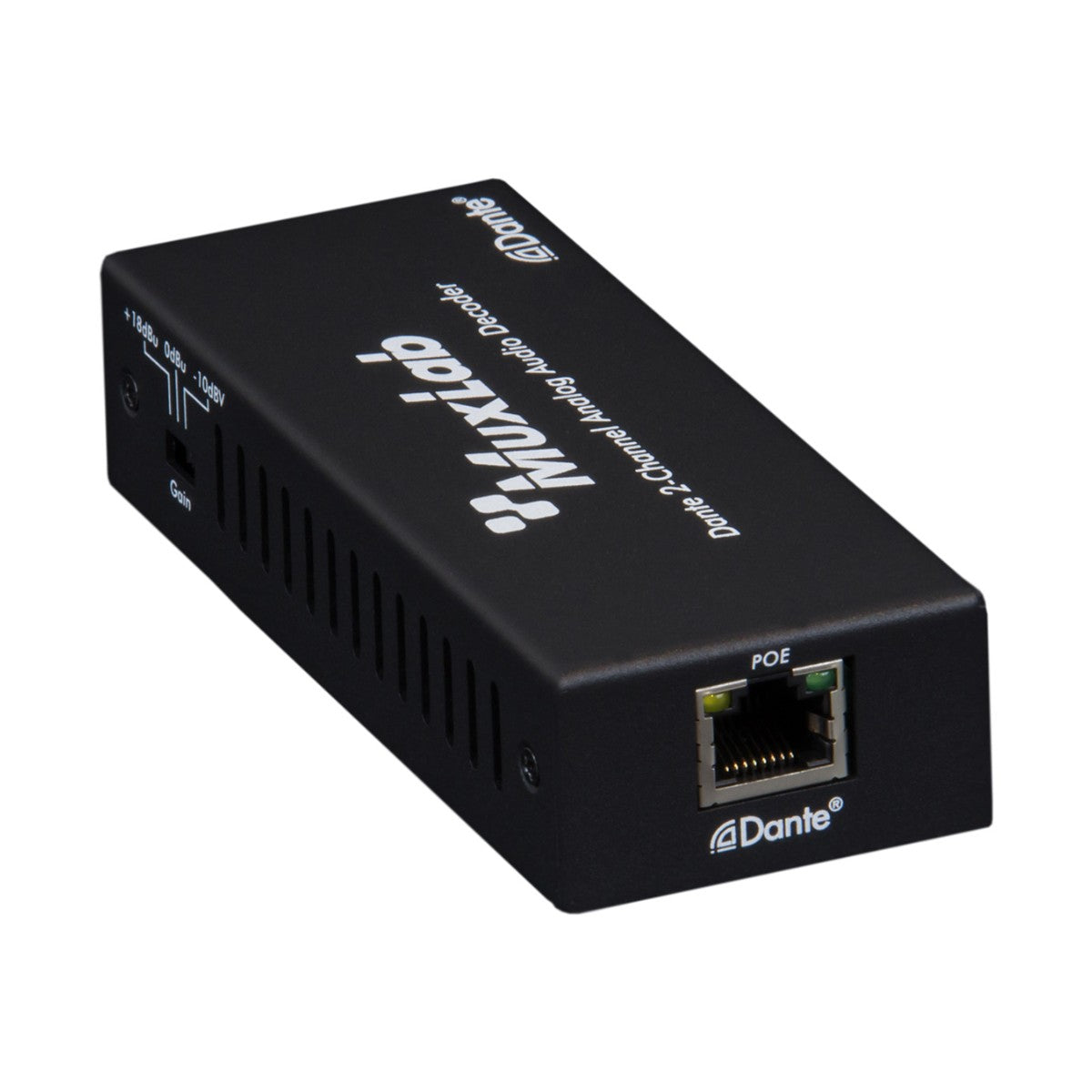

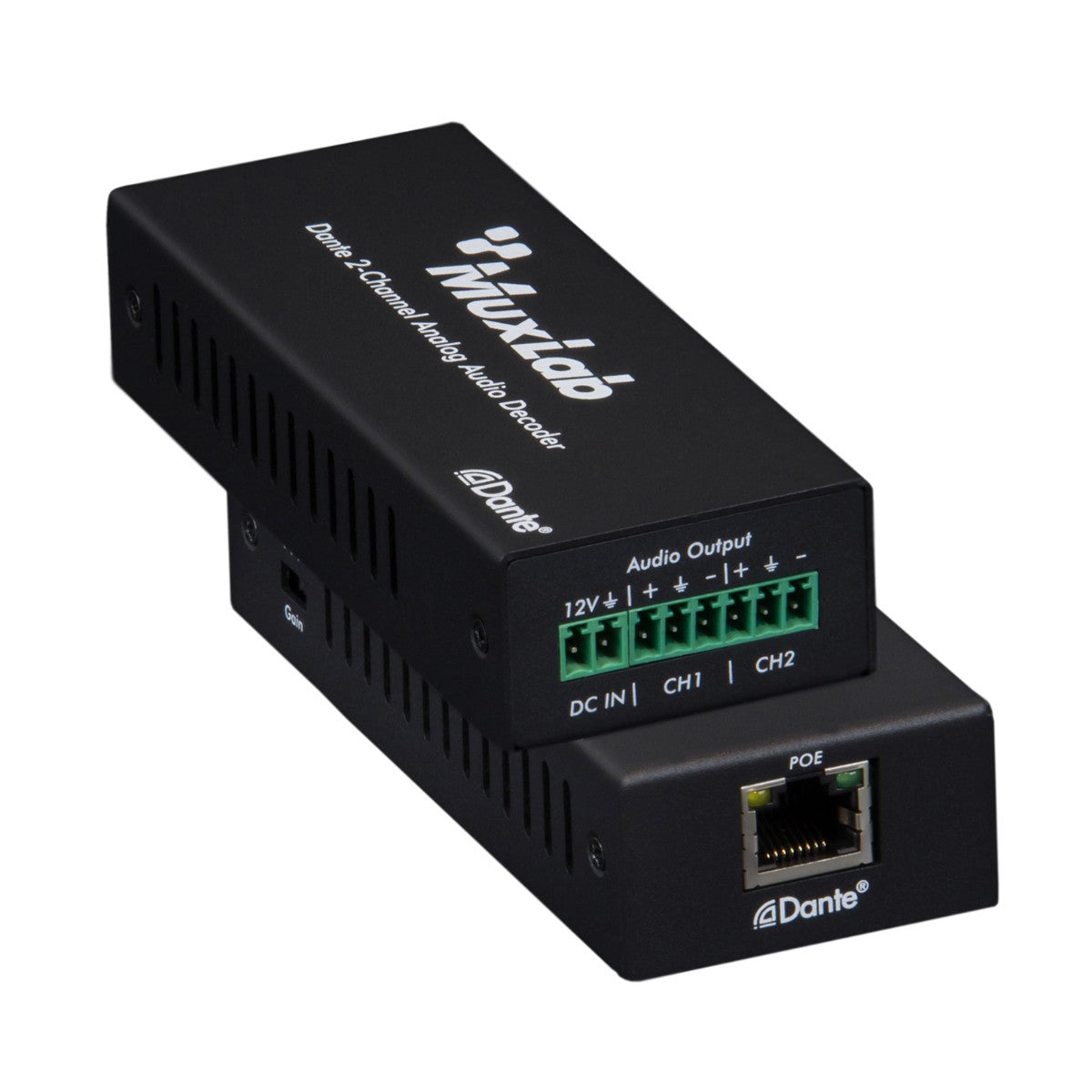

MuxLab Dante 2-Channel Analog Audio Decoder
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
MuxLab Dante 2-Channel Analog Audio Decoder 500552 - 2 Years Warranty
Dante Out to Analog Equipment
The MuxLab 500552 receives digital audio from Dante-compliant equipment and outputs it as 2-channel analog audio, so amplifiers, powered speakers and recorders without Dante can join the system.
Balanced or Unbalanced Output
The 2-channel output supports balanced or unbalanced connections, with 3-level gain: +18 dBu, 0 dBu (default) and -10 dBV.
Network-Ready
Sampling at 44.1, 48 or 96 kHz (24-bit), AES67 RTP audio transport, and power from PoE (IEEE 802.3af Class 0) or a 12 VDC supply.
MuxLab 500552 Datasheet — Technical Specifications
General
| Product Name | MuxLab Dante 2-Channel Analog Audio Decoder |
| Model | 500552 |
| UPC | 627699005521 |
| Warranty | 2 years (MuxLab) |
Audio & Network
| Audio Format | PCM 2.0 |
| Sampling Rate | 44.1 / 48 / 96 kHz, up to 24-bit |
| Network | 100M; up to 100 m over Cat6/6a to the switch |
| Interoperability | Dante; AES67 RTP audio transport |
| Management | Audinate Dante Controller |
| Analog Output | 2-channel balanced/unbalanced |
| Output Gain | +18 dBu, 0 dBu (default), -10 dBV |
Connectors

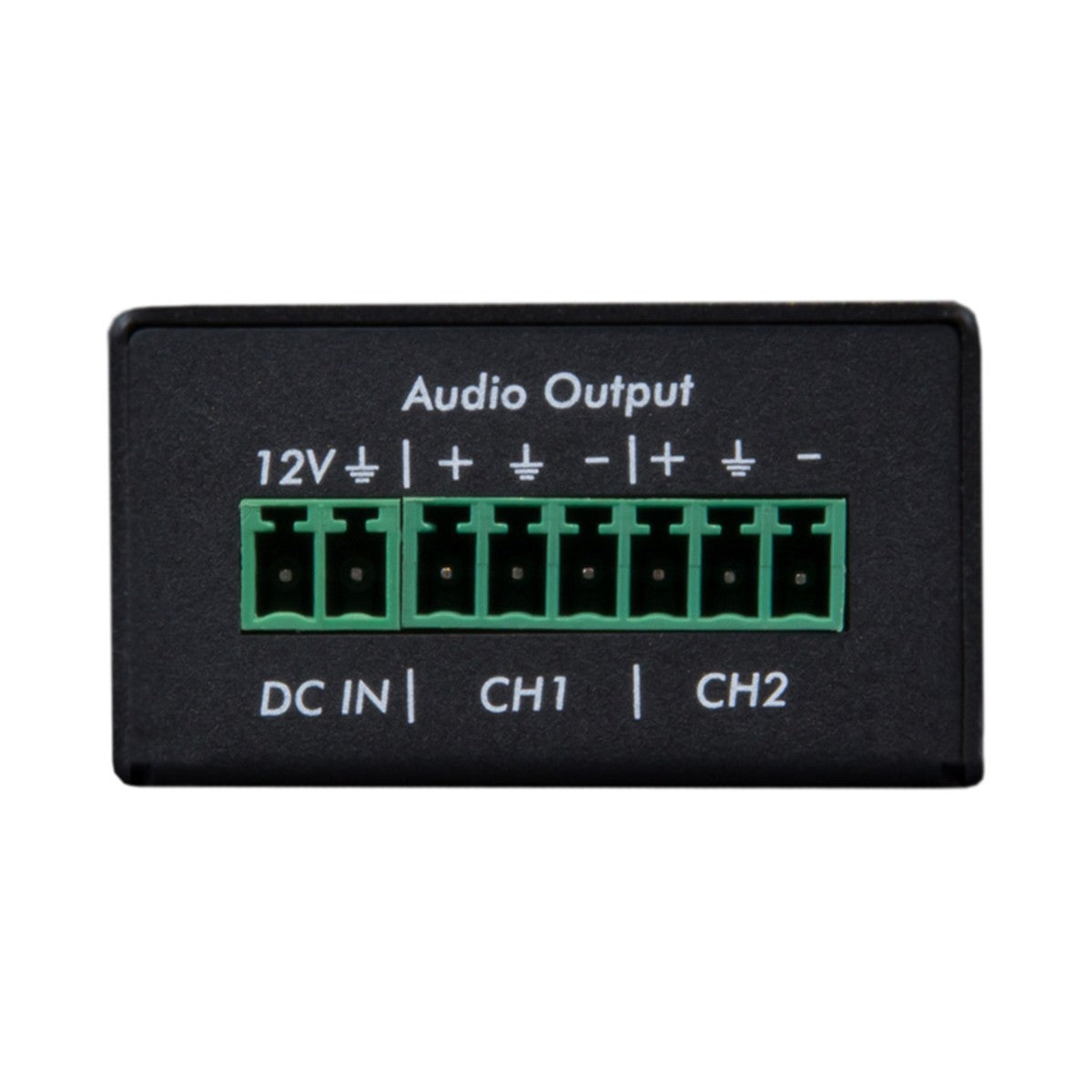

| Audio Output | 1 x 6-pin Phoenix (3.81 mm) |

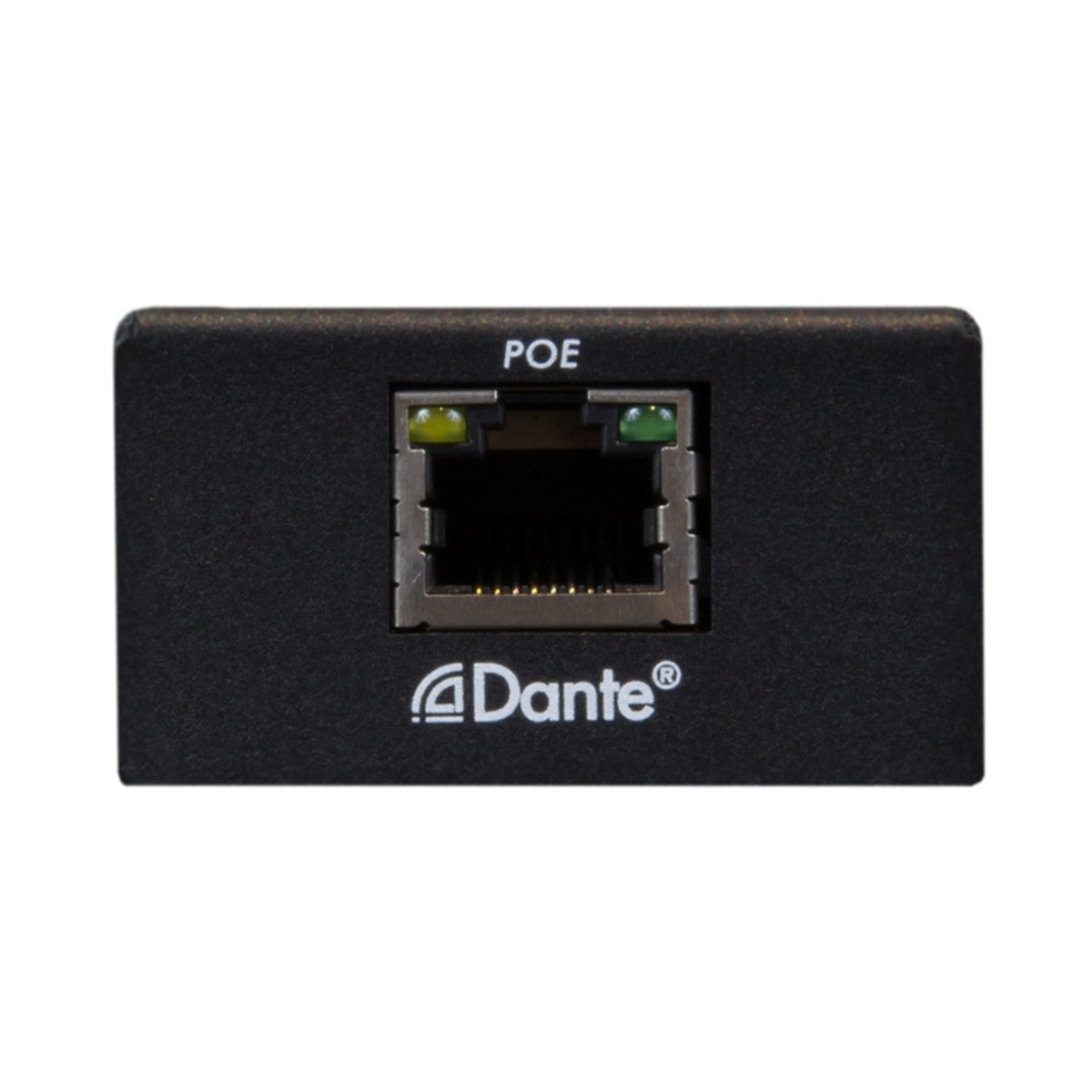

| Dante | 1 x RJ45 (PoE) |
| Power | 1 x 2-pin Phoenix (3.81 mm) |
Power & Environmental
| Power Supply | DC 12 V, or PoE IEEE 802.3af Class 0 |
| Power Consumption | 1.32 W |
| Operating Temperature | 0–40 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 20–90% RH, non-condensing |
Physical
| Housing | Metal enclosure, black |
| Dimensions | 120 x 47 x 26 mm (W x D x H) |
| Weight | 186 g |
Compatibility & Applications
Typical Use
Driving analog amplifiers, powered speakers and recorders from a Dante network in meeting rooms, classrooms, houses of worship and venues.
Selection Tip
Pair with the 500551 encoder for analog-to-analog runs over the network, or receive from any Dante source or DSP.
Package Contents & MuxLab Ordering Information
In the Box
1 x 500552 Dante analog audio decoder. See the user manual for the full package list.
MuxLab Dante Interface Models
| Model | Key feature |
| 500550 | Dante 2-channel USB audio encoder/decoder |
| 500551 | Dante 2-channel analog audio encoder (analog in → Dante) |
| 500552 (this listing) | Dante 2-channel analog audio decoder (Dante → analog out) |
| 500554 | Bluetooth 5.0 audio to Dante wall-plate interface, 1-gang US Decora |
Official MuxLab Videos
MuxLab's Complete Dante Audio Solution (official MuxLab channel)
MuxLab's Complete Dante Audio Line — webinar (official MuxLab channel)
Datasheet & Downloads
| Datasheet | 500552 Datasheet (PDF) |
| User manual | 500552 User Manual (PDF) |
| MuxLab product page | 500552 on muxlab.com |
Frequently Asked Questions — MuxLab 500552
What does it connect to?
Any analog amplifier, powered speaker or recorder with balanced or unbalanced inputs.
Can I adjust output level?
Yes. Three gain levels: +18 dBu, 0 dBu (default) and -10 dBV.
How is it powered?
PoE (IEEE 802.3af Class 0) or a 12 VDC supply.
What warranty do I get?
2 years MuxLab warranty. Supplied by SourceIT with a GST invoice.
