MuxLab USB 3.2 Gen1 4-Port Extender Kit (100 m over Cat6a)
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
MuxLab USB 3.2 Gen1 4-Port Extender Kit (100 m over Cat6a) 500530 - 2 Years Warranty
True USB 3.2 Gen1 at 100 m
The MuxLab 500530 extends USB 3.2 Gen1 at data rates up to 5 Gbps over a single Cat6a cable up to 100 m (328 ft). It is backwards compatible with USB 2.0 and USB 1.1.
Four Device Ports at the Far End
The transmitter takes one USB 3.2 Gen1 Type-B host connection; the receiver gives four USB-A device ports. Ports 1–2 supply 5 VDC/1.5 A and ports 3–4 supply 5 VDC/1 A.
Built for AV and Control
Hardware acceleration handles isochronous and bulk transfers for cameras, audio and storage. RS-232 and FSYNC GPIO pass-through run alongside USB, bi-directional 24 VDC PoC lets one power supply feed both ends, and no drivers are needed.
MuxLab 500530 Datasheet — Technical Specifications
General
| Product Name | MuxLab USB 3.2 Gen1 4-Port Extender Kit, 100m |
| Model | 500530 |
| UPC | 627699005309 |

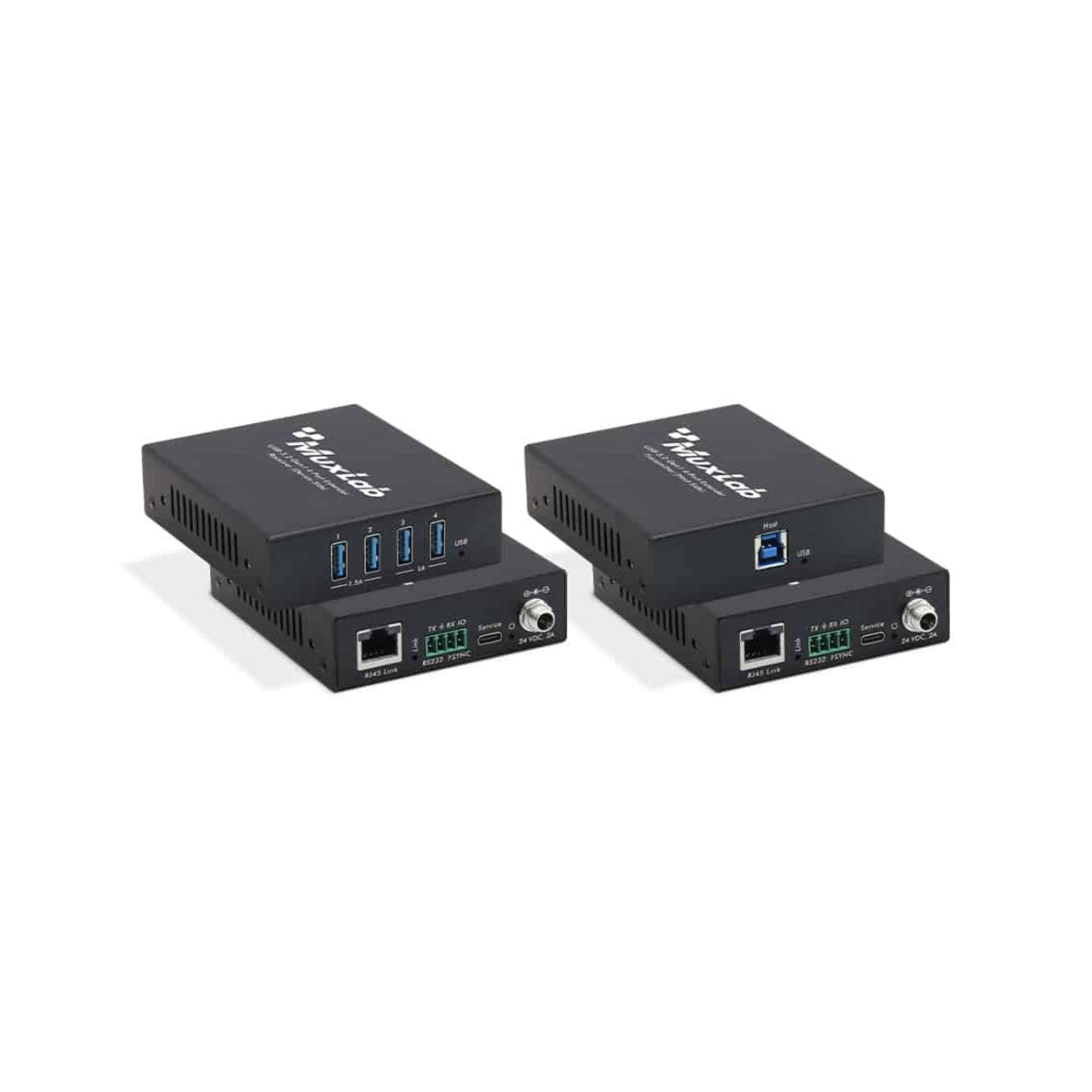

| Kit | 1 x transmitter, 1 x receiver |
| Warranty | 2 years (MuxLab) |
Performance
| USB Protocol | USB 3.2 Gen1 (backwards compatible with USB 2.0 / 1.1) |
| Data Rate | Up to 5 Gbps |
| Network Bandwidth | 10G |
| Distance | 100 m / 328 ft over Cat6a (F/FTP) |
Transmitter Connectors
| Host | 1 x USB-B (9-pin female) |
| Link | 1 x HDBT OUT (RJ45) |
| Control | 1 x RS-232 (3-pin 3.5 mm Phoenix); 1 x FSYNC (1-pin 3.5 mm Phoenix) |
| Service | 1 x USB-C update port |

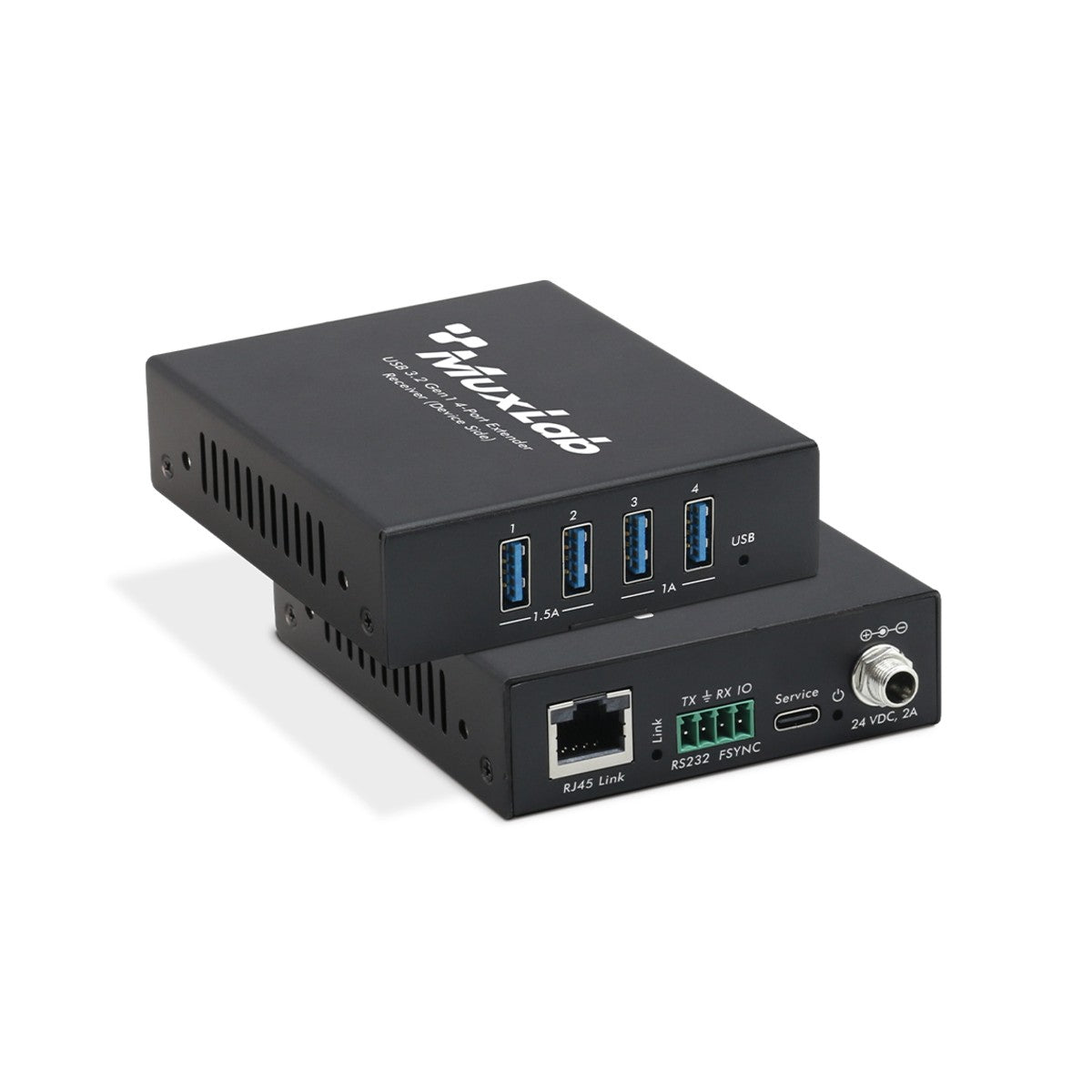

Receiver Connectors
| Devices | 4 x USB-A (9-pin female) |
| Link | 1 x HDBT IN (RJ45) |
| Control | 1 x RS-232 (3-pin 3.5 mm Phoenix); 1 x FSYNC (1-pin 3.5 mm Phoenix) |
| Service | 1 x USB-C update port |
Power & Environmental
| Power Supply | 100–240 VAC 50/60 Hz in; 24 VDC/2 A out |
| PoC | Bi-directional 24 VDC PoC, 40 W max |
| Operating Temperature | 0–40 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 20–90% RH, non-condensing |
| ESD Protection | IEC 61000-4-2: ±8 kV air, ±4 kV contact |
Physical
| Housing | Metal enclosure, black |
| Dimensions (each unit) | 85 x 100 x 25.5 mm (W x D x H) |
| Weight | Transmitter 253 g; receiver 260 g |
Compatibility & Applications
Typical Devices
USB 3 cameras, webcams, touch panels, keyboards and mice, storage and other USB peripherals placed away from the host PC.
Typical Use
Conference rooms, classroom projector systems, collaborative PC systems, digital signage and boardrooms.
Selection Tip
Pick the 500530 for a USB-B/USB-A host connection. For USB-C hosts choose the 500534; to add dual HDMI displays at the far end choose the 500536.
Package Contents & MuxLab Ordering Information
In the Box
1 x transmitter, 1 x receiver (kit). See the user manual for the full package list.
MuxLab Extender Models
| Model | Key feature |
| 500451 | HDMI 1.4 HDBaseT extender kit, 4K up to 40 m / 1080p up to 70 m, IR |
| 500449 | HDMI 2.0 KVM HDBaseT extender kit, 4K60 4:4:4 up to 100 m, USB 2.0, RS-232, IR |
| 500530 (this listing) | USB 3.2 Gen1 4-port extender kit, USB-B host, 100 m over Cat6a |
| 500534 | USB-C 3.2 Gen1 4-port extender kit, USB-C host, 100 m over Cat6a |
| 500536 | USB-C 3.2 Gen1 extender kit with dual 4K60 HDMI outputs, 100 m over Cat6a |
Official MuxLab Videos
MuxLab in 2025 — who MuxLab is and the Pro AV solutions it makes (official MuxLab channel)
Datasheet & Downloads
| Datasheet | 500530 Datasheet (PDF) |
| User manual | 500530 User Manual (PDF) |
| MuxLab product page | 500530 on muxlab.com |
Frequently Asked Questions — MuxLab 500530
How fast is it?
USB 3.2 Gen1 at up to 5 Gbps, over up to 100 m of Cat6a.
Do I need drivers?
No. It is plug and play.
Can I power both ends from one adapter?
Yes. Bi-directional 24 VDC PoC carries power over the Cat6a link.
What cable should I use?
Cat6a F/FTP for the full 100 m.
What warranty do I get?
2 years MuxLab warranty. Supplied by SourceIT with a GST invoice.
