MAXHUB XCore Kit Pro Microsoft Teams Rooms Compute Kit
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
MAXHUB XCore Kit Pro Microsoft Teams Rooms on Windows Compute Kit with XC25T Intel Core i5 Mini-PC and TCP30T 11.6" Touch Console (XCore Kit Pro) - 3 Years Local Warranty
Higher-Performance Teams Rooms Compute

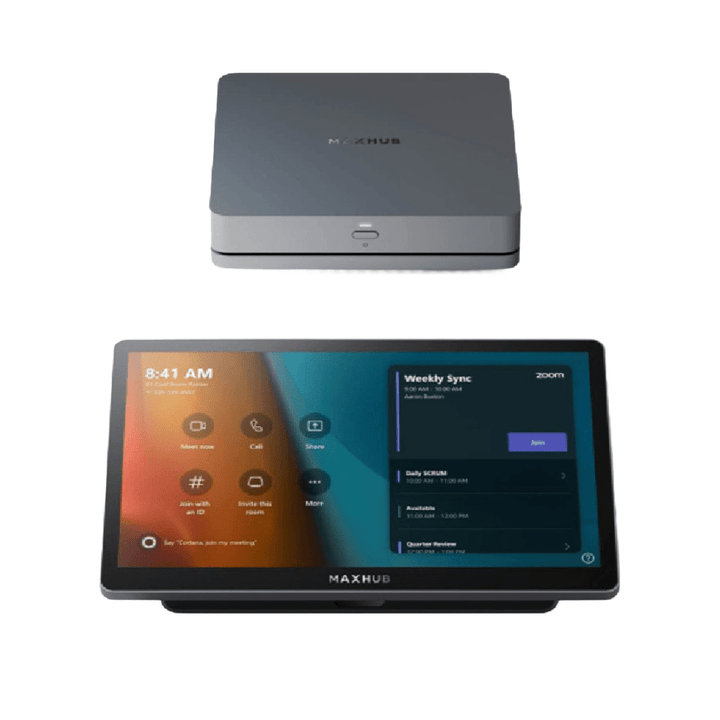

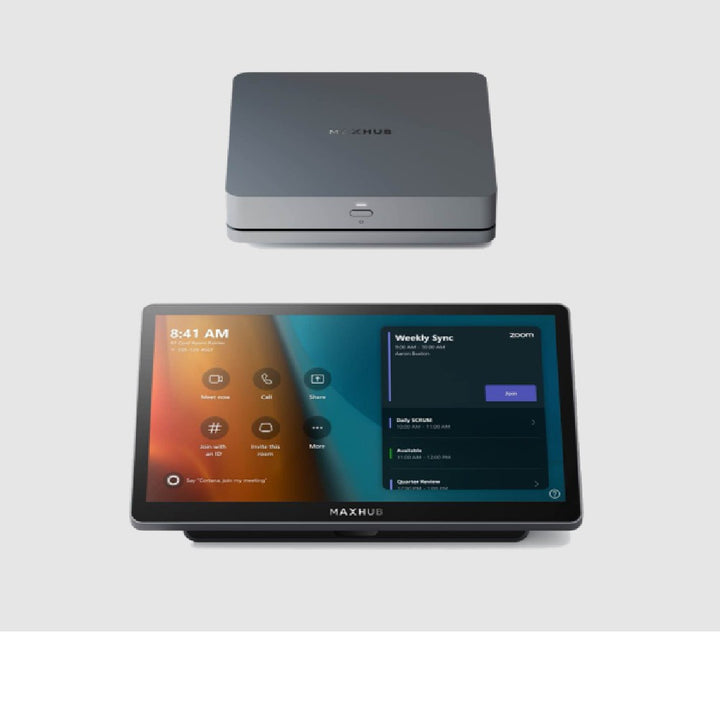

The MAXHUB XCore Kit Pro combines the XC25T mini-PC and the TCP30T touch console for Microsoft Teams Rooms on Windows, powered by an Intel Core i5-1240P with 16 GB DDR4 and 256 GB storage.
XC25T Mini-PC
Running Windows 11 IoT Enterprise SAC with Intel UHD Graphics, the XC25T measures just 196 x 196 x 40 mm and weighs 1.12 kg.
TCP30T 11.6-inch Touch Console
The 11.6-inch Full HD (1920 x 1080) capacitive touch console runs at 60 Hz with 300 cd/m² typical brightness, and offers USB-C content sharing, two USB-A 2.0 ports, two RJ45 ports and a headphone output.
Build the Room Your Way
MAXHUB's full XCore Kit Pro room system pairs this compute kit with the UC P30 PTZ camera and UC BM45 speakerphone — both available separately.
Need help choosing? Email sales@sourceit.com.sg with your room size, platform and quantity and we will recommend the right configuration.
MAXHUB XCore Kit Pro Datasheet — Technical Specifications
General
| Product Name | MAXHUB XCore Kit Pro for Microsoft Teams Rooms |
| Part Number | XCore Kit Pro (standalone: XC25T + TCP30T) |
| Kit Contents | XC25T Mini-PC x 1, TCP30T Touch Console x 1 |
| Local Warranty (Singapore) | 3 years, supplied by SourceIT with a GST invoice |
XC25T Mini-PC
| Processor | Intel Core i5-1240P |
| Graphics | Intel UHD Graphics for 12th Gen Intel Processors |
| Memory | 16 GB DDR4 |
| Storage | 256 GB |
| Operating System | Windows 11 IoT Enterprise SAC |
| Dimensions | 196 x 196 x 40 mm |
| Weight | 1.12 kg |
TCP30T Touch Console
| Display | 11.6-inch |
| Resolution | 1920 x 1080 |
| Touch | Capacitive |
| Refresh Rate | 60 Hz |
| Brightness | Min. 250 cd/m², typ. 300 cd/m² |
| Ports | 1 x USB-C (content sharing), 2 x USB-A 2.0, 2 x RJ45, 1 x audio out (headphone, without mic) |
Power & Physical
| Power | 19.5 V 6.15 A, 120 W |
| Operating Temperature | 0–40 °C |
| Operating Humidity | 10–90% RH |
Compatibility & Software Support
Conferencing Platform
Microsoft Teams Rooms on Windows, running Windows 11 IoT Enterprise SAC on the XC25T mini-PC.
Cameras & Audio
MAXHUB pairs the XCore Kit Pro with the UC P30 PTZ camera and UC BM45 speakerphone; the XBar U50 USB videobar is an all-in-one alternative.
Content Sharing
USB-C content sharing from the TCP30T touch console.
Package Contents & XCore Kit Ordering Information
In the Box
This listing is the XCore Kit Pro compute kit: XC25T mini-PC and TCP30T touch console. The UC P30 camera and UC BM45 speakerphone shown in MAXHUB's full room system are sold separately. Email us to confirm cables and brackets for your installation.
MAXHUB XCore Kits
| Model | Mini-PC | Touch console |
| XCore Kit | XC13T, 12th Gen Intel i3 | TCP20T 10.1" |
| XCore Kit Pro (this listing) | XC25T, Intel Core i5-1240P | TCP30T 11.6" |
Pair with a MAXHUB camera and audio device: XBar U50 USB videobar, UC P30 PTZ camera or UC BM45 speakerphone.
Datasheet & Downloads
| MAXHUB XCore Kit Pro datasheet | XCore Kit Pro Datasheet V1.2 (PDF) |
| MAXHUB product page | XCore Kit Pro on maxhub.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting XCore Kit Pro.
Frequently Asked Questions — MAXHUB XCore Kit Pro
Are the camera and speakerphone included?
No. This listing is the XC25T mini-PC and TCP30T touch console. Add the UC P30 and UC BM45, or another USB camera and audio device.
XCore Kit or XCore Kit Pro?
The XCore Kit uses a 12th Gen Intel i3 with a 10.1-inch panel; the Pro steps up to an Intel Core i5-1240P, 16 GB DDR4, 256 GB storage and an 11.6-inch console.
Which operating system does it run?
Windows 11 IoT Enterprise SAC for Microsoft Teams Rooms on Windows.
How is content shared?
Through the USB-C content-sharing port on the TCP30T console.
What warranty do I get?
3 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
