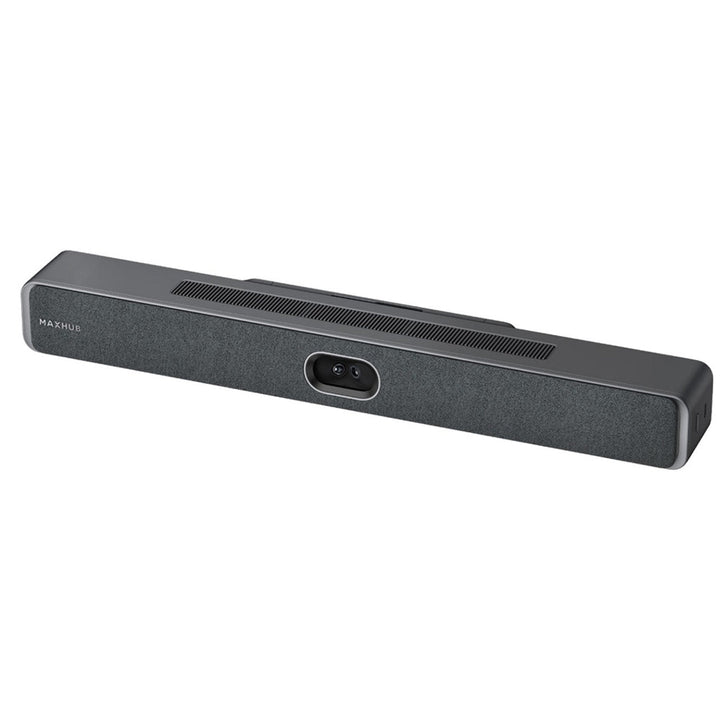

MAXHUB XBar U50 100MP USB Videobar
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
MAXHUB XBar U50 100MP Dual-Lens Plug-and-Play USB Videobar for Microsoft Teams Rooms and BYOD Meetings (XBar U50) - 3 Years Local Warranty
Plug-and-Play USB Videobar for Small and Medium Rooms
The MAXHUB XBar U50 brings a 100MP dual-lens camera system, a 12-microphone array and dual 15 W speakers together in one bar that connects to the room PC or a laptop with a single USB cable. MAXHUB positions it as a plug-and-play Teams USB videobar for small and medium meeting rooms and bring-your-own-device (BYOD) spaces.
Two 50MP Cameras with a 125° Field of View
Two 50MP cameras with 1/1.55-inch sensors cover a 130° diagonal / 125° horizontal field of view with 6x digital zoom and up to 3840 x 2160 output over USB 3.0. AI auto framing, speaker tracking, intelligent focus, smart gathering and video fence keep the right people in shot.
12-Mic Array with 8 m Pick-up
The 12-microphone beamforming array picks up voices up to 8 m away, with noise reduction, echo cancellation, anti-reverberation, AGC and full-duplex audio. Two expansion microphones can be added for larger tables.
Dual 15 W Speakers and Flexible Mounting
Two 15 W speakers (97 dB SPL) deliver clear far-end audio. The bar weighs 2.68 kg and mounts on a wall, desk or display using the included mounting components.
Need help choosing? Email sales@sourceit.com.sg with your room size, platform and quantity and we will recommend the right configuration.
MAXHUB XBar U50 Datasheet — Technical Specifications
General
| Product Name | MAXHUB XBar U50 |
| Part Number | XBar U50 |
| Series | MAXHUB XBar Series |
| Connection | USB 3.0 Type-B (plug-and-play) |
| Local Warranty (Singapore) | 3 years, supplied by SourceIT with a GST invoice |
Camera
| Cameras | 2 x 50MP |
| Sensor | 1/1.55 inch |
| Aperture | F/2.4 |
| Field of View | 130° (D), 125° (H), 50° (V) |
| Zoom | 6x digital |
| Output Resolution (USB 3.0) | 3840 x 2160, 2560 x 1440, 1920 x 1080, 1280 x 720 |
| AI Features | Auto framing, speaker tracking, intelligent focus, smart gathering, video fence |
Audio
| Microphones | 12-mic array |
| Pick-up Range | 8 m |
| Expansion | Supports 2 expansion microphones |
| Audio Processing | Noise reduction, echo cancellation, anti-reverberation, AEC, ANS, AGC, full-duplex |
| Speakers | 2 x 15 W |
| Sensitivity | 97 dB SPL @15 W, ±3 dB at 0.5 m |
Ports
| USB | 1 x USB 3.0 Type-B |
| Network | RJ45 |
| Power | DC in |
Power & Physical
| Power Input | DC 19 V (power adapter included) |
| Power Consumption | 85 W max |
| Dimensions | 650.8 x 76.6 x 95.7 mm |
| Weight | 2.68 kg |
| Package Dimensions | 750 x 136 x 246 mm |
| Package Weight | 5.4 kg |
| Operating Temperature | 0–40 °C |
| Operating Humidity | 10–90% RH |
Compatibility & Software Support
Conferencing Platforms
The XBar U50 is a USB videobar: it appears as a camera, microphone and speaker to the connected room PC or laptop, so it works with Microsoft Teams, Zoom and other conferencing applications running on that computer. MAXHUB lists it as Microsoft Teams Rooms certified.
Room PC Pairing
For a dedicated Teams Rooms on Windows room, pair it with the MAXHUB XCore Kit compute and touch-panel kit.
Want a Self-Contained Bar?
If you prefer a videobar with its own built-in platform, see the Android XBar V50 Kit / XBar V70 Kit or the Windows XBar W70 Kit.
Package Contents & XBar Series Ordering Information
In the Box
Power adapter, AC cable (1.5 m), USB B-A cable (3 m), remote control, mounting components (ADA standard) and a positioning card, per MAXHUB's XBar U50 datasheet.
MAXHUB XBar Series Models
| Model | Platform | Room size |
| XBar U50 (this listing) | USB (BYOD) | Small / medium rooms |
| XBar V50 Kit | Android (MDEP) + AP30 panel | Small / medium rooms |
| XBar V70 Kit | Android (MDEP) + AP30 panel | Medium / large rooms |
| XBar W70 Kit | Windows (MTRoW) + TCP31T console | Medium / large rooms |
Datasheet & Downloads
| MAXHUB XBar U50 datasheet | XBar U50 Datasheet V1.4 (PDF) |
| XBar series brochure | MAXHUB XBar Series Brochure (PDF) |
| MAXHUB product page | XBar U50 on maxhub.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting XBar U50.
Frequently Asked Questions — MAXHUB XBar U50
Does it need a computer?
Yes. The XBar U50 is a USB videobar, so it connects to a room PC or laptop over USB 3.0 and works with the conferencing software on that computer.
How big a room does it cover?
MAXHUB positions the U50 for small and medium rooms; its 12-mic array picks up voices up to 8 m away and the cameras cover a 125° horizontal field of view.
Can I add extra microphones?
Yes, MAXHUB's datasheet states it supports 2 expansion microphones.
How is it mounted?
Mounting components are included in the box for wall, desk or display mounting.
What warranty do I get?
3 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
