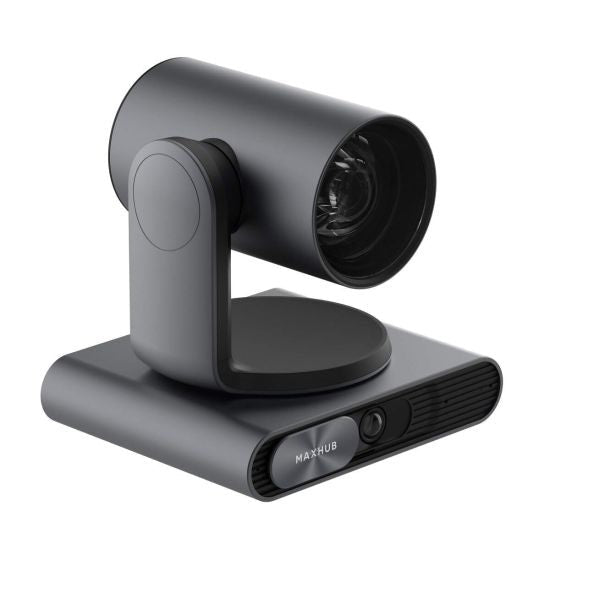

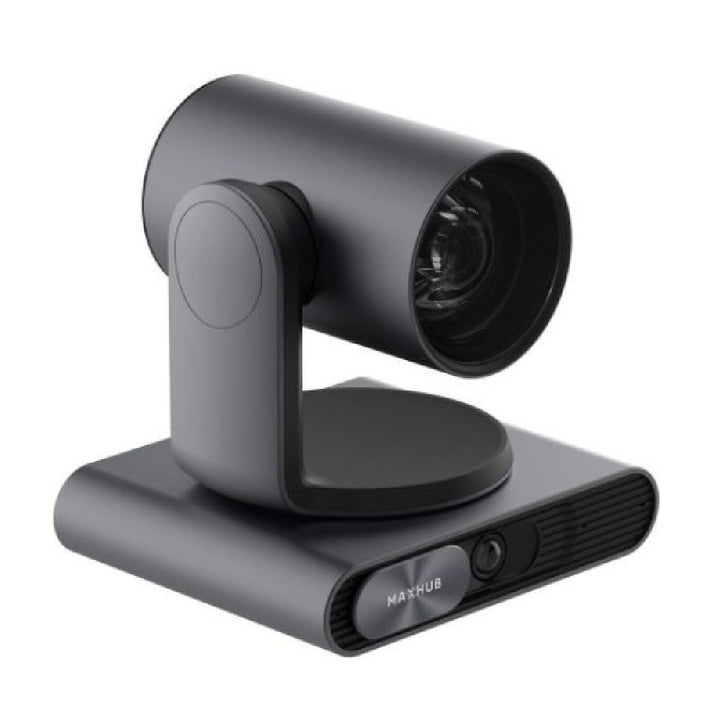

MAXHUB UC P30 4K Dual-Camera PTZ Conference Camera
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
MAXHUB UC P30 4K Intelligent Dual-Camera PTZ Conference Camera with 12x Optical Zoom and AI Speaker Tracking (UC P30) - Local Warranty
4K Intelligent Dual-Eye Camera for Medium to Large Rooms
The MAXHUB UC P30 pairs an 8MP Sony panoramic camera (120° DFOV) with a Sony 4K PTZ camera, so it can see the whole room and zoom in on whoever is speaking — designed for medium to large meeting spaces.
12x Optical Zoom with F1.8 Optics
The PTZ camera uses a 1/1.8" 8.42MP Sony sensor with an F1.8 aperture, 12x optical and 16x digital zoom, and pans ±170° / tilts ±90° for precise framing from the back of the room.
AI Framing and Tracking
Auto framing, speaker tracking, presenter tracking and intelligent focus keep the right person on screen automatically, with up to 10 presets via the IR remote or 128 via RS232.
Flexible Outputs for Any Room
Output over USB 3.0 Type-C, HDMI 1.4 or IP stream (H.264/MJPEG up to 2160p@30fps), with RS232 VISCA/Pelco-D/Pelco-P control and PoE+ power. Manage it remotely with MAXHUB Pivot or from MAXHUB Microsoft Teams Rooms room control.
Need help choosing? Email sales@sourceit.com.sg with your room size, platform and quantity and we will recommend the right configuration.
MAXHUB UC P30 Datasheet — Technical Specifications
General
| Product Name | MAXHUB UC P30 4K PTZ Camera |
| Part Number | UC P30 |
| Series | MAXHUB UC Series |
| Local Warranty (Singapore) | Local warranty, supplied by SourceIT with a GST invoice |
Camera
| Panoramic Camera | 8MP, Sony sensor, 120° DFOV |
| PTZ Camera | Sony 4K, 1/1.8", 8.42M pixel |
| Aperture | F1.8 |
| Zoom | 12x optical, 16x digital |
| PTZ FOV | DFOV 90° / HFOV 80° / VFOV 49.2° |
| Pan / Tilt | Pan ±170°, tilt ±90° |
| Presets | 10 via IR remote, 128 via RS232 |
| AI Features | Auto framing, speaker tracking, presenter tracking, intelligent focus |
Video Output
| USB 3.0 | H.264/MJPEG up to 2160p@30fps |
| USB 2.0 | H.264/MJPEG up to 1080p@30fps |
| HDMI | H.264/MJPEG up to 2160@30fps |
| IP (first stream) | H.264/MJPEG up to 2160p@30fps |
Ports
| USB | USB 3.0 Type-C (device), USB 2.0 Type-A (host) |
| Network | RJ45 (IP stream, PoE+) |
| Control | RS232 (VISCA / Pelco-D / Pelco-P) |
| Video | HDMI 1.4 out |
| Audio | Mic in (3.5 mm) |
Power & Physical
| Power | DC in 12 V, 2 A / PoE+ in (max 25 W) |
| Power Consumption | ≤ 22 W |
| Dimensions | 181 x 151.5 x 178.4 mm |
| Net Weight | 2.3 kg |
Compatibility & Software Support
Conferencing Platforms
USB camera for the conferencing application on your room PC; MAXHUB states compatibility with Microsoft Teams Rooms and Zoom and room control on MAXHUB Microsoft Teams Rooms products.
Control & Management
IR remote, RS232 (VISCA / Pelco-D / Pelco-P), IP streaming, and remote management via MAXHUB Pivot.
Room Kits
The UC P30 is the camera in MAXHUB's XCore Kit Pro for Microsoft Teams Rooms.
Package Contents & UC Series Ordering Information
In the Box
UC P30, USB C-A cable (5 m), power adapter, mounting kits, quick start guide and remote control, per MAXHUB's UC P30 datasheet.
MAXHUB UC Series Models
| Model | Type |
| UC BM45 | PoE conference speakerphone (8 mics, daisy-chain up to 6) |
| UC BM35 | Bluetooth / USB-C speakerphone (8 mics, battery) |
| UC P30 (this listing) | 4K dual-camera PTZ, 12x optical zoom |
| UC P15 | Full HD PTZ, 12x optical zoom |
| UC S15 | 4K video bar with wireless BYOD |
| UC S07 | 4K USB video bar |
| UC W31 | 4K USB webcam |
Datasheet & Downloads
| MAXHUB UC P30 datasheet | UC P30 Datasheet V2.3 (PDF) |
| MAXHUB UC P30 brochure | UC P30 Brochure (PDF) |
| MAXHUB product page | UC P30 on maxhub.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting UC P30.
Frequently Asked Questions — MAXHUB UC P30
Why two cameras?
The 8MP panoramic camera sees the whole room while the 4K PTZ camera zooms in on the active speaker or presenter, enabling AI speaker and presenter tracking.
How far can it zoom?
12x optical zoom plus 16x digital zoom on the 4K PTZ camera.
Can it be powered by PoE?
Yes — PoE+ (max 25 W) on the RJ45 port, or the included 12 V DC adapter.
Which outputs does it have?
USB 3.0 Type-C, HDMI 1.4 out and an IP stream over RJ45, plus RS232 control and a 3.5 mm mic input.
What warranty do I get?
Local warranty in Singapore, supplied by SourceIT with a GST invoice. Contact us for the warranty terms.
